ZE500G/ZE550G Large Excavator

ZE500G/ZE550G Large Excavator

Designed for heavy earth excavation, quarrying and loading sand, gravel and other construction materials, ZOOMLION's large crawler excavators are powered by 277 kW Cummins engines. The two excavators have operating weights of 51,000 kg and 53,500 kg, with bucket capacity ranges of 2.65–3.3 m³ and 2.85–3.6 m³, respectively.

Different working conditions call for different attachments. Rock buckets are used for rock excavation, reinforced buckets provide additional structural strength for demanding digging tasks, and earthwork buckets serve general soil excavation. Hydraulic breakers perform breaking operations where bucket excavation alone is unsuitable.

  • Engine rated power: 277 kW at 2,100 rpm
  • Operating weight: 51,000/53,500 kg
  • Bucket capacity: 2.65–3.3/2.85–3.6 m³
Request A Quote
Features
  • Cummins engine with high-pressure common rail technology
    The six-cylinder Cummins engine has an 11.8 L displacement and uses high-pressure common rail fuel injection technology. A new electronic control system optimizes engine performance to improve fuel economy.
  • High-efficiency air filtration system
    A high-efficiency air filter with a large dust-holding capacity works with an oil-bath air pre-cleaner to protect the engine against airborne contaminants. An additional cyclone-type air pre-cleaner can be installed to further improve impurity separation in heavily dust-laden working environments.
  • Three-stage fuel filtration and cooling
    A three-stage fuel filtration system removes contaminants from the fuel, while a fuel cooler helps regulate fuel temperature. By maintaining cleaner fuel and more controlled fuel temperatures, these measures are designed to support engine operating conditions, extend service life and reduce fuel consumption.
  • Reinforced boom and arm cross-sections
    The boom and arm on these ZOOMLION large excavators use larger cross-sectional designs, with their total cross-sectional areas increased by 9% and 6%, respectively. The enlarged sections provide greater capacity to withstand structural stresses during demanding excavation and loading operations.
  • Strengthened working equipment
    The front and rear mounting supports of the boom and arm use integrally cast steel components to reduce the risk of weld cracking. The boom also incorporates a one-piece, 25 mm-thick lower cover plate to increase structural strength during heavy-duty operation.
Technical Parameters
Model ZE500G ZE550G
Engine Brand Cummins Cummins
Model X12S3A375 X12S3A375
Rated power 277 kW / 2100 rpm 277 kW / 2100 rpm
Displacement 11.8 L 11.8 L
Hydraulic System Main pump 2 × 384 L/min 2 × 384 L/min
Pilot pump 24 L/min 24 L/min
Max. pressure - equipment 34.3 MPa 34.3 MPa
Max. pressure - swing 28.4 MPa 28.4 MPa
Max. pressure - travel 34.3 MPa 34.3 MPa
Max. pressure - pilot system 3.9 MPa 3.9 MPa
Max. pressure - boost 37.3 MPa 37.3 MPa
Undercarriage Number of carrier rollers (each side) 2 (replaced by track roller) 2 (replaced by track roller)
Number of track rollers (each side) 9 9
Sprocket (each side) 1 1
Idler (each side) 1 1
Travel speed (high) 5.2 km/h 5.2 km/h
Travel speed (low) 3.1 km/h 3.1 km/h
Max. drawbar pull 443 kN 443 kN
Gradeability 70% 70%
Swing Mechanism Swing speed 9.6 r/min 8.4 r/min
Swing torque 154 kN·m 183 kN·m
Work Equipment Boom length 6500 mm 6500 mm
Arm length 3000 mm 3000 mm
Bucket Capacity Standard 2.65 m³ (rock bucket) 3.2 m³ (rock bucket)
Optional 1 3.1 m³ (reinforced bucket) 3.6 m³ (reinforced bucket)
Optional 2 3.3 m³ (earthwork bucket) 2.85 m³ (rock bucket)
Service Refill Capacities Fuel tank 820 L 820 L
Engine coolant 55 L 55 L
Engine oil 44 L 44 L
Swing device 2 × 5.3 L 2 × 5.3 L
Final drive 2 × 15 L 2 × 15 L
Hydraulic system 550 L 550 L
Hydraulic tank 310 L 310 L

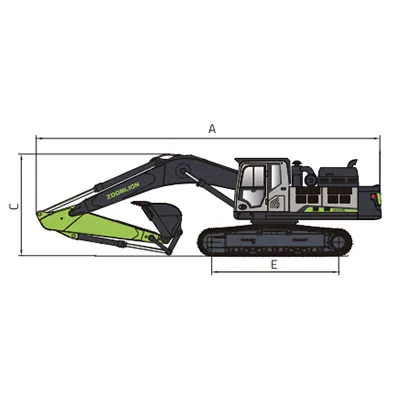

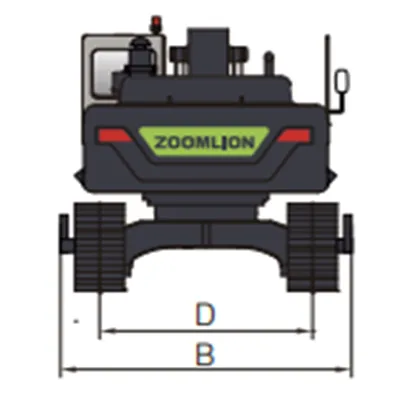

Overall Dimensions A Overall length 11790 mm 11790 mm
B Overall width 3610 mm 3610 mm
C Overall height 3990 mm 3990 mm
D Track gauge 2750 mm 2750 mm
E Crawler base 4400 mm 4400 mm

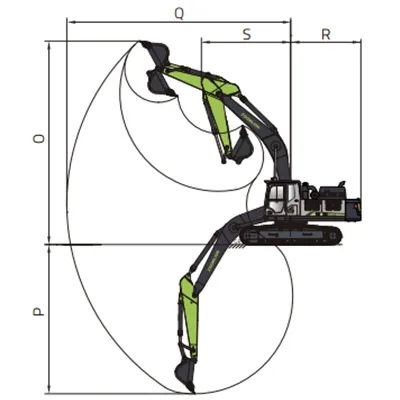

Working Range O Max. digging height 9686 mm 9686 mm
P Max. digging depth 6945 mm 6945 mm
Q Max. digging reach 10982 mm 10982 mm
R Tail swing radius 3887 mm 3887 mm
S Min. front swing radius 4636 mm 4636 mm
ZE500G/ZE550G Large Excavator
ZE500G/ZE550G Large Excavator
ZE500G/ZE550G Large Excavator
