ZOOMLION
ZE1250G Large Excavator

ZE1250G Large Excavator

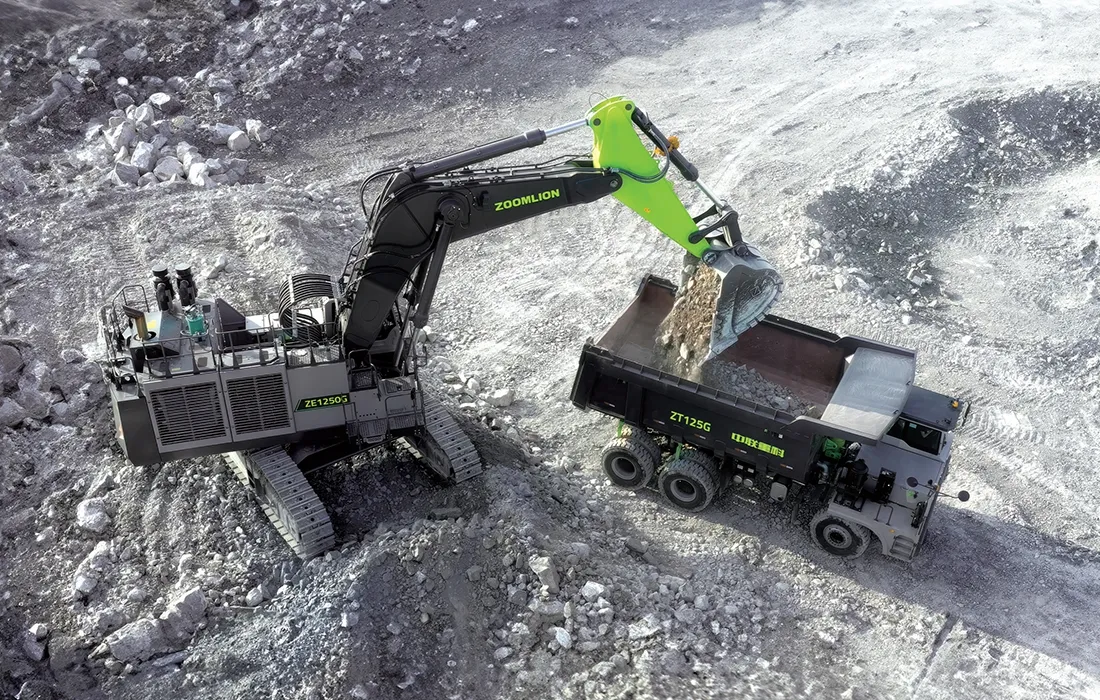

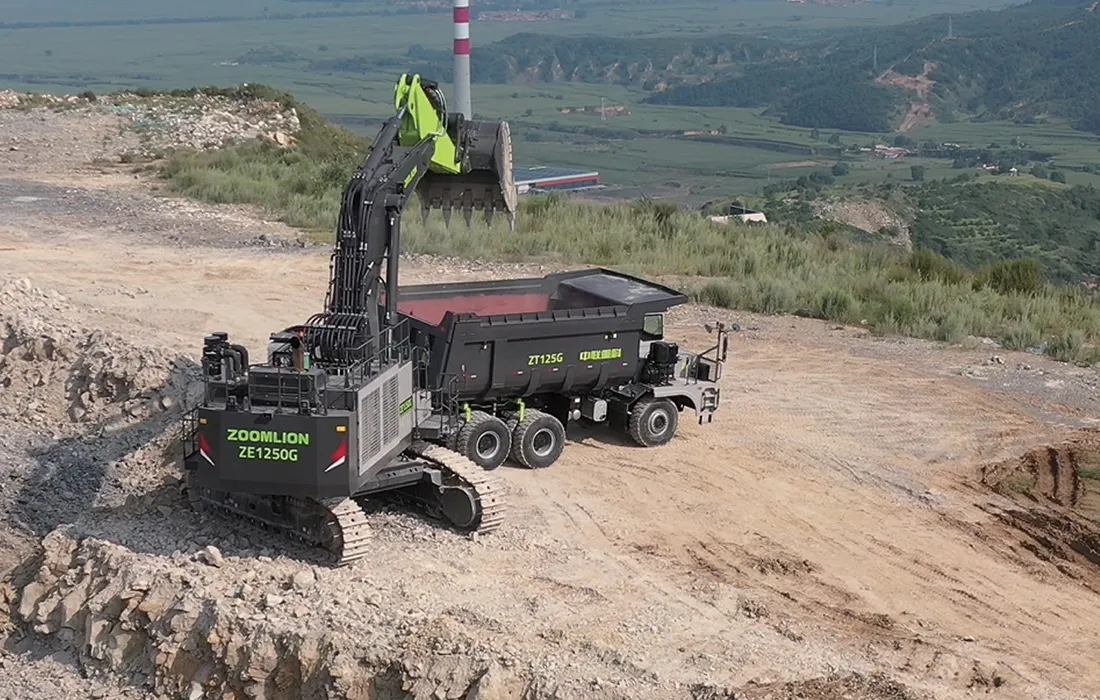

Built for overburden stripping and material loading in medium-to-large open-pit mines and major foundation projects, the ZOOMLION 125-ton-class crawler excavator is heavy earthmoving equipment with an operating weight of 116,000 kg and a 567 kW Cummins engine. A standard 8 m³ reinforced bucket and an optional 7.1 m³ rock bucket provide configurations for handling soil, weathered rock, gravel and materials encountered during coal mine stripping. To meet the demands of continuous excavation and high-intensity loading, the mining excavator incorporates reinforced powertrain, hydraulic and undercarriage structures. Working alongside large mining dump trucks, the excavator transfers material from the excavation area to haulage vehicles for removal.

  • Engine rated power: 567 kW at 1,800 rpm
  • Operating weight: 116,000 kg
  • Bucket capacity: 7.1–8 m³
Request A Quote
Features
  • Customized Cummins engine
    The customized Cummins engine in these ZOOMLION mining excavators delivers 567 kW of power for demanding mining operations.
  • High torque reserve and stable power output
    Ample torque reserve and strong torque at low engine speeds enable faster response to changing operating loads. Stable power delivery and extended engine service life further support sustained operation under heavy-duty working conditions.
  • High-flow hydraulic pumps and swing drive
    Three variable displacement piston pumps deliver hydraulic flow of up to 532 L/min per pump. A large-displacement swing motor provides high swing torque, enabling rapid swing startup and fast upper-structure rotation during excavation and loading.
  • Optimized main and auxiliary control valves
    The hydraulic system combines a large-passage main control valve with an auxiliary valve. Optimized valve spool geometry reduces resistance to hydraulic oil flow through the valve passages, lowering oil circuit pressure losses by more than 12%.
Technical Parameters
Engine Brand Cummins
Model QSK23
Rated power 567 kW / 1800 rpm
Displacement 23.15 L
Hydraulic System Main pump Three variable displacement piston pumps
Max. flow: 3 × 532 L/min
Pilot pump One gear pump
Max. flow: 27 L/min
Max. pressure - equipment 35 MPa
Max. pressure - swing 28 MPa
Max. pressure - travel 35 MPa
Max. pressure - pilot system 3.9 MPa
Undercarriage Number of carrier rollers (each side) 3
Number of track rollers (each side) 8
Sprocket (each side) 1
Idler (each side) 1
Travel speed (high) 3.6 km/h
Travel speed (low) 2.5 km/h
Max. drawbar pull 748 kN
Gradeability 30°
Swing Mechanism Swing speed 5.5 r/min
Swing torque 368 kN·m
Work Equipment Boom length 7550 mm
Arm length 3400 mm
Bucket Capacity Standard 8 m³ (reinforced bucket)
Optional 7.1 m³ (rock bucket)
Service Refill Capacities Fuel tank 1480 L
Engine coolant 109 L
Engine oil 95 L
Swing device 2 × 12 L
Final drive 25.4 L
Hydraulic system 1850 L
Hydraulic tank 650 L

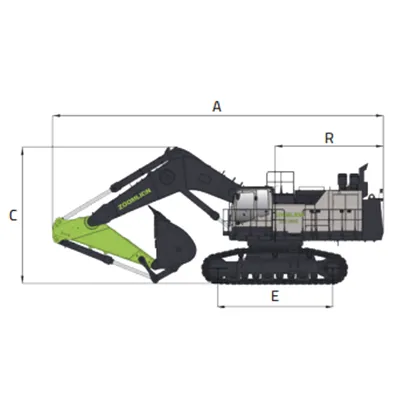

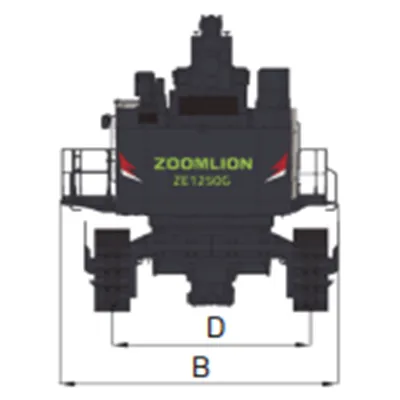

Overall Dimensions A Overall length 14630 mm
B Overall width 5480 mm
C Overall height 6180 mm
D Track gauge 3900 mm
E Crawler base 5090 mm

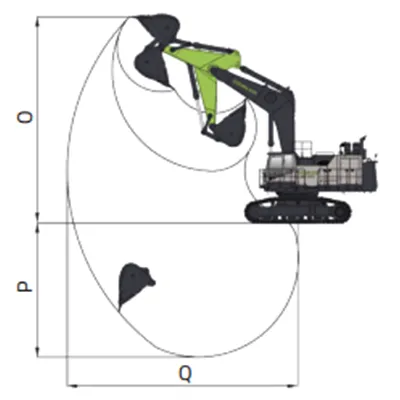

Working Range O Max. digging height 12510 mm
P Max. digging depth 8120 mm
Q Max. digging reach 13880 mm
R Tail turning radius 4860 mm
