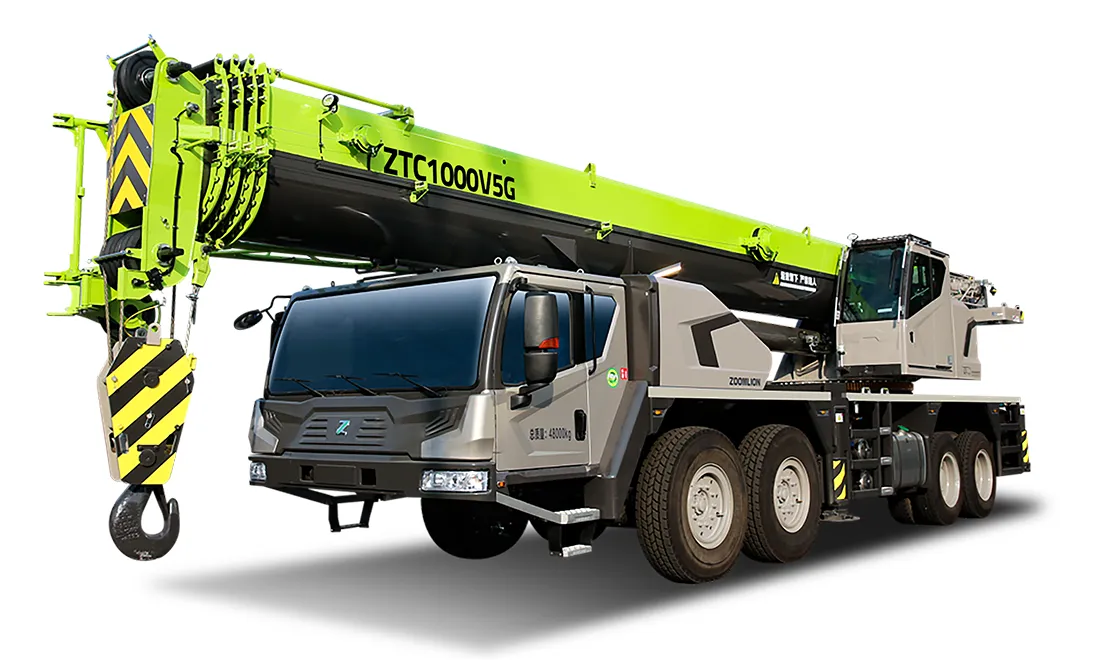

100t Truck Crane ZTC1000V532G

100t Truck Crane ZTC1000V532G

ZOOMLION 100-ton truck cranes are heavy lifting equipment with a four-axle heavy-duty chassis and a five-section boom. Their 380 hp engine helps them handle grades of up to 48%, and they can travel at speeds of up to 89 km/h when moving between job sites.

  • Rated lifting capacity: 100 t
  • Max. load moment with basic boom: 3450 kN·m
  • Max. lifting height with jib: 67.2 m
Request A Quote
Download Brochure
Typical Applications
  • Lifting of reactors, process towers, and elevated pipe supports at petrochemical plants
  • Erection of long-span steel beams and columns on large construction projects
  • Assembly and dismantling of heavy tower cranes
  • Replacement of heavy components on large mining equipment
  • Loading and transfer of oversized cargo, such as transformers and generator sets, at ports and power project sites
Features
  • Lifting Capacity and Reach
    Their five-section, 50 m U-shaped main boom has a large cross-section and can lift up to 14.5 t when fully extended. The 16 m lattice jib provides extra reach for higher lifts.
  • Easier Site Transfers
    Thanks to their wheeled chassis, ZOOMLION truck cranes can travel between jobsites with the full 21.5 t counterweight on board, so no auxiliary vehicle is needed to transport it. The counterweight stays in place during travel, which saves time on removal and reinstallation and reduces delays between jobs.
  • Stable Lifting Support
    The two-stage H-type outriggers extend 8.4 m from side to side and 6.71 m along the crane. The 21.5 t counterweight adds stability as the crane handles different loads at different working radii.
Technical Specifications
Item Unit Value
Max. Rated lifting capacity t 100
Max. lifting moment with basic boom kN·m 3450
Max. lifting moment of fully extended main boom kN·m 1862
Fully extended boom length m 50
Max. hoisting speed of single rope (main winch/auxiliary winch) m/min 130
Max. driving speed km/h 89
Deadweight in working condition kg 48000
Overall dimensions (L × W × H) mm 14800 × 3000 × 3910
Outrigger spread (L × W) m 6.71 × 8.4
Rated power/RPM kW/rpm 280/1900
Max. output torque/RPM N·m/rpm 1800/1100–1450
