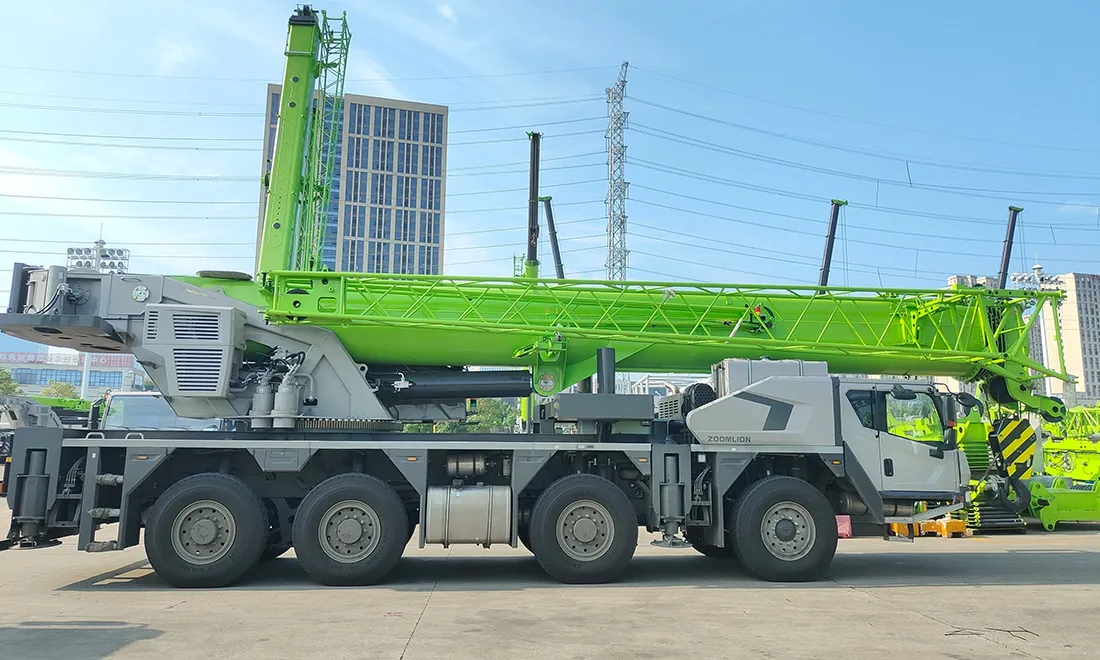

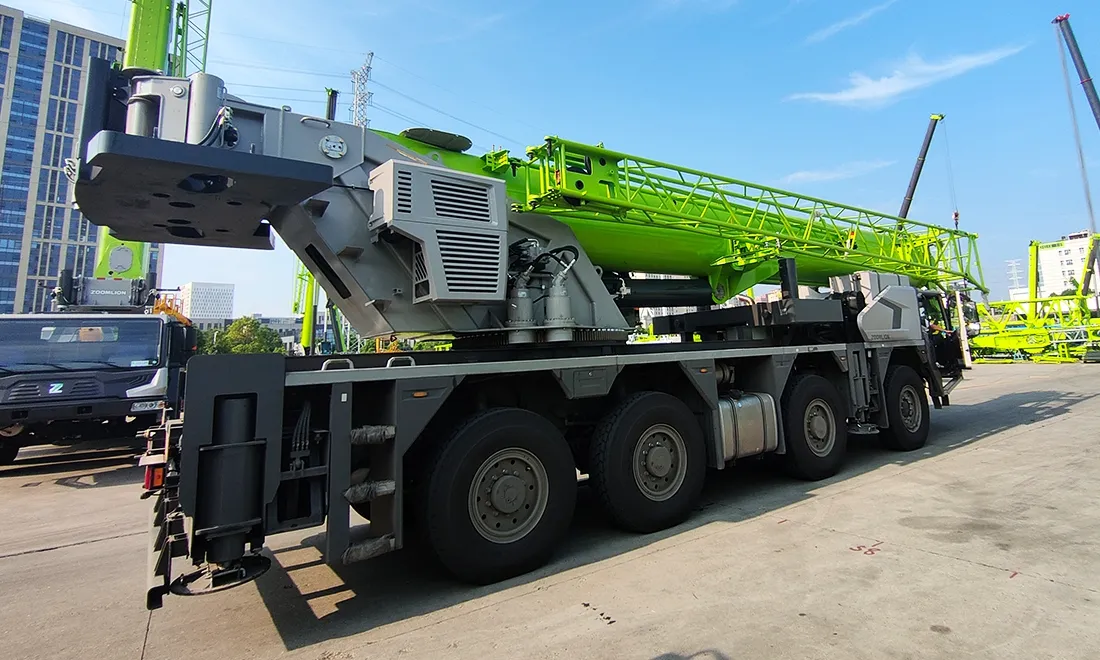

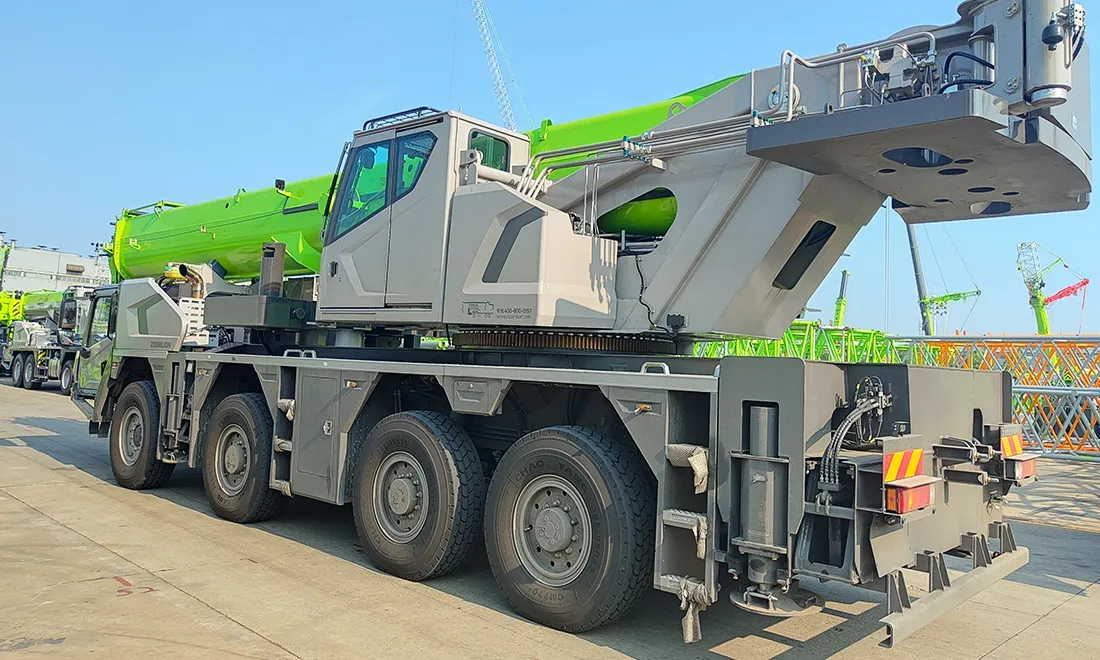

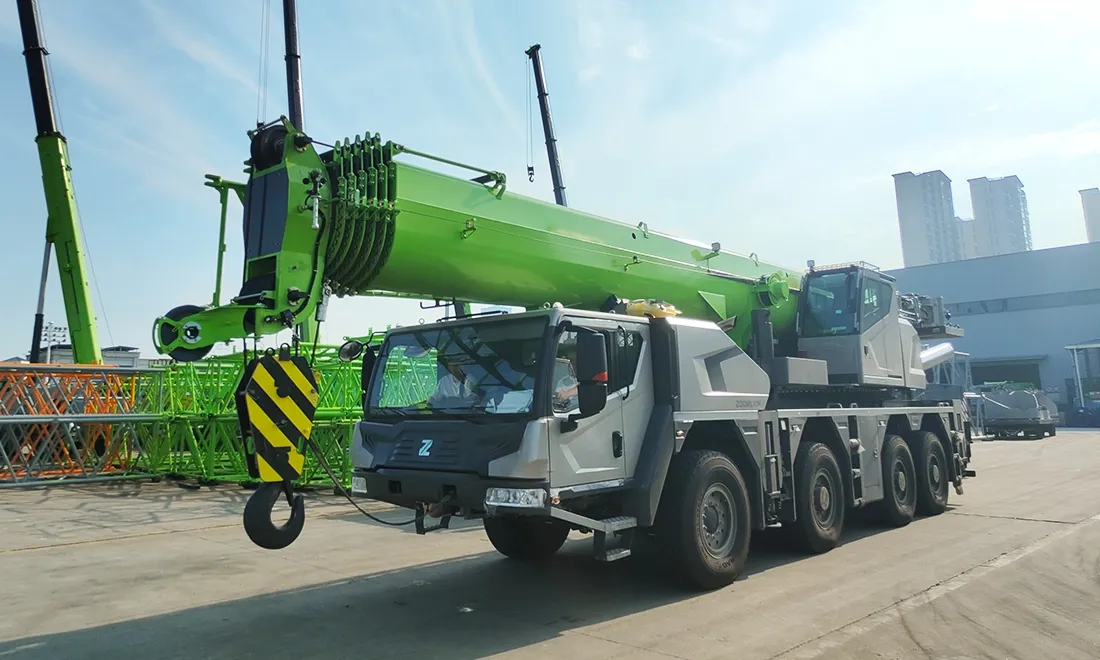

120t All-Terrain Crane ZAT1200V753

120t All-Terrain Crane ZAT1200V753

These compact, four-axle ZOOMLION all-terrain cranes have a rated lifting capacity of 120 t. Their long booms handle demanding lifts, while all-axle steering helps them maneuver through tight work areas and difficult roads. They can also travel between jobsites with the full counterweight on board.

  • Max. rated lifting capacity: 120 t
  • Max. load moment with basic boom: 3140 kN·m
  • Max. lifting height with jib: 84.6 m
Request A Quote
Download Brochure
Typical Applications
  • Steel structure lifting on high-rise urban construction projects
  • Assembly and disassembly of medium and large tower cranes
  • Equipment maintenance at chemical plants that have narrow access roads
  • Oil field projects involving heavy equipment installation and frequent moves between sites
Features
  • Long reach for demanding lifts
    The seven-section, 66 m main boom can lift up to 9.2 t when fully extended. The main boom and jib reach a maximum lifting height of 84.6 m while lifting 3.6 t. Maximum load moment is 3,140 kN·m with the basic boom and 1,811 kN·m with the main boom fully extended.
  • Maneuverability in tight areas
    The four-axle chassis has three driven axles, and all four axles can steer in six different modes. This helps the cranes maneuver through narrow work areas and on difficult roads.
  • Transfers with counterweight on board
    These mobile cranes can carry 19.3 t of counterweight between sites, so there is no need to remove it or transport it separately.
Technical Specifications
Item Unit Value
Max. Rated lifting capacity t 120
Max. lifting moment with basic boom kN·m 3140
Max. lifting moment of fully extended main boom kN·m 1811
Fully extended boom length m 66
Max. hoisting speed of single rope (main winch/auxiliary winch) m/min 125/110
Max. driving speed km/h 80
Deadweight in working condition kg 48000
Overall dimensions (L × W × H) mm 14380 × 2750 × 3950 (385/95R25)
14380 × 2750 × 4000 (445/95R25)
14380 × 2890 × 4000 (525/80R25)
Outrigger spread (L × W) m 7.52 × 6.9
Rated power/RPM kW/rpm 338/1900
Max. output torque/RPM N·m/rpm 2200/(1100–1500)
