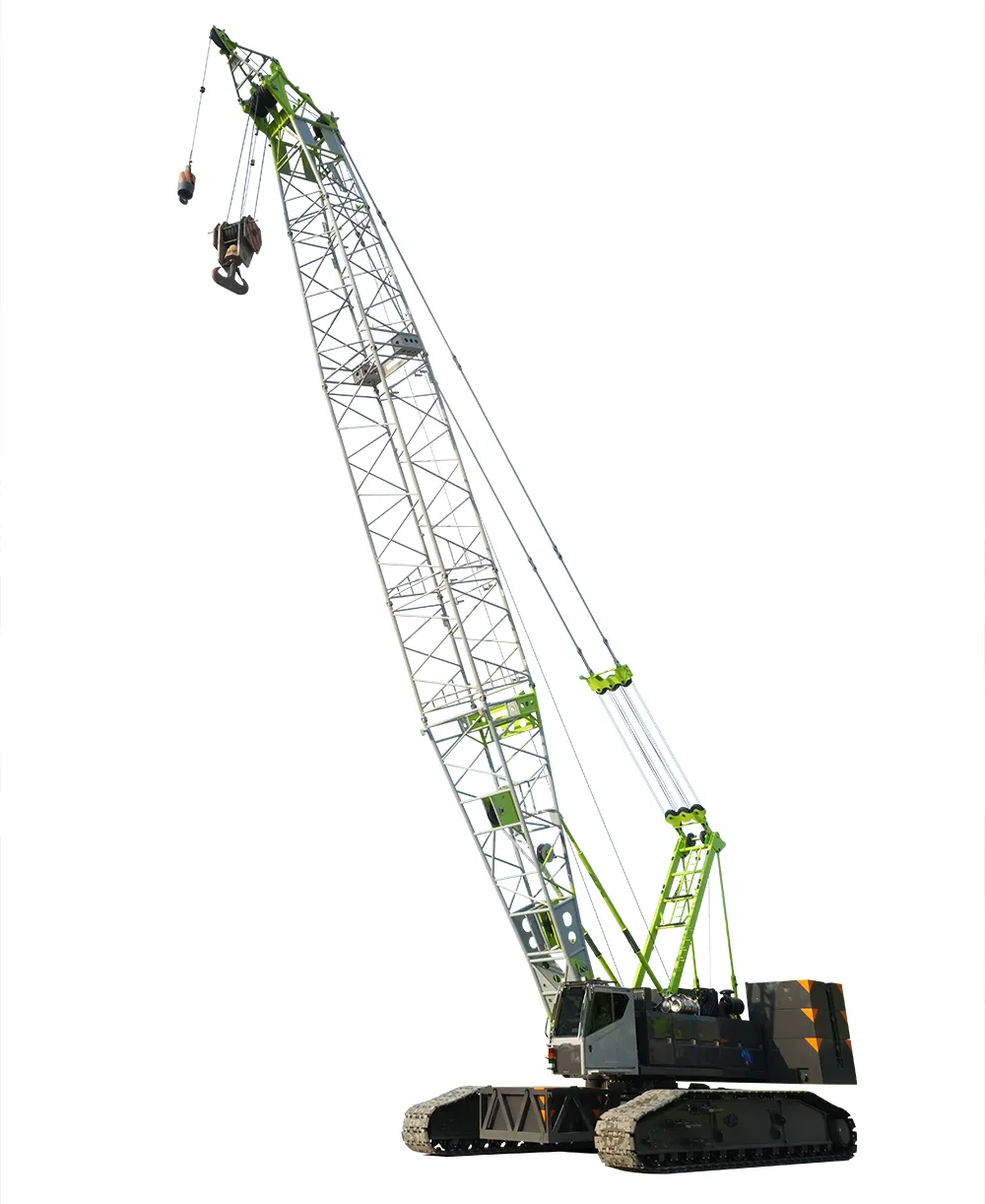

150t Crawler Crane ZCC1500V-1

150t Crawler Crane ZCC1500V-1

Our 150-ton crawler cranes handle heavy lifts in confined areas, from rebar cage installation and urban utility corridor construction to precast building projects. They can use different boom configurations, and operators can choose from four counterweight settings to match the lifting setup to the load and the ground conditions at the site.

  • Max. lifting capacity: 150 t
  • Max. load moment: 849.6 t·m
  • Gradeability: 30 %
Request A Quote
Download Brochure
Typical Applications
  • Steel structure lifting
  • Trestle and pile foundation construction
  • Auxiliary lifting for wind power projects
  • Rebar cage installation
  • Metro, municipal, road, and bridge construction
  • Heavy lifting for energy and chemical projects
  • Water conservancy and port construction
  • Industrial lifting for steel and metallurgy projects
Features
  • The 55 m main boom on these ZOOMLION crawler cranes can lift 53 t at a 12 m working radius for rebar cage and urban utility corridor projects. For precast building modules, the 52 m + 34 m tower jib configuration can lift 20.5 t at a 20 m radius.
  • The cranes measure 6.8 m wide in working condition and have a 6 m tail-swing radius, which helps them work in confined spaces. Operators can choose from four counterweight settings to match the ground’s load-bearing capacity.
  • To ensure easy transport, the boom sections stack in three layers, so the full crane setup needs one fewer flatbed truck than similar crawler crane models.
  • Tower and fixed booms use the same top, bottom, and standard sections, which reduces the number of different parts to transport, set up, and manage.
Technical Specifications
Item Unit Value
S OM Max. lifting moment t·m 849.6
Max. lifting capacity t 150
Main boom length m 16-76
SF OM Max. lifting capacity t 46.1
Jib length m 13-31
Longest main boom + jib m 52+31
SW-1 OM Max. lifting capacity t 46.8
Jib length m 25-46
Longest main boom + jib m 52+46
SW-2 OM (foldable luffing jib) Max. lifting capacity t 30
Jib length m 25-46
Longest main boom + jib m 52+46
Speed parameter Main hoisting winch m/min 0-130
Auxiliary hoisting winch m/min 0-120
Auxiliary hoisting winch (free-fall hook) m/min 0-90
Derricking winch m/min 0-68.3
Slewing speed r/min 0-1.23
Crawling speed km/h 0-1.9
Basic machine weight in transport With pivot section t 32.5
Basic machine dimension in transport L × W × H mm 16300 × 3000 × 3310
Engine Model / WP7G270E301
Rated power/rotational speed kW/rpm 199/2000
Emission standard / China III for non-road mobile machinery
Model / YCA07260-T300 (Optional)
Rated power/rotational speed kW/rpm 191/2200
Emission standard / China III for non-road mobile machinery
Track gauge × contact length of track × width of track pad mm 4600/2690 × 5820 × 800
Gradeability % 30
Ground pressure MPa 0.086
Deadweight of the whole crane t 149
Rear counterweight + Central counterweight t 32+11
