ZOOMLION

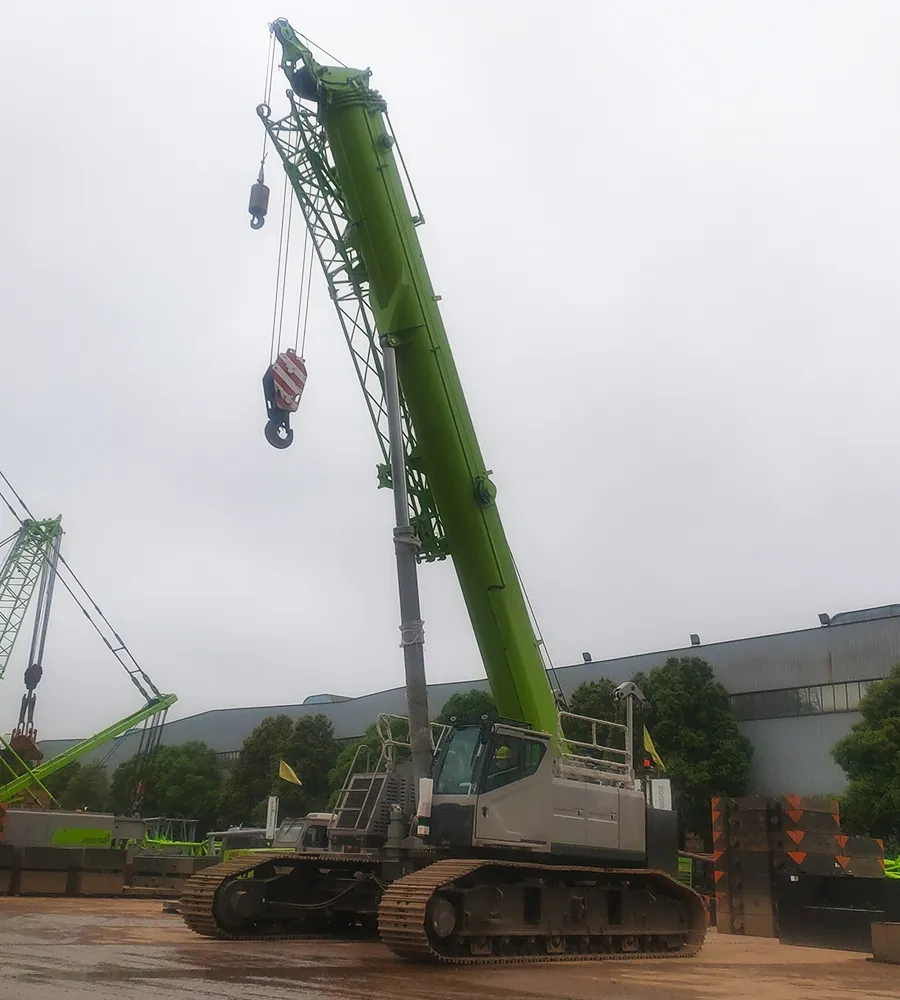

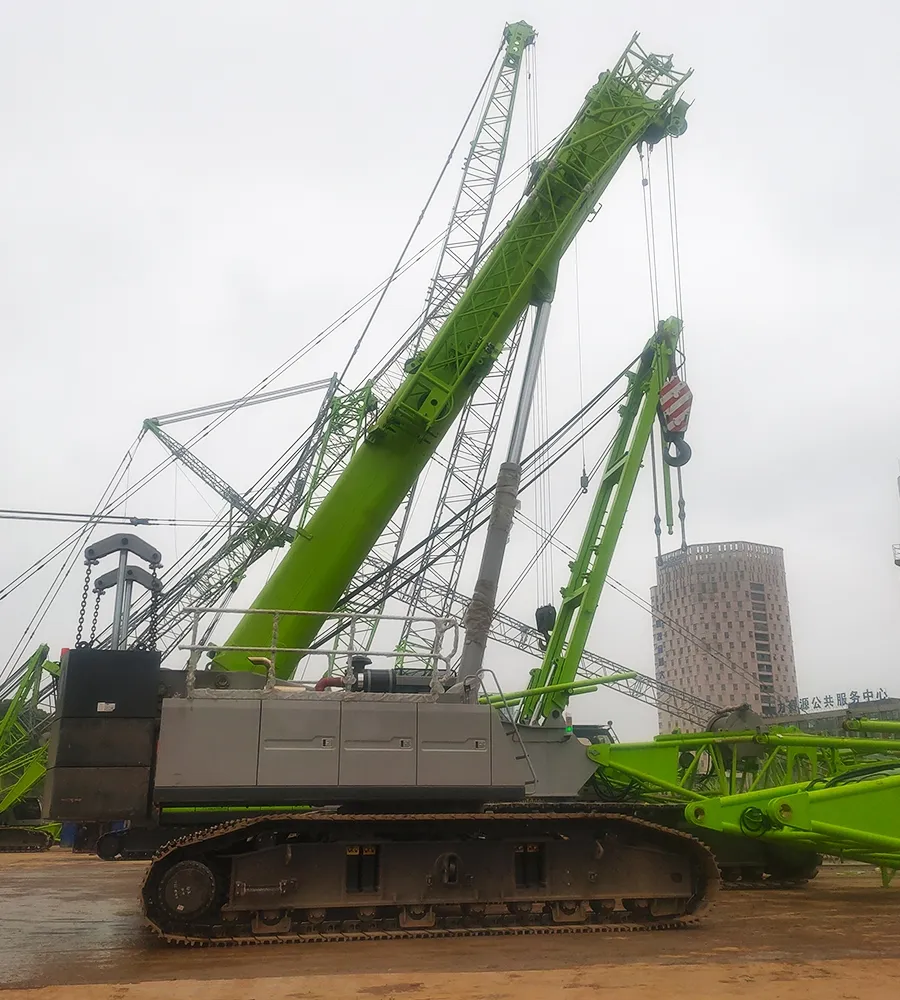

60t Telescopic Crawler Crane ZCT600V532

60t Telescopic Crawler Crane ZCT600V532

Our 60-ton telescopic crawler cranes have a 46 m main boom for lifting work on soft ground, slopes, and sites where the crane needs to travel with a load. The counterweight and crawler tracks have self-removal and installation features that simplify preparation for transport and assembly at the next site.

  • Max. lifting capacity: 60 t
  • Max. load moment: 225 t·m
  • Max. main boom length: 46 m
Request A Quote
Download Brochure
Typical Applications
  • Urban construction and industrial building projects
  • Power transmission tower installation
  • Railway and bridge construction
  • Oilfield construction
  • Lifting and installation of prefabricated building components
  • Lifting work in mountainous or hilly areas, on soft or muddy ground, and where travel with a load is required
Features
  • The main boom on these ZOOMLION telescopic crawler cranes can lift up to 11 tons at full extension, and the cranes have a maximum lifting moment of 225 t·m.
  • Standard triple-grouser track shoes have three raised ribs on each shoe to help grip the ground. For projects with different site requirements, our telescopic cranes can also have flat track shoes and vertical outriggers.
  • The cranes use a removable 20-ton counterweight without additional ballast on the chassis. Their self-assembly system installs and removes the counterweight, and optional vertical outriggers enable the same process for the crawler assemblies. Both components can therefore be removed for transport and fitted again at the next site using the crane’s own systems.
Technical Specifications
Item Unit Value
Max. Rated lifting capacity t 60
Max. lifting moment with basic boom t·m 225
Fully extended boom length m 46
Longest boom + jib m 46+12.8
Max. hoisting speed of single rope (main winch/auxiliary winch) m/min 135
Max. traveling speed km/h 2.2
Max. slewing speed rpm 2
Deadweight kg 64500
Main unit transport dimensions (L × W × H) mm 14050 × 3300 × 3225
Average ground pressure MPa 0.065
Rated power/RPM kW/rpm 154/2200
