ZM400H/G Casing Oscillator

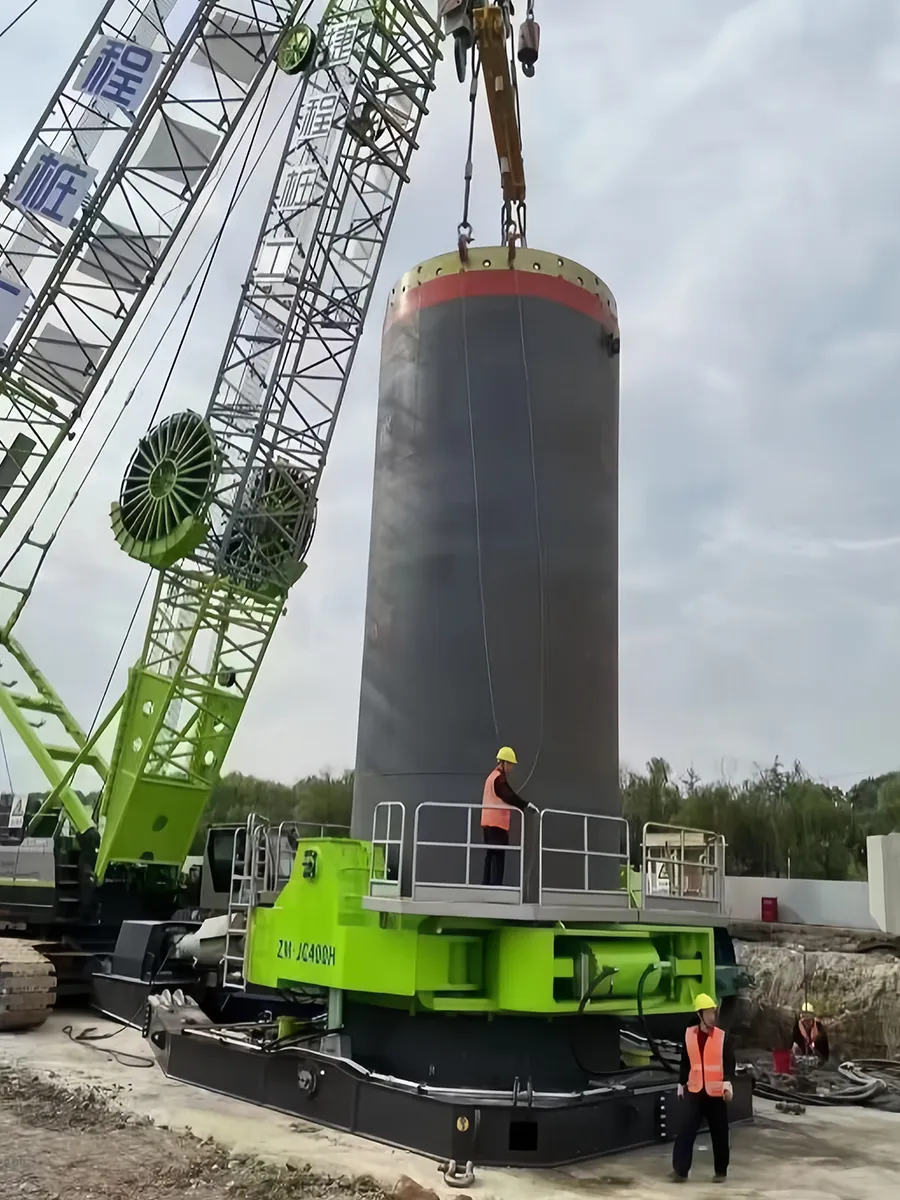

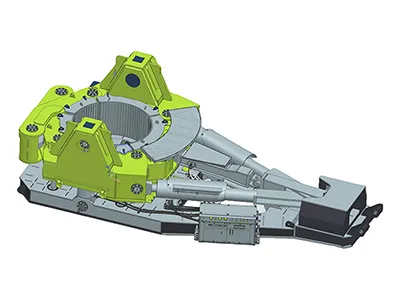

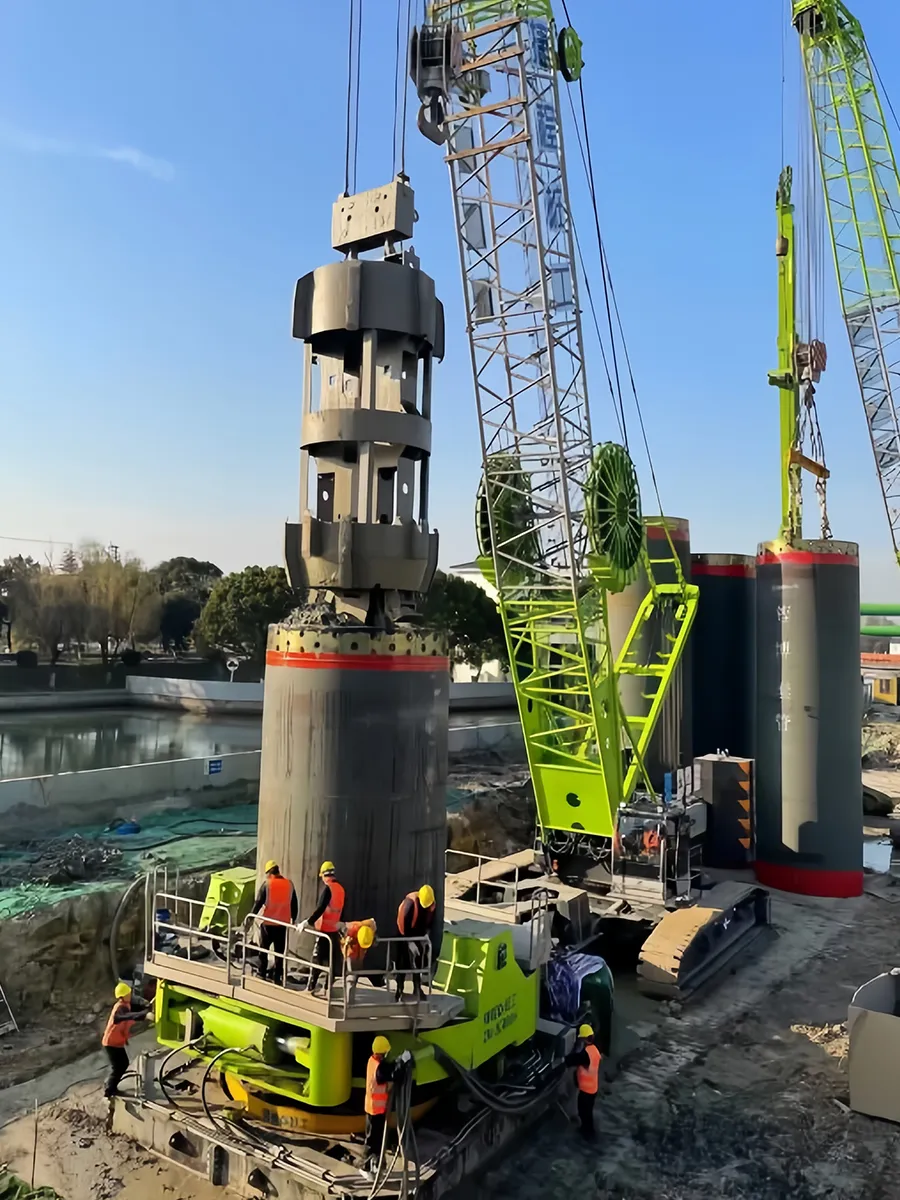

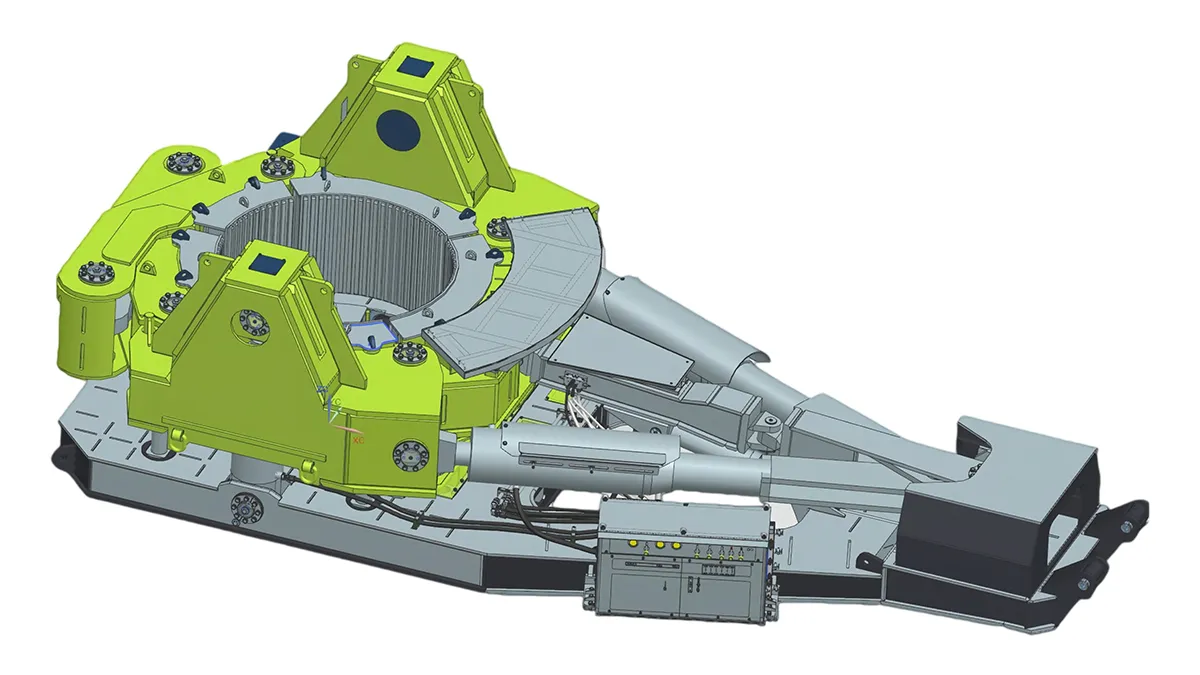

ZM400H/G Casing Oscillator

The ZOOMLION ZM400H/G takes full casing drilling into the 3,000–4,000 mm diameter range to meet the demands of extra-large pile foundations that conventional drilling rigs may struggle to handle. With a total weight of 100 metric tons, this heavy-duty foundation machine features a main clamping force of 6,700 kN and a secondary clamping force of 2,940 kN with enhanced stability during the clamping and rotation of oversized casings under heavy loads. The casing oscillator is well-suited to major infrastructure projects, including large bridge pier foundations and port terminals that require large pile foundation dimensions and high operational stability.

  • Drilling diameter: Ø3000-Ø4000 mm
  • Rotary torque: 28000 kN•m
  • Extraction force: 13300 kN
  • Push/pull stroke: 550 mm
Request A Quote
Technical Specifications
Model ZM400H/G
Drilling diameter mm Ø3000-Ø4000
Rotary torque kN·m 28000
Rotation angle ° 24
Main clamping force kN 6700
Extraction force kN 13300
Push/pull stroke mm 550
Auxiliary clamping force kN 2940
Working pressure MPa 30
Machine weight t 100
Control method / Wireless remote control

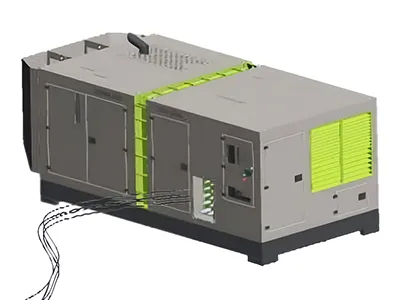

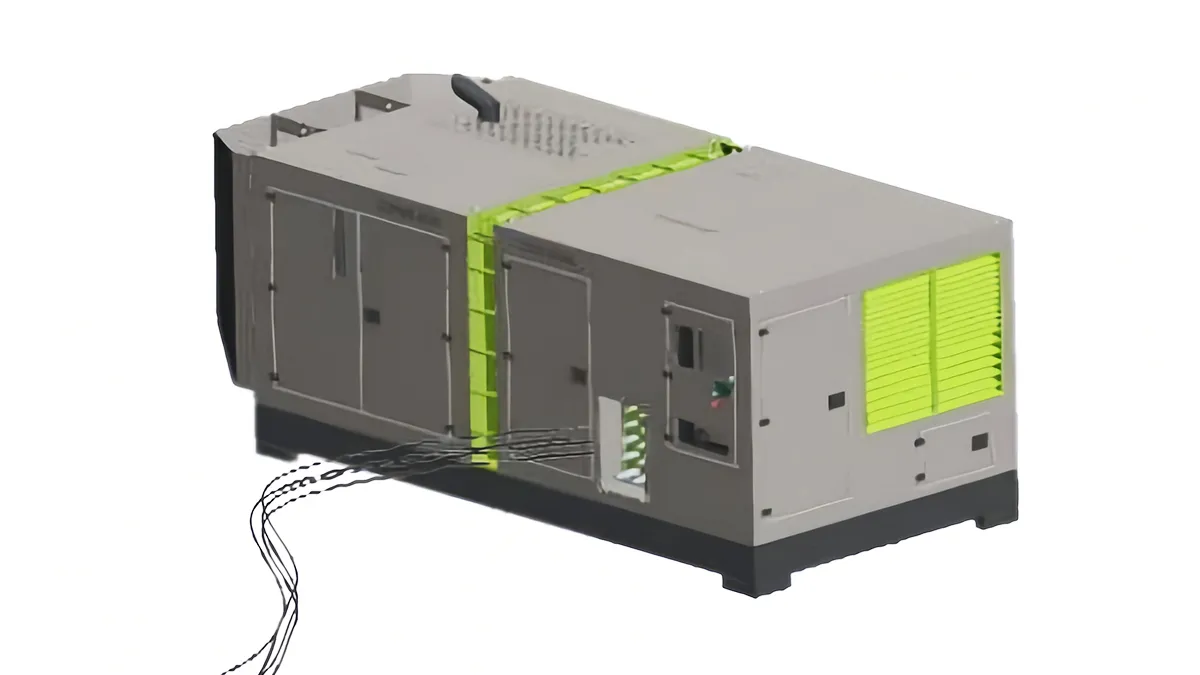

Power pack kW 447kW

H/G series features a long configuration compatible with crawler crane operations. H-series models are equipped with engines meeting China Stage III emissions standards, while G-series models meet China Stage IV emissions standards.

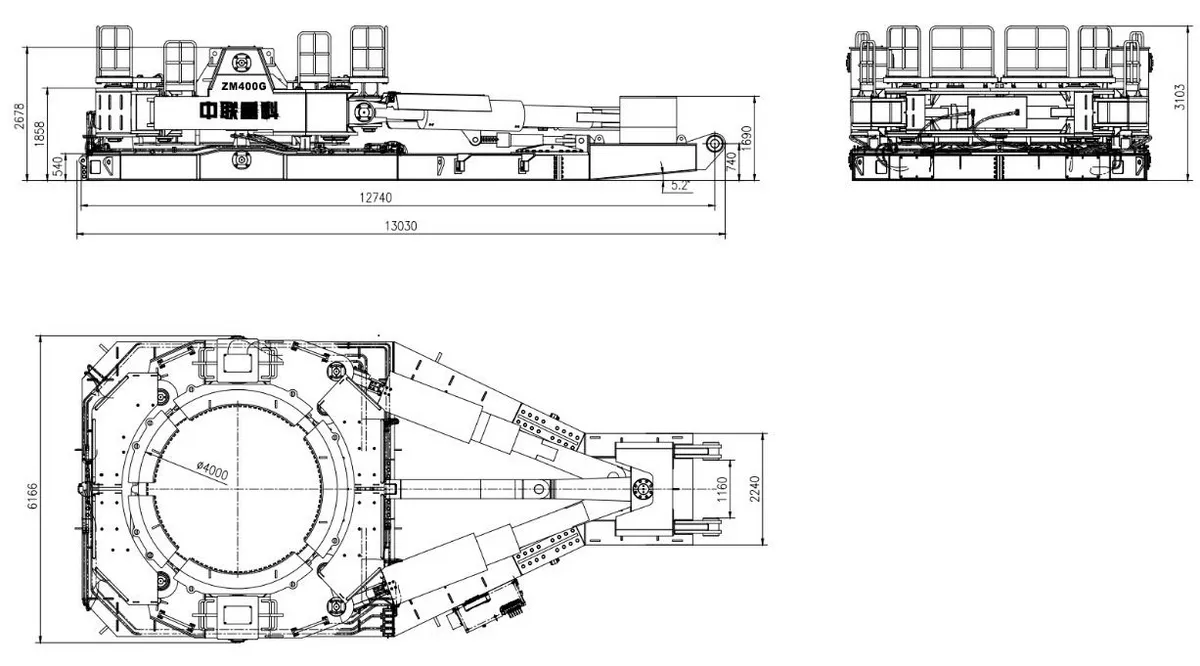

Dimensions
