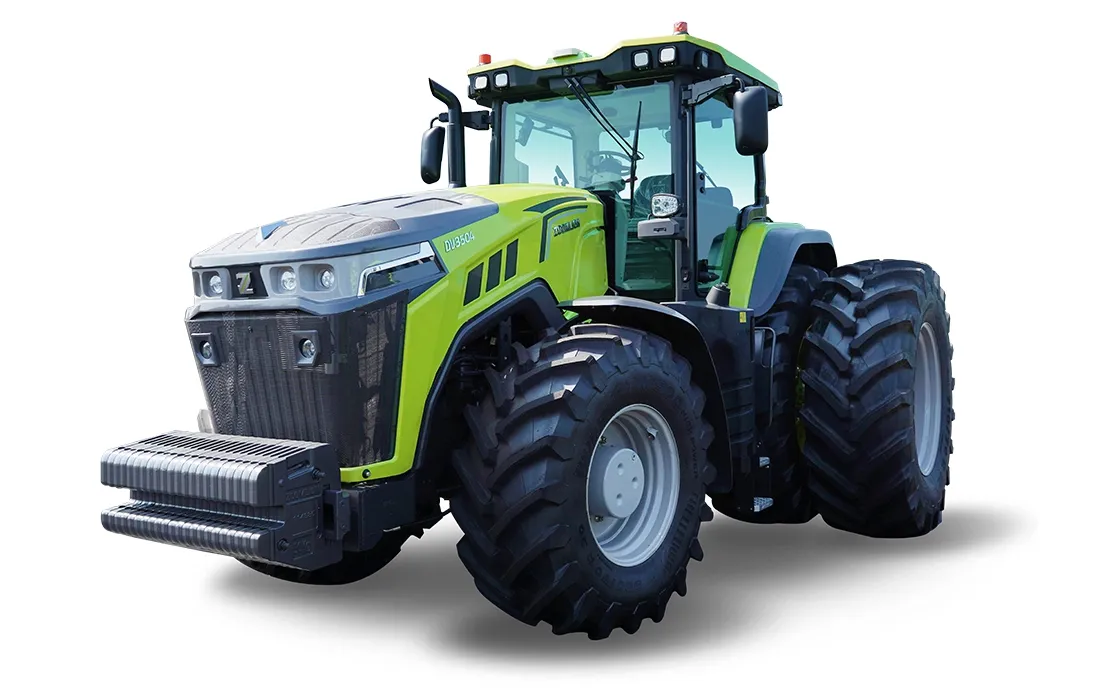

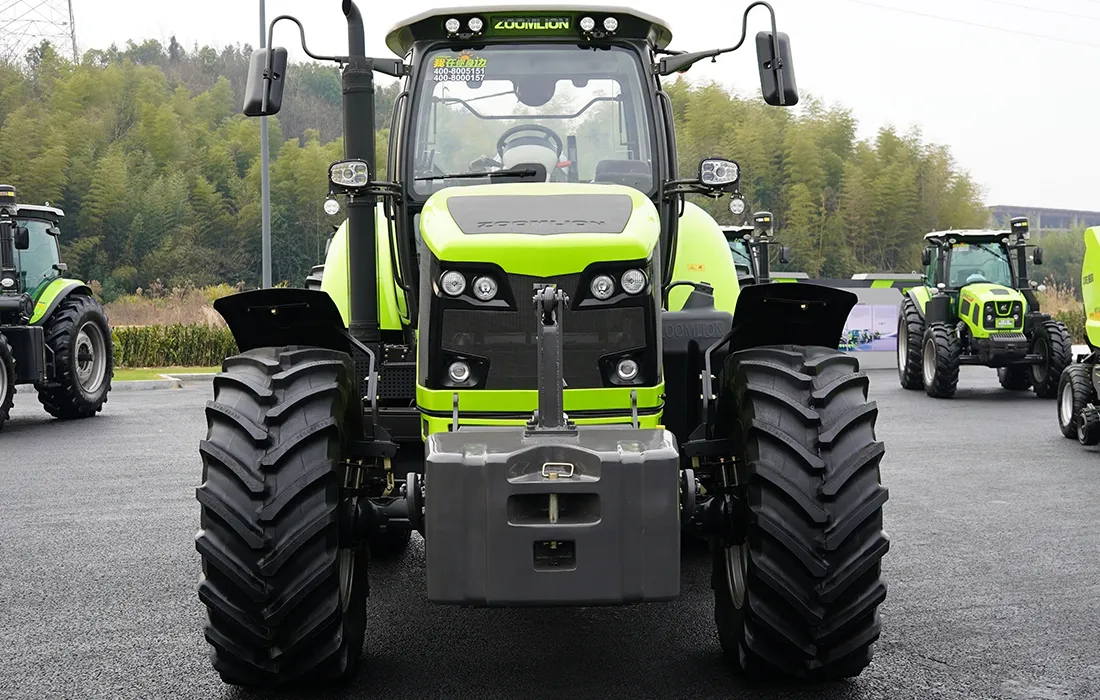

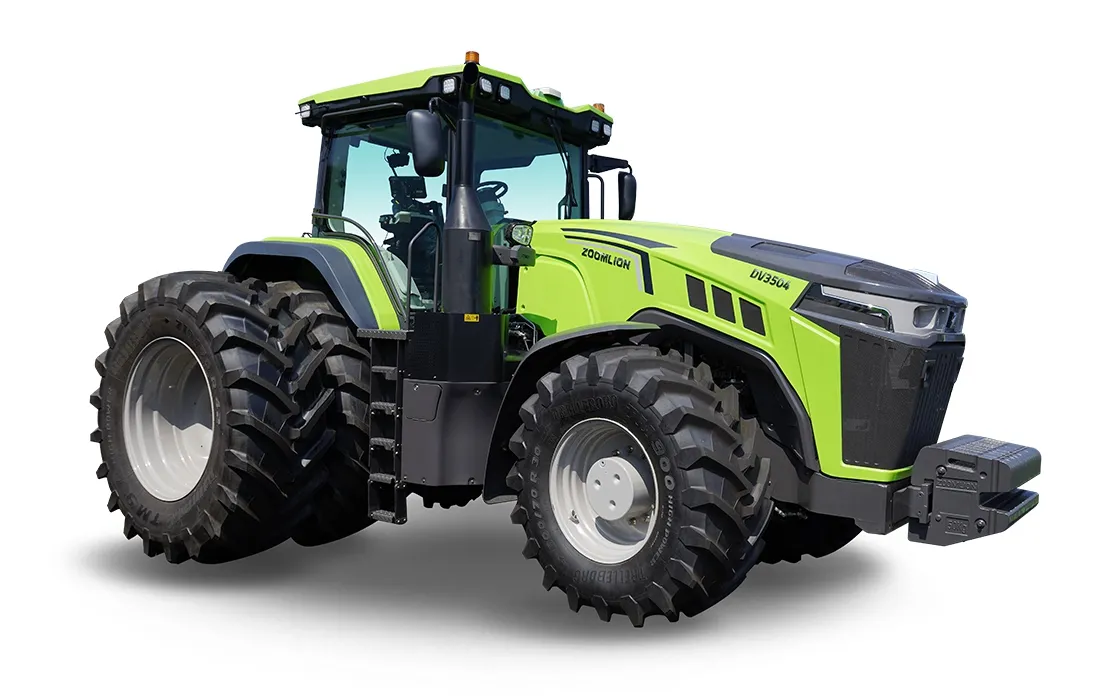

DV3504 Hybrid Tractor

DV3504 Hybrid Tractor

For large-scale dryland farming, ZOOMLION's high-power hybrid agricultural tractor combines the MIDD distributed intelligent electric drive system with heavy-duty traction and implement-driving capabilities for continuous field operations. Range-based stepless speed control across 0-50 km/h accommodates the varying travel speeds required for land preparation, tillage and planting. Centimeter-level assisted guidance and one-touch implement management further support coordinated field operations, while the tractor's hybrid drive system addresses the demanding power requirements of large agricultural implements.

  • Emission standard: Stage IIIA
  • Rated engine power: 400 HP
  • Fuel tank capacity: 650 L
  • Transmission type: Range-based stepless speed control with electronically controlled shifting
Request A Quote
Features

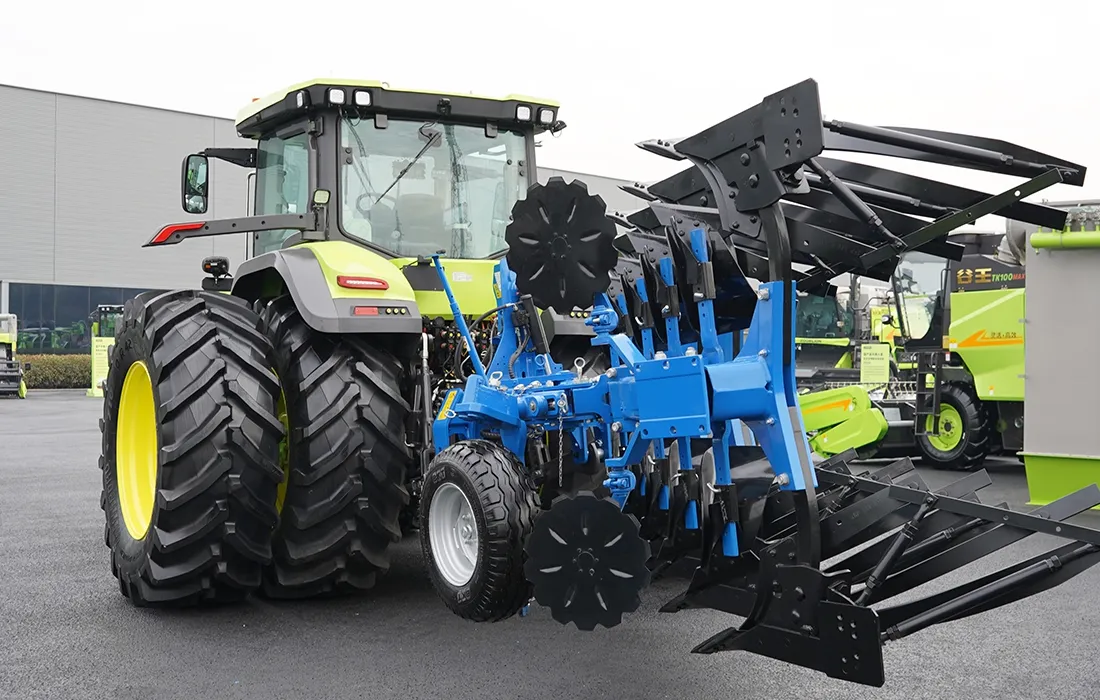

  • High-power electric drive and hydraulic performance
    The MIDD distributed intelligent electric drive system works with a 10C high-rate battery to support heavy-duty traction and implement operation. Tractive force exceeds 119 kN, while lifting force is rated at 8,800 kg at a point 610 mm behind the lift point. The load-sensing hydraulic system provides an output flow of 227 L/min for hydraulic implement operation.
  • Stepless speed control and precision fieldwork
    The dual-motor coupled drive incorporates a two-speed automated manual transmission (AMT) with electronically controlled shifting and stepless travel speed adjustment across the 0-50 km/h range. Centimeter-level assisted guidance supports precise field navigation, while ZOOMLION's one-touch implement management simplifies the coordination of agricultural implements, with a stated 90% reduction in operating workload.
  • Operator comfort and reduced noise
    The energy management system reduces maximum engine operating speed to 1,600 rpm, contributing to improved noise, vibration and harshness (NVH) performance. A positively pressurized, sound-insulated cab maintains noise levels below 79 dBA. The wide-cushion air-suspension swivel seat and ergonomic armrest provide additional comfort during extended field operations.
  • Load-responsive energy management
    Multi-objective optimization and dynamic programming-based energy control adjust power delivery and fuel-saving strategies according to changing operating loads. By adapting energy use to different fieldwork requirements, the hybrid tractor reduces overall operating fuel consumption by 10–30%.
Technical Parameters
Engine
Model / YCK09 400-S300
Engine type / High-pressure common rail
Rated engine power HP 400
Fuel tank capacity L 650
Cylinders / displacement L 6 / 9.41
Aspiration / Turbocharged and intercooled
Emission standard / Stage IIIA
Air cleaner / Built-in dry type
Fuel system / Bosch high-pressure common rail
Fuel filtration stages / 3
Cooling system / Water-cooled, air-to-air intercooled
New Energy System
Rated motor power kW 257.5
Max. motor speed r/min 4000
Rated voltage V 600
Rated high-voltage battery energy kW·h 11.55
Transmission System
Transmission type / Stepless speed control within ranges, electronically controlled shifting
Shift type / AMT
Number of gears / 2
Differential lock (front / rear) / 100% hydraulic differential lock / 100% hydraulic differential lock
Speed range km/h 0-50
Drive system / Dual-motor coupled drive (2-speed AMT)
Min. turning radius m 6.5±0.3
Hydraulic System
Hydraulic system type / Load-sensing hydraulic system
Output flow L/min 227
Relief valve pressure MPa 20±0.5
Hydraulic remotes set 4 sets
Hitch System
Drawbar / hitch type / Swinging drawbar + rotating hitch
Draft / position control / Draft, position, and mixed control
Hitch type & category / Category 4N/4
Max. lift capacity (at 610 mm) kN 88
Steering System
Steering type / Hydraulic steering
Steering pump displacement ml/r 420
Electrical System
System voltage V 12
System current A 20
Power Take-Off (PTO)
PTO type / Rear independent
PTO speed r/min 540/760/1000 + 0–1000 stepless
PTO drive ratio / 2.471
PTO spline count / Standard: 20 spline
PTO shaft diameter mm Standard: Ø44.43
Brake System
Brake type / Hydraulic brake
Air brake / Dual-circuit
Operator Comfort
Cab / Air-conditioned cab
Work lights / 14
Weight
Front ballast weight kg 1100
Rear ballast weight kg 908
Min. operating weight kg 13000
Max. vehicle weight kg 15008
Max. permissible operating weight kg 18000
Dimensions
Overall dimensions (L × W × H) mm 6450×3050×3450
Wheelbase mm 3100
Track width (front / rear) mm 1890/1830-2955
Ground clearance mm 440
Tires & Wheels
Tire size (front / rear) Standard: front 600/70 R38 / rear 710/70 R42
Digital Agriculture Configuration
  • Assisted guidance and satellite positioning
    The assisted guidance system supports centimeter-level satellite differential positioning using standalone BeiDou or multi-constellation GNSS services. Positioning options include network RTK, mobile base stations, precise point positioning (PPP) and integrated satellite-ground positioning.
    A steering-wheel actuator provides automatic steering control with a stated accuracy of ±2.5 cm or better at travel speeds from 0.5 to 30 km/h. The system also specifies at least 600 seconds of satellite-signal interference tolerance and uses terrain compensation algorithms to accommodate different field conditions. Guidance patterns include straight parallel lines, curved parallel lines and headland-based omega (Ω) turns.
  • Precision implement operation
    Using high-precision geographic positioning, the tractor supports centimeter-level sequential control of agricultural operations. The system can automatically coordinate the transmission, hitch, power take-off (PTO) and selective control valve (SCV) circuits in predefined operating sequences. ISOBUS prescription-map support enables compatible implements to perform location-based operations according to prescribed field data.
  • Intelligent diagnostics and remote maintenance
    The onboard diagnostic center analyzes faults to assist with identifying their causes. Operating and diagnostic data can be transmitted to ZOOMLION's support platform for remote technical analysis. The system also supports over-the-air (OTA) updates and remote screen sharing for maintenance assistance
