ZOOMLION

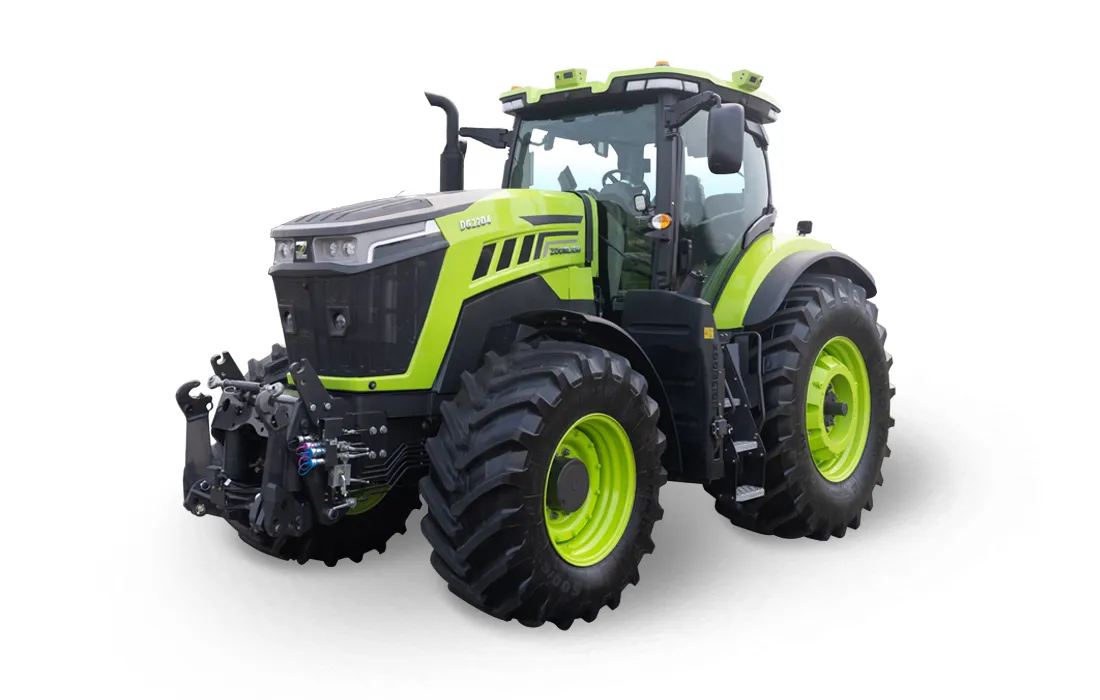

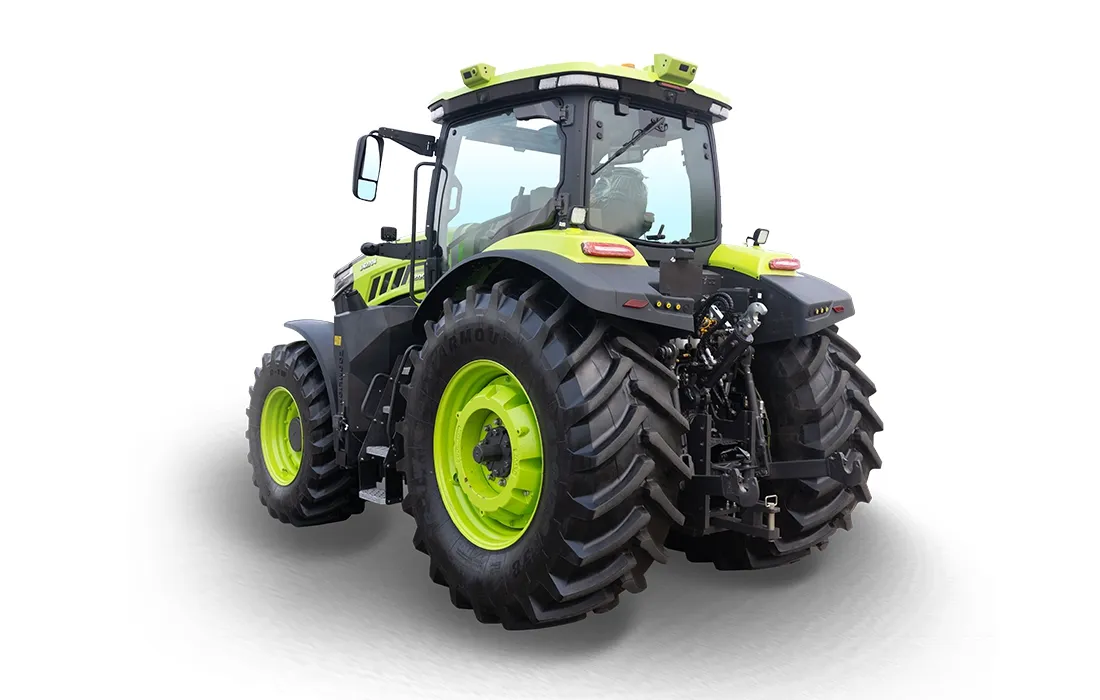

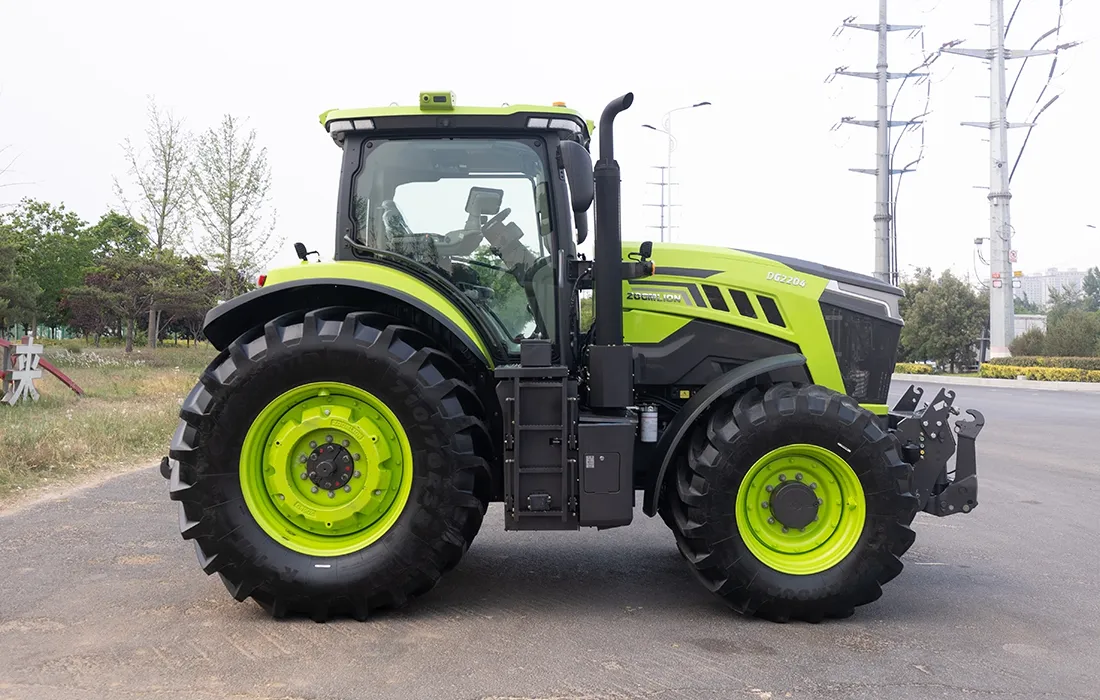

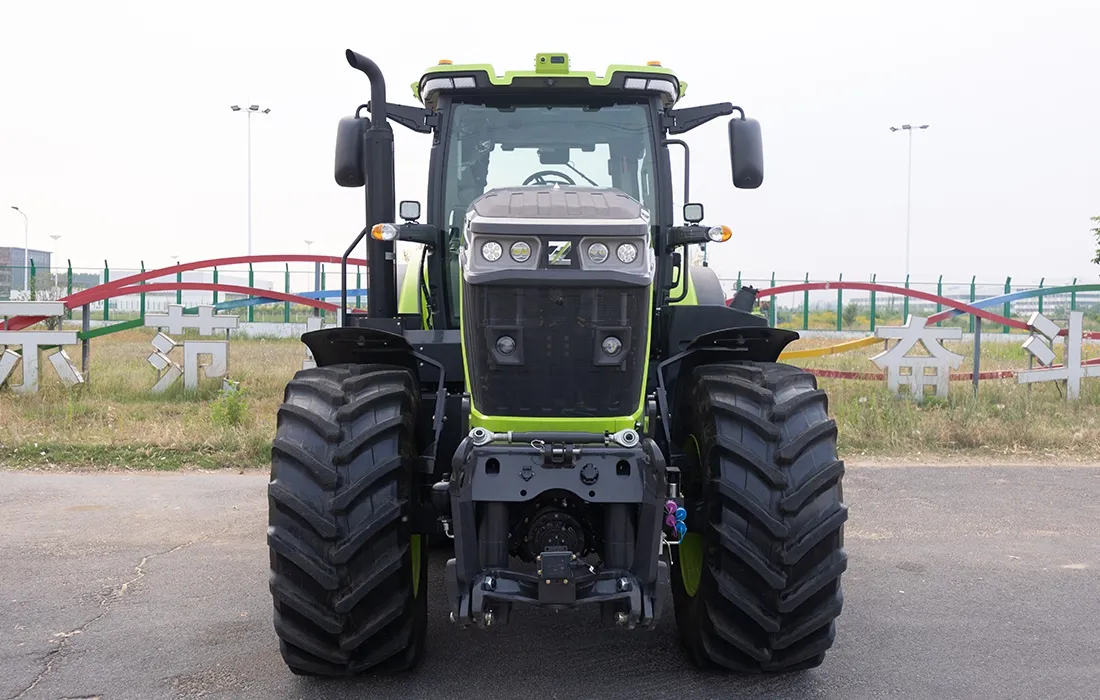

DG2204 Hybrid Tractor

DG2204 Hybrid Tractor

For medium- and large-scale dryland cultivation of corn, wheat, soybeans and other field crops, ZOOMLION's hybrid agricultural tractor combines intelligent electric drive with range-based stepless speed control to accommodate diverse agronomic practices. The dual-motor coupled drive and electronically controlled two-speed transmission allow travel speed to be adjusted continuously within the selected range, supporting the varying speed requirements of field operations.

  • Horsepower: 220 HP
  • Fuel tank capacity: 320 L
  • Emission standards: Euro V, Stage IIIA, Brazil MAR-I
  • Transmission type: Range-based stepless speed control with electronically controlled shifting
Request A Quote
Features
  • Distributed intelligent electric drive and high tractive performance
    The MIDD distributed intelligent electric drive system is engineered for strong tractive performance and power take-off (PTO) output. With a maximum tractive force of at least 85 kN, the hybrid tractor provides traction for demanding fieldwork. Three selectable PTO speeds of 540, 760 and 1,000 rpm, together with stepless PTO speed adjustment, accommodate different implement operating requirements.
  • Stepless speed control and precise field guidance
    The dual-motor coupled drive incorporates a two-speed automated manual transmission (AMT) with electronically controlled range shifting and stepless speed adjustment. Operators can vary travel speed within the selected range without manually changing gears during fieldwork. A multifunction armrest places operating controls within easy reach, while automatic guidance maintains a straight-line tracking deviation of less than 2.5 cm.
  • Operator comfort and reduced noise
    A dynamically damped, wide-cushion air-suspension swivel seat and ergonomic multifunction armrest support operator comfort during extended working hours. Advanced energy management reduces maximum engine operating speed to 1,600 rpm, improving noise, vibration and harshness (NVH) performance. The positively pressurized, sound-insulated cab maintains a noise level below 79 dBA, providing a quieter working environment.
  • Dynamic energy management and fuel savings
    Multi-objective optimization and dynamic programming-based energy control adjust fuel-saving strategies as tractor workload changes. This load-responsive energy management contributes to a 10% reduction in overall operating fuel consumption.
Technical Parameters
Model DG2204 (Euro V) DG2204 (Stage IIIA) DG2204 (Brazil MAR-I)
Engine
Model / YCA07260-S500 YCA07260-S300 YCA07260-M300
Engine type / 6-cylinder, high-pressure common rail, turbocharged and intercooled 6-cylinder, high-pressure common rail, turbocharged and intercooled 6-cylinder, high-pressure common rail, turbocharged and intercooled
Fuel tank capacity L 320 320 320
New Energy System
Rated motor power kW 175 (working motor) 175 (working motor) 175 (working motor)
Rated voltage V 592 592 592
Rated high-voltage battery energy kW·h 6.23 6.23 6.23
Transmission System
Transmission type / Stepless speed control within ranges, electronically controlled shifting Stepless speed control within ranges, electronically controlled shifting Stepless speed control within ranges, electronically controlled shifting
Speed range km/h 0-50 (optional 40) 0-40 0-40
Drive system / Dual-motor coupled drive (2-speed AMT) Dual-motor coupled drive (2-speed AMT) Dual-motor coupled drive (2-speed AMT)
Min. turning radius m 6.5±0.3 6.5±0.3 6.5±0.3
Hydraulic System
Output flow L/min 158 158 158
Hydraulic remotes set 5 rear + 2 front sets 5 rear + 2 front sets 5 sets
Hitch System
Hitch type & category / 3-point hitch, rear Category 3 / front Category 2N 3-point hitch, rear Category 3 / front Category 2N 3-point hitch, Category 3
Max. lift capacity (at 610 mm) kN Rear 60 / front 35 Rear 60 / front 35 60
Power Take-Off (PTO)
PTO speed r/min Rear 540/760/1000 + 0–1000 stepless, front 1000 Rear 540/760/1000 + 0–1000 stepless, front 1000 Rear 540/760/1000 + 0–1000 stepless
Brake System
Air brake / Dual-circuit air brake Dual-circuit air brake Dual-circuit air brake
Weight
Max. operating weight kg 13450 13450 13450
Dimensions
Overall dimensions (L × W × H) mm 5480 × 2550 × 3300
(single front and rear tires-standard) 		5480 × 2550 × 3250
(single front and rear tires) 		5530 × 2550 × 3250
(single front and rear tires)
Wheelbase mm 2850 2800 2800
Track width (front / rear) mm 1907/1840 1840/1840 1840/1840
Ground clearance mm 445 453 453
Tires & Wheels
Tire size (front / rear) Standard: front 600/65 R28 (single) / rear 710/70 R38 (single)
Optional: front 600/70 R28 (single) / rear 800/70 R38 (single) 		Front 600/65 R28 (single) / rear 710/70 R38 (single) Front 600/65 R28 (single) / rear 710/70 R38 (single)
