DX7004 Hybrid Tractor

DX7004 Hybrid Tractor

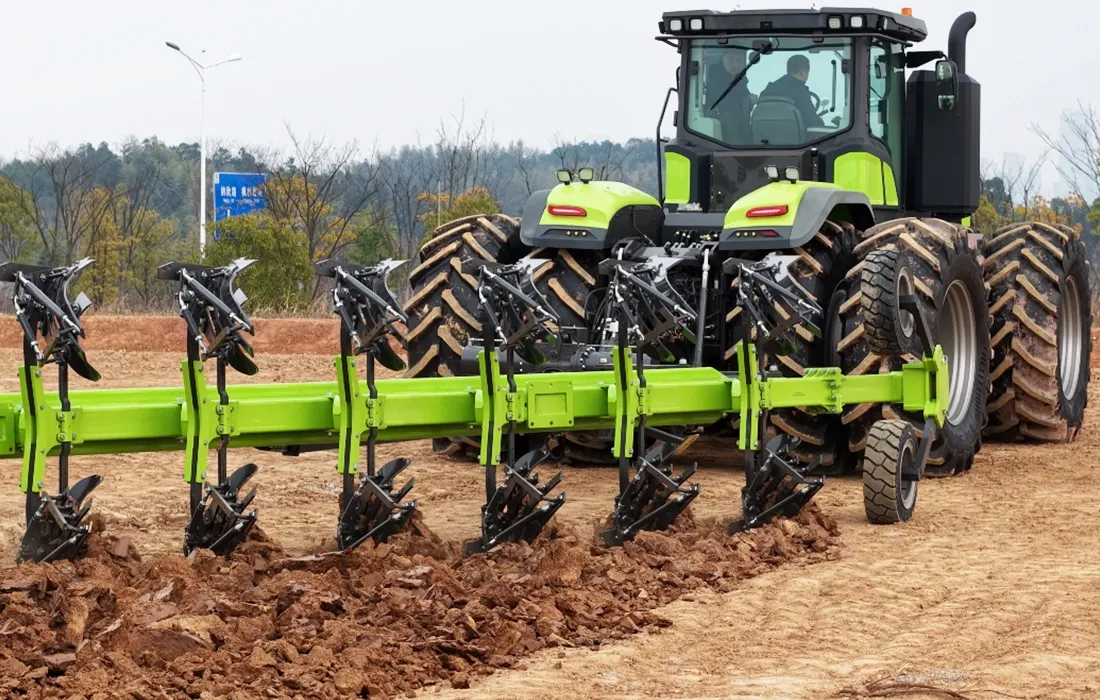

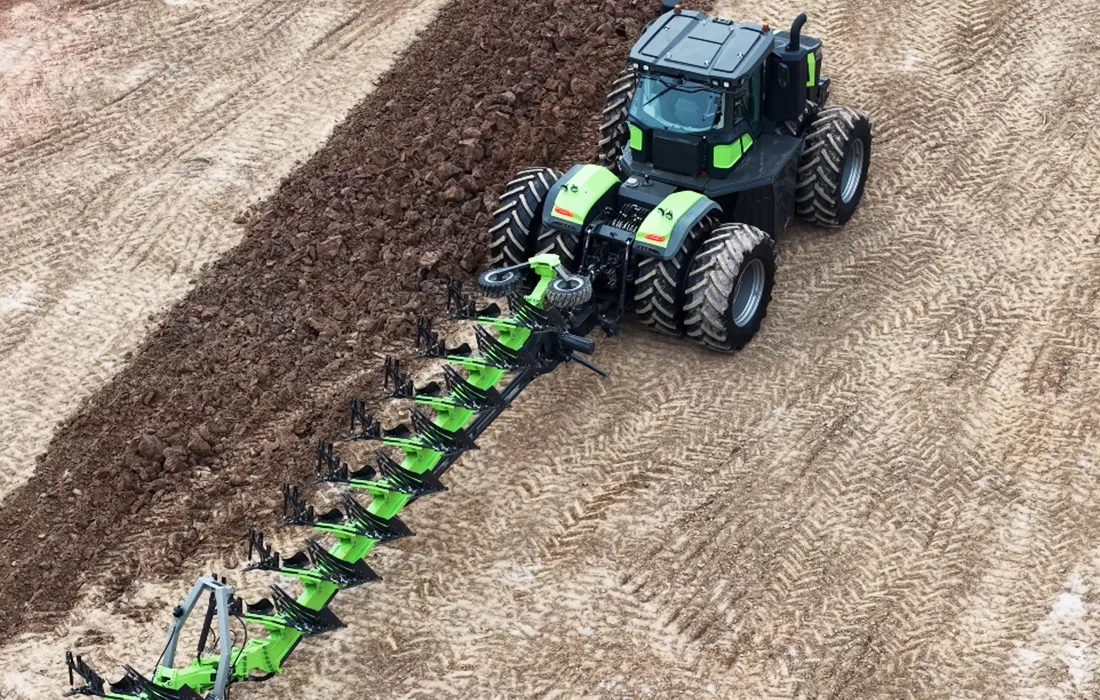

ZOOMLION's high-power hybrid agricultural tractor is built for large-scale dryland farming, particularly demanding operations such as deep subsoiling, tillage, land preparation and planting. Combining the MIDD distributed intelligent electric drive system with full-time four-wheel drive, the tractor is equipped to pull and operate large, heavy-duty agricultural implements. Range-based stepless speed control allows travel speeds to be adjusted for different field operations, while centimeter-level assisted guidance and one-touch implement management support precise, coordinated work across extensive farmland.

  • Horsepower: 700 HP
  • Fuel tank capacity: 1,508 L
  • Transmission type: Range-based stepless speed control with electronically controlled shifting
Request A Quote
Features
  • High-power hybrid drive and heavy-duty traction
    The MIDD distributed intelligent electric drive system is paired with a 20C high-rate battery, while the dual drive motors provide a torque reserve of more than 50%. With tractive force exceeding 235 kN, the hybrid tractor is equipped for demanding field operations involving large agricultural implements. The lifting force is specified as 9,500 kg at a point 610 mm behind the lift point, while a hydraulic output flow of 416 L/min supports the operation of hydraulically powered implements.
  • Stepless speed control and precision fieldwork
    Range-based stepless speed control allows travel speeds to be adjusted from 0 to 40 km/h, with electronically controlled shifting between operating ranges. The high-precision positioning-based assisted guidance system provides centimeter-level navigation for field operations. Combined with ZOOMLION's one-touch implement management, these functions simplify coordinated implement operation, with a stated 90% reduction in operating workload.
  • Operator comfort and reduced noise
    Advanced energy management reduces maximum engine operating speed to 1,600 rpm, improving noise, vibration and harshness (NVH) performance. The positively pressurized, sound-insulated cab maintains noise levels below 79 dBA, while a wide-cushion air-suspension swivel seat and ergonomic armrest support operator comfort during extended working hours.
  • Load-responsive energy management
    Multi-objective optimization and dynamic programming-based energy control adjust fuel-saving strategies in response to changing operating loads. By coordinating energy use with fieldwork demands, the hybrid tractor reduces overall operating fuel consumption by 10%.
Basic Specifications
Engine
Model / QSM15 77C
Engine type / 6-cylinder, vertical in-line, water-cooled, 4-stroke, turbocharged and intercooled
Fuel tank capacity L 1508
New Energy System
Rated motor power kW 283 (working motor)
Rated voltage V 592 (working motor)
Rated high-voltage battery energy kW·h 24.2
Transmission System
Transmission type / Stepless speed control within ranges, electronically controlled shifting
Speed range km/h Low range 0–18, high range 0–40
Drive system / Full-time 4WD
Min. turning radius m 6.33
Hydraulic System
Output flow L/min 416
Hydraulic remotes set 6 sets
Hitch System
Hitch type & category / Category 4N
Max. lift capacity (at 610 mm) kN 95
Power Take-Off (PTO)
PTO speed r/min 0–1000
Brake System
Air brake / 3-circuit air brake
Weight
Max. operating weight kg 30000
Dimensions
Overall dimensions (L × W × H) mm 8284×4323×3873
Wheelbase mm 4093
Track width (front / rear) mm Inner 1832 / outer 3612
Ground clearance mm 450 (at drawbar)
Tires & Wheels
Tire size (front / rear) Standard: front 710/70 R42 (dual) / rear 710/70 R42 (dual)
