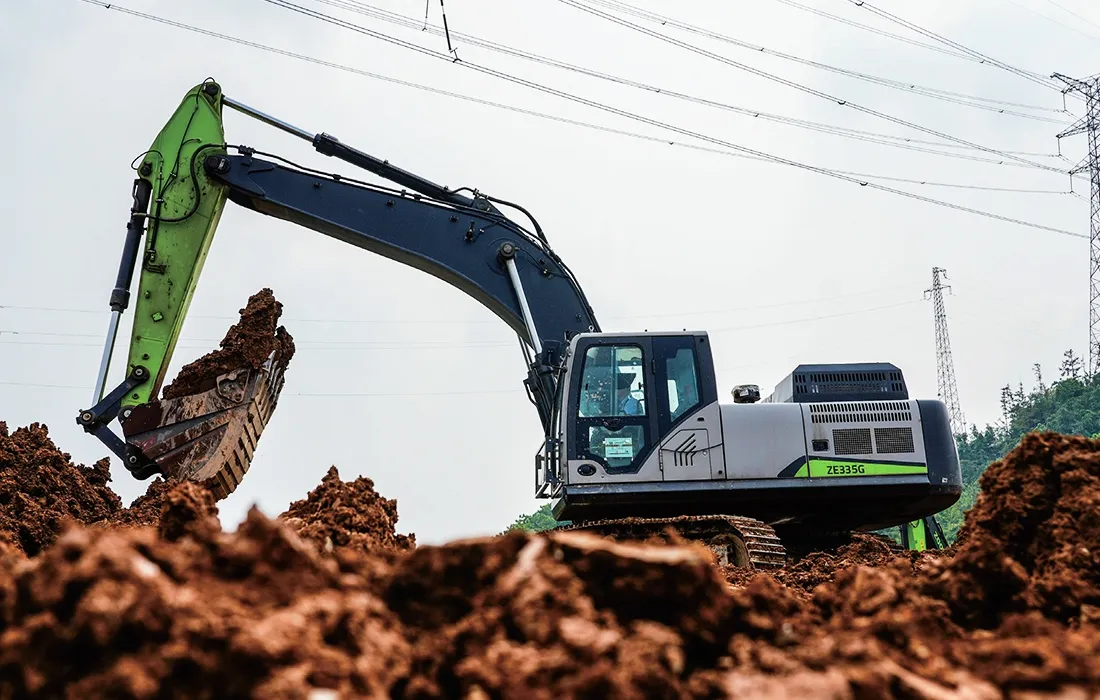

ZE385G Large Excavator

ZE385G Large Excavator

ZOOMLION's large crawler excavators are designed for heavy-duty earth excavation, truck loading and hydraulic breaking in construction and earthmoving projects. The excavator is powered by a 214 kW Cummins engine and equipped with an electronically controlled positive-flow hydraulic system to meet the power and hydraulic demands of intensive excavation, loading and breaking operations. To accommodate high-temperature, dusty and demanding working conditions, the engine filtration and cooling arrangements, working equipment and undercarriage structures have been reinforced. These measures support operations involving soil, sand, gravel and breaking work under challenging jobsite conditions.

  • Engine rated power: 214 kW at 2,100 rpm
  • Operating weight: 38,000 kg
  • Bucket capacity: 1.6–2.2 m³
Request A Quote
Features

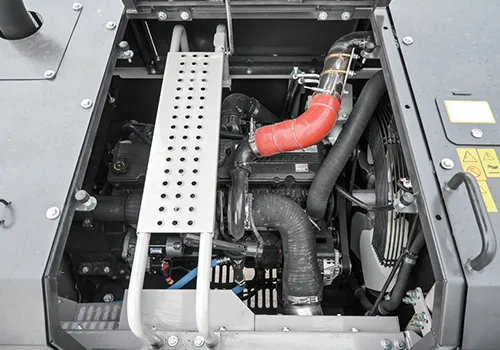

  • Cummins engine with high torque reserve
    The Cummins engine delivers high power output, ample torque reserve and stable performance, with strong torque available at low engine speeds. These characteristics contribute to faster response during changes in operating load and are designed to extend engine service life.

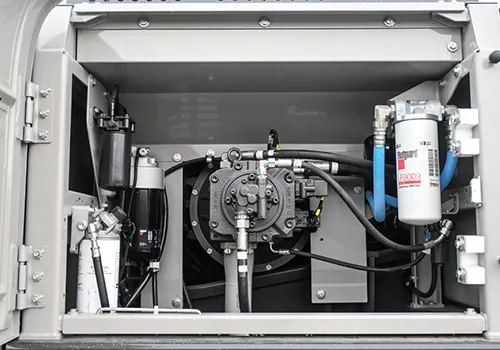

  • Electronically controlled positive-flow hydraulic system
    The electronically controlled positive-flow hydraulic system is designed to optimize engine performance. Combined with three-stage idle control, the system helps reduce unnecessary fuel consumption and improve operating efficiency.

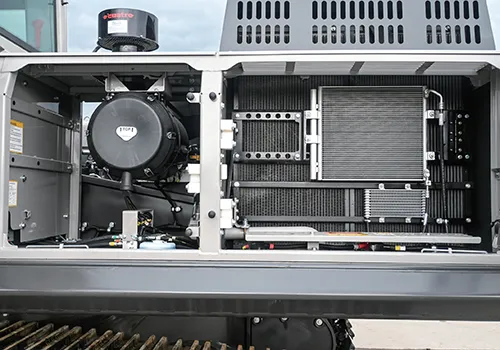

  • Three-stage fuel filtration and cooling
    The high-capacity, three-stage fuel filtration system incorporates higher-precision filter elements, with an impurity filtration rate of 99.9% . A fuel cooler regulates fuel temperature to help maintain favorable engine operating conditions, contributing to longer engine service life and lower fuel consumption.
  • Optimized main control valve
    The main control valve features enlarged flow passages and an optimized spool structure to reduce resistance to hydraulic oil flow. Lower pressure losses within the hydraulic passages help improve hydraulic energy efficiency.
  • ZE385G Large Excavator
  • ZE385G Large Excavator
  • ZE385G Large Excavator
Technical Parameters
Engine Manufacturer Cummins
Model L9
Rated power 214 kW / 2100 rpm
Displacement 8.9 L
Hydraulic System Main pump Two variable displacement piston pumps Max. flow: 2 × 315 L/min
Pilot pump One gear pump Max. flow: 27 L/min
Max. pressure - equipment 34.3 MPa
Max. pressure - swing 31 MPa
Max. pressure - travel 34.3 MPa
Max. pressure - pilot system 3.9 MPa
Max. pressure - boost 37.3 MPa
Swing Mechanism Max. swing speed 10 r/min
Undercarriage Number of carrier rollers (each side) 2 (dual-support type)
Number of track rollers (each side) 9
Travel speed (high) 5.2 km/h
Travel speed (low) 3.1 km/h
Max. drawbar pull 320 kN
Gradeability 70%
Service Refill Capacities Fuel tank 650 L
Engine coolant 42 L
Engine oil 36 L
Swing device 10.5 L
Final drive (each side) 10 L
Hydraulic system 300 L
Hydraulic tank 180 L
Work Equipment Boom length 6400 mm
Arm length 2900 mm

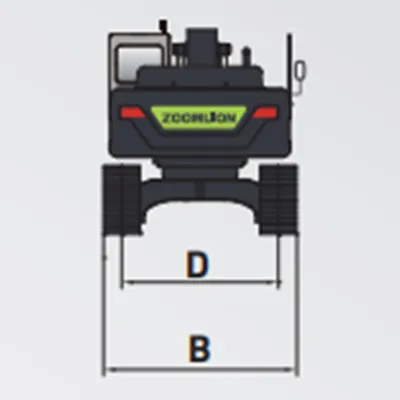

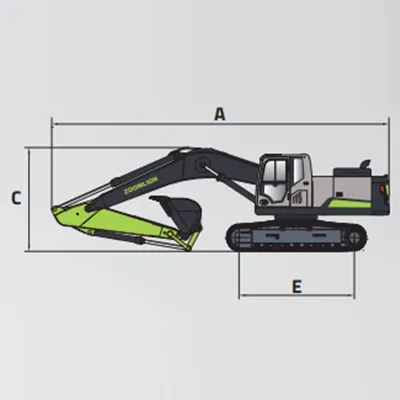

Overall Dimensions A Overall length 11230 mm
B Overall width 3190 mm
C Overall height 3780 mm
D Track gauge 2590 mm
E Crawler base 4140 mm

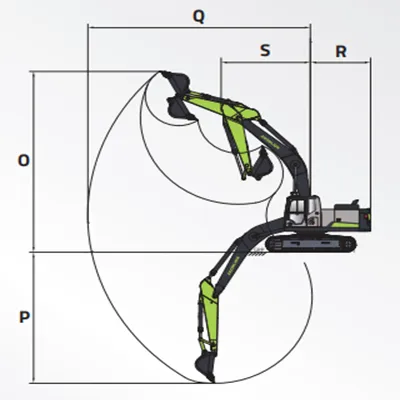

Working Range O Max. digging height 10010 mm
P Max. digging depth 7075 mm
Q Max. digging reach 10570 mm
R Tail swing radius 3500 mm
S Min. front swing radius 4525 mm
