ZOOMLION
ZE215G Medium Excavator

ZE215G Medium Excavator

ZOOMLION's medium crawler excavator is designed for earth excavation, truck loading and construction work involving sand, gravel and other materials. Classified in the 21-ton range, with an operating weight of 22,000 kg, the medium hydraulic excavator combines engine power with a matched hydraulic system and working equipment to support efficient digging and loading while reducing fuel consumption. Reinforced boom, arm and undercarriage structures are designed for the demands of excavation work, while the wide-view cab helps operators monitor the working area. Ground-accessible maintenance points make routine inspection and servicing more convenient.

  • Engine power: 134 kW
  • Operating weight: 22,000 kg
  • Bucket capacity: 0.85-1.1 m³
Request A Quote
Features
  • Bucket options for different working conditions
    Different bucket types are available to match specific excavation requirements. The reinforced bucket is suited to light or loose materials, while the rock bucket is designed for abrasive materials and rock excavation. A customized reinforced bucket with rock teeth provides additional wear resistance for applications requiring greater durability.
  • Enhanced cab visibility and protection
    Large reinforced glass panels provide operators with a wider field of view, with glass transmittance increased by more than 11%. An optional ROPS-certified cab offers additional protection in the event of a rollover.
  • Standard rearview camera
    The standard rearview camera displays real-time images of the area behind the excavator on the in-cab monitor, helping operators observe their surroundings during reversing and maneuvering.
  • Adjustable suspension seat
    The suspension seat provides 135 mm of adjustment travel to accommodate operators of different heights and support a comfortable operating position.
Technical Parameters
Engine Brand Cummins
Model QSB7
Rated power 134 kW / 2000 rpm
Displacement 6.7 L
Hydraulic System Main pump Two variable displacement piston pumps
Max. flow: 2 × 234 L/min
Pilot pump One gear pump
Max. flow: 18 L/min
Max. pressure - equipment 34.3 MPa
Max. pressure - swing 25.5 MPa
Max. pressure - travel 34.3 MPa
Max. pressure - boost 37.0 MPa
Max. pressure - pilot system 3.9 MPa
Upper Frame Max. swing speed 12 r/min
Max. swing torque 68 kN·m
Undercarriage Number of carrier rollers (each side) 2 (dual-support type)
Number of track rollers (each side) 8
Number of track guide (each side) 1
Travel speed (high) 5.4 km/h
Travel speed (low) 3.4 km/h
Max. drawbar pull 210 kN
Gradeability 70%
Service Refill Capacities Fuel tank 360 L
Engine coolant 30 L
Engine oil 26 L
Swing device 4 L
Final drive (each side) 5 L
Hydraulic system 230 L
Hydraulic tank 130 L
Work Equipment Boom length 5700 mm
Arm length 2925 mm

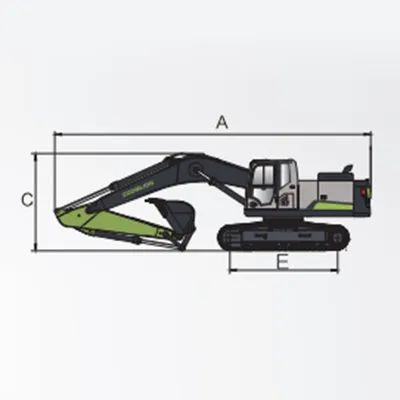

Overall Dimensions A Overall length 9650 mm

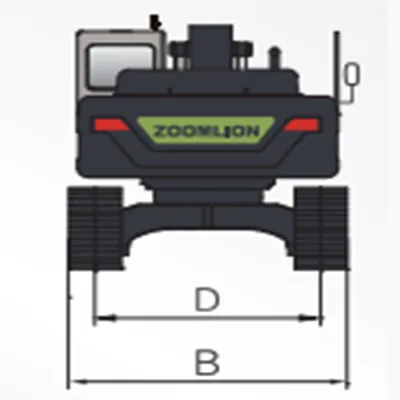

B Overall width 2990 mm
C Overall height 3150 mm
D Track gauge 2390 mm
E Length of track on ground 3470 mm

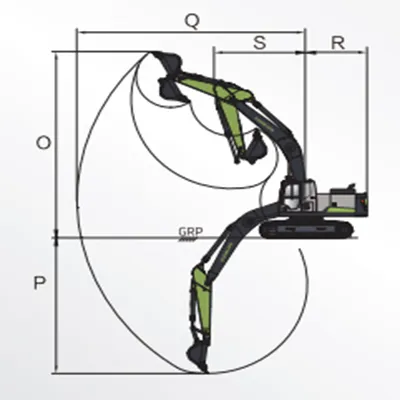

Working Range O Max. digging height 10010 mm
P Max. digging depth 6660 mm
Q Max. digging reach 9900 mm
R Tail swing radius 2935 mm
S Min. front swing radius 3200 mm
