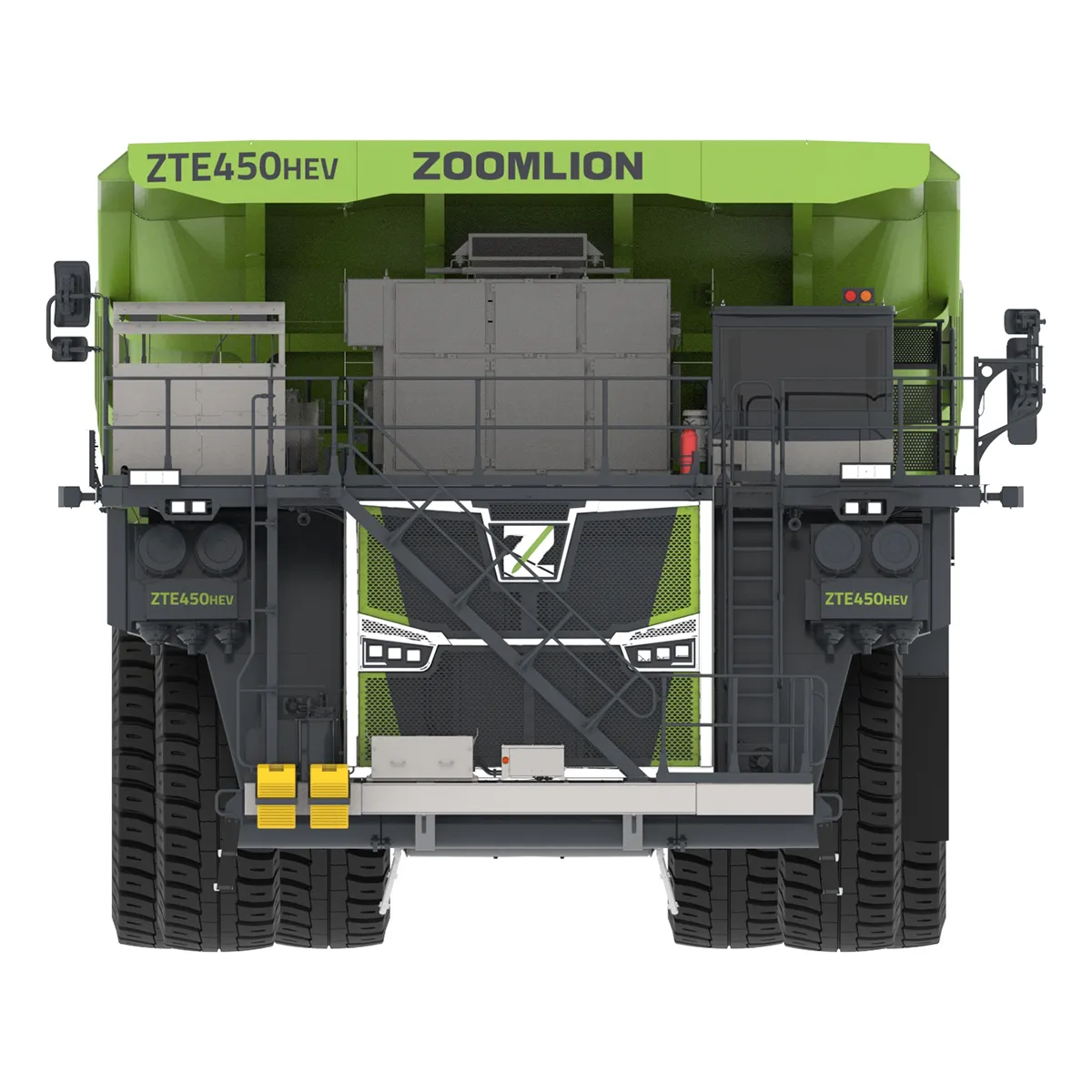

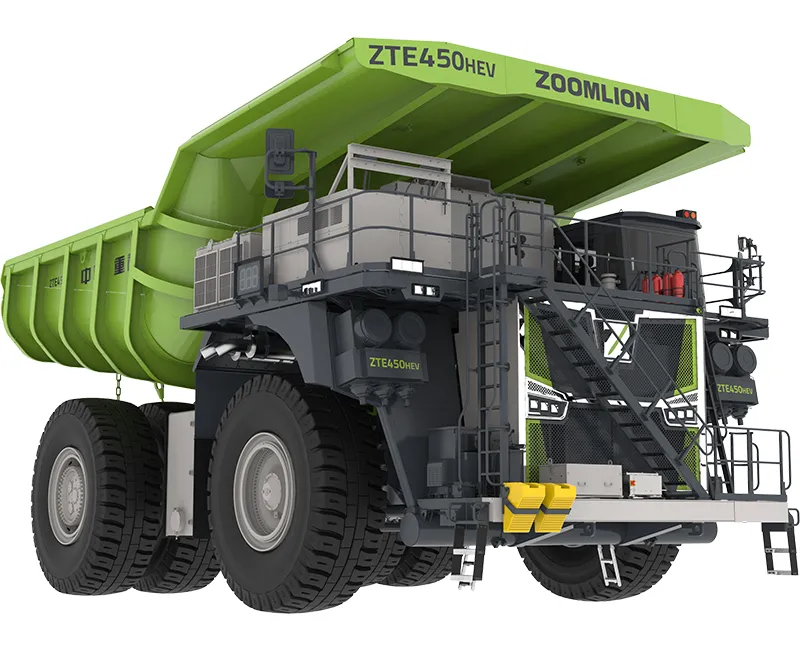

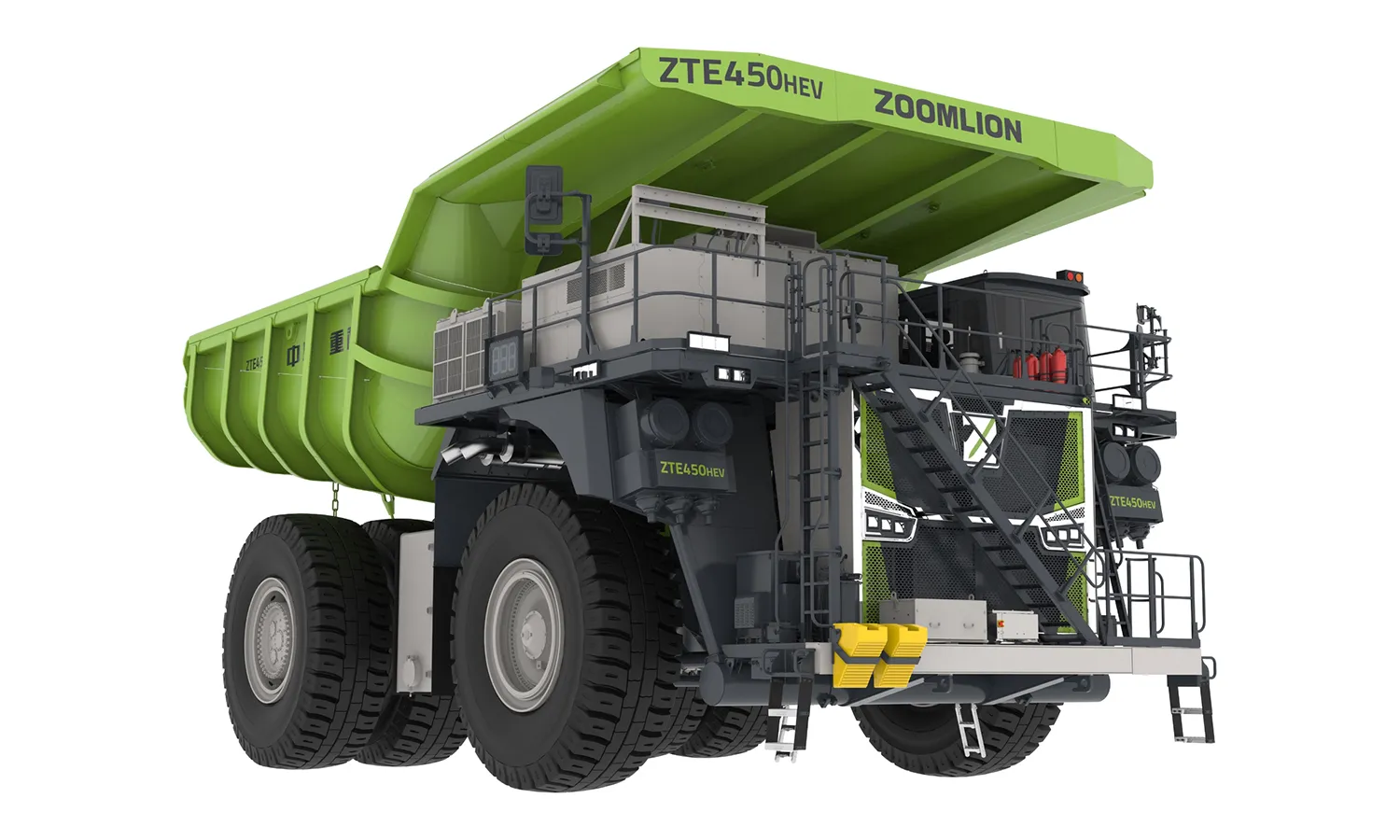

ZOOMLION ZTE450HEV mining dump trucks are designed for heavy-load transport in open-pit mines. They can carry up to 240 tons per trip and have a combined power output of 2,115 kW.
| Dimensions | Overall length | mm | 14650 | |
| Overall width | mm | 9090 | ||
| Overall height | mm | 7200 | ||
| Wheelbase | mm | 6350 | ||
| Track width | Front track | mm | 6046 | |
| Rear track | mm | 5419 | ||
| Weights | Gross vehicle weight | kg | 425000 | |
| Rated payload | kg | 240000 | ||
| Empty vehicle weight | kg | 185000 | ||
| Weight distribution | No load | Front axle | (50%) | 92500 (50%) |
| Rear axle | (50%) | 92500 (50%) | ||
| Full load | Front axle | (33%) | 141700 (33%) | |
| Rear axle | (67%) | 283300 (67%) | ||
| Powertrain | Engine model | / | YC16VTD2180-T300 | |
| Rated power | kW/rpm | 1604/1800 | ||
| Max. torque | N·m/rpm | 9014/1300 | ||
| Displacement | L | 52.3 | ||
| Emission standard | / | GB 20891-2014 III | ||
| Drive configuration | / | 4 × 2 | ||
| Tires | / | 50.00/80R57 | ||
| Performance | Max. speed | km/h | 64.5 | |
| Min. turning diameter | m | 28.4 | ||
| Max. gradeability | % | 24 | ||
| Min. ground clearance | mm | 691 | ||
| Body hoist | Loading height | mm | 6360 | |
| Lifting time | s | 22 | ||
| Body capacity | Heaped (SAE 2:1) | m³ | 154(Heaped) | |

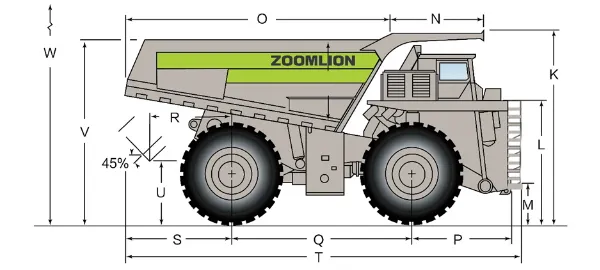

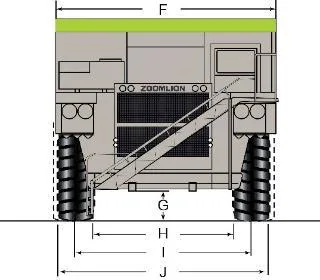

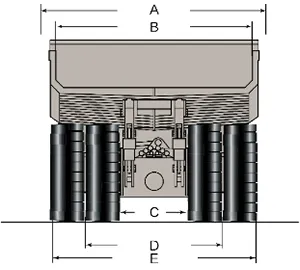

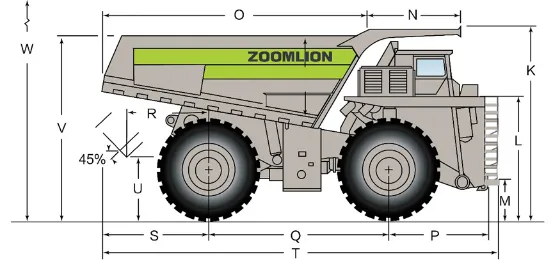

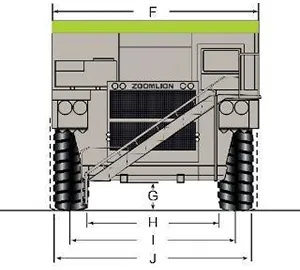

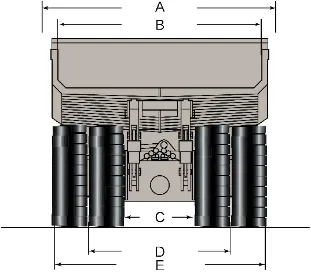

| A | Overall width | 9104 | B | Body inner width | 7650 |
| C | Rear inner wheel spacing | 2611 | D | Rear track | 5244 |
| E | Rear outer wheel spacing | 7961 | F | Body outer width | 8130 |
| G | Min. ground clearance | 640 | H | Front inner wheel spacing | 4764 |
| I | Front track | 6020 | J | Front outer wheel spacing | 7194 |
| K | Overall height | 7205 | L | Platform height | 4310 |
| M | Min. frame height | 1350 | N | Body canopy length | 5036 |
| O | Body inner length | 8838 | P | Front overhang | 4245 |
| Q | Wheelbase | 6350 | R | Rear overhang with body raised | 3360 |
| S | Rear overhang | 4000 | T | Overall length | 14595 |
| U | Min. body lifting height | 1839 | V | Loading height | 6158 |
| W | Max. body lifting height | 14454 |
