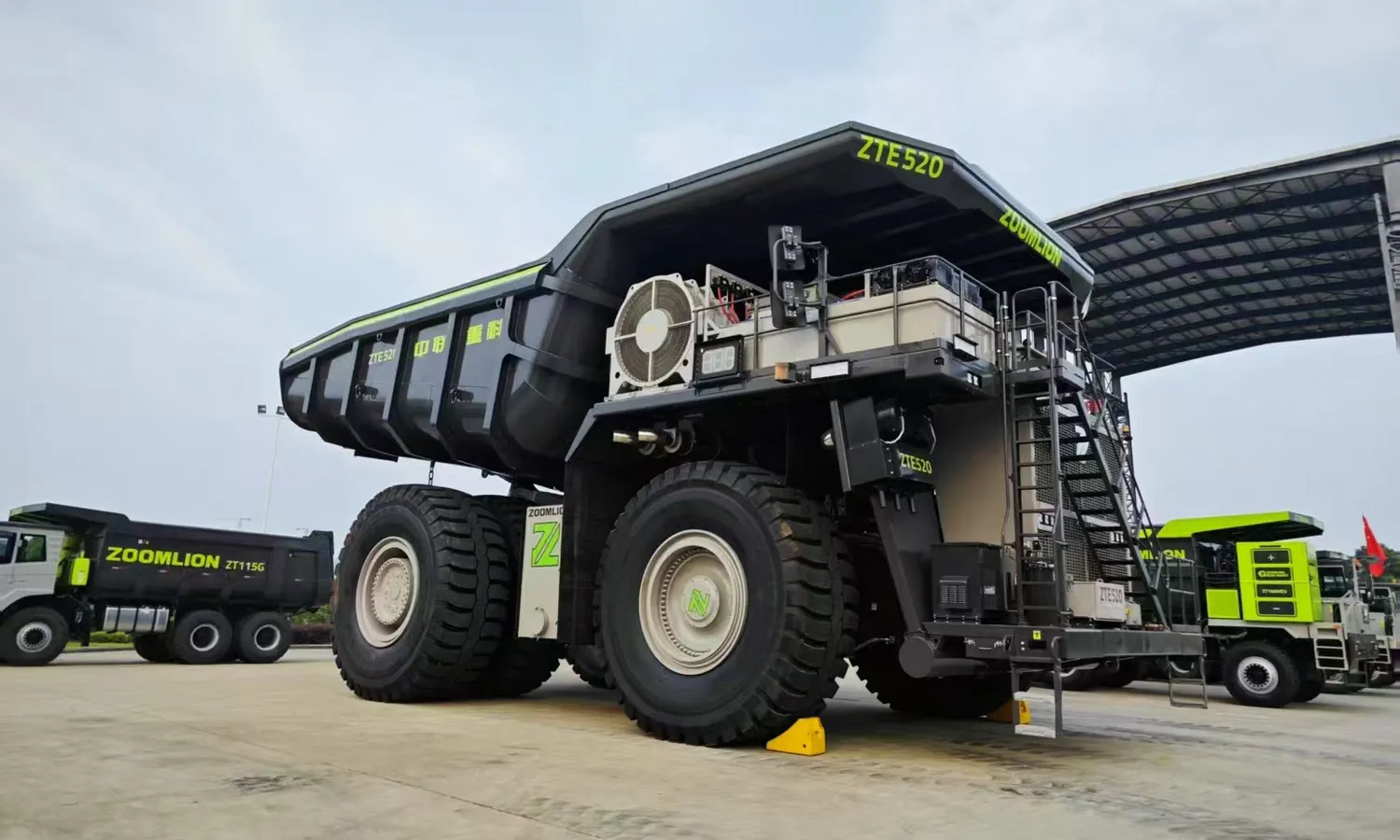

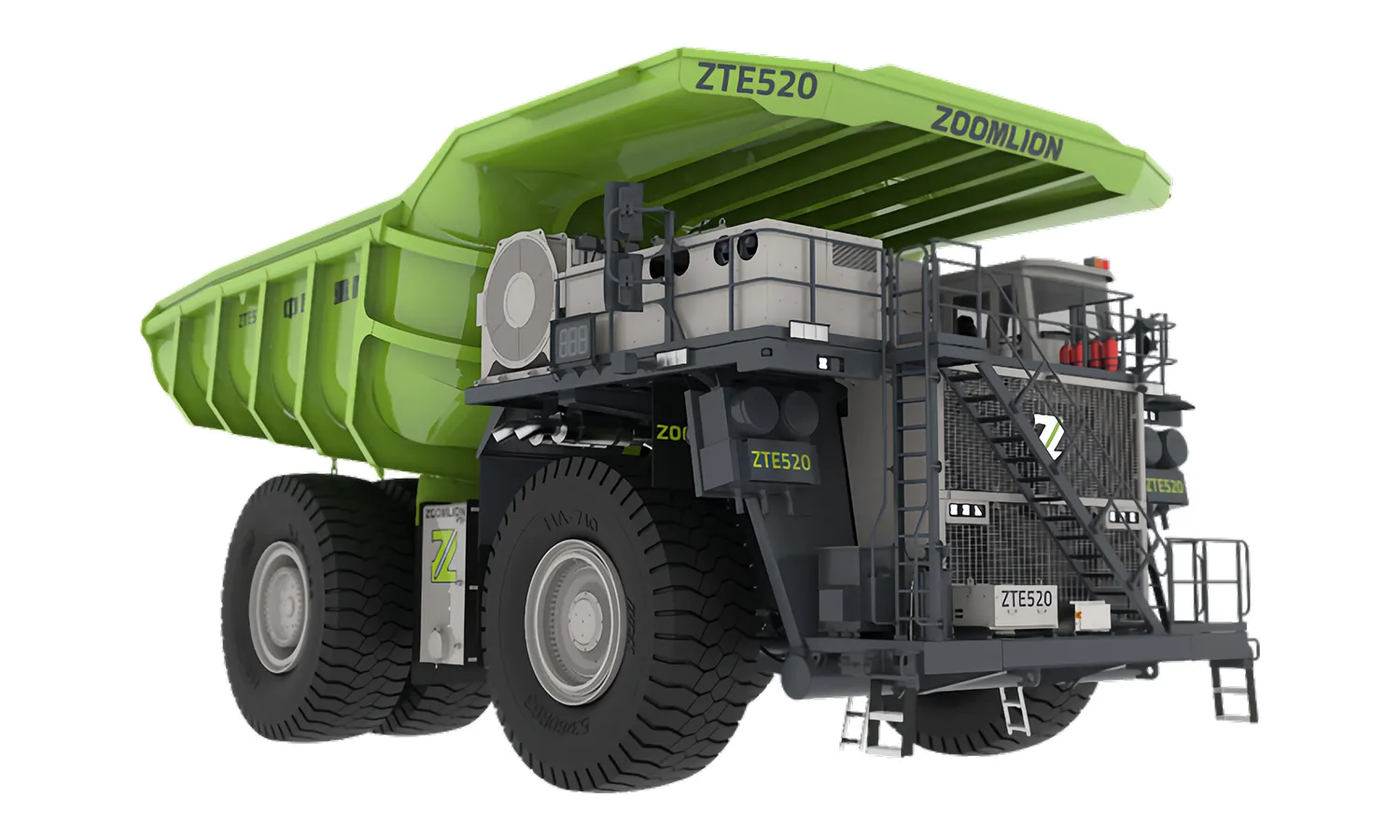

These ZOOMLION mining dump trucks can carry up to 300 tons per trip on heavy haul routes at large open-pit mines. They are equipped with a diesel engine and battery supply power to an electric drive system that drives the wheels without a conventional gearbox or drive shaft. Each haul truck weighs 210 tons empty, and its combined power output is 2,370 kW.
| Dimension parameters | Overall length | mm | 15370 | |
| Overall width | mm | 9090 | ||
| Overall height | mm | 7370 | ||
| Wheelbase | mm | 6650 | ||
| Wheel center distance | Front wheels | mm | 6235 | |
| Rear wheels | mm | 5311 | ||
| Weight parameters | Total weight | kg | 510000 | |
| Rated load | kg | 300000 | ||
| No-load weight | kg | 210000 | ||
| Mass distribution | No load | Front axle | (50%) | 105000(50%) |
| Rear axle | (50%) | 105000(50%) | ||
| Full load | Front axle | (33%) | 170000 (33%) | |
| Rear axle | (67%) | 340000(67%) | ||
| Dynamic parameters | Engine model | / | YC16VTD2150-T300 | |
| Engine rated power | kW/ rpm | 1604/1800 | ||
| Engine max. torque | Nm/rpm | 9014/1300 | ||
| Engine Capacity | L | 52.3 | ||
| Emission Standard | / | GB 20891-2014 III | ||
| Drive type | / | 4 × 2 | ||
| Tire | / | 53.00/80R63 | ||
| Driving parameters | Max. vehicle speed | km/h | 64.5 | |
| Min. turning diameter | m | 29.7 | ||
| Max. grade-ability | % | 20 | ||
| Min. ground clearance | mm | 940 | ||
| Working parameters | Loading height | mm | 6950 | |
| Lifting time | s | 21 | ||
| Body capacity | Standard 2:1 | m³ | 210 (heaped) | |

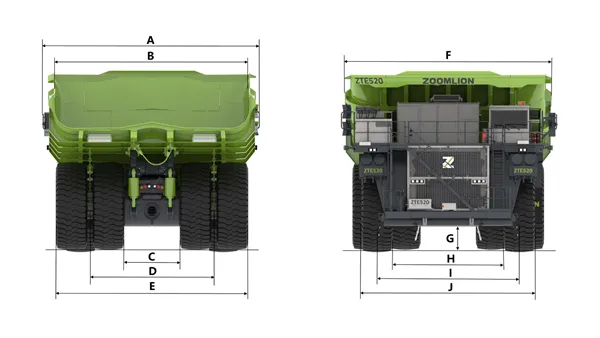

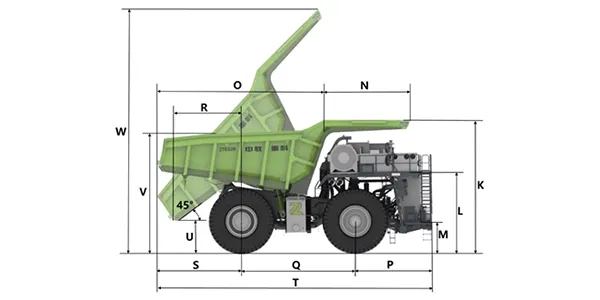

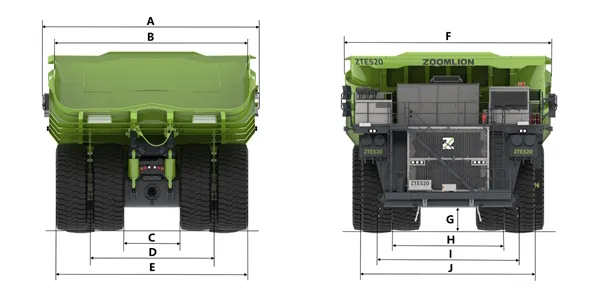

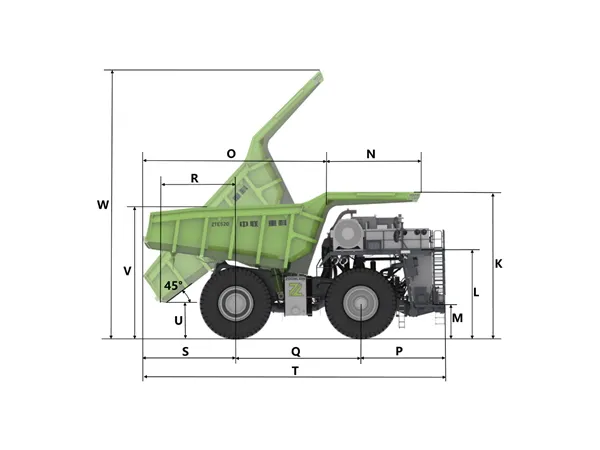

| Overall width | A | 9090 | Frame | M | 1450 |
| Body inner width | B | 8500 | Body canopy length | N | 3816 |
| Rear inner wheel spacing | C | 2421 | Body inner length | O | 7808 |
| Rear track | D | 5311 | Front overhang | P | 4765 |
| Rear outer wheel spacing | E | 8240 | Wheelbase | Q | 6650 |
| Body outer width | F | 8811 | Rear clearance | R | 3145 |
| Min. ground clearance | G | 940 | Rear overhang | S | 3955 |
| Front inner wheel spacing | H | 4846 | Overall length | T | 15370 |
| Front track | I | 6235 | Discharge height | U | 1720 |
| Front outer wheel spacing | J | 7610 | Loading height | V | 6950 |
| Overall height | K | 7370 | Body lifting height | W | 14300 |
| Deck height | L | 4650 | |||
