ZMC300G Mobile Crushers

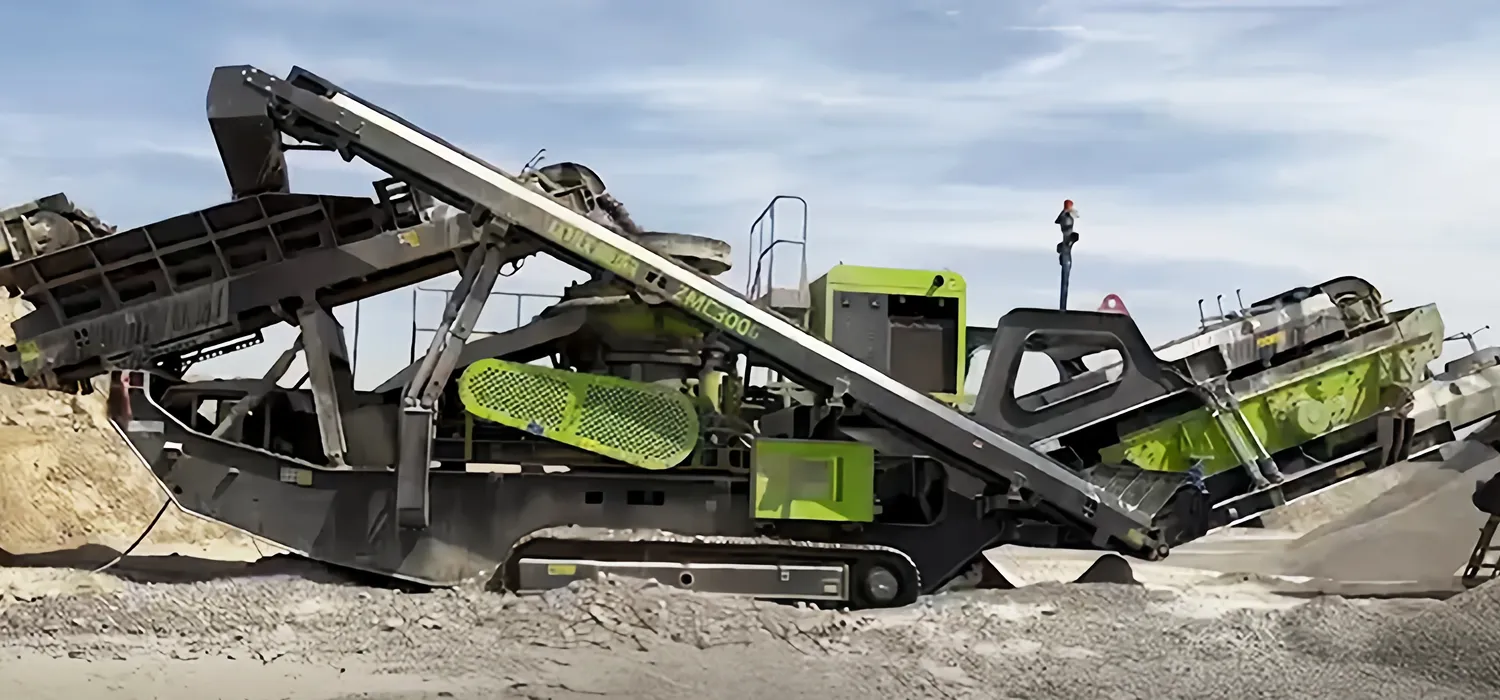

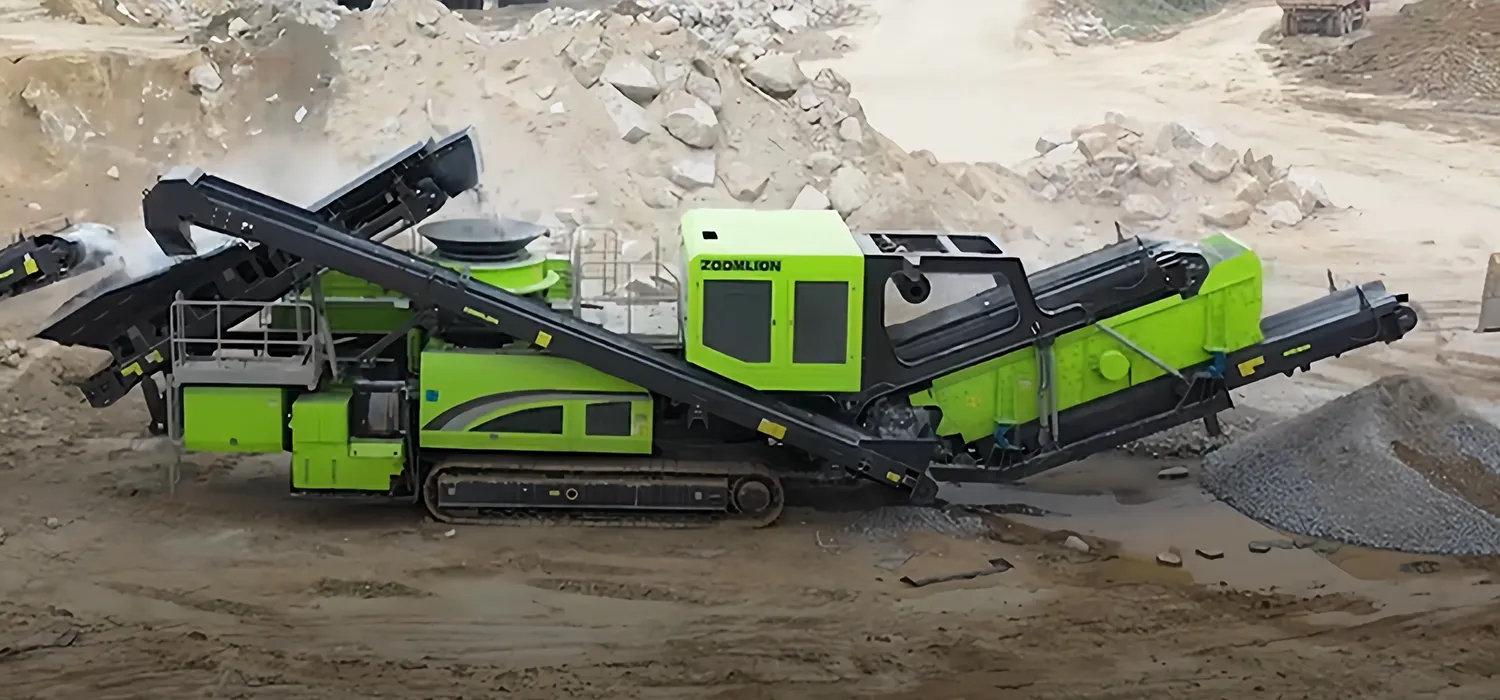

ZMC300G Mobile Crusher

ZOOMLION mobile crushing and screening plants process rock, ore and aggregates directly at the mining jobsite. From primary crushing to screening and material sizing, these mobile mining machines handle multiple stages of aggregate production without the need to transport materials between separate processing locations. They are widely used in open-pit mines, quarries and mineral processing sites because they make it easier to move equipment and handle materials efficiently.
  • Maximum Feed Size: 210 mm
  • Processing Capacity: 320 t/h
  • Drive Power: 321 kW
Request A Quote
Advantages
  • Easier Transport and Relocation

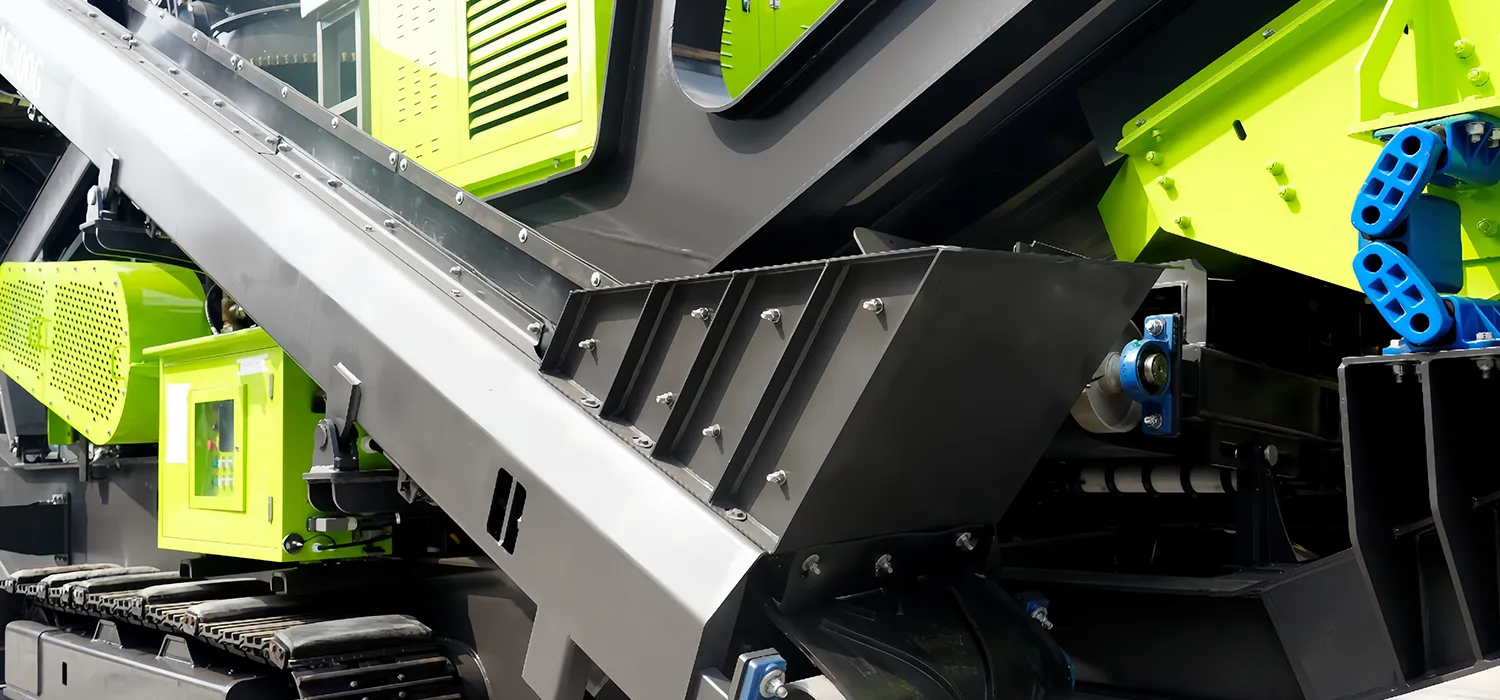

    The telescopic feeding conveyor uses a hydraulic cylinder and linkage mechanism for lowering. Its simpler structure makes the mining crushing equipment easier to prepare for transport and move between jobsites.

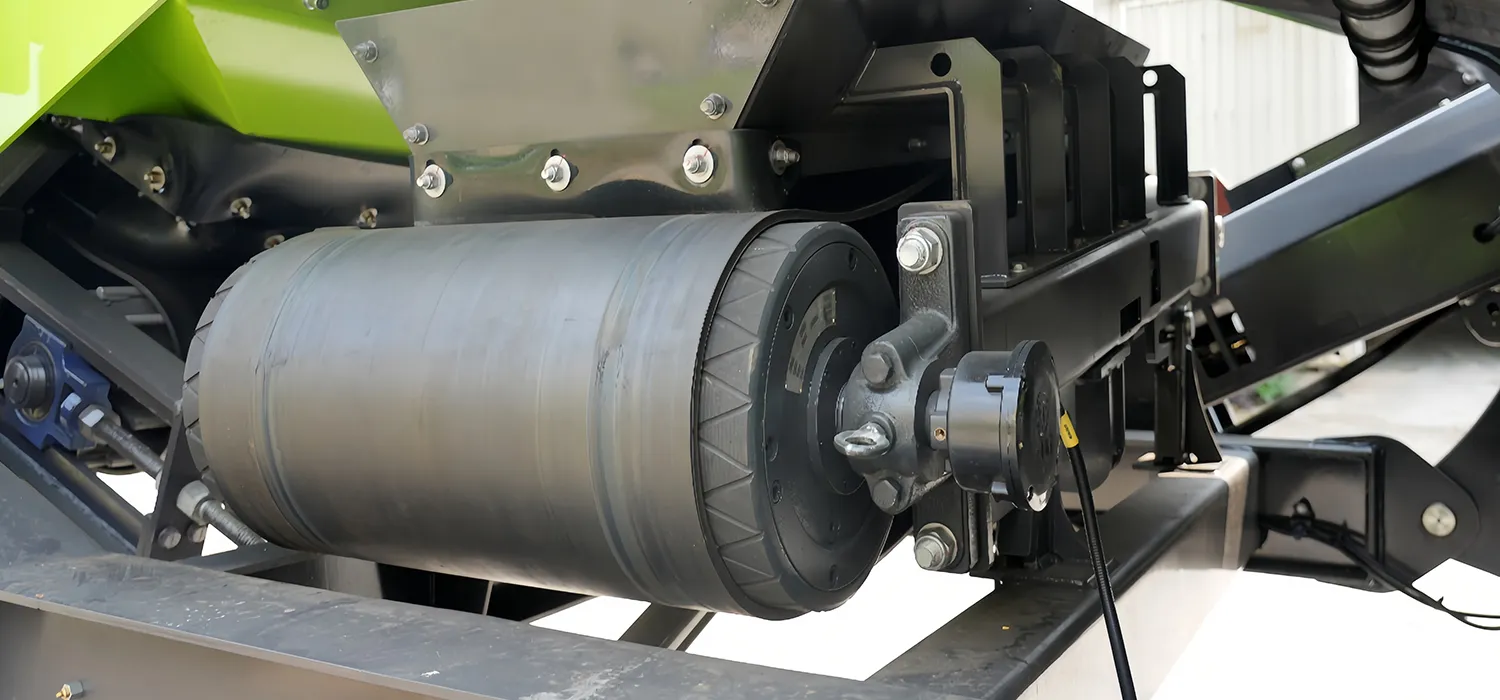

  • Integrated Frame with Vibration Isolation
    The crusher and drive motor are both mounted on the same base frame which is in turn supported by four vibration damping pads. This effectively absorbs the operating vibrations and the internal forces, reducing the stress on the crushing machine and contributing to a longer service life.
  • Intelligent Crushing and Simple Controls

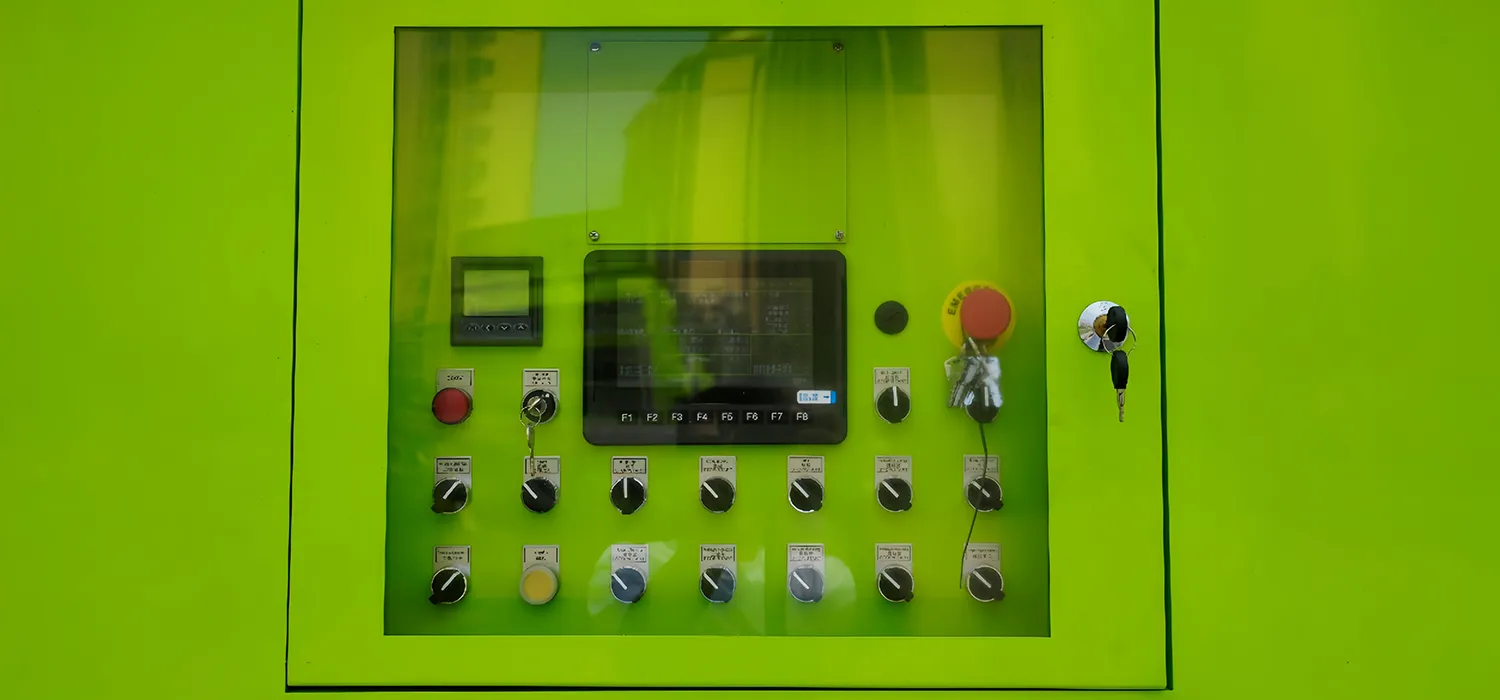

    The ZCF multi-cylinder cone crusher features automatic cavity clearing, tramp iron protection and a design that separates the moving cone from the main shaft, increasing its oscillation and rotation frequency for higher productivity. An integrated control panel and wireless remote provide one-touch start/stop and remote travel control.
  • Efficient Feeding and Consistent Output
    A variable-frequency drive automatically adjusts conveyor feeding speed to suit operating conditions. This keeps the crushing chamber properly filled and the material feed centered, to improve crushing efficiency and aggregate quality.
  • Built for Reliable Operation
    European-brand elastic supports contribute to stable operation, while the screen frame uses ring-groove rivets and weld-free side plates to reduce the risk of cracking. The chassis is manufactured from high-strength, low-alloy weathering steel for durability and operation in low-temperature environments.
Technical Specifications
General Capacity (t/h) 115–320
Operating weight (t) 56
Transport dimensions (L × W × H) (mm) 18051 × 3698 × 3872
Operating dimensions (L × W × H) (mm) 17176 × 3787 × 5327
Gradeability (°) 13
Installed power (kW) 321
Cone Crusher Model ZCF300
Crusher power (kW) 250
Max. feed size (mm) 210
Engine Diesel engine model (Ⅳ) YCF36140-T481
Max. torque (N·m) 480
Rated engine power (kW) 103
Displacement (L) 3.6
Feed Conveyor Motor power (kW) 11
Feed height (mm) 3300
Belt width (mm) 1000
Main Conveyor Motor power (kW) 11
Belt width (mm) 1000
Discharge height (mm) 3300
Final Screen Motor power (kW) 3.7 × 2
Screen deck dimensions (mm) 3300 × 1600
Main Discharge Conveyor Motor power (kW) 7.5
Belt width (mm) 1000
Discharge height (mm) 3000
Return Conveyor Belt width (mm) 550
Motor power (kW) 4
Transfer Conveyor Belt width (mm) 650
Motor power (kW) 3
Hydraulic System Main pump rated pressure (MPa) 35
Main pump displacement (ml/r) 95
Main valve rated pressure (MPa) 35
Main valve maximum flow (L/min) 180
Travel system pressure (MPa) 33
Fluid Capacities Fuel tank capacity (L) 135
Hydraulic oil tank capacity (L) 220
Engine oil capacity (L) 12
Crawler Chassis Travel speed (km/h) 0.6/1.2
Track width (mm) 500
Track gauge (mm) 2686
Track wheelbase (mm) 4050
Dust Suppression High-efficiency water spray dust suppression system

Note: Actual processing capacity depends on the hardness of the material being crushed, feed size and final product size.

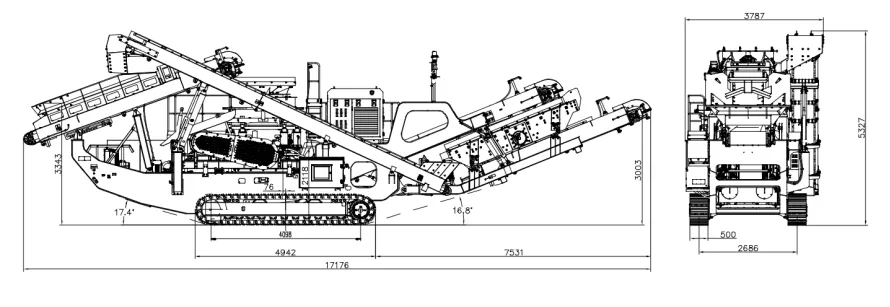

Dimensions
