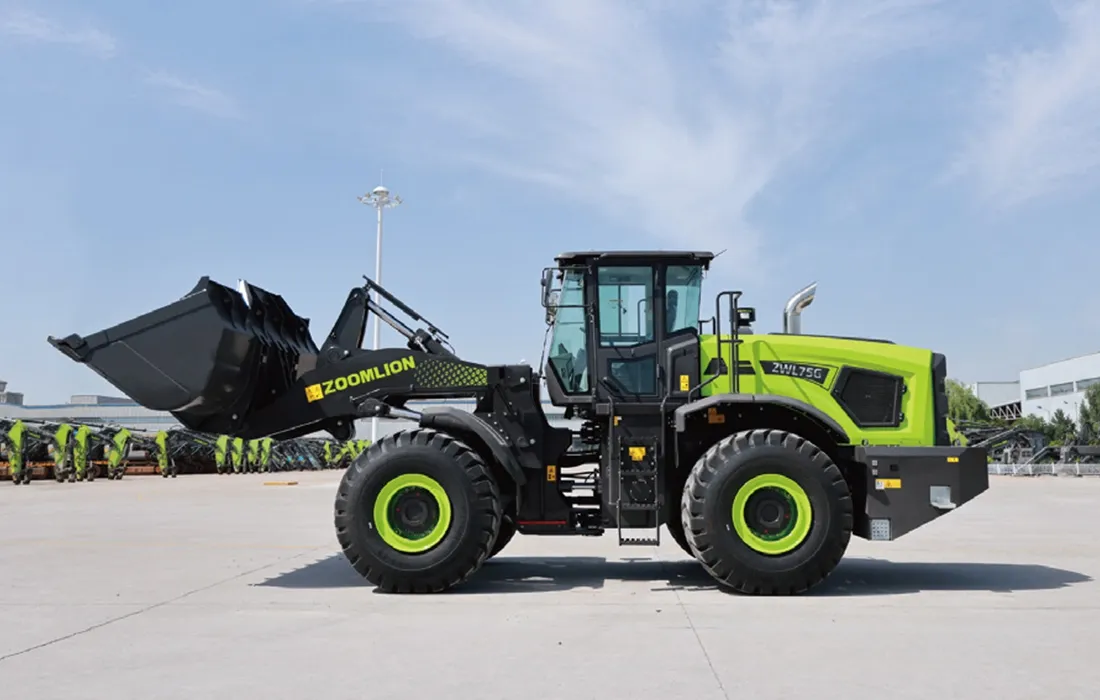

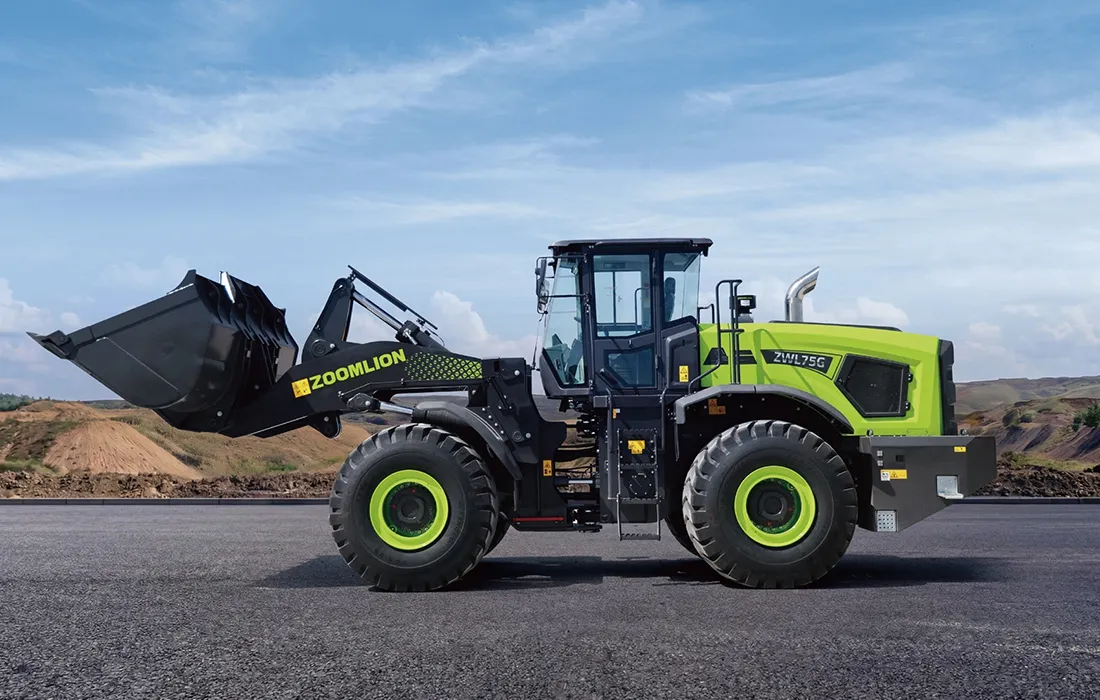

ZWL75G Wheel Loader

ZWL75G Wheel Loader

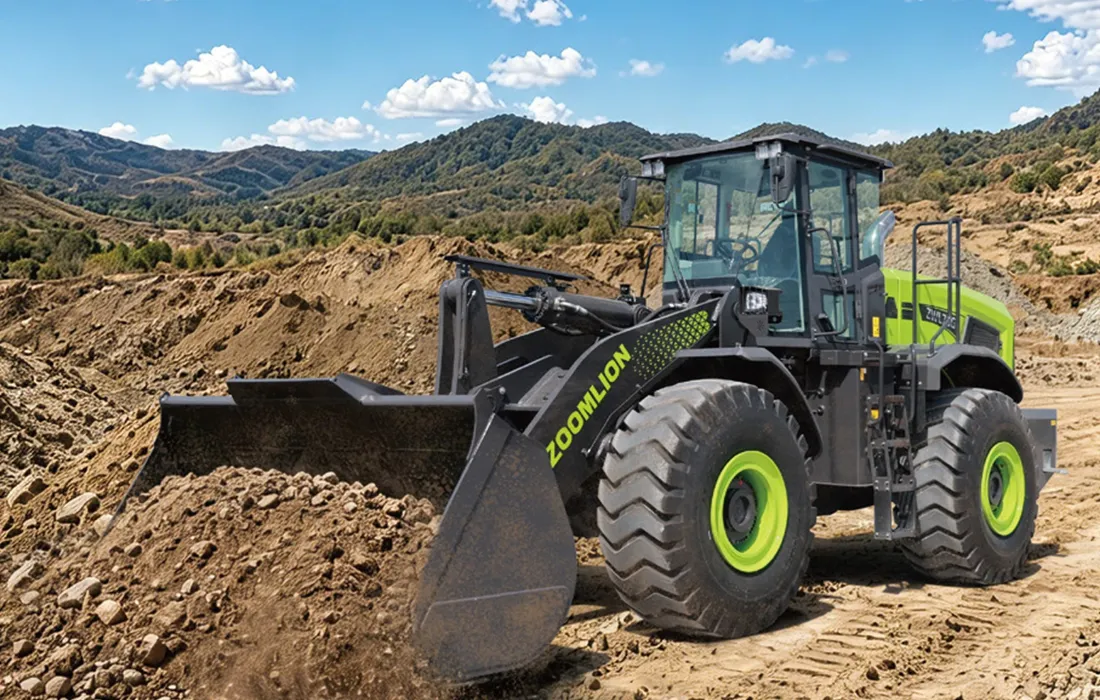

For large-volume material handling in aggregate yards and earthmoving projects, ZOOMLION's 7.5-ton-class diesel wheel loader is used to excavate, load onto trucks and transport sand, gravel, earth and other bulk materials over short distances. With a rated payload of 7,500 kg, the wheel loader is equipped with a standard 5 m³ bucket, while available bucket capacities ranging from 3.5 to 7 m³ accommodate different materials and loading requirements.

  • Rated engine power: 199 kW at 2,200 rpm
  • Operating weight: 25,000 kg
  • Rated payload: 7,500 kg
  • Bucket capacity: 5 m³ (3.5–7 m³)
Request A Quote
Download Brochure
Features

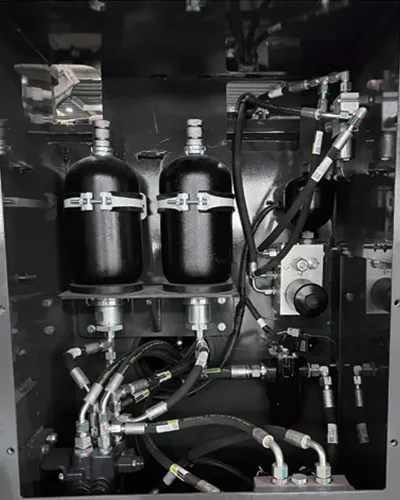

  • Matched power and hydraulic systems
    The 199 kW engine provides selectable P/E power modes for heavy-duty and light-to-medium-duty operations. To accommodate the different hydraulic demands of these tasks, the dual-pump combined-flow, fixed-variable hydraulic system adjusts oil flow according to operating conditions. This arrangement supplies the hydraulic flow required for heavy digging while reducing flow losses during rapid loading.
  • High breakout and traction forces
    With a maximum breakout force of 215 kN and a maximum traction force of 220 kN, the wheel loader is equipped for continuous excavation and loading of sand, gravel and earth. The matched engine, torque converter, drive shafts and drive axles help maintain substantial traction and lifting force when travel and working equipment functions operate simultaneously.

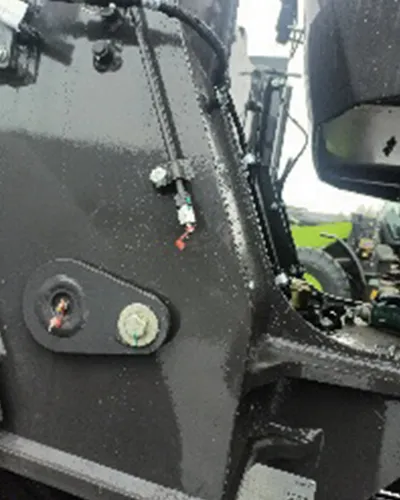

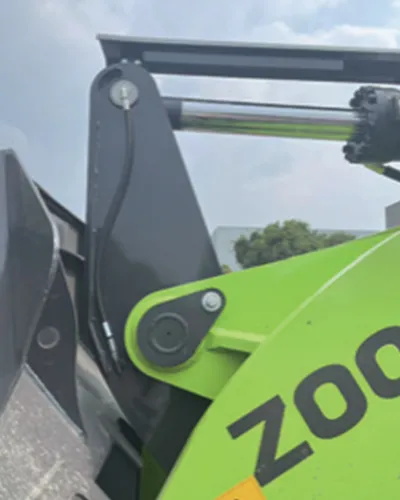

  • Reinforced frame and heavy-duty drive axles
    The high-strength wing-box front frame features a 6% increase in wing-box cross-sectional area, while the articulated rear frame is designed to accommodate heavy loads. Double tapered roller bearings at the central articulation joint and heavy-duty drive axles further strengthen the load-bearing structure for intensive working conditions.
  • Adaptability to high temperatures, cold weather and dusty conditions
    The cooling system accommodates ambient temperatures up to 50°C. For cold-weather starting, the engine is equipped with an intake grille heater and a high-capacity starting battery. Multistage fuel filtration removes contaminants of different particle sizes, while an optional oil-bath air pre-cleaner provides additional filtration for operation in dusty environments.

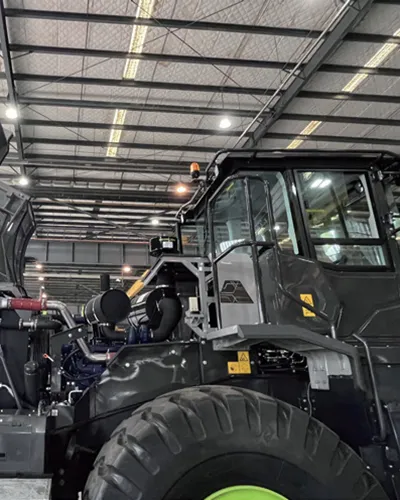

  • ZWL75G Wheel Loader
  • ZWL75G Wheel Loader
  • ZWL75G Wheel Loader
  • ZWL75G Wheel Loader
Technical Parameters
Operating weight 25000 kg
Rated load 7500 kg
Rated bucket capacity 5 m3
Optional bucket capacity 3.5–7 m3
Max. breakout force 215 kN
Max. traction force 220 kN
Lift-dump-descend time 10 s
Max. travel speed 6.5/12.5/26/39 km/h
Max. gradeability 27°

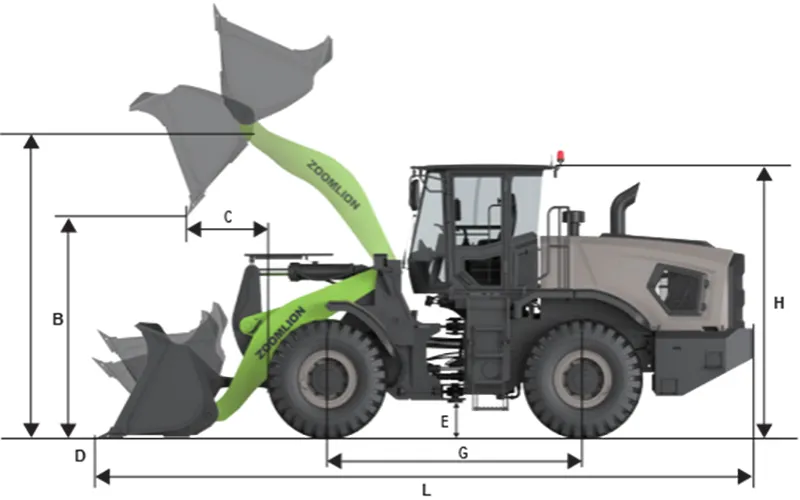

L Overall length 9330 mm
W Bucket width 3430 mm
H Overall height 3660 mm
A Boom hinge point height 4617 mm
B Dump height (45° dump angle) (45°) 3320 mm
C Dump reach (45° dump angle) (45°) 1260 mm
G Wheelbase 3550 mm

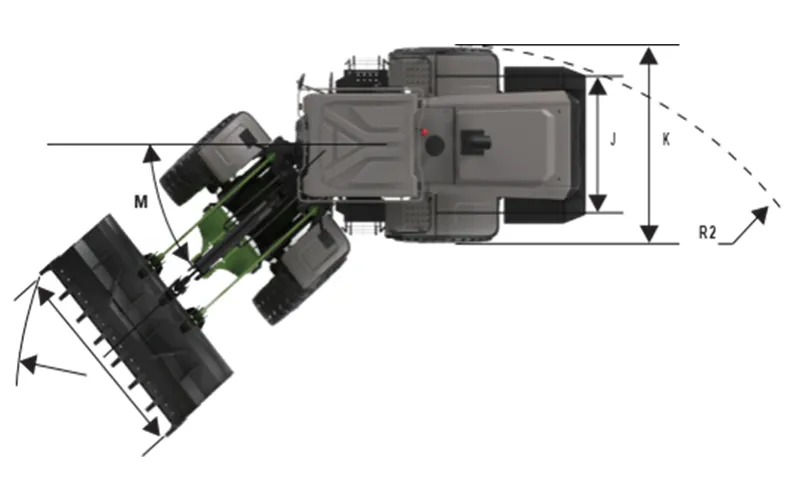

J Tread 2380 mm

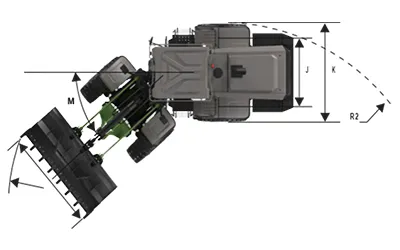

M Steering angle 40°
R2 Min. turning radius (outside of rear wheels) 6430 mm
R1 Min. turning radius (outside of buckets) 7430 mm
E Min. ground clearance 480 mm
Tipping load,straight 180 kN
Tipping load,full turn 160 kN
ZWL75G Wheel Loader
Engine Engine model WP10G270E341
Type Turbocharged, in-line, high-pressure common rail, water-cooling, four stroke cycles
Power 199/2200 kW/rpm
Displacement 9.726 L
Drivetrain Transmission Automatic power shift
Drive axle Dry
Tire 26.5-25-32PR
Hydraulic System System type Fixed-variable hydraulics
Steering pump type Swash plate variable piston pump
Service pump type Gear pump
Steering system pressure 21 MPa
Working system pressure 25 MPa
Brake System System type Full-hydraulic braking system
Brake system pressure 13 MPa
Service Refill Capacities Fuel tank 380 L
Transmission oil 50 L
Hydraulic tank 185 L
Engine oil 20 L
Front and rear axles 43/43 L
ZWL75G Wheel Loader
Attachments

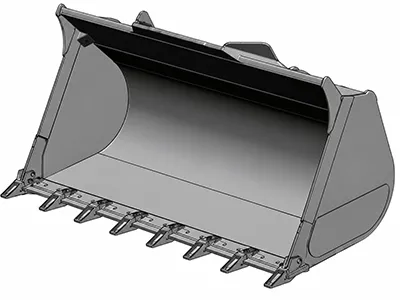

  • Gravel bucketGravel bucket

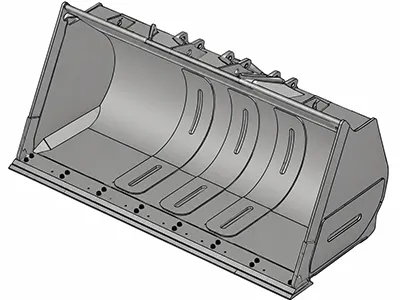

  • Flat bottom bucketFlat bottom bucket

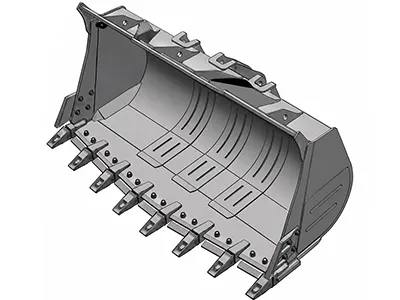

  • Rock bucketRock bucket

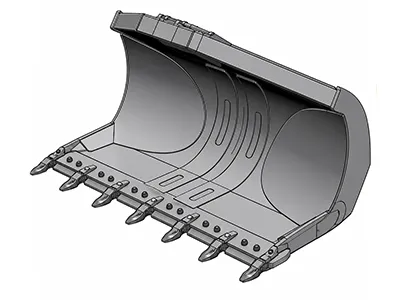

  • Side dump bucketSide dump bucket

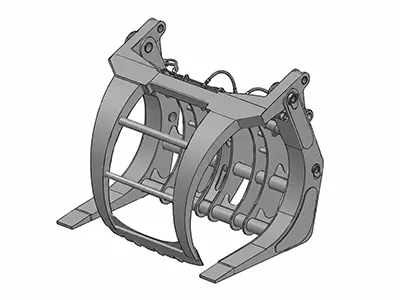

  • Log ForkLog Fork

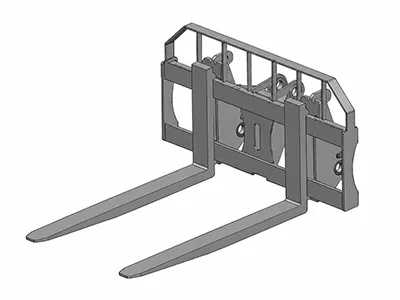

  • Grass forkGrass fork
