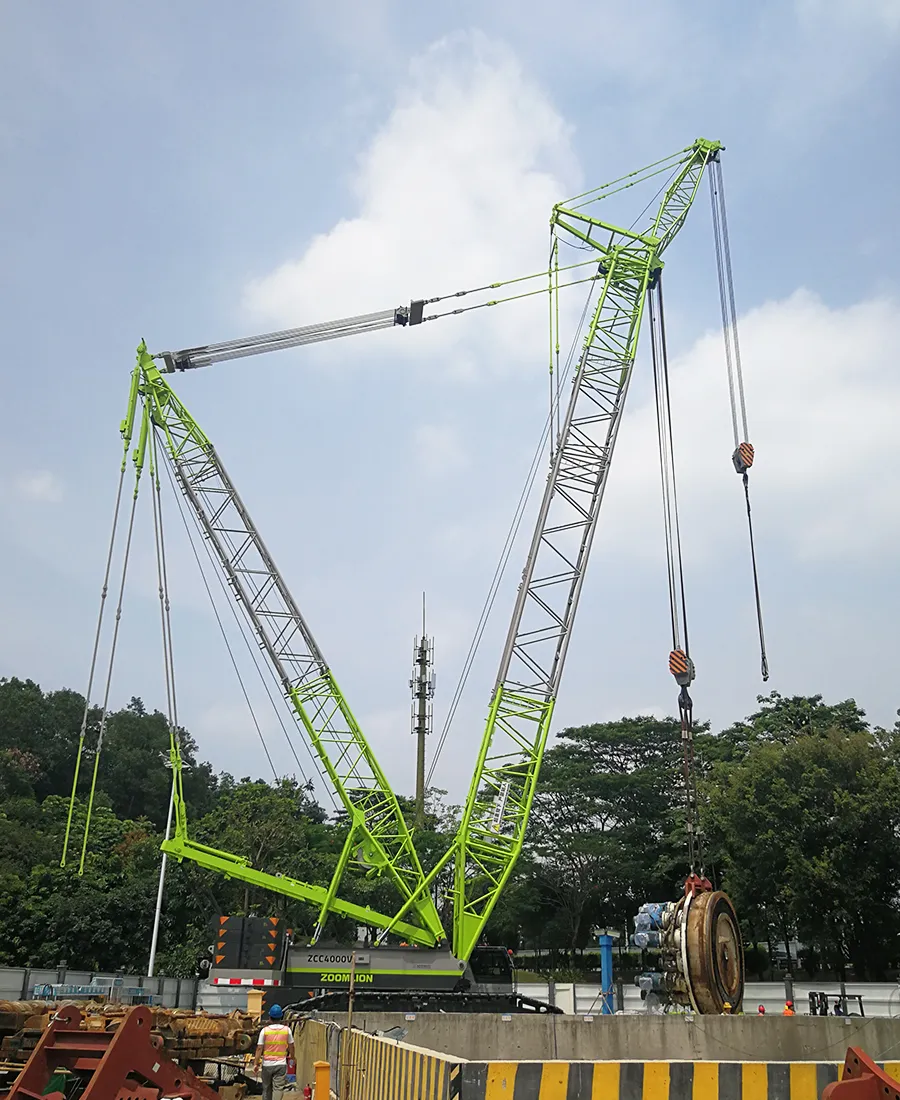

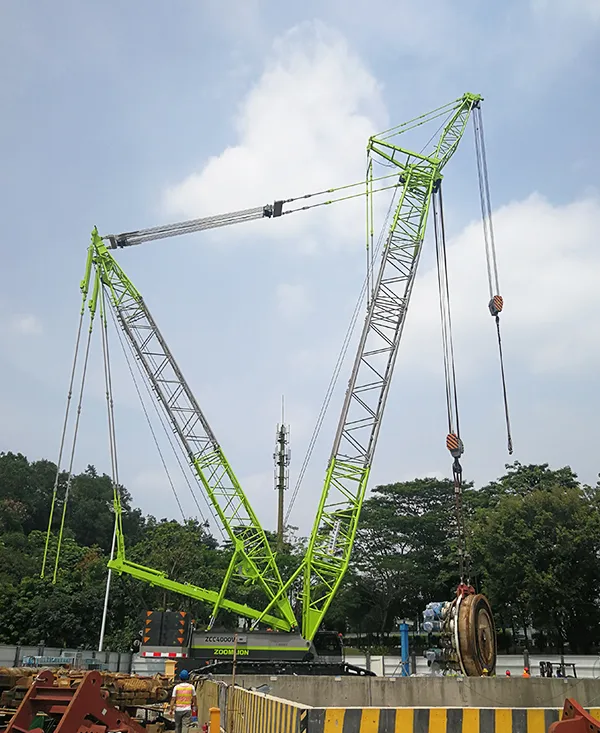

400t Crawler Crane ZCC4000V

400t Crawler Crane ZCC4000V

ZOOMLION 400-ton crawler cranes (ZCC4000V) use an auxiliary counterweight system, with a separate pump controlling each mechanism. Operators can use the auxiliary remote control to operate the crane and monitor several working conditions. Self-loading and unloading features simplify setup, while the compact transport design makes it easier to move these mobile cranes between large project sites.

  • Max. lifting capacity: 400 t
  • Max. load moment: 5500 kN·m
  • Gradeability: 20 %
Request A Quote
Download Brochure
Typical Applications

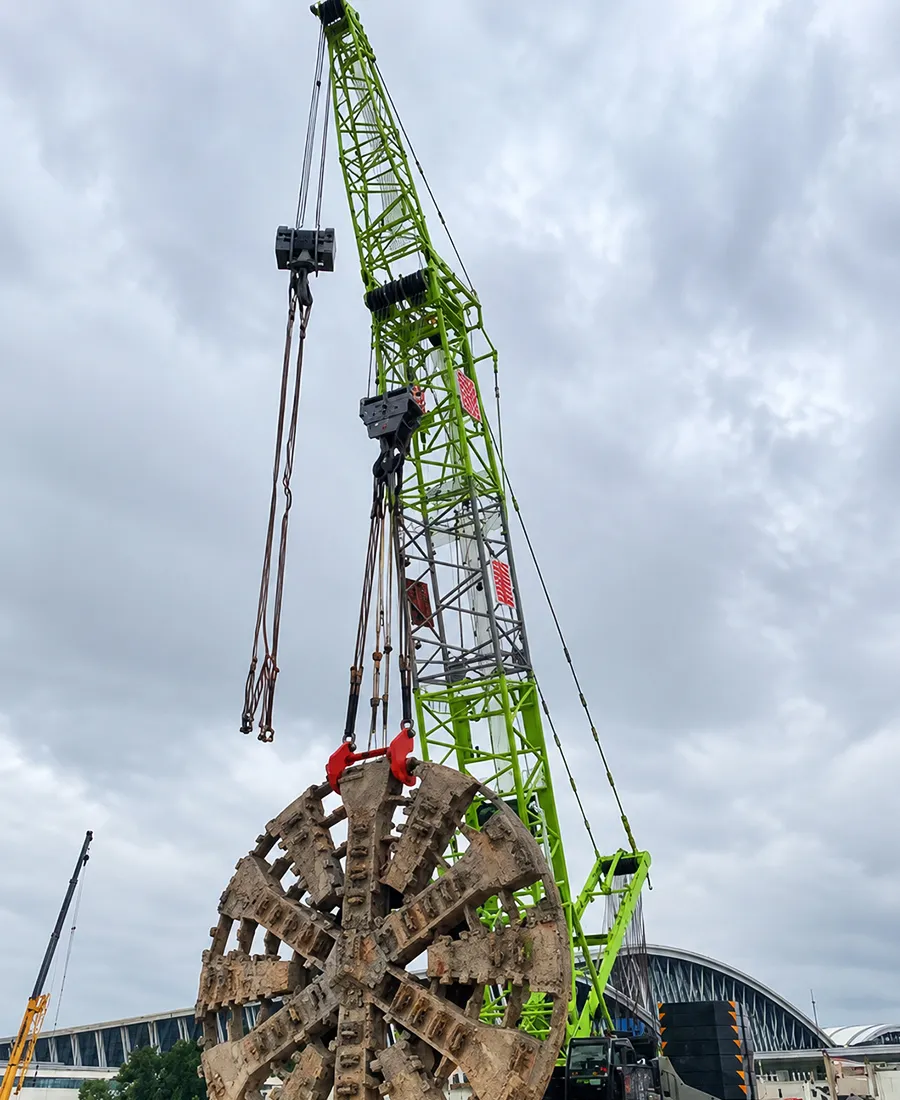

  • Lowering tunnel boring machines into urban subway tunnels
  • Assembling heavy precast components for major road and bridge projects
  • Lifting and positioning oversized vessels and equipment at petrochemical and energy facilities
Features
  • The auxiliary counterweight system raises the maximum load moment to 5500 t·m, so the mobile crane can handle heavy loads at long working radii with performance close to that of a 500-ton-class model.
  • Operators can raise and lower the boom with one touch, and the crane can load and unload itself. Real-time monitoring tracks the crane’s center of gravity, while a virtual wall marks the limits of the work area.
  • The main crane body weighs 42 tons and measures 3 m wide which simplifies transport. The boom sections can be put together in a way that saves three flatbed trucks when the complete crane moves to another site, lowering transport costs.
Technical Specifications
Item Unit Value
Lifting capacity Max. lifting moment t·m 5500
Max. lifting capacity t 400
Operating mode S Max. lifting capacity t 400
Main boom length m 24-84
Operating mode SA Max. lifting capacity t 400
Main boom length m 24-84
Operating mode SDB Max. lifting capacity t 400
Main boom length m 36-96
Operating mode SL Max. lifting capacity t 215
Main boom length m 72-108
Operating mode SLDB Max. lifting capacity t 235
Main boom length m 72-126
Operating mode SW Max. lifting capacity t 150
Main boom + Luffing jib length m (30-60)+(24-72)
Main boom angle ° 85/75/65
Operating mode SWDB Max. lifting capacity t 235
Main boom + Luffing jib length m (36-84)+(24-84)
Main boom angle ° 85/75/65
Operating mode SFV Max. lifting capacity t 200
Main boom + Jib length m 24+(9-12)
Operating mode SFVA Max. lifting capacity t 200
Main boom + Jib length m 24 + (9-12)
Operating mode SFVDB Max. lifting capacity t 200
Main boom + Jib length m 36+(9-12)
Machine weight (24m150t400t) Deadweight of the whole crane (24m basic boom with 150t rear counterweight and 400t hook) t 342
Counterweight Rear counterweight t 150
Central ballast t 40
Attached ballast t 110
Suspended ballast t 230
Engine Model / WP12G430E300
Rated power/rotational speed kW/rpm 316/1900
Emission standard / Non-road China III
other Track gauge × contact length of track × width of track pad mm 7580 × 10330 × 1200
Gradeability % 20
Ground pressure MPa 0.17
Transport parameters of the largest single piece Weight t 44
Dimension mm 14200 × 3100 × 3150
