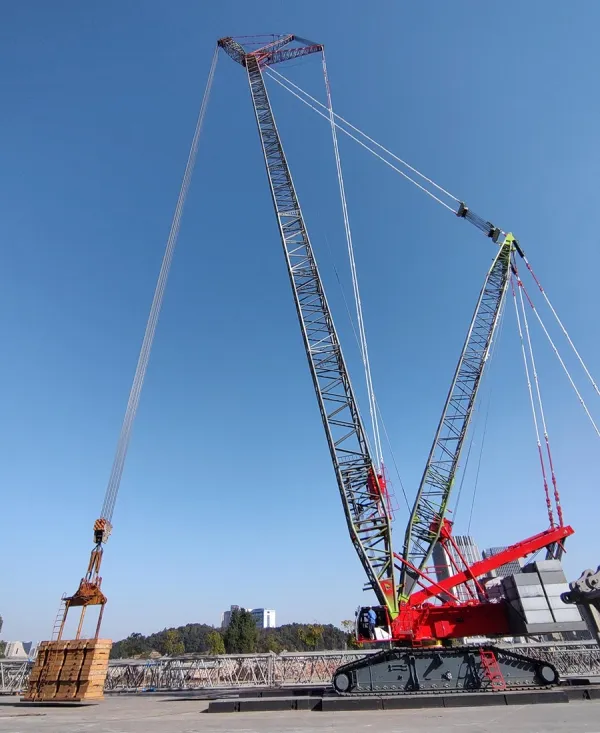

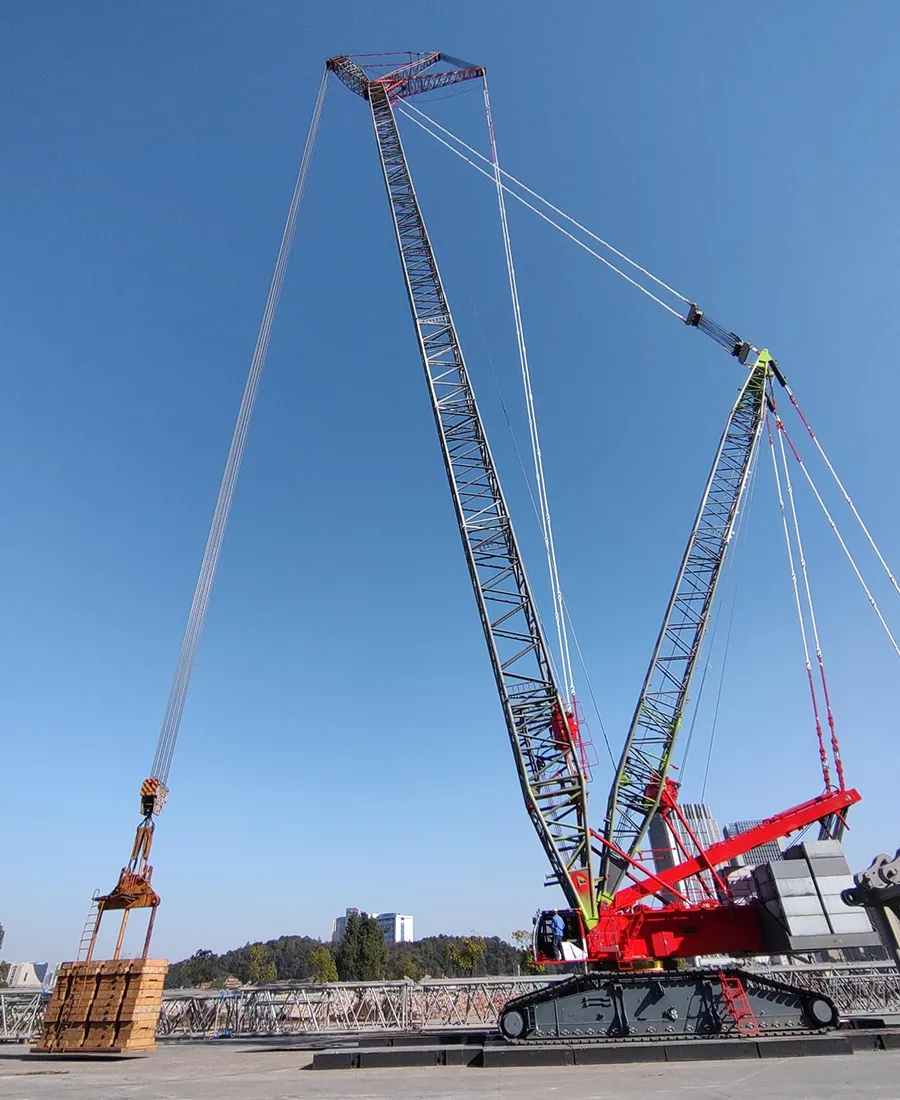

ZOOMLION 800-ton crawler cranes are suitable for wind turbine installation and other heavy lifts on major engineering projects. Operators can choose from different main boom, jib, and superlift configurations for loads at different heights and working radii, while intelligent controls and quick assembly features help speed up the crane’s setup.
| Item | Unit | Value | |
| Max. lifting | Max. lifting moment | t·m | 11104 |
| Max. lifting capacity | t | 800 | |
| Heavy-duty main boom | Max. lifting capacity | t | 600 |
| Main boom length | m | 39–93 | |
| Superlift heavy-duty main boom | Max. lifting capacity | t | 800 |
| Main boom length | m | 39–159 | |
| Hybrid main boom | Max. lifting capacity | t | 330 |
| Main boom length | m | 72–114 | |
| Superlift hybrid main boom | Max. lifting capacity | t | 330 |
| Main boom length | m | 90–162 | |
| Standard main boom for wind turbine | Max. lifting capacity | t | 200 |
| Length of jib for wind turbine | m | 7 | |
| Main boom length | m | 90–114 | |
| Superlift main boom for wind turbine | Max. lifting capacity | t | 200 |
| Length of jib for wind turbine | m | 7 | |
| Main boom length | m | 108–168 | |
| Luffing jib | Max. lifting capacity | t | 221 |
| Luffing jib length | m | 24–84 | |
| Main boom length | m | 39–63 | |
| Main boom angle | ° | 85、75、65 | |
| Superlift luffing jib | Max. lifting capacity | t | 330 |
| Luffing jib length | m | 30–96 | |
| Main boom length | m | 63–99 | |
| Main boom angle | ° | 85、75、65 | |
| Speed parameters | Max. single rope speed of the main hoisting winch (the outermost layer) | m/min | 140 |
| Max. single rope speed of the secondary hoisting winch (the outermost layer) | m/min | 140 | |
| Max. single rope speed of the main derricking winch (the outermost layer) | m/min | 2 × 56 | |
| Max. single rope speed of the superlift derricking winch (the outermost layer) | m/min | 130 | |
| Max. single rope speed of the luffing winch (the outermost layer) | m/min | 139 | |
| Max. single rope speed of the tip boom winch (the outermost layer) | m/min | 108 | |
| Slewing speed | r/min | 0–1.0 | |
| Traveling speed | km/h | 0–0.8 | |
| Deadweight with basic operating mode | 39m standard main boom OM (rear counterweight of 210t, central ballast of 60t, with a 650t hook) | t | 550 |
| Counterweight | Suspended ballast | t | 400 |
| Rear counterweight | t | 210 | |
| Central ballast | t | 60 | |
| Engine | Model | / | M15 |
| Rated power / rotational speed | kW/rpm | 563/2100 | |
| Emission standard | / | China III | |
| Other | Track gauge × crawler contact length × track shoe width | mm | 9000 × 12210 × 1500 |
| Average ground pressure with basic operating mode | MPa | 0.2 | |
| Gradeability | % | 20 | |
| Transport parameter of the largest single piece | Weight | t | 44 |
| Dimension | mm | 13500 × 3500 × 2850 | |
