AC-Li Series Scissor Lift

AC-Li Series Scissor Lift

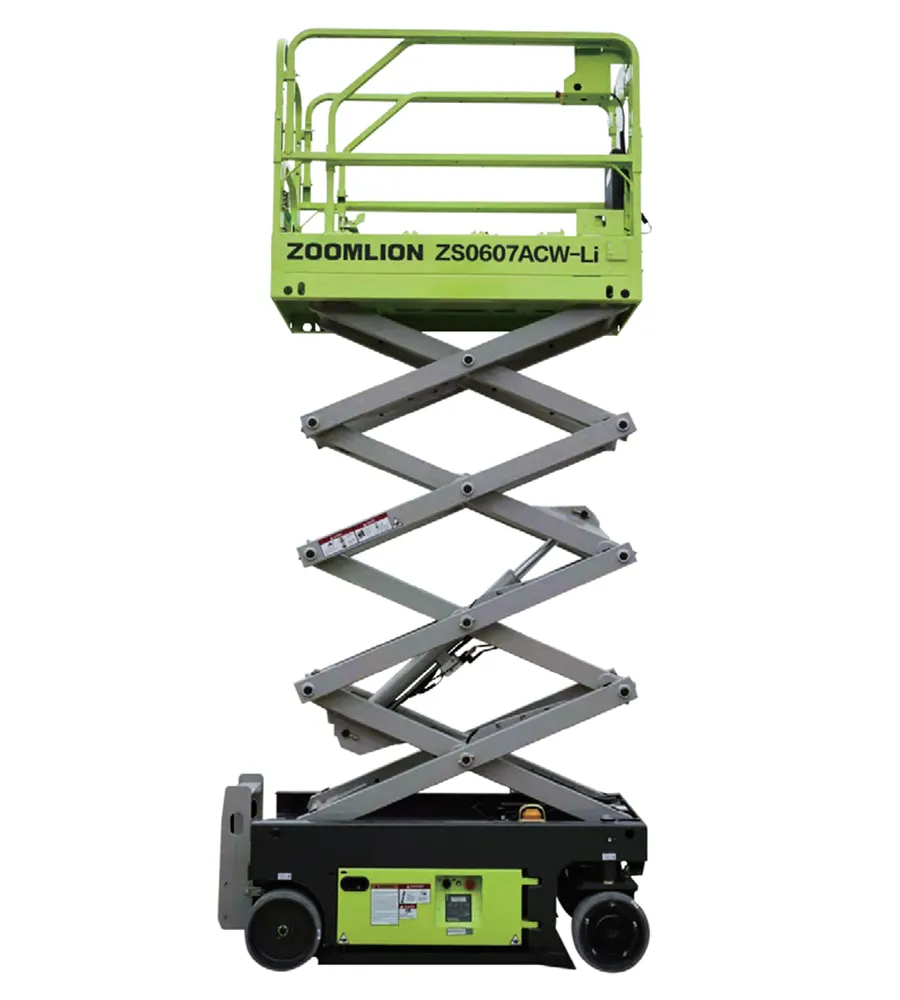

ZOOMLION AC-Li scissor lifts are battery-powered aerial work platforms used to lift personnel, tools, and materials for construction, equipment installation, and building maintenance. The series features lithium batteries and AC drive systems, with working heights ranging from 7.8 to 15.7 m and platform load capacities of 230 to 450 kg. The drive motors have an IP67 rating for protection against dust and water, and the lifts can operate in temperatures as low as −20 °C. These scissor lifts also require less routine maintenance, as the AC motors need no daily servicing and the knuckle joints in the scissor mechanism do not require grease lubrication.

  • Working height (indoor/outdoor): 7.8 - 15.7 m
  • Platform capacity: 230 - 450 kg
  • Capacity on deck extension: 113 kg
Request A Quote
Download Brochure
Standard Features
BMS(Battery Management System) Active pothole protection system
Proportional controls Driveable at full height
All motion alarm Hour meter
Fold-down handrails Extension deck (unidirectional)
Flashing beacon Charging protection system
Self-closing entry gate Scissor maintenance prop
Autobrake system Forklift pockets
Emergency descent system Load sensing system
Emergency stop button AC power to platform
On-board diagnostic Horn
Over tilt protective system
Accessories & Options
  • Work lights for the platform
  • Air line to the platform
  • Overhead protection bar
  • Hydraulic oil for low-temperature operation
Technical Specifications
Model ZS0607ACW-Li ZS0607AC-Li ZS0808AC-Li ZS0812AC-Li ZS1008AC-Li ZS1012AC-Li ZS1212AC-Li ZS1414AC-Li
Metric Metric Metric Metric Metric Metric Metric Metric
Size
Working height (indoor/outdoor) 7.80m 7.80m/6.40m 10.00m/7.80m 10.00m 12.00m/9.00m 11.80m 13.80m/10.00m 15.70m/10.50m

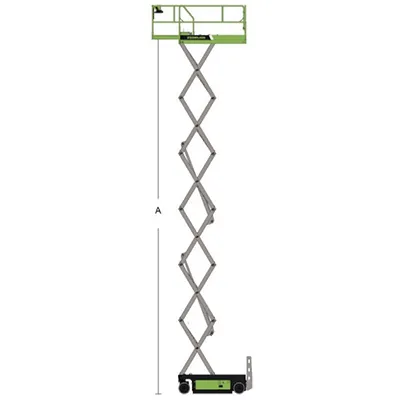

A - Platform height-elevated (indoor/outdoor) 5.80m 5.80m/ 4.40m 8.00m/ 5.80m 8.00m 10.00m/ 7.00m 9.80m 11.80m/ 8.00m 13.70m/ 8.50m

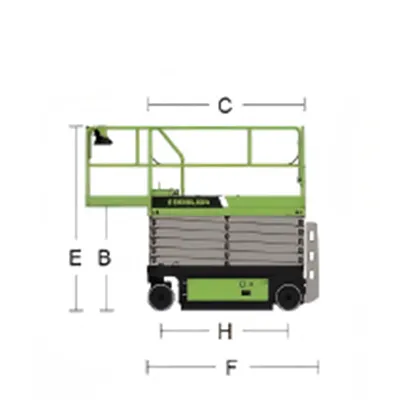

B - Platform height-stowed 1.05m 1.05m 1.26m 1.26m 1.39m 1.39m 1.52m 1.54m
C - Platform length 1.65m 1.65m 2.30m 2.30m 2.30m 2.30m 2.30m 2.67m

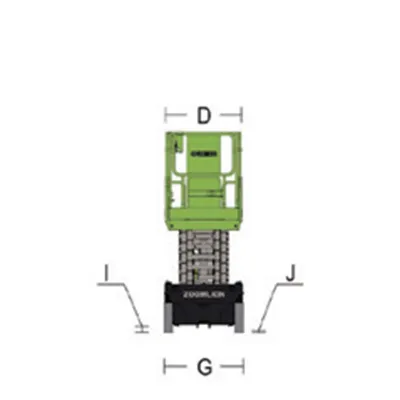

D - Platform width 0.74m 0.74m 0.81m 1.12m 0.81m 1.12m 1.12m 1.12m
Platform extension 0.91m 0.91m 0.91m 0.91m 0.91m 0.91m 0.91m 0.91m
E - Overall height (rails up) 2.20m 2.20m 2.4m 2.40m 2.53m 2.53m 2.66m 2.68m
Overall height (rails down) 1.79m 1.79m 1.9m 1.73m 2.03m 1.86m 2.00m 2.00m
F - Overall length 1.85m 1.85m 2.49m 2.49m 2.49m 2.49m 2.49m 2.87m
G - Overall width 0.81m 0.76m 0.81m 1.15m 0.81m 1.15m 1.15m 1.40m
H - Wheelbase 1.37m 1.37m 1.85m 1.85m 1.85m 1.85m 1.85m 2.22m
I - Ground clearance (stowed) 0.06m 0.06m 0.11m 0.11m 0.11m 0.11m 0.11m 0.11m
J - Ground clearance (raised) 0.016m 0.016m 0.02m 0.02m 0.02m 0.02m 0.02m 0.02m
Performance
Platform capacity 230kg 230kg 230kg 450kg 250kg 350kg 350kg 350kg
Capacity on deck extension 113kg 113kg 113kg 113kg 113kg 113kg 113kg 113kg
Max. number of workers (indoor/outdoor) 2/1 2/1 2/1 2/1 2/1 2/1 3/1 (CE); 2/1 (ANSI) 2/1
Drive speed (stowed) 4km/h 4km/h 4km/h 4km/h 4km/h 4km/h 4km/h 4km/h
Drive speed (raised) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Turning radius (inside) 0.1m 0.1m 0.1m 0.1m 0.1m 0.1m 0.1m 0.1m
Turning radius (outside) 1.6m 1.6m 2.1m 2.2m 2.1m 2.2m 2.2m 2.6m
Lifting motor 24V/3.3kW 24V/3.3kW 24V/3.3kW 24V/3.3kW 24V/3.3kW 24V/3.3kW 24V/3.3kW 24V/3.3kW
Drive motor 24V/2 × 0.6kW 24V/2 × 0.6kW 24V/0.7kW 24V/2 × 0.7kW 24V/2 × 0.7kW 24V/2 × 0.7kW 24V/2 × 0.7kW 24V/2 × 0.7kW
Up/down time 20s/24s 20s/24s 31s/40s 31s/40s 55s/42s 60s/35s 62s/42s 88/60s
Gradeability 25%(14°) 25%(14°) 25%(14°) 25%(14°) 25%(14°) 25%(14°) 25%(14°) 25%(14°)
Max. working slope (lateral/vertical) 1.5°/3° 1.5°/3° 1.5°/3° 2°/3° 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Control Proportional Control Proportional Control Proportional Control Proportional Control Proportional Control Proportional Control Proportional Control Proportional Control
Drive Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels
Brake Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels Front Wheels
Tire Ø323mm × 100mm Ø323mm × 100mm Ø381mm × 127mm Ø381mm × 127mm Ø381mm × 127mm Ø381mm × 127mm Ø381mm × 127mm Ø381mm × 127mm
Power
Battery 135Ah Li-ion 135Ah Li-ion 135Ah Li-ion 230Ah Li-ion 230Ah Li-ion 230Ah Li-ion 230Ah Li-ion 230Ah Li-ion
Charger 24V/30A 24V/30A 24V/30A 24V/30A 24V/30A 24V/30A 24V/30A 24V/30A
Weight
Gross 1620kg 1455kg 2090kg 2550kg 3150kg 2930kg 3000kg 3310kg
Overall Dimensions
  • AC-Li Series Scissor Lift
  • AC-Li Series Scissor Lift
  • AC-Li Series Scissor Lift
