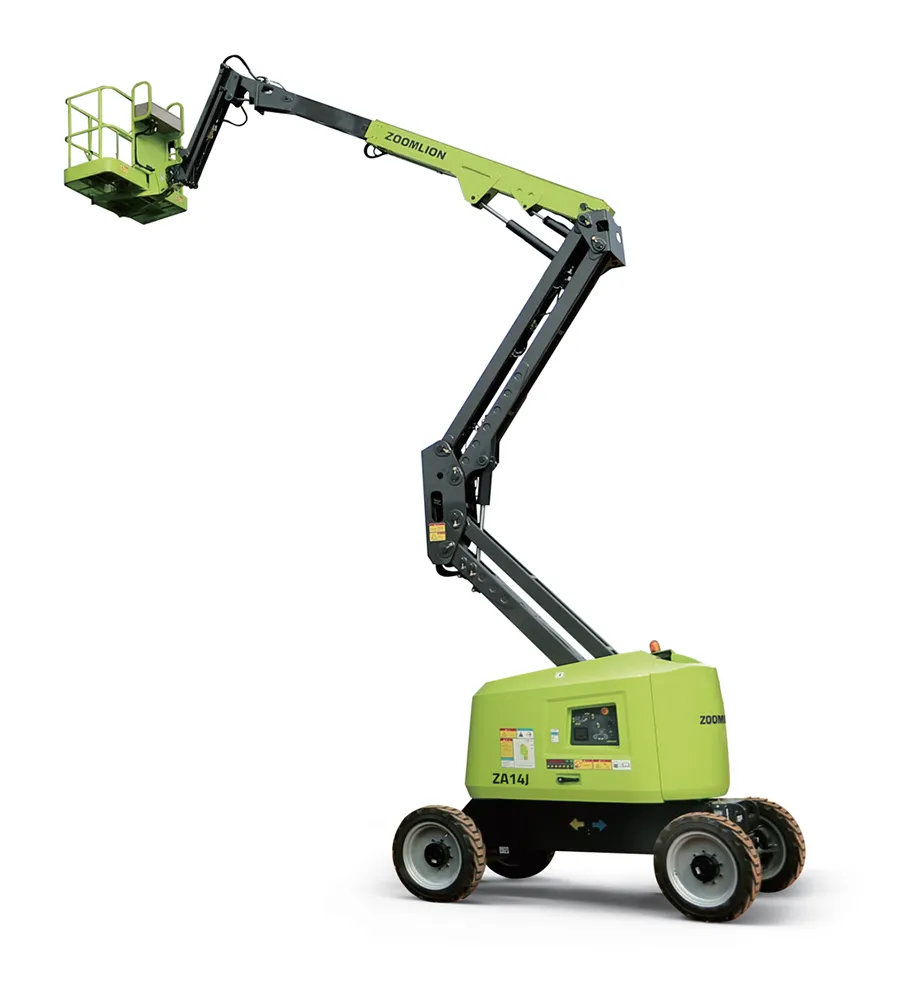

ZA14J Articulating Boom Lift

ZA14J Articulating Boom Lift

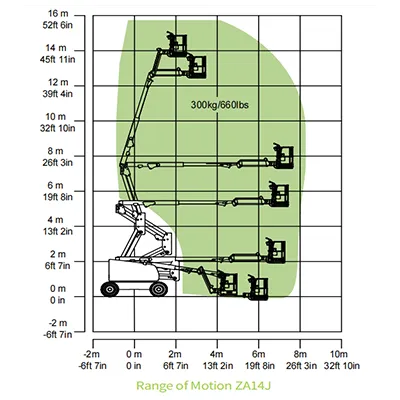

The articulating boom lifts ZA14J carry workers, tools, and materials to elevated areas where obstacles make direct access difficult. Their jointed booms rise and extend outward to reach over building structures or equipment, giving workers access to installation and maintenance points. These ZOOMLION ZA14J boom lifts offer a working height of 15.8 m, horizontal outreach of 8.3 m, and a platform capacity of 300 kg. Their four-wheel drive and 45% gradeability help them move around outdoor construction sites.

  • Working Height: 15.80 m
  • Horizontal outreach: 8.30 m
  • Up-and-over height: 7.55 m
  • Platform capacity: 300 kg
Request A Quote
Download Brochure
Features
  • These aerial work platforms can carry up to 300 kg, so workers can take the tools and materials they need up with them.
  • They have a pressure-controlled leveling system that helps keep the work platform stable during operation.
  • Load sensing monitors the weight on the platform and helps protect against overloading.
  • An integrated slewing reducer helps the boom rotate smoothly and steadily.
  • An optional kit for harsh conditions is available for work in dusty environments.
  • The deadweight lowering system uses the boom’s own weight during descent for smoother movement and lower energy use.
Technical Specifications
Imperial Metric
Size
Working height 51ft 10in 15.80m
Platform height 45ft 3in 13.80m
Horizontal outreach 27ft 3in 8.30m
Up and over height 24ft 9in 7.55m

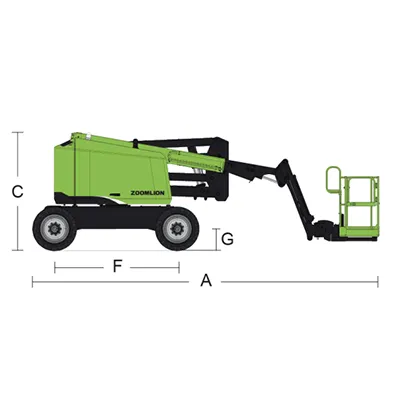

A - Stowed length 21ft 7in 6.57m

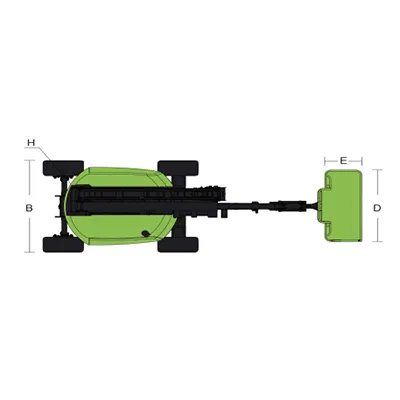

B - Stowed width 7ft 7in 2.30m
C - Stowed height 7ft 5in 2.27m
D - Platform length 6ft 1.83m
E - Platform width 2ft 6in 0.76m
F - Wheelbase 7ft 9in 2.36m
G - Ground clearance 1ft 5in 0.42m

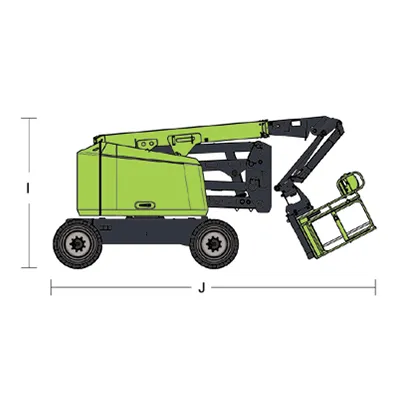

J - Transport length 18ft 34in 5.59m
I - Transport height 8ft 6in 2.62m
Performance
Platform capacity 660 lb 300kg
Drive speed 4.23 mph 6.8km/h
Gradeability 45%(24°) 45%(24°)
Axles oscillation 4in 0.1m
Turning radius (inside/outside) - 2WS 6ft 9in/15ft 8in 2.06m/4.78m
Turning radius (inside/outside) - 4WS 4ft 4in/9ft 2in 1.32m/2.79m
Swing 355° non-continuous
Platform rotation ±90°
H - Tail swing 0
Max. wind speed 28mph 12.5m/s
Power
Diesel Engine Kubota V2403 Kubota D1105
Fuel tank capacity 17.2 (us gal) 65L
Auxiliary power 12V
Control voltage 12V
Hydraulic system capacity 39.6 (us gal) 150L
Hydraulic tank capacity 20.1 (us gal) 76L
Drive 4WD
Tire
Type 315/55 D20 Foam-filled Tires 33 × 12-20 Solid Tires
Weight
Gross 15653lb 7100kg
Overall Dimensions
ZA14J Articulating Boom Lift
ZA14J Articulating Boom Lift
ZA14J Articulating Boom Lift
ZA14J Articulating Boom Lift
