ZOOMLION
ZS0508C Scissor Lifts

ZS0508C Scissor Lift

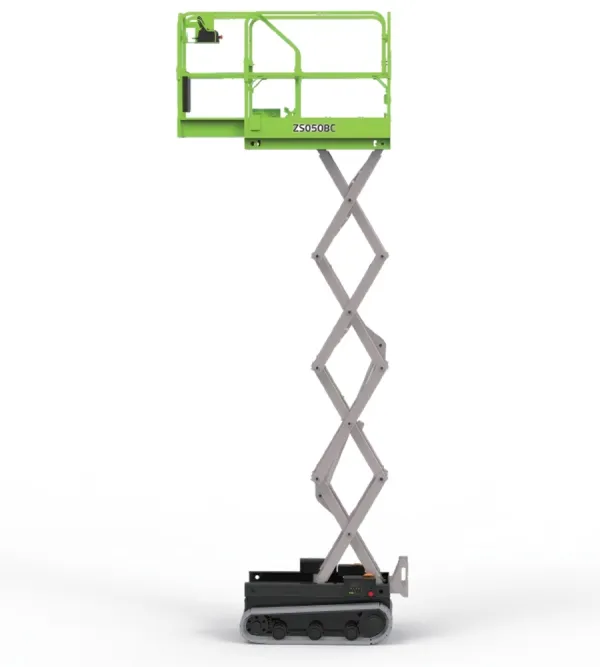

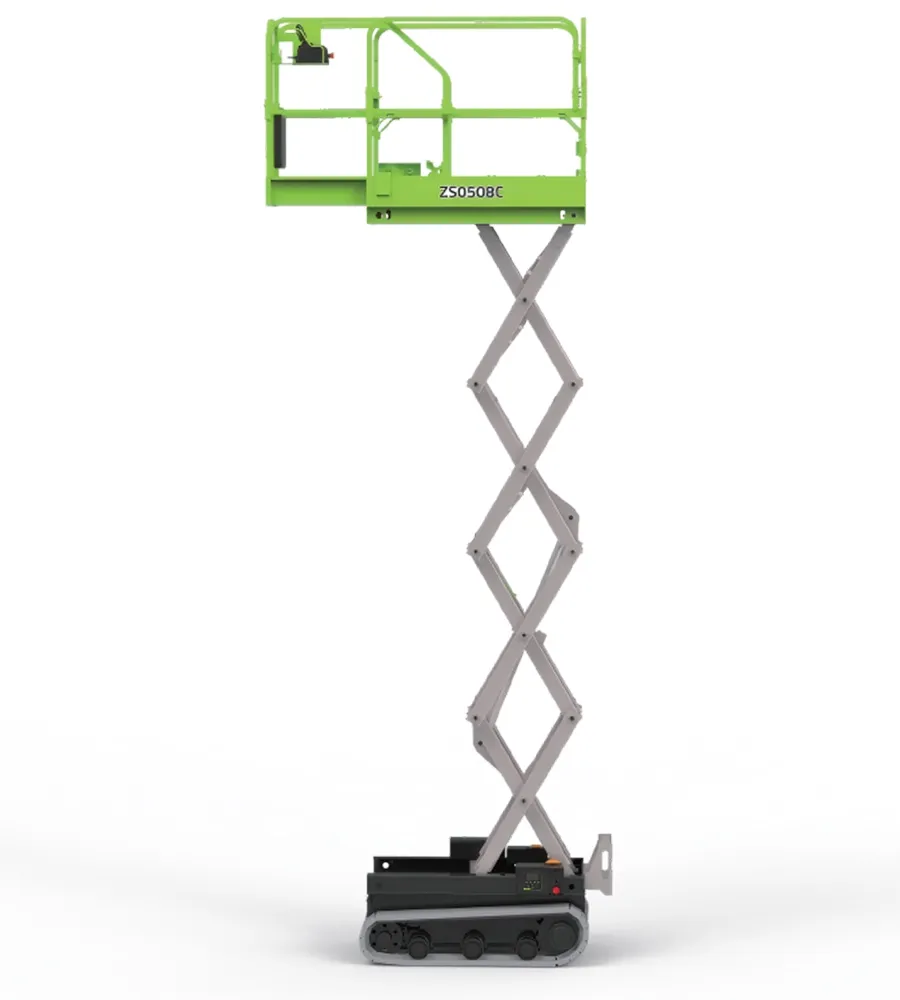

ZOOMLION ZS0508C scissor lifts are a compact crawler scissor lift for construction, equipment installation, and maintenance work. They have a platform that can carry up to 240 kg of workers, tools, and materials to a working height of 6.5 m. These aerial work platforms are 0.79 m wide, so they can reach work areas with limited space. Their rubber tracks let them move around the jobsite, and the zero turning radius helps them change direction where there is little room to maneuver.

  • Working Height: 6.5/8.8 m
  • Platform Capacity: 240 kg
  • Overall Width: 0.79 m
  • Turning Radius: 0 m
  • Gradeability: 25 %
Request A Quote
Download Brochure
Standard Features
Proportional controls Over tilt protective system
All motion alarm Hour meter
Fold-down handrails Extension deck (unidirectional)
Flashing beacon Charging protection system
Self-closing entry gate Scissor maintenance prop
Autobrake system Forklift pockets
Emergency descent system Load sensing system
Emergency stop button AC power to platform
On-board diagnostic Horn
Accessories & Options
  • Platform work lights
  • Air line to the platform
  • Overhead protection bar
  • Hydraulic oil for low-temperature operation
Technical Specifications
Model ZS0508C ZS0610C

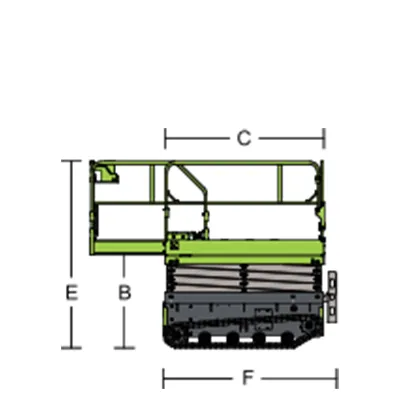

Size
Working height 6.5m 8.80m/8m

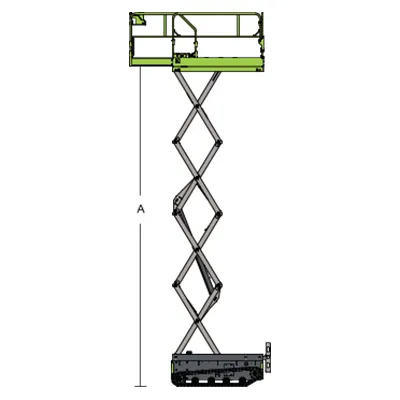

A - Platform height-elevated 4.5m 6.80m/6m
B - Platform height-stowed 0.9m 1.12m
C - Platform length 1.29m 1.94m

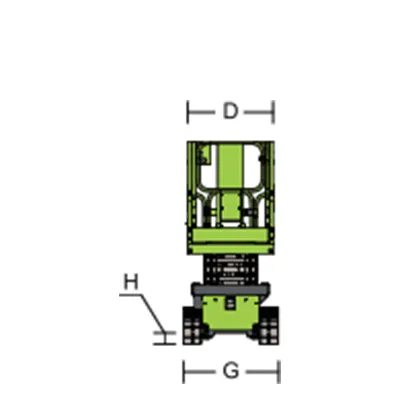

D - Platform width 0.72m 0.95m
Platform extension 0.6m 0.91m
E - Overall height (rails up) 2.0m 2.26m
Overall height (rails down) 1.65m 1.77m
F - Overall length 1.49m 2.1m
G - Overall width 0.79m 1.05m
H - Ground clearance 0.07m 0.127m
Performance
Platform capacity 240kg 250kg
Capacity on deck extension 100kg 113kg
Max. number of workers (indoor/outdoor) 1/0 2/1
Drive speed (stowed) 2km/h 2km/h
Drive speed (raised) 0km/h 0km/h
Turning radius 0m 0m
Drive motor 24V/2 × 1kW 24V/2 × 1.8kW
Up/down time 23s/25s 34s/30s
Gradeability 25% (14°) 30% (17°)
Max. working slope (lateral/vertical) 1.7°/1.7° 2°/2°
Drive Rear Wheels Rear Wheels
Brake Rear Wheels Rear Wheels
Power
Battery 2 × 12V/120Ah 4 × 12V/240Ah
Charger 24V/30A 24V/30A
Weight
Gross 920kg 1700kg
Overall Dimensions
ZS0508C Scissor Lifts
ZS0508C Scissor Lifts
ZS0508C Scissor Lifts
