ZT14J Telescopic Boom Lifts

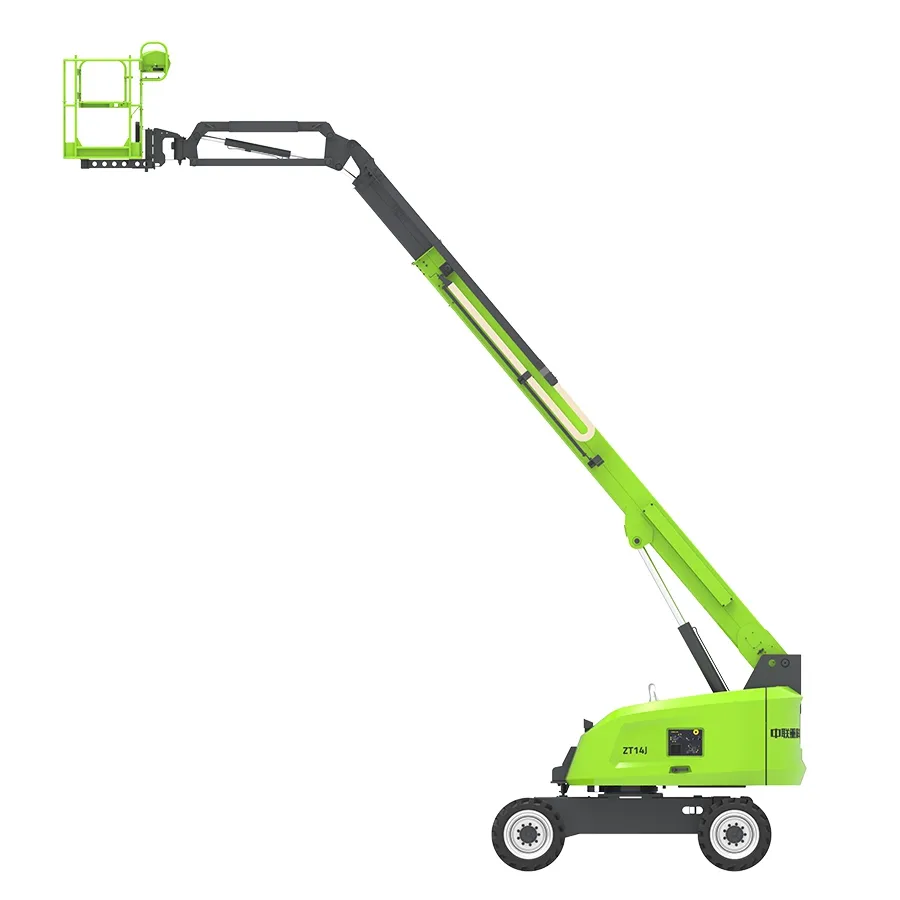

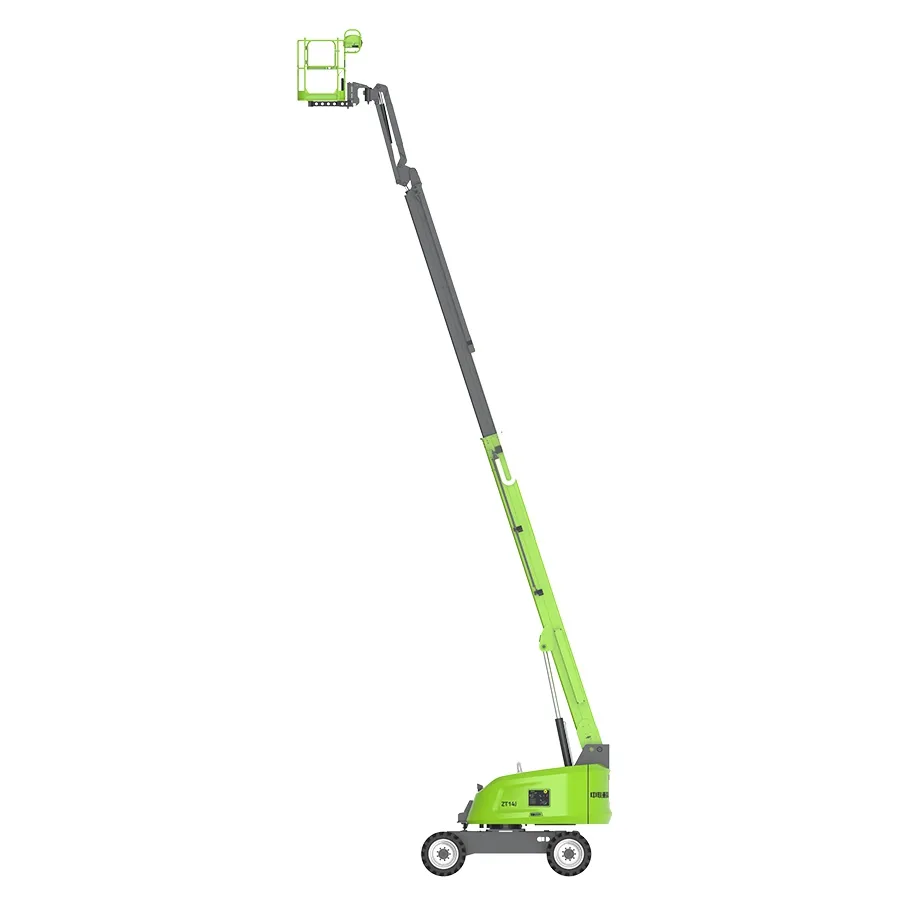

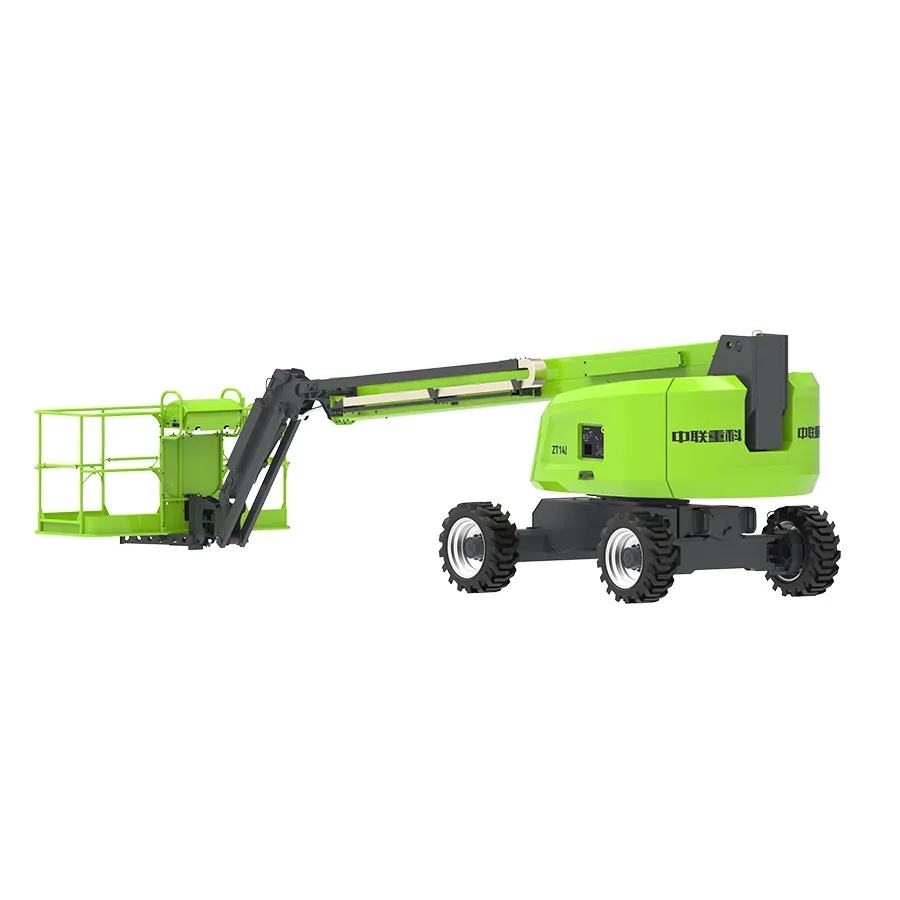

ZT14J Telescopic Boom Lift

ZOOMLION ZT14J telescopic boom lifts, also known as straight boom lifts, are designed to carry workers and tools to elevated work areas that are difficult to reach from the ground. They have a straight boom that provides a platform height of up to 14.6 m and horizontal outreach of 12.7 m, with platform capacity rated at 300 kg or 454 kg according to the operating range. Their four-wheel drive, an oscillating front axle, and 45% gradeability help the lift travel across uneven outdoor sites.

  • Max. platform height: 14.6 m
  • Max. horizontal outreach: 12.1 m
  • Platform capacity: 300 / 454 kg
  • Drive: 4 WD
  • Gradeability: 45 %
Request A Quote
Download Brochure
Features
  • ZOOMLION telescopic boom lifts (ZT14J) have an anti-crush device at the platform. Their three-pivot mechanism raises and lowers the boom steadily, while the two boom sections extend together.
  • Four-wheel drive helps the lifts travel across uneven ground, while the oscillating front axle follows changes in the surface, so the wheels maintain contact as the lifts move around the site.
  • The lightweight GFRP composite engine cover resists corrosion and aging and is easy to clean. Since it opens and has access to ports, maintenance staff can also reach the components inside for inspection and servicing.
Technical Specifications
Size Max. work height 16.6m
Max. platform height 14.6m
Max. platform horizontal outreach 12.1m
Stowed length 9.6m
Stowed width 2.28m
Stowed height 2.52m
Platform length 2.44m
Platform width 0.91m
Wheelbase 2.36m
Tread 2.28m
Min ground clearance 0.36m
Performance Rated load (unrestricted/restricted) 300/454kg
Travel speed (stowed) 5.5km/h
Max. gradeability 45% (24°)
Turning radius-inside (extend/retract) 2.06m
Turning radius-outside (extend/retract) 4.78m
Turntable rotation 360°/continuous
Platform rotation ±90°
Tail swing 0.9 m
Jib rotation 130°(﹣55°~75°)
Max. allowable angle of chassis 4.5°
Max. working speed 12.5 m/s
Power Engine type Kubota V2403 (EU Stage V)
Engine power 36.8kW/2700rpm
Fuel tank capacity 150L
Control voltage 12V
Drive 4WD
Steering Front wheels
Tire Tire type 315/55D20
Weight Gross weight 8490kg

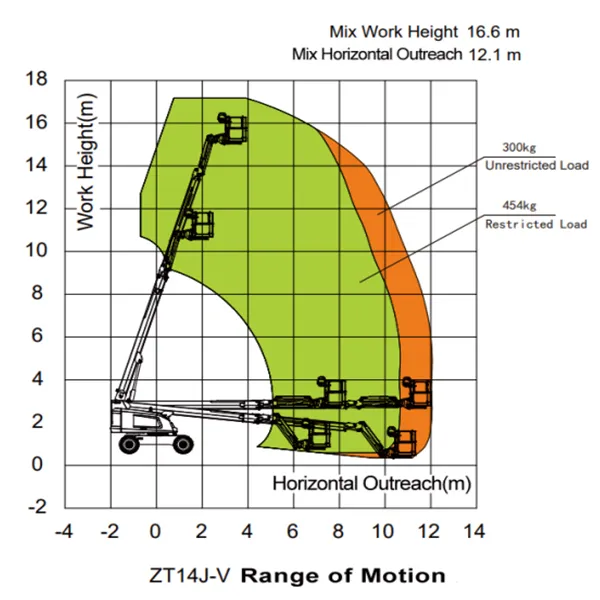

Overall Dimensions
