ZA14NJE-Li Articulating Boom Lifts

ZA14NJE-Li Articulating Boom Lift

ZOOMLION ZA14NJE-Li electric articulating boom lifts are designed to carry workers and their tools to elevated work areas, either indoors or outdoors. They have an AC drive system that provides controlled travel, while their symmetrical boom layout helps limit boom deflection and keep the platform steady, even at its maximum working height of 16 m. These aerial work platforms can carry up to 230 kg. Electric drive also makes these lifts suitable for sites where engine exhaust is a concern, and the AC motors require no routine maintenance over their service life.

  • Max. working height: 16 m
  • Platform capacity: 230 kg
Request A Quote
Download Brochure
Features
  • ZA14NJE-Li electric articulating boom lifts have a tubular battery equipped with a fast charger that is designed to last up to five years.
  • For the lithium battery, the service life is up to eight years. It includes a five-year warranty and needs no routine maintenance during that time.
  • They can work for up to seven hours before they need to recharge.
Technical Specifications
Model ZA14NJE/ZA14NJE-Li
Imperial Metric
Size

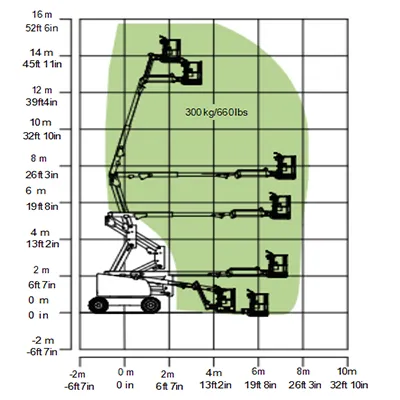

Working height 52ft 6in 16m
Platform height 45ft 11in 14m
Horizontal outreach 26ft 8in 8.14m
Up and over height 25ft 5in 7.74m

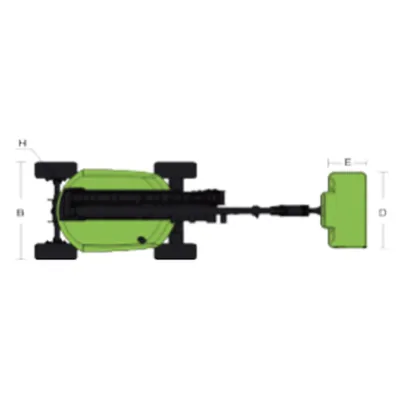

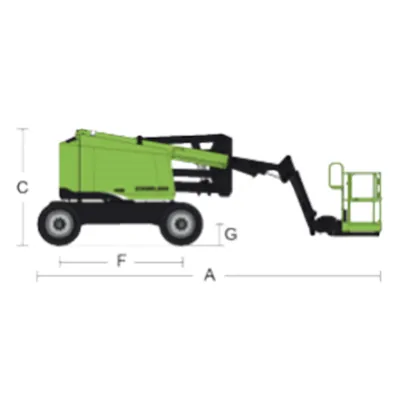

A - Stowed length 21ft 4in 6.5m
B - Stowed width 5ft 9in 1.75m
C - Stowed height 6ft 7in 2m
D - Platform length 4ft 12in 1.52m
E - Platform width 2ft 6in 0.76m
F - Wheelbase 6ft 9in 2.05m
G - Ground clearance 8in 0.20m

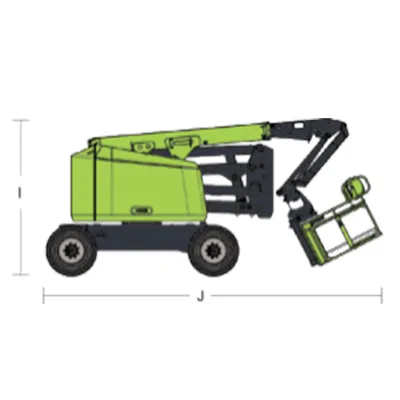

J - Transport length 20ft 6in 6.28m
I - Transport height 8ft 36in 2.7m
Performance
Platform capacity 510 lb 230 kg
Drive speed 4 mph 3.4 mph 6.1km/h 5.4km/h
Gradeability 30% (17°)
Turning radius (inside) 2ft 7 in 0.79m
Turning radius (outside) 10ft 4 in 3.15m
Turntable swing 360° continuous
Platform rotation ≈90°
H - Tail swing 0 in 0m
Max. working slope 3/4° 3/4°
Max. wind speed 28mph 12.5m/s
Power
Battery 2 × 24V/320 Ah 51.2V/324Ah Li-ion battery
Charger 48V/40A 48V/60A
Drive motor AC 32V/4hp AC 32V/3.3kW
Lift motor AC 32V/10hp AC 32V/7kW
Auxiliary power 12V DC Electrical pump
Hydraulic tank capacity 7.9 (us gal) 30L
Tire
Type 250-15 Solid tire 240/55D17.5 Foam-filled tire
Weight
Gross 14770 lb 6700 kg
Overall Dimensions
ZA14NJE-Li Articulating Boom Lifts
ZA14NJE-Li Articulating Boom Lifts
ZA14NJE-Li Articulating Boom Lifts
ZA14NJE-Li Articulating Boom Lifts
