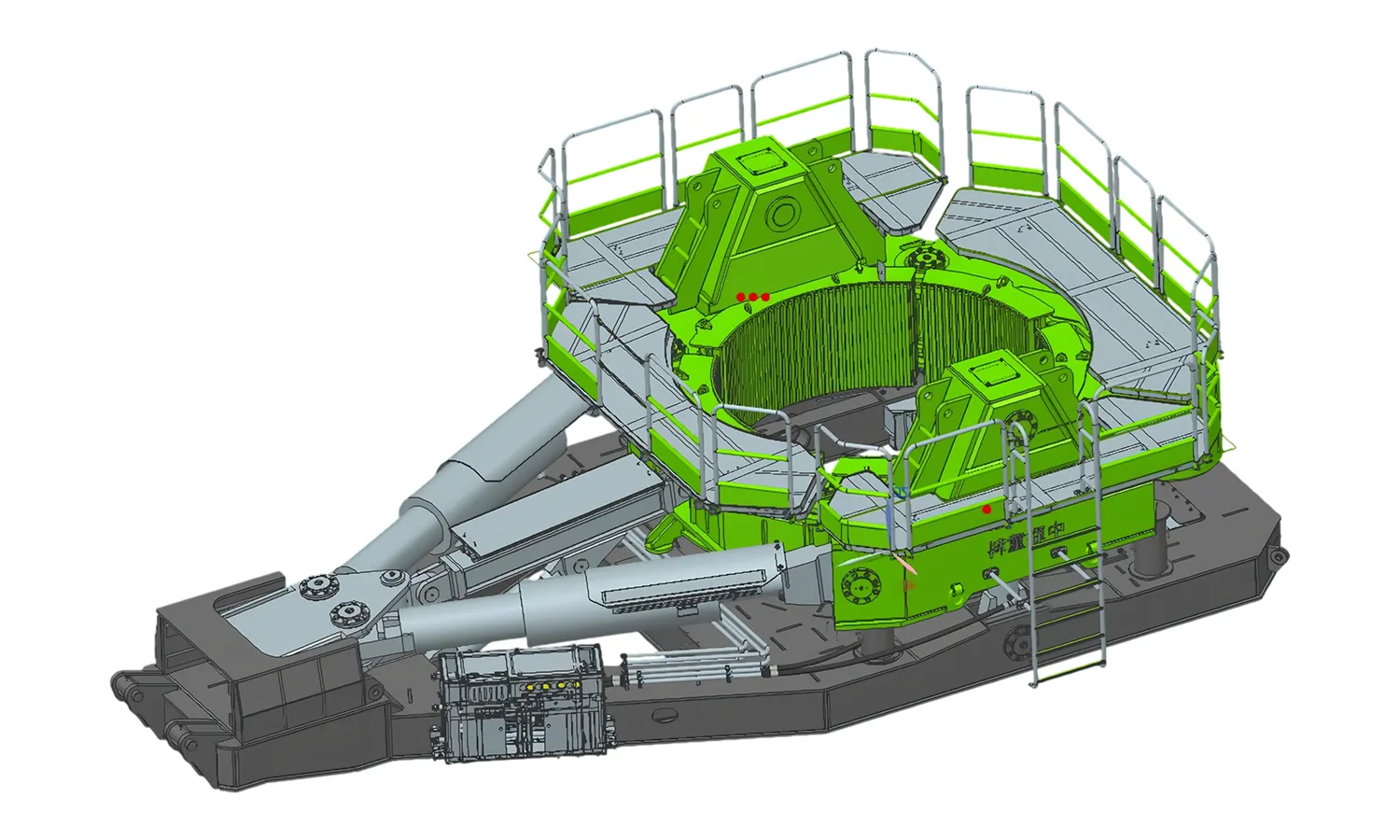

ZM330H/G Casing Oscillator

ZM330H/G Casing Oscillator

ZOOMLION offers ZM330H/G casing oscillator to tackle the challenges faced during large-diameter casing drilling as ground resistance and extraction loads rise. The foundation machinery has the maximum rotary torque of 19,900 kN·m and an extraction force of 10,860 kN that provides the power needed to rotate and retrieve heavy steel casings in difficult ground conditions. With a drilling diameter range of 2,200–3,300 mm, this heavy-duty full casing drilling rig is equipped for ultra-large-diameter, heavy-load pile foundation construction. Its high-torque, high-extraction-force capabilities make it relevant to demanding deep foundation and heavy-load piling projects.

  • Drilling diameter: Ø2200-Ø3300 mm
  • Rotary torque: 19900 kN•m
  • Extraction force: 10860 kN
Request A Quote
Technical Specifications
Model ZM330H/G
Drilling diameter mm Ø2200-Ø3300
Rotary torque kN·m 19900
Rotation angle ° 24
Main clamping force kN 5900
Extraction force kN 10860
Push/pull stroke mm 580
Auxiliary clamping force kN 2210
Working pressure MPa 30
Machine weight t 85
Control method / Wireless remote control

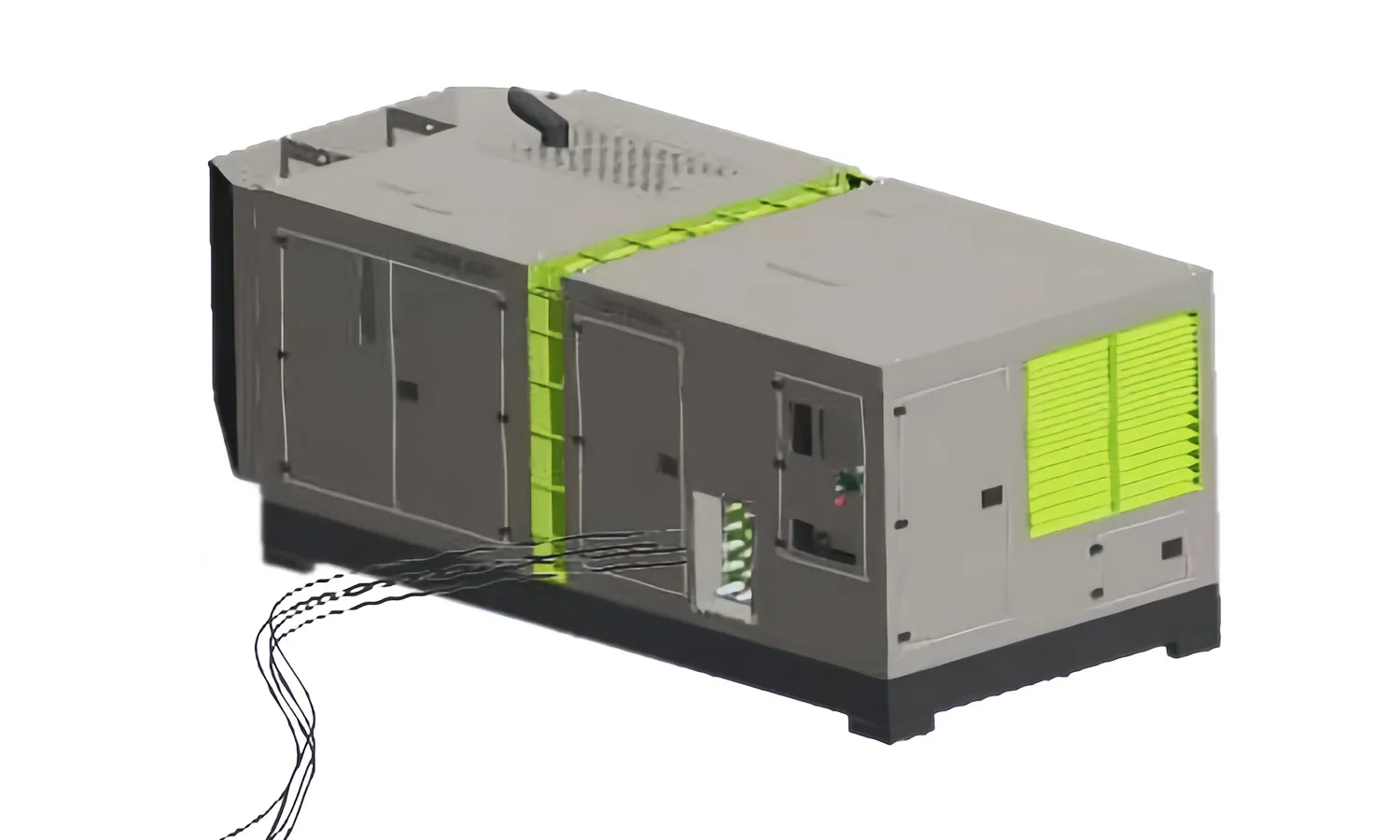

Power pack kW 447kW

H/G series features a long configuration for use with crawler cranes. H-series is equipped with China Stage III-compliant engines, while G-series uses China Stage IV-compliant engines.

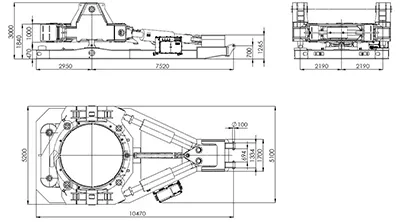

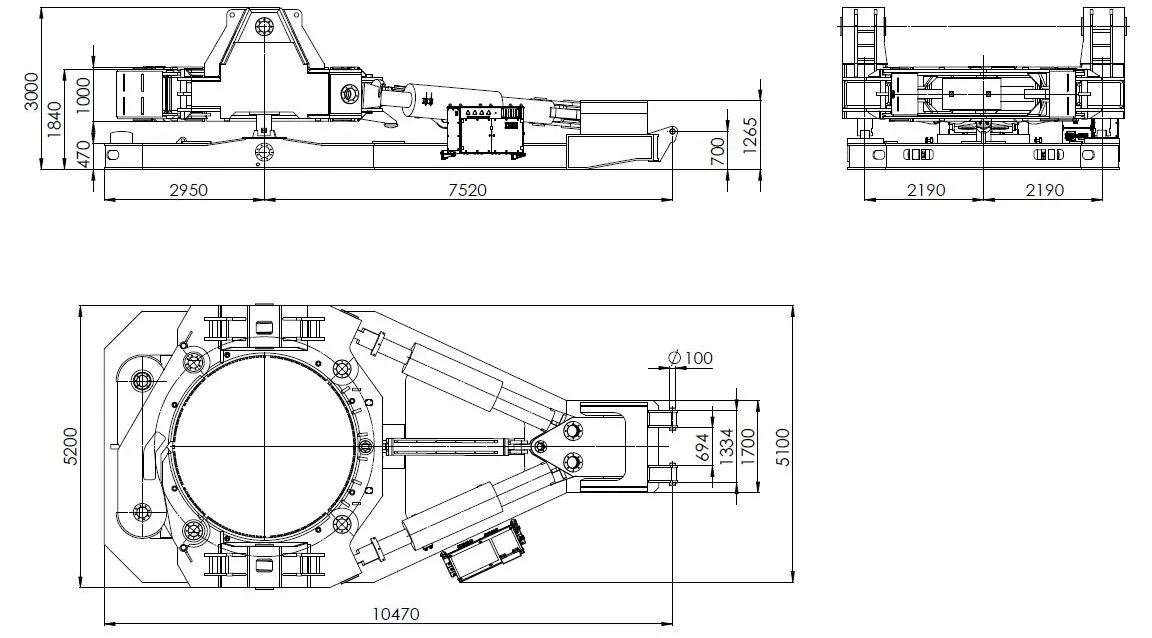

Dimensions
ZM330H/G Casing Oscillator
