ZOOMLION

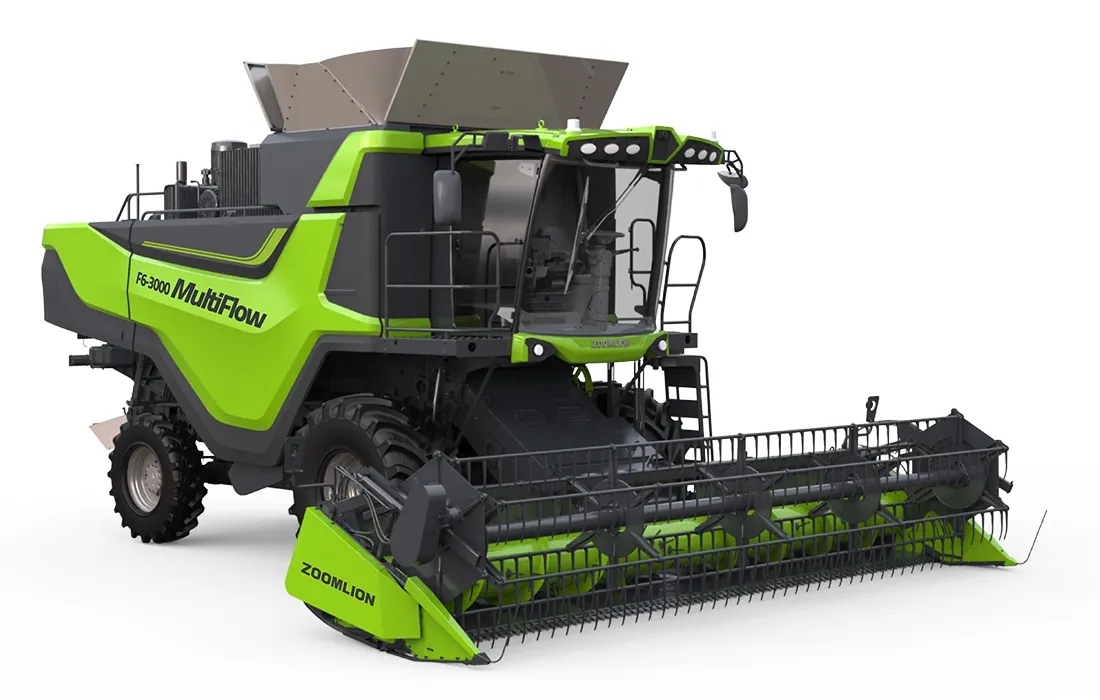

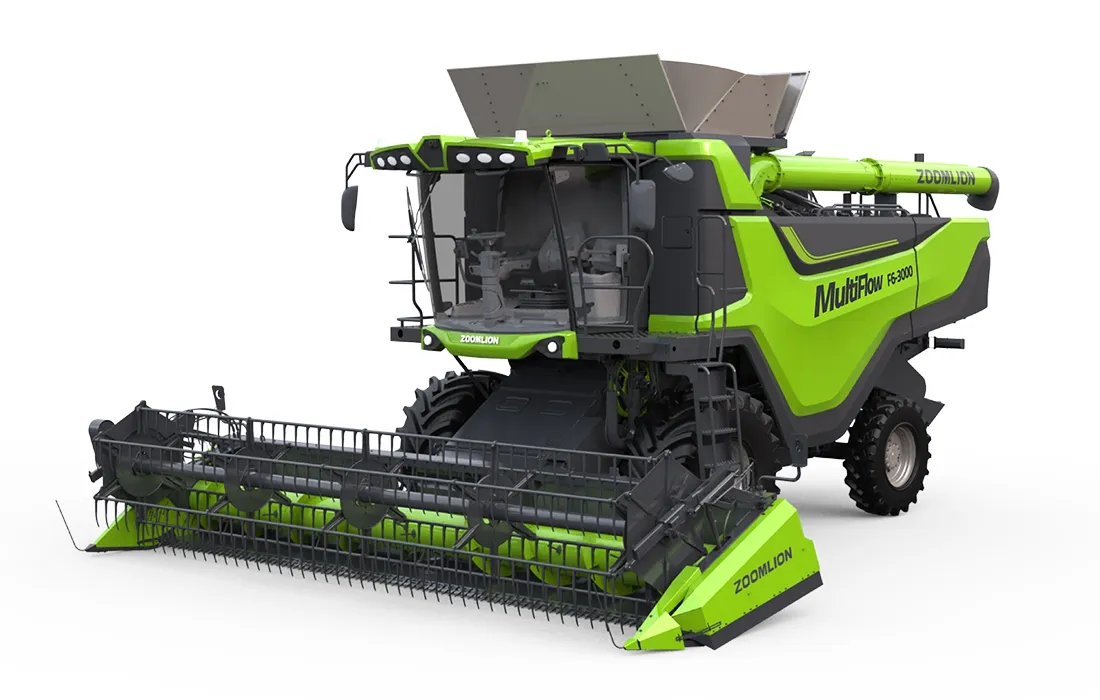

F6-3000 Wheeled Combine Harvester

F6-3000 Wheeled Combine Harvester

For commercial farms harvesting multiple crops, the ZOOMLION self-propelled combine harvester pairs twin longitudinal axial-flow rotors with a dual-layer louvered sieve cleaning system for efficient grain separation with reduced harvesting losses. Powered by a 300 HP (221 kW) engine, the combine harvester uses four-wheel drive and header contour control to adapt to changing field conditions, while an 8.8 m³ grain tank and 63 L/s unloading rate help reduce interruptions during large-scale harvesting.

  • Throughput capacity: 15 kg/s
  • Overall dimensions without header (L × W × H): 8,225 × 3,650 × 3,975 mm
  • Operating weight (excluding header): 13,248 kg
Request A Quote
Features
  • Efficient multi-crop harvesting The self-propelled combine harvester supports large-scale harvesting of different grain crops on commercial farms, combining field mobility with integrated threshing, separation and cleaning operations.
  • Twin-rotor threshing and grain cleaning
    Two bullet-shaped longitudinal axial-flow rotors work with dual-layer louvered sieves and a steplessly adjustable centrifugal fan to separate and clean harvested grain. The arrangement supports efficient harvesting with reduced grain losses under changing crop and field conditions.
  • Strong power and adaptable header control
    A 300 HP engine supplies power for harvesting, while header contour control helps the cutting platform follow changes in ground level. The large-capacity grain tank accommodates harvested grain between unloading operations.
  • Intelligent cab and monitoring controls
    The upgraded cab incorporates an electronically controlled armrest console, multiple monitoring systems and onboard fault self-diagnostics to support convenient machine operation and fault identification.
Technical Parameters
Resource No. F6-3000
017115000FA126001 (Ukraine)
Machine Overall dimensions without header (L × W × H) mm 8074×4250×3975
Operating weight kg 13100
Gradeability ° 20
Operating slope capability °
Engine Model / YCA07K300-T300
Rated speed r/min 2200
Rated power kW 221
Displacement L 7.5
Emission standard China Stage III
Fuel tank capacity L 605
Threshing & Separation Threshing & separation system Forced-feed + twin longitudinal rotors
Threshing channel width mm 1300
Main threshing drum diameter × length mm Ø480×3180
Main threshing drum speed r/min 368–1137rpm
Separation rotor diameter × length mm /
Separation rotor speed range r/min /
Concave type / Grate-type
Total separation area m² 4.4
Returns threshing system / Returns to threshing drum
Clean grain elevator cross-section mm 228×247
Cleaning System Cleaning sieve type / Co-moving dual sieves
Sieve type / Louvered sieve
Total sieve area m² 3.91
Cleaning fan type / Centrifugal type
Fan diameter mm 650
Fan speed range r/min 450–1400
Straw Chopper Straw chopper configuration / Flail type
Straw chopper quick-change / No
Grain Tank Grain tank capacity m³ 8.8
Unloading height m 5
Unloading rate L/s 63
Cab Air conditioning (recirculation/fresh air) Recirculation / fresh air
Seat suspension Air suspension
Cab configuration Pressurized cab
Chassis Transmission type / Mechanical + hydrostatic drive
Front tires / tracks / 750/65R26
Rear tires / 380/85R26
Drive type / 4WD
Travel speed km/h ≤28
Feeder House Feeder house width mm 1300
Feeder house lateral/vertical float 4-way
Feeder house reverser Optional
Intelligent Systems Operator assistance Optional
Forward dynamic obstacle warning Optional
Online harvesting quality monitoring Standard
Grain tank full monitoring Standard
Unloading monitoring Standard
Header height/contour control Standard
Self-diagnostics & OTA remote updates Standard
