ZOOMLION

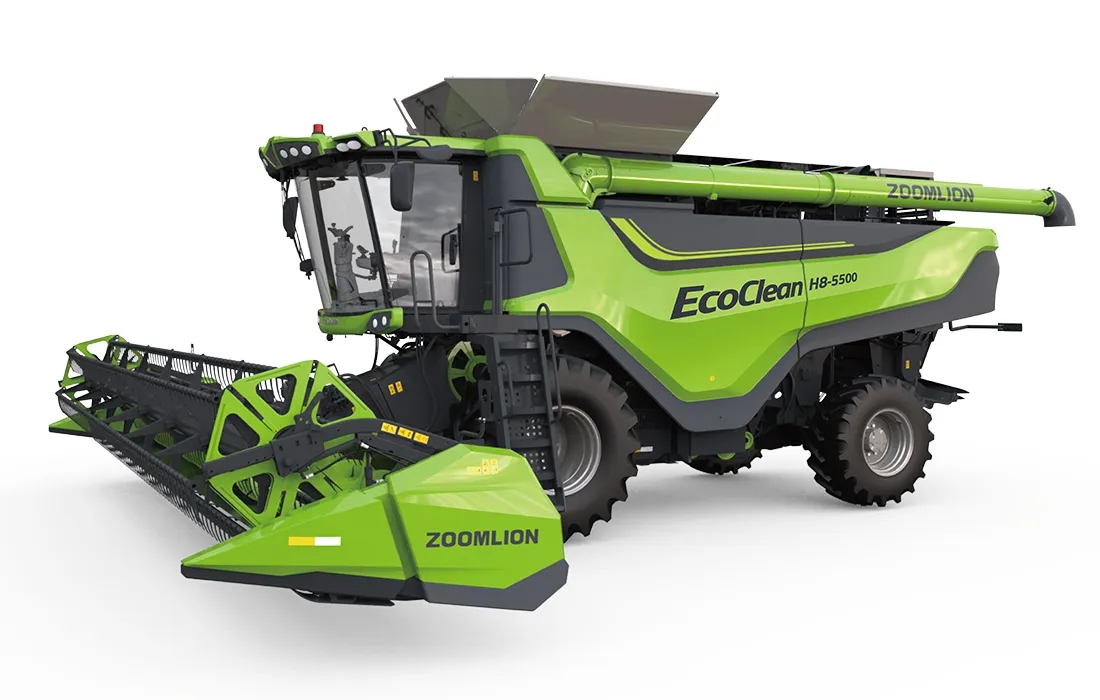

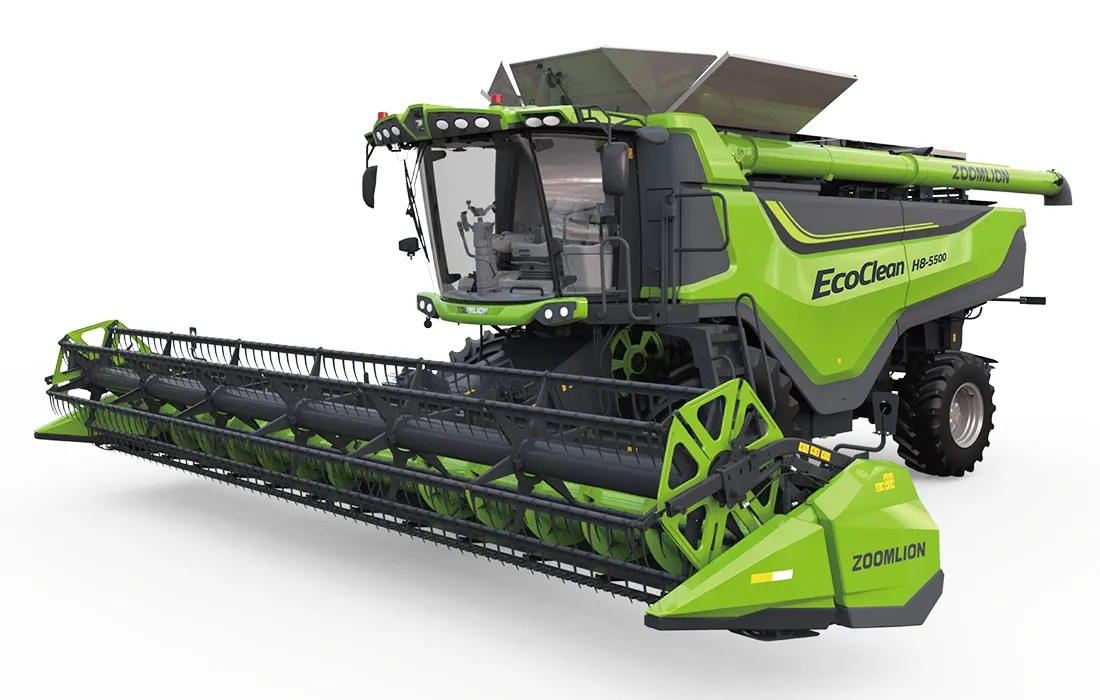

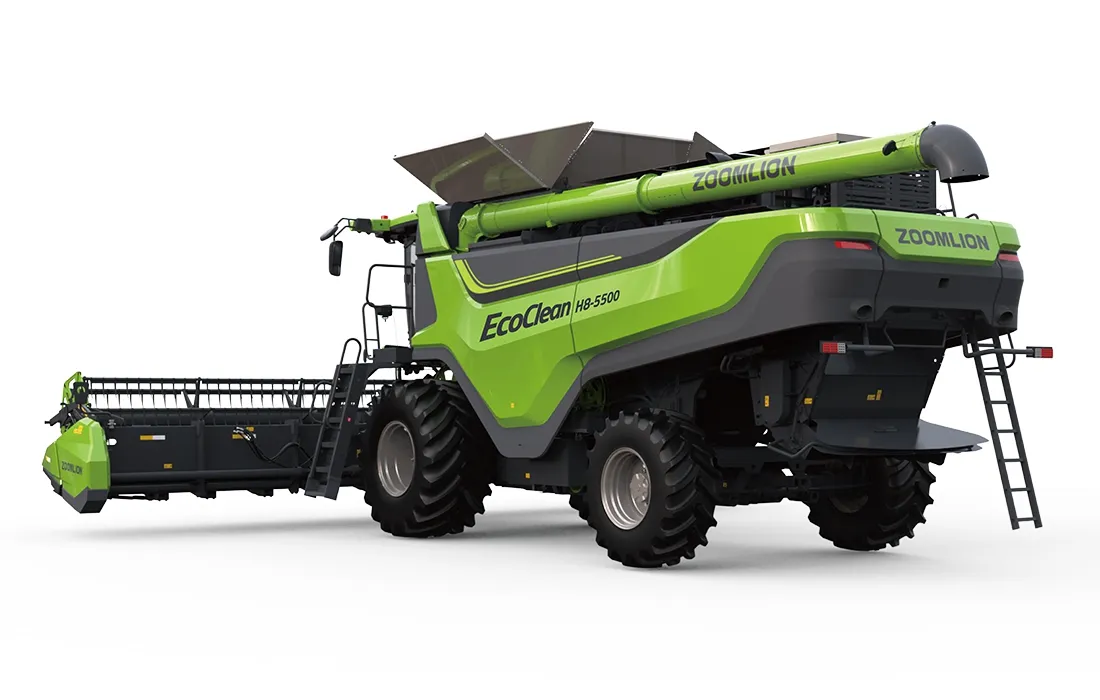

H8-5500 Wheeled Combine Harvester

H8-5500 Wheeled Combine Harvester

For large farms requiring continuous, high-capacity harvesting, the ZOOMLION axial-flow combine harvester combines a 580 HP (426 kW) engine with three transverse threshing drums and dual longitudinal separation rotors for efficient, low-loss harvesting of multiple crops. A 12.5 m³ grain tank and 130 L/s unloading rate help reduce harvesting downtime, while four-wheel drive and stepless speed control support sustained operation under demanding field conditions.

  • Engine Power: 580 HP / 426 kW
  • Emission Standard: Stage V / Euro V
  • Grain Tank Capacity: 12.5 m³
  • Unloading Rate: 130 L/s
  • Threshing & Separation System: Triple-transverse threshing drums + twin axial separation rotors
Request A Quote
Features
  • High-power engine with selectable load modes
    The 580 HP engine supports heavy-, medium- and light-load operating modes, balancing power delivery and fuel consumption across different harvesting conditions.
  • Efficient threshing, separation and grain handling
    Three transverse threshing drums and dual longitudinal separation rotors support high processing efficiency with low harvesting losses. The 12.5 m³ grain tank and 130 L/s unloading system help reduce harvesting downtime, while the returns elevator and cleaning system support grain recovery and cleaning.
  • Multi-crop harvesting flexibility
    Interchangeable headers and adjustable operating parameters allow the combine harvester to harvest corn, soybeans, wheat and rice.
  • Adaptable traction and travel control
    Hydraulic four-wheel drive, stepless speed control and adjustable track width accommodate different field conditions and planting patterns.
Technical Parameters
Resource No. H8-5500 H8-550T
017122000H0100006 (Stage V region) 017122000H0115001 (Stage V region)
Machine Overall dimensions without header (L × W × H) mm 10790×4035×3980 10790×4092×3980
Overall weight kg 21102 (unladen) 23170 (unladen)
Gradeability ° 20
Operating slope capability ° Lateral ±4.5° / longitudinal 12°
Engine Model / YCK13580-S500
Rated speed r/min 1900
Rated power kW 426
Displacement L 12.9
Emission standard Stage V
Fuel tank capacity L 1100
Threshing & Separation Threshing & separation system Triple transverse + dual longitudinal rotors
Threshing channel width mm 1700
Main threshing drum diameter × length mm 600×1680
Main threshing drum speed r/min 330–930
Separation rotor diameter × length mm 445×4200
Separation rotor speed range r/min 360–1050
Concave type / Grate-type
Total separation area m² 3.7
Returns threshing system / Returns elevator to threshing drum
Clean grain elevator cross-section mm 247×228
Cleaning System Cleaning sieve type / Counter-moving dual sieves
Sieve type / Louvered sieve
Total sieve area m² 6.2
Cleaning fan type / Turbine type
Fan diameter mm 400
Fan speed range r/min 640–1660
Straw Chopper Straw chopper configuration / With dual-disc spreader
Straw chopper quick-change / Standard
Grain Tank Grain tank capacity m³ 12.5
Unloading height m 4890
Unloading rate L/s 130
Cab Air conditioning (recirculation/fresh air) Recirculation / fresh air
Seat suspension Air suspension
Cab configuration Pressurized cab
Chassis Transmission type / Electronically controlled shifting + hydrostatic CVT
Front tires / tracks / IF600/70R28 915 track
Rear tires / 900/60 R32
Drive type / 4WD
Travel speed km/h ≤40
Feeder House Feeder house width mm 1596
Feeder house lateral/vertical float 6-way
Feeder house reverser Standard
Intelligent Systems Operator assistance Standard
Forward dynamic obstacle warning Standard
Online harvesting quality monitoring Standard
Grain tank full monitoring Standard
Unloading monitoring Standard
Header height/contour control Standard
Self-diagnostics & OTA remote updates Standard
