ZT120V Compact Track Loader

ZT120V Compact Track Loader

Built for loading and transporting materials on uneven terrain and challenging jobsites, ZOOMLION's 1.2-ton-class compact track loader is powered by a 52.6 kW engine. The loader offers a rated payload of 1,210 kg and uses a tracked undercarriage to distribute operating weight across a larger ground-contact area. This reduces ground pressure, while the 230 mm ground clearance helps the loader navigate rough terrain and obstacles. For loading materials at elevated discharge points, the vertical-lift design provides a maximum dumping height of 2,510 mm. The compact tracked loader also supports attachments for sweeping, trenching, drilling and breaking, extending the range of work beyond material loading and transport.

  • Engine power: 52.6 kW / 2400 rpm
  • Tipping load: 3,458 kg
  • Bucket breakout force: 25.9 kN
  • Lift arm breakout force: 23.1 kN
  • Operating weight: 4,350 kg
  • Bucket edge width: 1905 mm
Request A Quote
Download Brochure

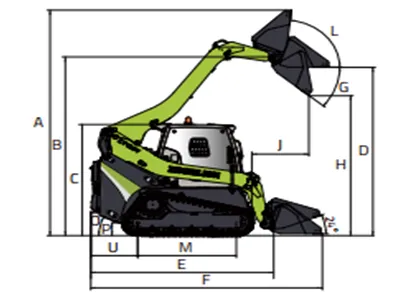

Technical Parameters
A Max. operating height mm 4131
B Bucket hinge pin height mm 3261
C Overall height (to cab top) mm 2067
D Max. horizontal height of bucket mm 3060
E Overall length (without bucket) mm 2878
F Overall length (with bucket) mm 3636
G Bucket tilting angle at maximum height ° 40
H Max. dump height mm 2510
J Dump reach mm 950
K Bucket retracting angle at flat ground ° 24
L Bucket tilting angle at maximum height ° 84
M Track ground length mm 1556
O Departure angle ° 30
P Ground clearance mm 230
R Front turning radius (without bucket) mm 1356
S Front turning radius (with bucket) mm 2307
T Rear turning radius mm 1637
U Tail length mm 740
W Track edge width mm 1885
X Bucket edge width mm 1905
