ZOOMLION
ZS120V Skid Steer Loader

ZS120V Skid Steer Loader

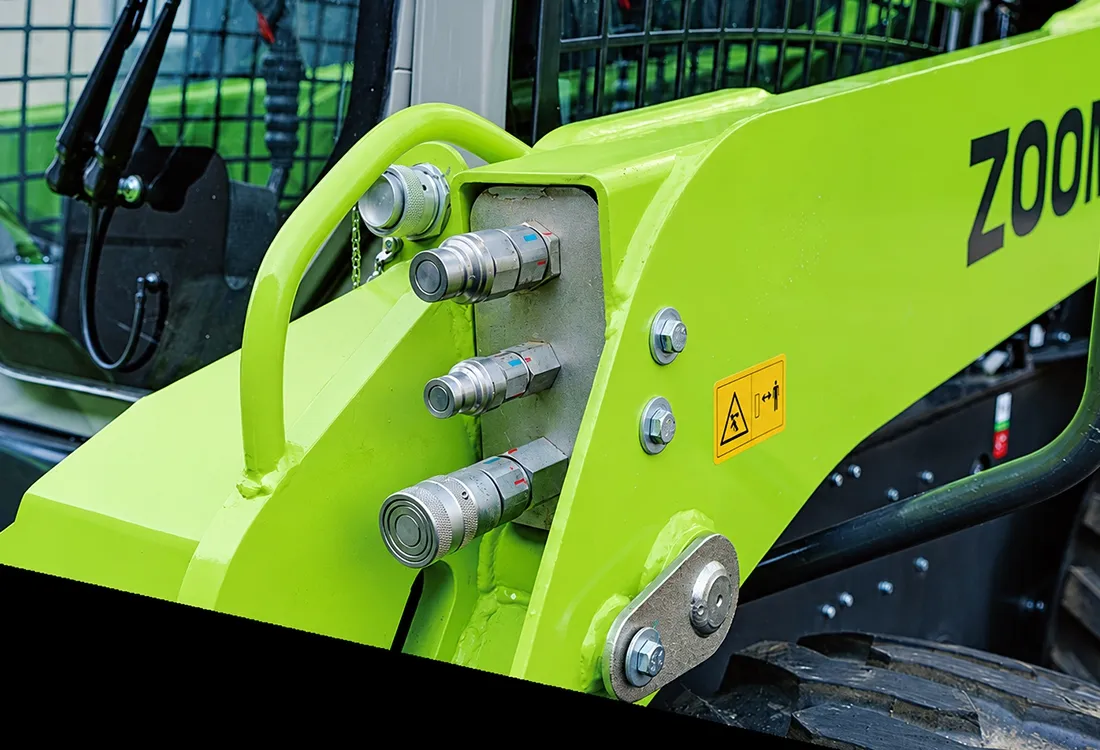

ZOOMLION's skid steer loader combines a 55.4 kW engine, a rated operating capacity of 1,385 kg and a 0.6 m³ bucket for material loading and transport. The vertical-lift design provides a maximum dumping height of 2,521 mm, allowing materials to be raised and discharged at elevated unloading points. These capabilities make the loader suitable for construction, warehouse loading and unloading, road maintenance and site-clearing operations. An international-standard quick-attach interface enables the skid-steer loader to accommodate attachments for different tasks. The ZOOMLION ZS120V skid steer loader is available with EU Stage III and EU Stage V engine configurations. Engine models and related specifications, including rated power and maximum torque, vary depending on the selected emission configuration. Please contact us for detailed specifications and configuration availability.

  • Operating weight: 3755 kg
  • Hydraulic system: 70 L
  • Max. travel speed: 11 km/h
  • Bucket edge width: 1905 mm
  • Emission standard: EU Stage IIIA
  • Overall length (without bucket): 2865 mm
Request A Quote
Download Brochure
Technical Parameters
Operating weight 3755 kg
Bucket capacity 0.6 m³
Rated payload 1385 kg
Tipping load 2770 kg
Max. travel speed 11 km/h
Max. rim-pull force 28 kN
Max. arm breakout force 23.1 kN
Max. bucket breakout force 25.9 kN
Max. gradeability 25° / 46%
Rated power/RPM 55.4 kW / 2400 rpm
Emission standard EU StageⅢA
Max. flow (standard system) 96 L/min
Max. flow (large-flow system) 146 L/min
Work equipment hydraulic pressure 21 MPa
Travel system hydraulic pressure 37 MPa
Fuel tank (full) 90 L
Engine coolant 11 L
Hydraulic system 70 L
Hydraulic tank 27.5 L

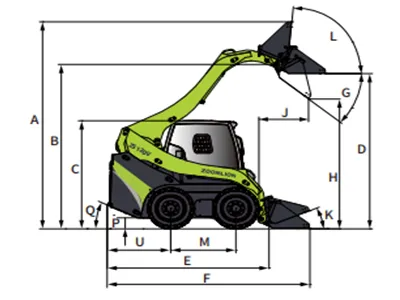

A Max. operating height 4115 mm
B Bucket hinge pin height 3240 mm
C Overall height (to cab top) 2045 mm
D Max. horizontal height of bucket bottom 3128 mm
E Overall length (without bucket) 2865 mm
F Overall length (with bucket) 3636 mm
G Dump angle 40°
H Max. dump height 2521 mm
J Dump reach 856 mm
K Bucket retracting angle at flat ground 24°
L Bucket tilting angle at maximum height 84°
M Wheelbase 1250 mm
P Ground clearance 215 mm
Q Departure angle 25°

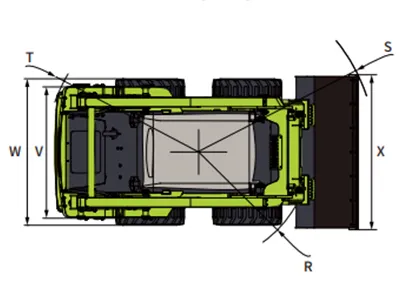

R Front turning radius (without bucket) 1375 mm
S Front turning radius (with bucket) 1654 mm
T Rear turning radius 1740 mm
U Tail length 1010 mm
V Tread width 1460 mm
W Tire edge width 1800 mm
X Bucket edge width 1905 mm
