ZS080V/ZS085V Skid Steer Loader

ZS080V/ZS085V Skid Steer Loader

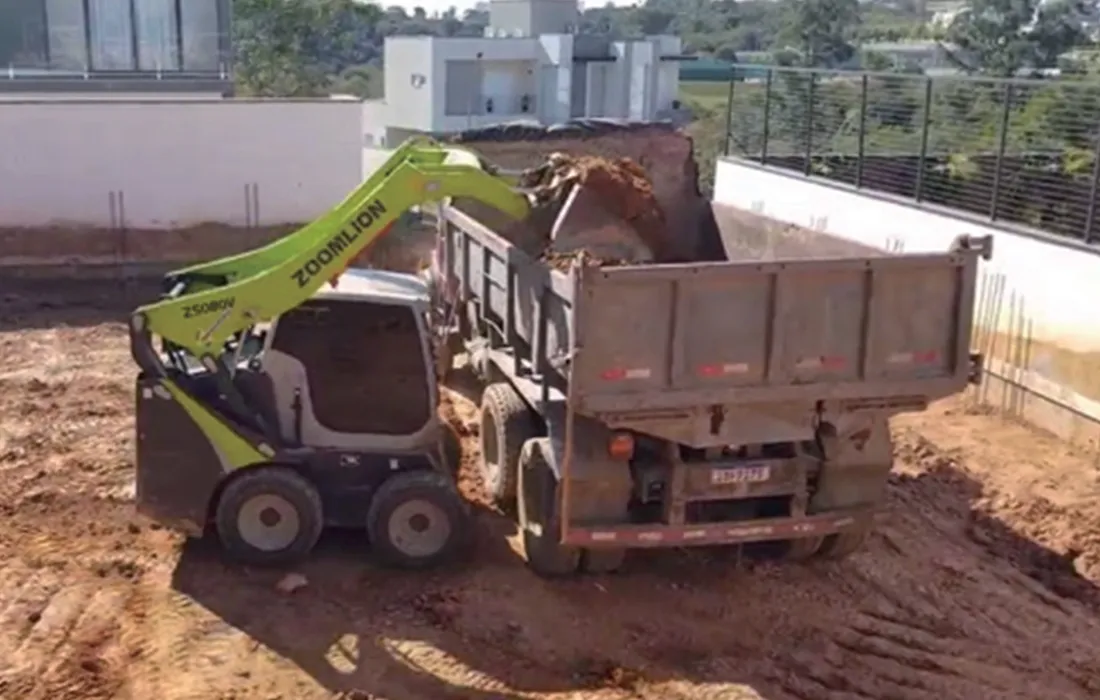

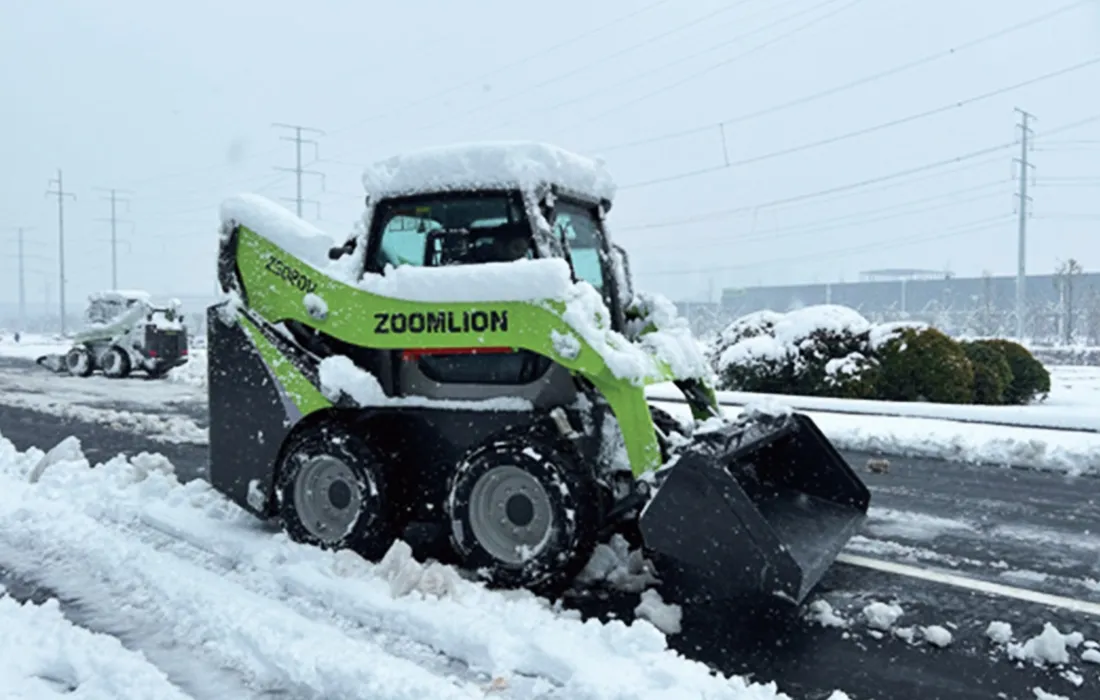

Compact and maneuverable, ZOOMLION skid steer loaders are earthmoving equipment suited to complex operations in confined working spaces. Different functional attachments allow these wheeled skid-steer loaders to perform tasks across construction, site sweeping, winter snow removal and industrial logistics, enabling operators to adapt the loaders to different jobsite requirements. With 201 mm of ground clearance and a 25° departure angle, the skid steers are designed to negotiate larger obstacles and travel over uneven terrain. Ground clearance provides space beneath the chassis when crossing raised surfaces, while the departure angle helps prevent the rear of the loader from contacting the ground as terrain levels change. These characteristics contribute to mobility in rugged terrain and more challenging operating environments.

  • Engine rated power: 36 kW
  • Tipping load: 1,674 kg
  • Operating weight: 2,860 kg
  • Bucket breakout force: 18.5 kN
  • Rated operating capacity (ROC): 837 kg
Request A Quote
Technical Parameters
Model ZS080V ZS085V
General Rated operating capacity 837 kg 878 kg
Tipping load 1674 kg 1756 kg
Operating weight 2860 kg 2920 kg
Standard bucket capacity 0.4 m³ 0.4 m³
Operating mode Mechanical Hydraulic
Performance Boom breakout force (50°) 16.5 kN 16.5 kN
Bucket breakout force (50°) 18.5 kN 18.5 kN
Max. travel speed 11 km/h 11 km/h
Max. gradeability 25° / 46% 25° / 46%
Max. drawbar pull 22 kN 22 kN
Engine Rated power 36 kW / 2700 rpm 36.7 kW / 2500 rpm
Max. torque 158.6 N·m / 1600 rpm 160 N·m / 1800-2000 rpm
Displacement 2.43 L 2.67 L
Fuel tank 72 L 72 L
Coolant 9.5 L 11 L
Hydraulic System Max. flow (standard system) 76 L/min 70 L/min
Max. flow (high-flow system) 118 L/min /
Traveling system pressure 28 MPa 28 MPa
Work equipment pressure 21 MPa 21 MPa
Dimensions Overall length (with bucket) 3364 mm 3364 mm
Overall width (with bucket) 1725 mm 1725 mm
Overall height (to cab top) 1998 mm 1998 mm
Tire size 10-16.5 10-16.5

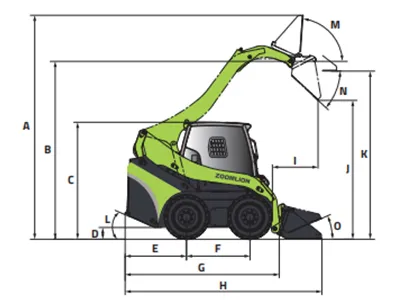

Item ZS080V/ZS085V
A Max. operating height 3826 mm
B Bucket hinge pin height 3039 mm
C Overall height (to cab top) 1998 mm
D Ground clearance 201 mm
E Tail length 1049 mm
F Wheelbase 1080 mm
G Overall length (without bucket) 2636 mm
H Overall length (with bucket) 3364 mm
I Dump reach 790 mm
J Max. dump height 2377 mm
K Max. horizontal height of bucket bottom 2872 mm
L Departure angle 25°
M Bucket tilting angle at max. height 86°
N Dump angle at max. height 42°
O Max. bucket retracting angle at flat ground 24°

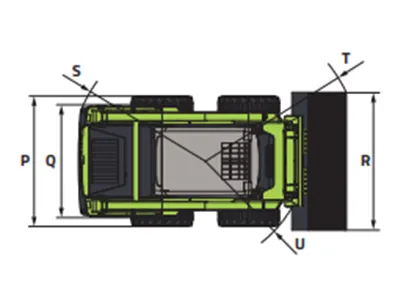

P Tire edge width 1630 mm
Q Tread width 1356 mm
R Bucket edge width 1725 mm
S Rear turning radius 1689 mm
T Front turning radius (without bucket) 1233 mm
U Front turning radius (with bucket) 1968 mm
