FD30Z Diesel Forklift

FD30Z Diesel Forklift

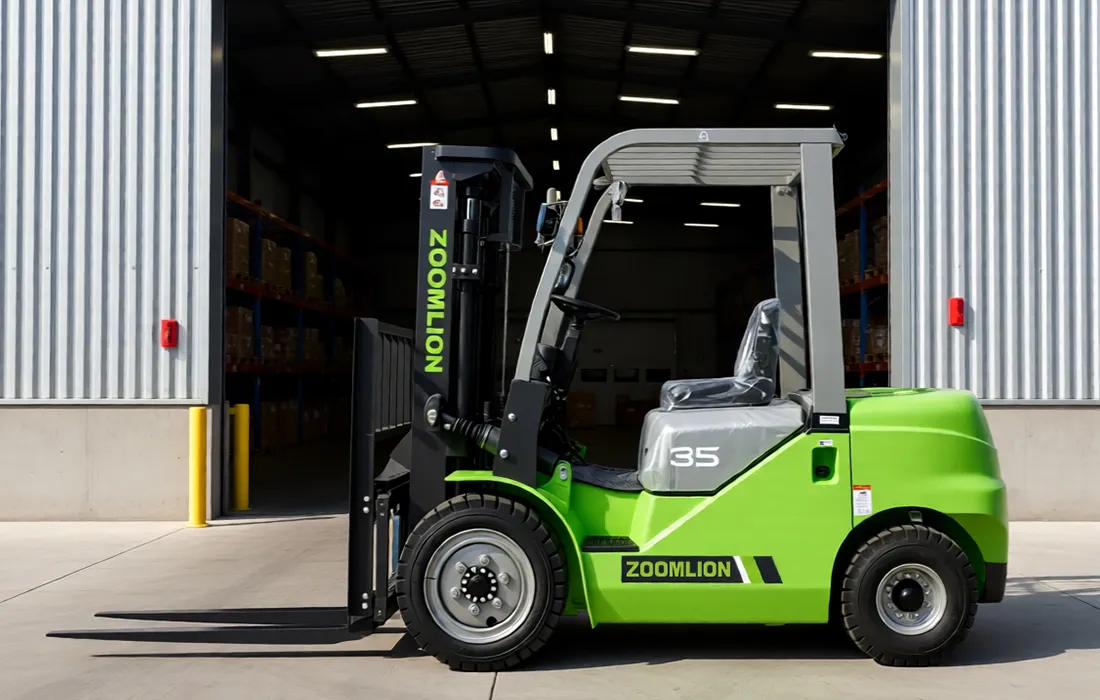

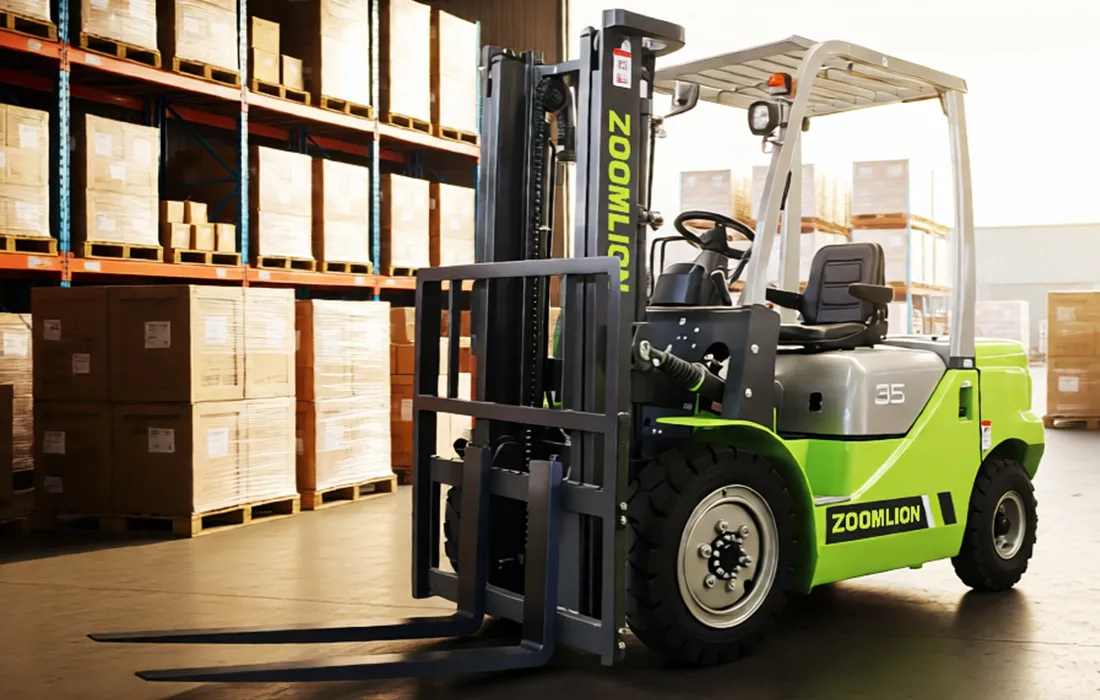

ZOOMLION FD30Z diesel forklifts have a rated capacity of 3,000 kg and a standard lifting height of 3,000 mm for loading, transporting, and stacking goods. As counterbalance forklift trucks, they carry the load at the front and use weight at the rear to help keep the vehicle balanced. These forklifts have a reinforced wide-view mast to improve visibility during load handling, along with a one-piece cast steering axle. They are intended for material handling in warehouses, logistics operations, and industrial workplaces.

  • Rated capacity: 3,000 kg
  • Standard lift height: 3,000 mm
  • Power source: Diesel
Request A Quote
Download Brochure
Technical Specifications
General Model FD30Z FD35Z FD38Z
Power type (electric, diesel, gasoline, LPG, mains power) Diesel Diesel Diesel
Driving mode (seated, standing) Seated Seated Seated
Rated load capacity Q (kg ) 3000 3500 3800
Load center distance c (mm) 500 500 500
Front overhang x (mm) 483 483 483
Wheelbase y (mm) 1800 1800 1800
Unladen weight kg 4250 4450 4800
Tire type Pneumatic tire/Solid tire Pneumatic tire/Solid tire Pneumatic tire/Solid tire
Wheel Front tire size 28 × 9-15-14PR 28 × 9-15-14PR 250-15-16PR
Rear tire size 6.5-10-10PR 6.5-10-10PR 6.5-10-10PR
Number of wheels, front/rear (X=drive wheel) 2X/2 2X/2 2X/2
Front track b10 (mm) 1000 1000 1000
Rear track b11 (mm) 970 970 970
Size Mast tilt angle, forward/rearward α/β (°) 6/12 6/12 6/12
Mast height, retracted h1 (mm) 2065 2155 2155
Free lift height h2 (mm) 165 160 160
Lift height h3 (mm) 3000 3000 3000
Max. mast height during operation h4 (mm) 4130 4130 4130
Overhead guard (cab) height h6 (mm) 2170 2170 2170
Seat height above ground h7 (mm) 1175 1175 1175
Tow pin height h10 (mm) 320 320 320
Overall length (with forks) l1 (mm) 3895 3910 3960
Overall length (without forks) l2 (mm) 2825 2840 2890
Overall width b1/b2 (mm) 1230 1230 1230
Fork dimensions (thickness × width × length) s/e/l (mm) 45 × 122 × 1070 50 × 122 × 1070 50 × 122 × 1070
Fork carriage width b3 (mm) 1100 1100 1100
Fork carriage ISO 2328 mounting class 3A 3A 3A
Mast ground clearance m1 (mm) 120 120 120
Ground clearance at wheelbase center m2 (mm) 160 160 160
Right-angle stacking aisle width, pallet 1000 × 1200 (1200 across forks) Ast (mm) 4550 4565 4615
Right-angle stacking aisle width, pallet 800 × 1200 (1200 along forks) Ast (mm) 4680 4695 4745
Turning radius Wa (mm) 2600 2600 2650
Min. distance from steering centerline to vehicle centerline b13 (mm) 825 825 825
Performance Drive speed, laden/unladen km/h 18/18 18/18 18/18
Fork lift speed, laden/unladen mm/s 450/480 450/480 450/480
Fork lowering speed, laden/unladen mm/s 400/380 400/380 400/380
Rated tractive effort, laden/unladen (60min) N 18000 18000 18000
Max. tractive effort (5 min), laden/unladen N 27000 27000 27000
Gradeability, laden/unladen (30 min) % 20/20 20/20 20/20
Max. gradeability (5 min), laden/unladen % 20/20 20/20 20/20
Service brake Hydraulic Hydraulic Hydraulic
Others Control method Mechanical/Hydraulic Mechanical/Hydraulic Mechanical/Hydraulic
Attachment operating pressure Bar 160 160 160
Attachment oil flow rate L/min 40 40 40
Features
FD30Z Diesel Forklift

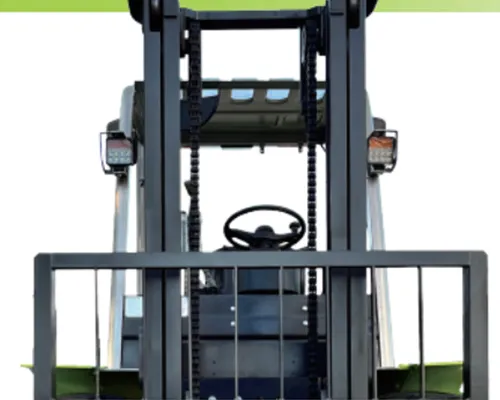

Forklifts from the FD30–38Z series have a reinforced wide-view mast, so the driver can see the load more clearly while lifting and stacking. They have a stronger structure that helps it withstand impacts during everyday material handling.

FD30Z Diesel Forklift

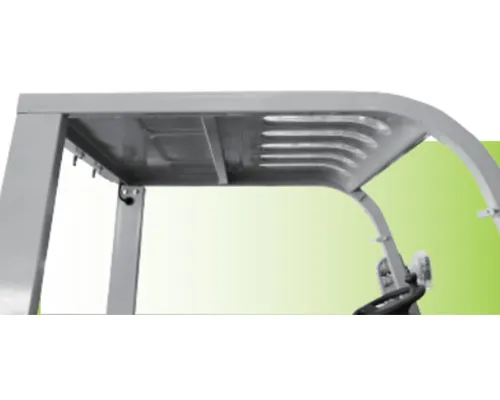

Their overhead guard has a one-piece stamped roof with five transparent plastic covers, so the driver gets more daylight without being directly exposed to rain.

FD30Z Diesel Forklift

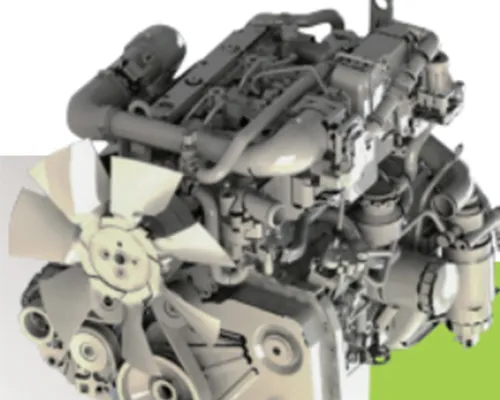

The diesel engine provides the power and torque needed to lift heavy loads and move them around the worksite.

FD30Z Diesel Forklift

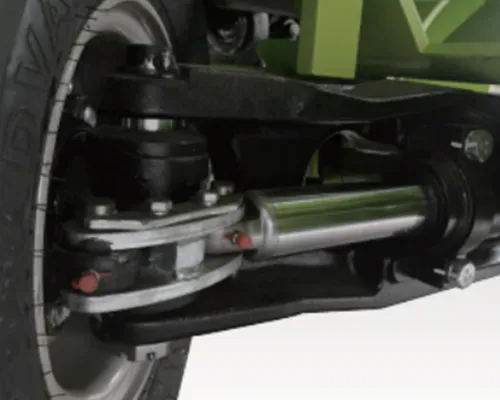

Their cast steering axle is built to resist bending and withstand the bumps and heavy loads that come with regular forklift use.

FD30Z Diesel Forklift

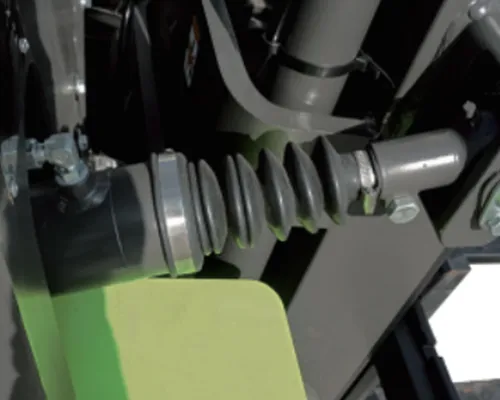

Dust covers protect the tilt cylinders from dirt, which helps the seals last longer and keeps operating noise down.

FD30Z Diesel Forklift

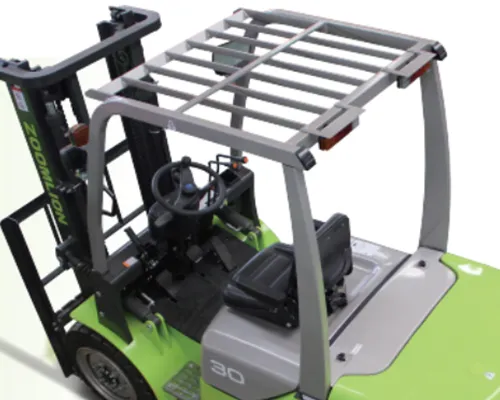

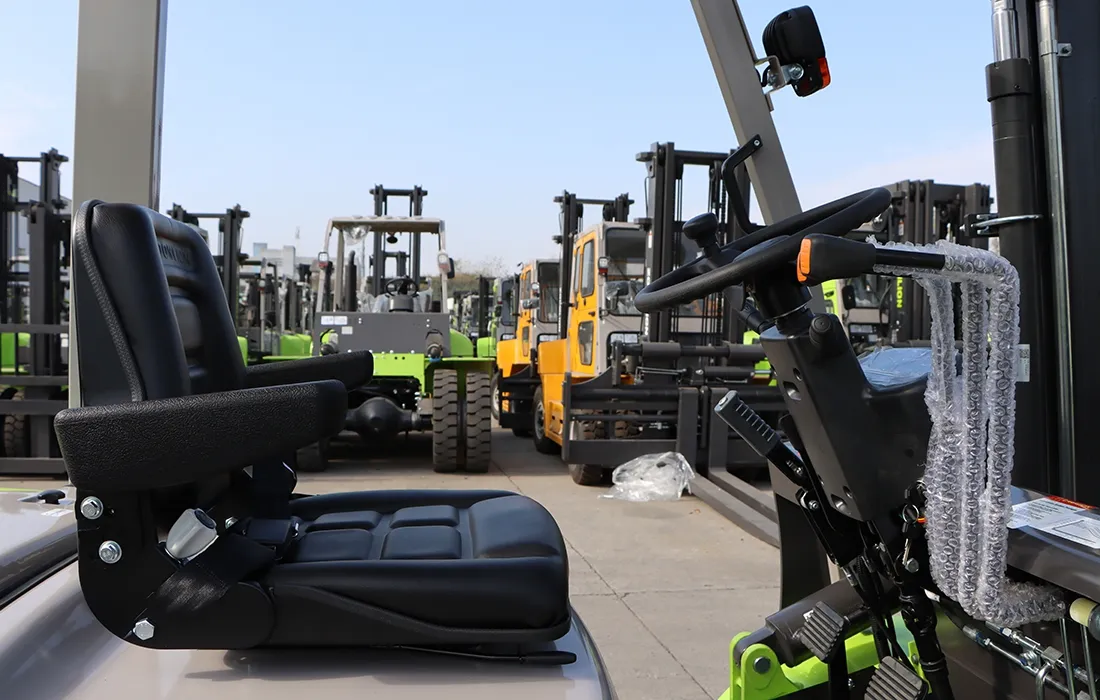

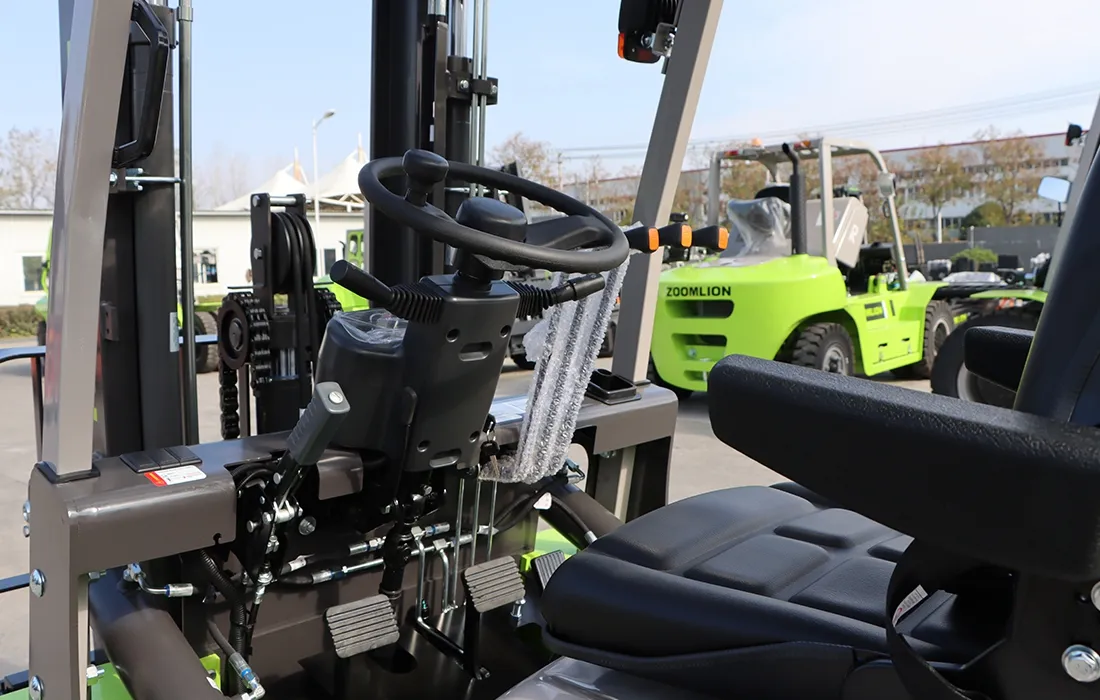

The operator area has an adjustable seat and steering wheel, so drivers can set a comfortable position with plenty of legroom. The compact shift control is also easy to reach and use.
