FDA6Z Diesel Forklift

FDA6Z Diesel Forklift

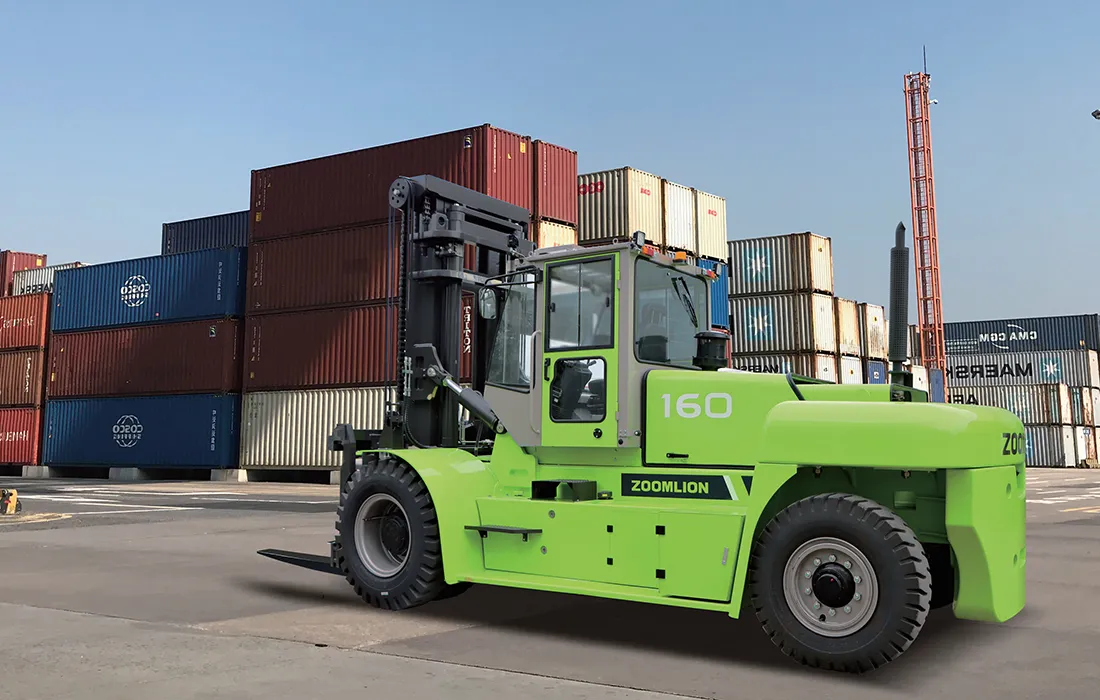

The ZOOMLION diesel forklifts FDA6Z can handle large loads and heavy equipment at industrial yards and loading areas. Their rated capacity is 16 tons, and a 150-kW Cummins QSB6.7 engine provides power for travel and lifting. The forks can raise a full load at 320 mm/s to a lifting height of 4 m. A wide-view mast, rearview camera, and large cab windows help the driver see the load and surrounding work area, while the tilting cab and wide-opening engine cover provide access for inspection and maintenance.

  • Rated capacity: 16,000 kg (16 tons)
  • Load center: 1,200 mm
  • Lifting height: 4,000 mm (4 m)
  • Fork dimensions (L × W × H): 2,440 × 250 × 100 mm
Request A Quote
Download Brochure
Technical Specifications
Power type - Diesel
Rated capacity kg 16000
Center of load J (mm) 1200
Lifting height h1 (mm) 4000
Free lifting height h3 (mm) 0
Forks (L × W × H) L5 × W × T (mm) 2440 × 250 × 100
Tilt forward/backward - 6/12
Min. turning radius R1 (mm) 5500
Min. right angle stacking width Ra (mm) 9200
Min. ground clearance (mast) (laden/unladen) mm 330/300
Overhead guard height h4 (mm) 3070
Front overhang L3 (mm) 1060
Rear overhang L4 (mm) 960
Performance
Max. traveling speed (laden) km/h 25
Max. lifting speed (laden/unladen) mm/s 320/350
Drawbar pull/Gradeability kN/% 30
Size
Overall length (without forks) L1 (mm) 5830
Overall width W1 (mm) 2790
Mast lowered height h2 (mm) 3900
Mast extended height mm 5870
Chassis
Tire (front) - 12.00-24-20PR
Tire (rear) - 12.00-20-20PR
Wheelbase L2 (mm) 3800
Tread width (front/rear) S/P (mm) 2090/2120
Curb weight (unladen) kg 26300
Engine
Engine type - Cummins QSB6.7
Rated power kW/rpm 150/2050
Rated torque Nm/rpm 825/1100
Cylinder amount - 6
Bore × Stroke mm 107 × 124
Displacement L 6.7
Fuel tank capacity L 160
Working pressure MPa 20
Capacity Chart
FD30Z Diesel Forklift
Overall Dimensions
FD30Z Diesel Forklift
Features
FD30Z Diesel Forklift

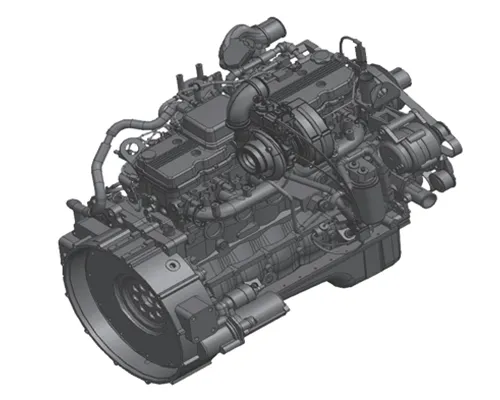

These ZOOMLION diesel forklifts have a Cummins QSB6.7 engine that meets Euro III emissions standards.

FD30Z Diesel Forklift

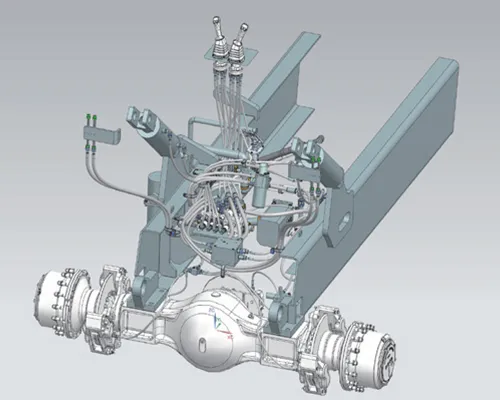

The hydraulic system combines flow from two pumps to lift loads at up to 350 mm/s, while load sensing gives steering priority when needed. The hydraulic brakes are designed to respond reliably without requiring heavy pedal effort.

FD30Z Diesel Forklift

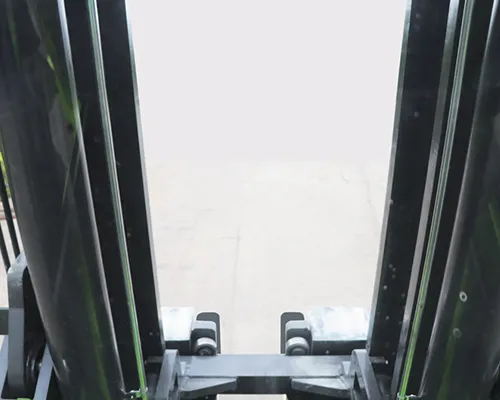

Their wide-view mast and large front windshield help the driver see the forks and the area ahead.

FD30Z Diesel Forklift

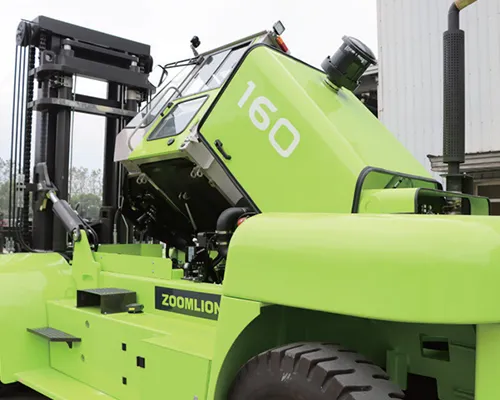

The cab tilts about 60°, and the engine hood opens wide, giving maintenance staff room to reach the components beneath them for inspection and service.

FD30Z Diesel Forklift

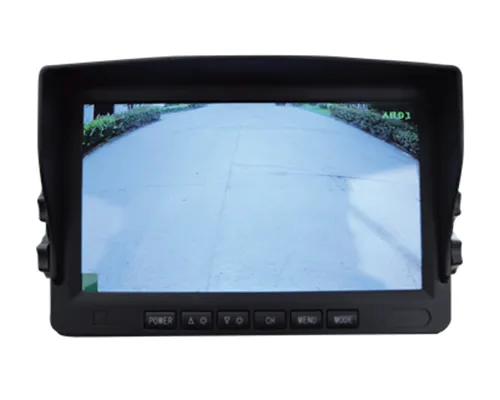

When the forklift reverses, the display shows a live view from the rearview camera.

FD30Z Diesel Forklift

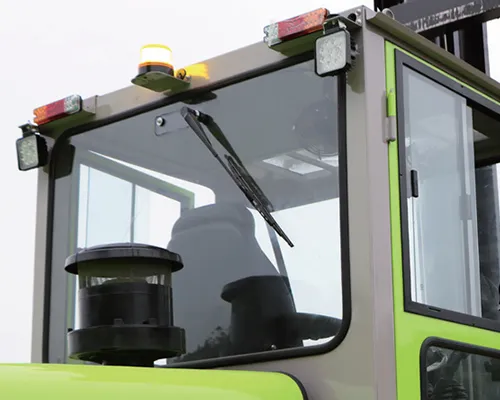

Large windows at the back of the cab also help the driver see behind the forklift.
