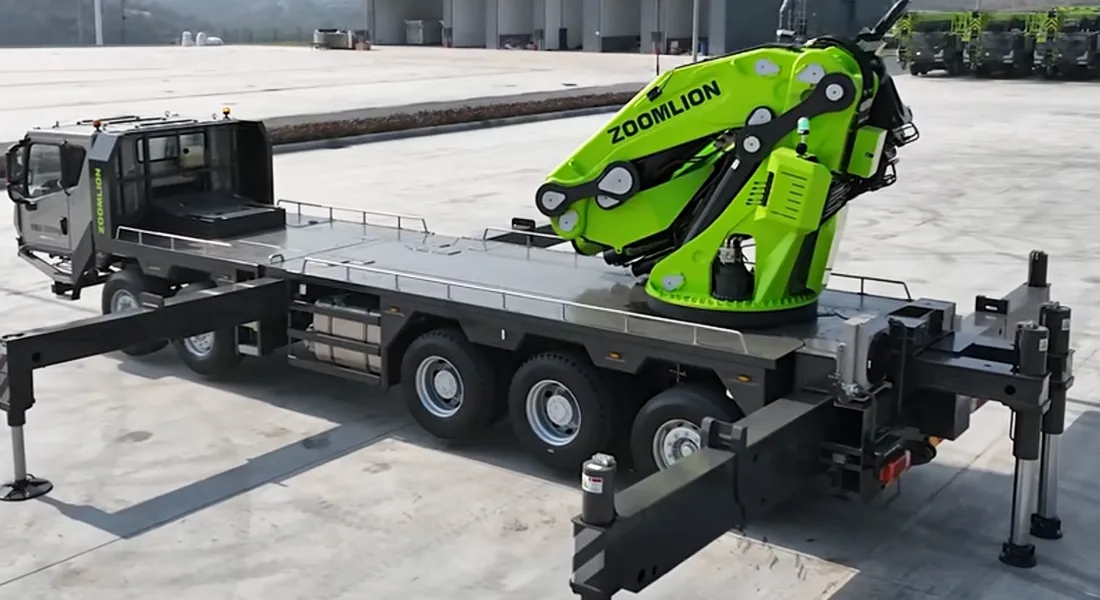

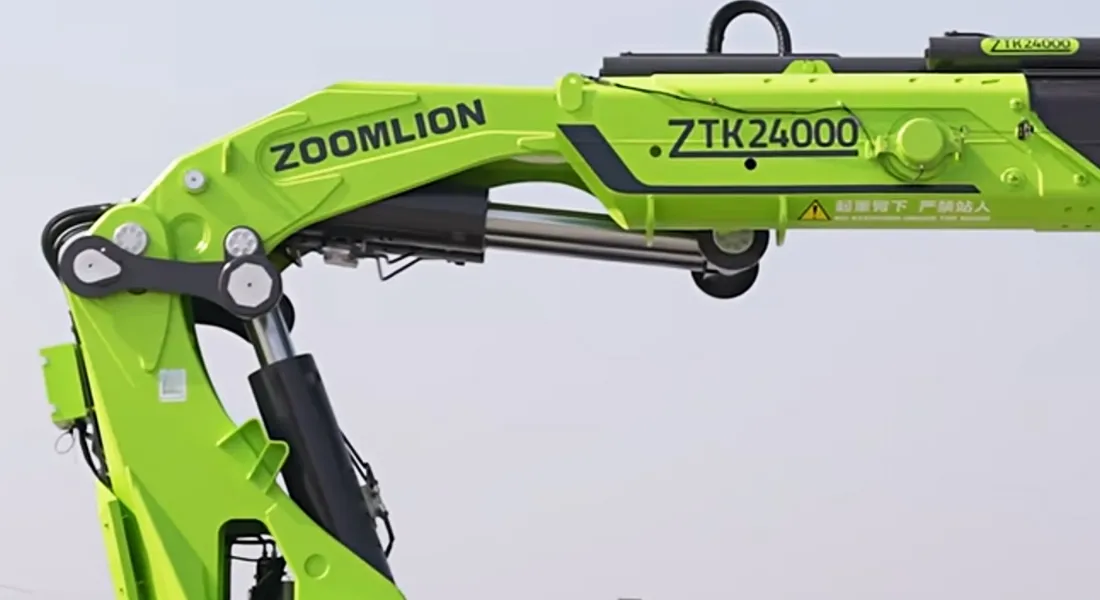

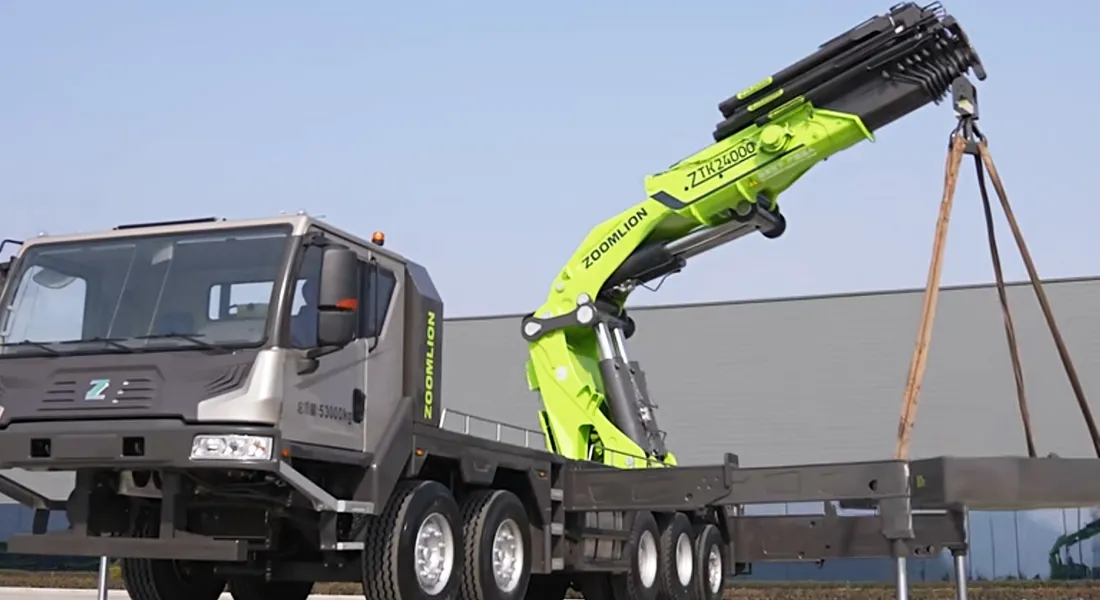

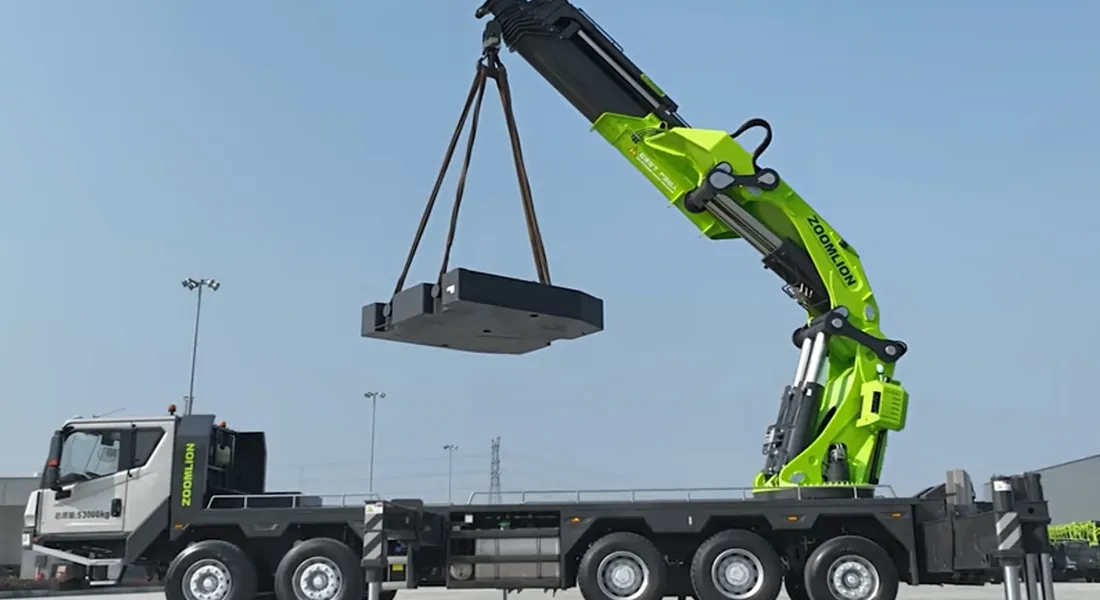

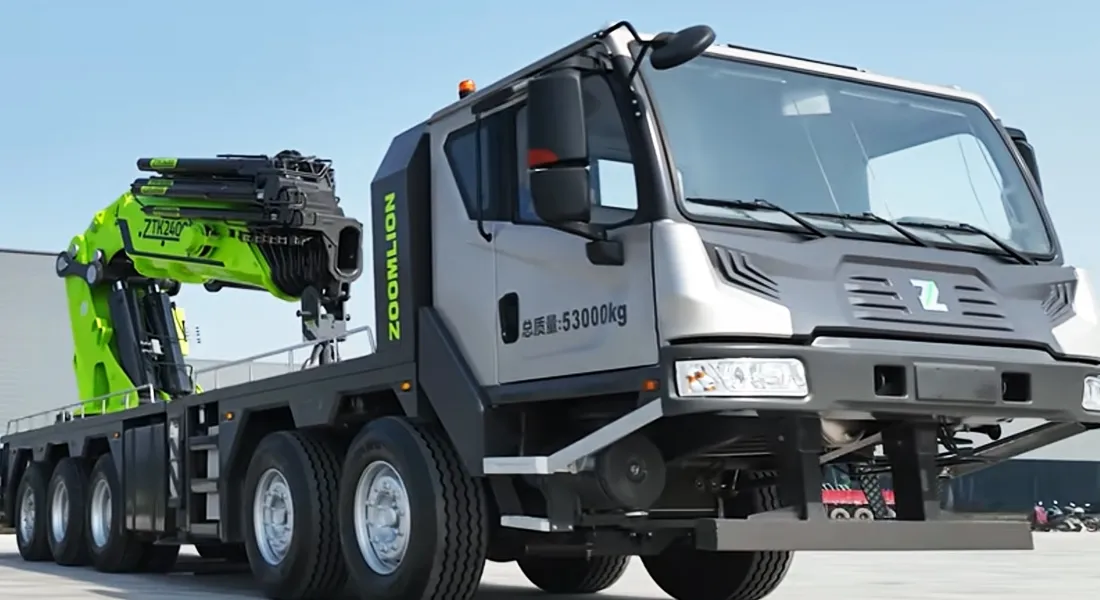

Knuckle-boom Truck-mounted Crane ZTK24000V

Knuckle-boom Truck-mounted Crane ZTK24000V

ZOOMLION knuckle boom cranes are truck-mounted lifting equipment with multiple articulated boom sections that fold and unfold to lift and position loads. The hydraulic system bends and straightens the articulated boom sections to lift, move, and position loads. These loader cranes can lift cargo onto or off the truck and position equipment or materials for installation, including in confined spaces where the boom needs to bend to reach the load's intended position.

  • Max. rated lifting capacity: 56 t at 3.6 m working radius
  • Max. rated lifting moment: 242 t·m
  • Max. working radius: 19.6 m
Request A Quote
Download Brochure
Features
  • These ZOOMLION knuckle boom cranes, a type of truck-mounted lifting equipment, have a specially designed chassis that helps them maneuver in limited spaces thanks to a smaller turning radius. The chassis design also distributes weight more evenly across the axles and helps reduce maintenance costs.
  • Their overall height is 4.0 m, and the platform is 2.55 m wide, dimensions that help assess clearance along access routes. The cranes weigh 36 tons in total, with a 17-ton counterweight.
  • During lifting, the outriggers extend to an 8.4 m span to provide a broad base of support. For travel over changes in ground slope, the chassis has a 13° departure angle for clearance beneath the rear of the vehicle.
  • The eight-section telescopic boom reaches a working radius of 19.6 m at −5°, slightly below horizontal, and the maximum lifting moment with the basic boom is 2,377 kN·m.
  • Hydraulic power comes from a variable-displacement piston pump and a gear pump at a rated system pressure of 33 MPa. Two lift cylinders provide the force to raise the boom.
  • Inside the fully enclosed cab, an HD central display and a rearview camera help the driver monitor information and see behind the vehicle, while a sleeper berth provides space to rest between jobs.
  • The standard remote control has a 5-inch touchscreen for vehicle and crane operation. For information about the lift, the separate load moment indicator has a 7-inch color touchscreen and recommends operating configurations.
  • Standard safety features include a virtual wall system, a load moment limiter, and a vehicle stability system.
Technical Specifications
Vehicle
Item Value Unit
Vehicle Model ZTK24000V963 /
Overall Dimensions (L × W × H) 12000 × 2550 × 4000 mm
Gross Weight 53000 kg
Curb weight 52870 kg
Max. Rated lifting capacity 56@3.6m t
Max. rated lifting moment 242 t·m
Max. load pushing capacity 30000 kg
Max. working radius & performance 8600kg@19.6m /
Counterweight 16 t
Outrigger transverse span 8400/8100 mm
Chassis
Item Value Unit
Axle load 9000/9000/13000/13000/9000 kg
Max. speed 89 km/h
Max. gradeability 40 %
Wheelbase 1350+3620+1350+1350 /
Approach/departure angle 23/13 °
Engine model YCK09380-60 /
Displacement 9.408 L
Emission standard China VI /
Rated power 275/1900 kW/rpm
Max. torque 1800/1100–1450 N·m/rpm
Transmission Fast /
Min. turning radius 9.1 m
Drive configuration 10 × 4 /
Tire 385/65R22.5 (Axles 1, 2, 5), 12R22.5-18PR (Axles 3, 4) /
Cab seating capacity (persons) 2 /
Cab color Gravel Gray /

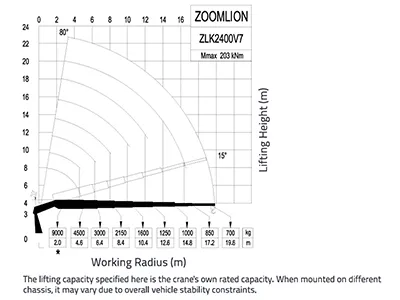

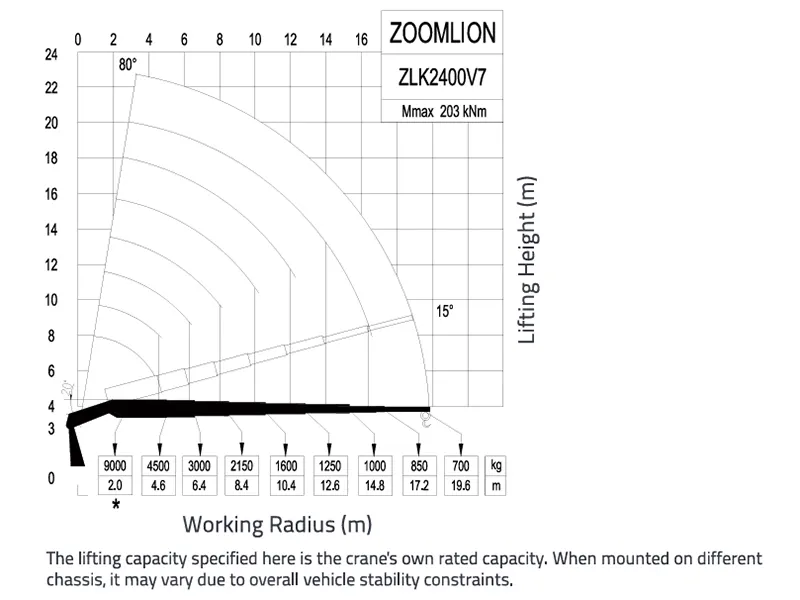

Lifting Height Curve

Knuckle-boom Truck-mounted Crane ZTK24000V

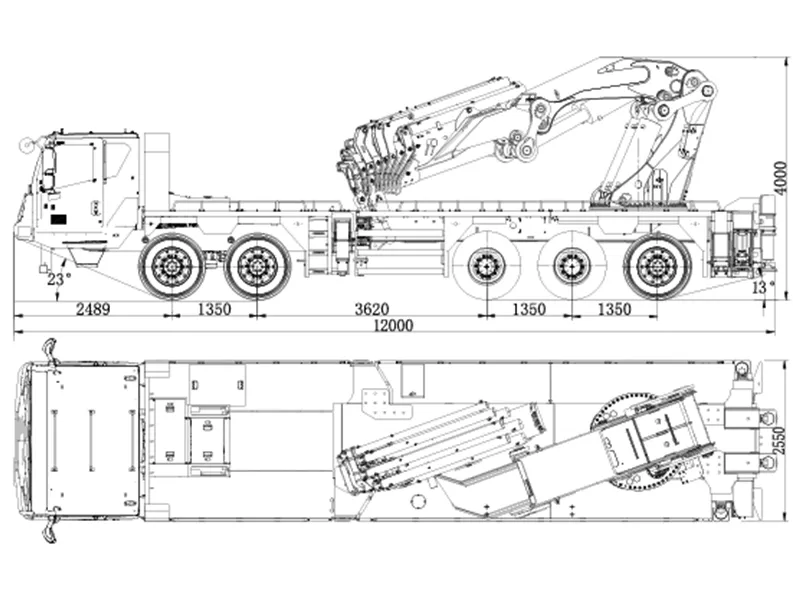

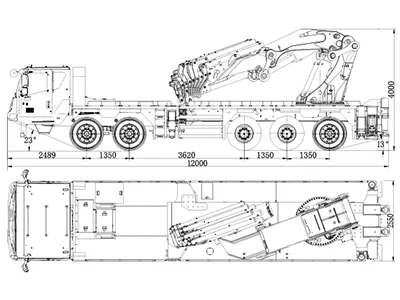

Overall Dimension
