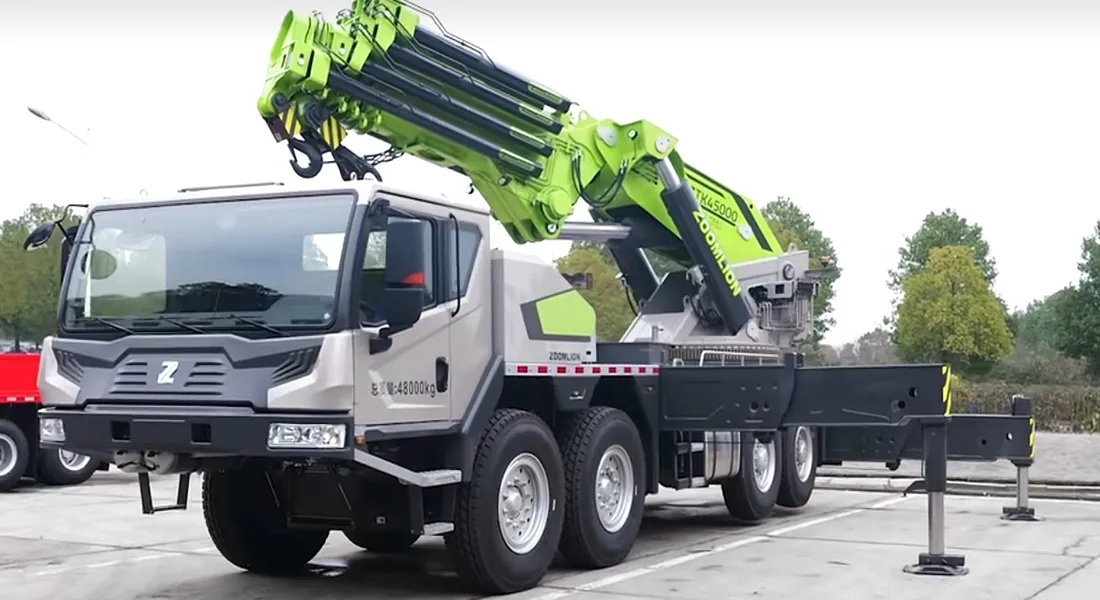

Knuckle-boom Truck-mounted Crane ZTK45000V

Knuckle-boom Truck-mounted Crane ZTK45000V

ZOOMLION knuckle boom cranes are truck-mounted lifting equipment with multiple articulated boom sections that fold and unfold to lift and position loads. The hydraulic system bends and straightens the articulated boom sections to lift, move, and position loads. These loader cranes can lift cargo onto or off the truck and position equipment or materials for installation, including in confined spaces where the boom needs to bend to reach the load's intended position.

  • Max. rated lifting capacity: 98 t at 4.6 m
  • Max. rated lifting moment: 450 t·m
  • Max. working radius: 18.63 m
Request A Quote
Download Brochure
Features
  • ZOOMLION knuckle boom cranes (ZTK45000V763) have a 2.8 m-wide platform and an 8 m outrigger span that provide a broad base of support for heavy lifting.
  • The basic boom has a maximum rated lifting moment of 450 t·m, with no reduction in lifting capacity when the cranes lift loads over the side of the vehicle.
  • Overall vehicle length is 11.2 m, and the turning radius is 8.5 m, so the cranes can maneuver and change position in confined work areas.
  • Their four-axle, 48-ton chassis offers all-wheel steering and three steering modes. These include crab steering, in which the wheels turn in the same direction to move the vehicle diagonally into position.
  • The chassis can carry the 22-ton counterweight between work locations, so a separate vehicle is not needed to transport it.
  • Vehicle and crane functions can be controlled from the standard remote control, which has a 5-inch touchscreen.
  • Lifting information appears on a separate 7-inch color touchscreen load moment indicator, which also recommends operating configurations for the lifting task.
  • Optional equipment includes a winch, a manually extended jib, and a fly jib for tasks that require different lifting arrangements or additional reach from this truck-mounted lifting equipment.
Technical Specifications
Vehicle
Item Value Unit
Vehicle model ZTK45000V763 /
Overall dimensions (L × W × H) 11200 × 2800 × 3850 mm
Gross weight 48000 kg
Curb weight 47870 kg
Max. rated lifting capacity 98t@4.6m kg
Max. rated lifting moment 450 t·m
Max. load pushing capacity 90000 kg
Max. working radius & performance 17000kg@18.63m /
Counterweight 22 t
Outrigger transverse span 8000 mm
Chassis
Item Value Unit
Axle load 12000/12000/12000/12000 kg
Max. speed 90 km/h
Max. gradeability 50 %
Wheelbase 1530+3855+1500 /
Engine model YCK11430-60 /
Displacement 10.98 L
Emission standard China VI /
Rated engine power/speed 316/1900 kW/rpm
Max. torque 2100/1000-1500 N·m/rpm
Transmission Fast /
Min. turning radius 8.5 m
Drive and steering configuration 8 × 4 × 8 /
Tire 385/95R25 /
Cab seating capacity (persons) 2 /
Cab color Gravel Gray /

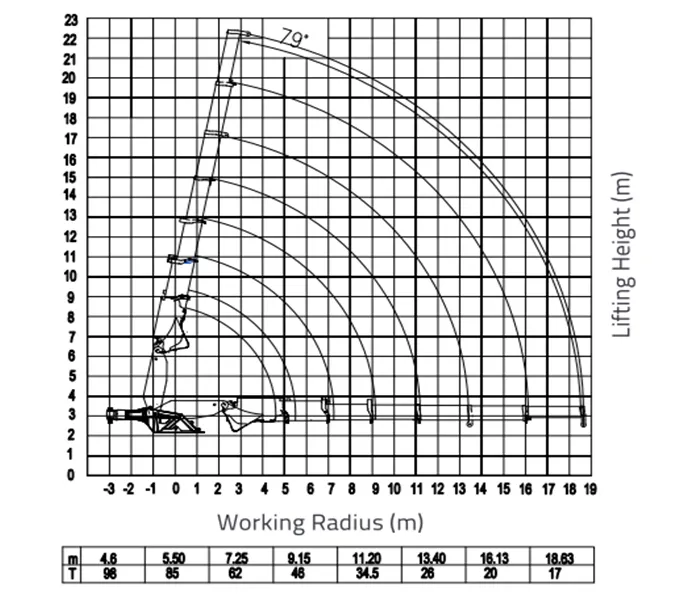

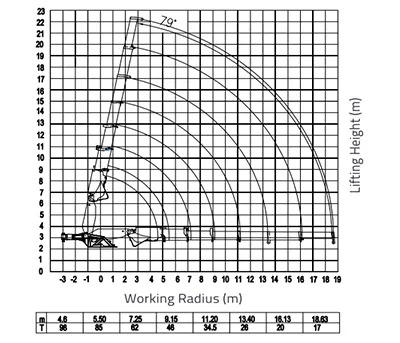

Lifting Height Curve

Knuckle-boom Truck-mounted Crane ZTK24000V

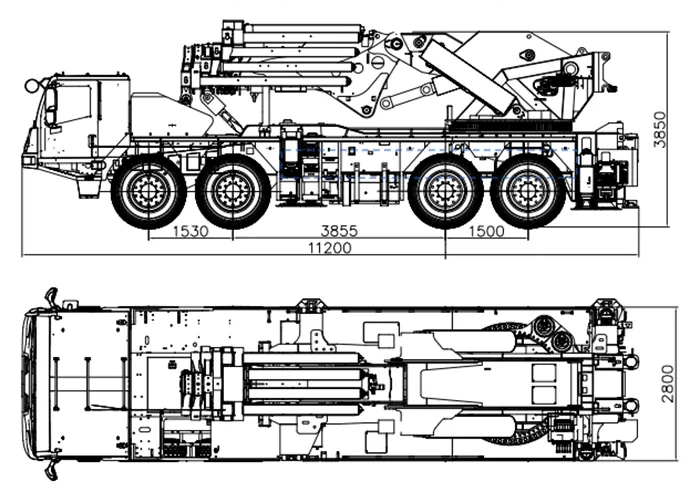

Overall Dimension

Knuckle-boom Truck-mounted Crane ZTK24000V
Knuckle-boom Truck-mounted Crane ZTK24000V
