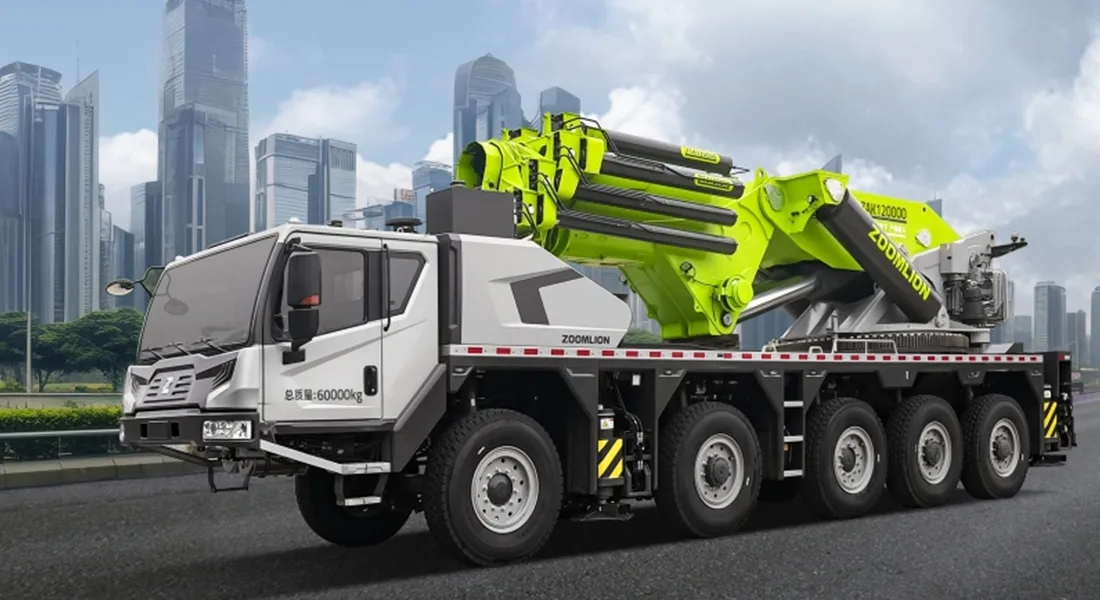

Knuckle-boom Truck-mounted Crane ZAK120000V

Knuckle-boom Truck-mounted Crane ZAK120000V

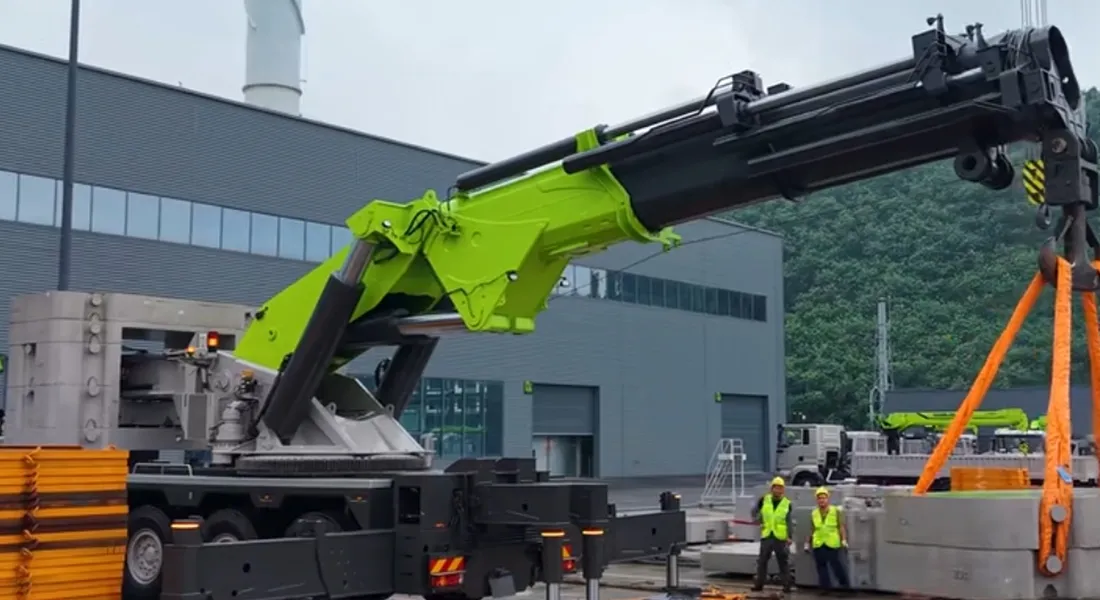

ZOOMLION knuckle boom cranes are truck-mounted lifting equipment with multiple articulated boom sections that fold and unfold to lift and position loads. The hydraulic system bends and straightens the articulated boom sections to lift, move, and position loads. These loader cranes can lift cargo onto or off the truck and position equipment or materials for installation, including in confined spaces where the boom needs to bend to reach the load's intended position.

  • Max. rated lifting capacity: 220 t at a 4.5 m working radius
  • Max. rated lifting moment: 1084 t·m
  • Max. working radius: 17.25 m
Request A Quote
Download Brochure
Features

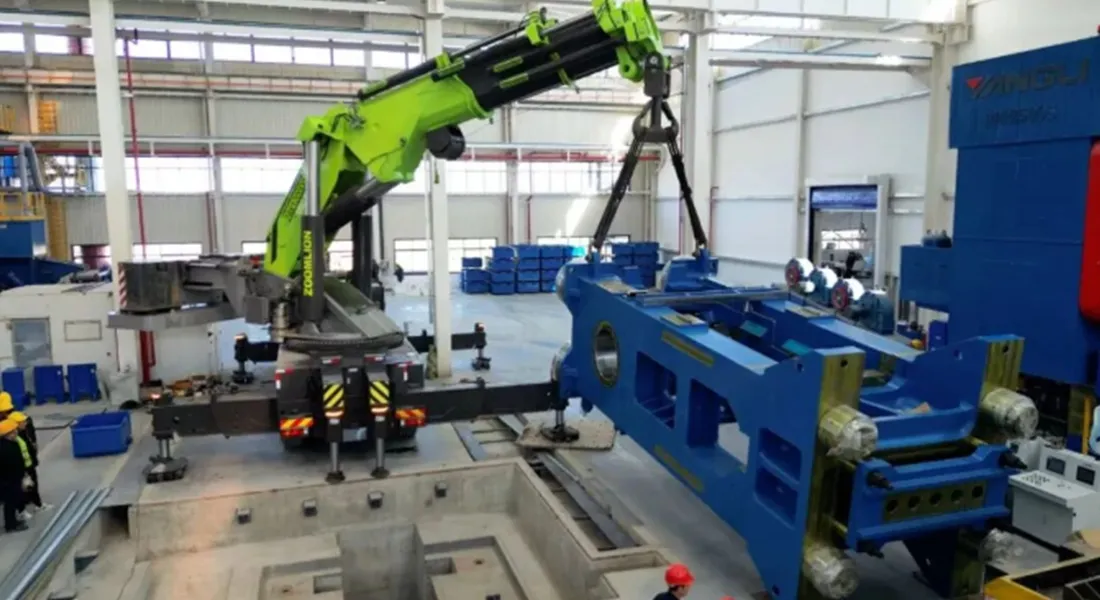

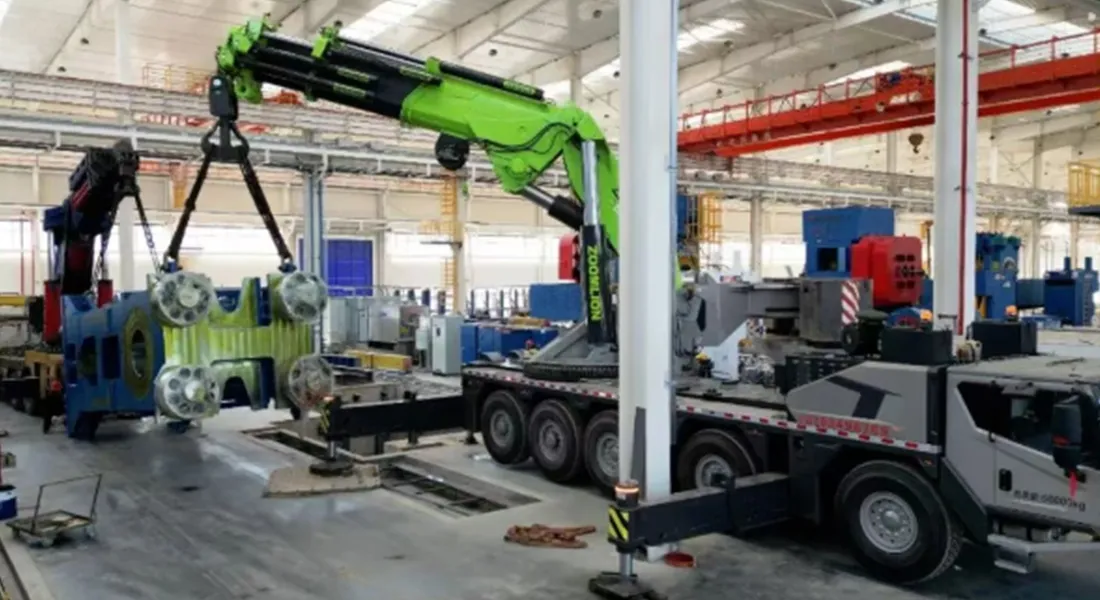

  • Our knuckle boom cranes, model ZAK120000V663, have a dedicated ZOOMLION chassis and an unladen weight of 60 tons. Their 2.8 m-wide platform and 8.4 m outrigger span provide a broad base for lifting over the rear or sides of the vehicle and reaching beyond obstacles.
  • Their five-section telescopic boom lifts up to 220 tons at a working radius of 4.5 m. At the maximum working radius of 17.25 m, lifting capacity is 44 tons.
  • These mobile cranes can be equipped with an optional 70-ton counterweight whose telescoping mechanism allows its position to be adjusted.
  • All-wheel steering provides six steering modes, so the cranes can turn and reposition in different ways as space permits. The all-terrain chassis also includes oleo-pneumatic suspension to accommodate uneven ground.
  • Their overall length is 12.8m and their turning radius is 9.2m, which help the cranes maneuver in confined work areas.
  • The hydraulic system is equipped with variable-displacement pumps and load-sensing control valves to match oil flow to each crane movement, while the telescopic cylinders extend and retract the boom sections in a controlled sequence.
  • Equipped with overload protection to limit lifting operation when it's beyond the permitted capacity, while a tip-over alarm warns of instability.
  • The virtual wall function sets limits on how far the crane can move to keep it within the defined work area, while slewing-area load limits control how much weight it can lift according to the direction the boom faces.
Technical Specifications
Vehicle
Item Value Unit
Vehicle model ZAK120000V663 /
Overall dimensions (L × W × H) 12870 × 2800 × 3850 mm
Gross weight 60000 kg
Curb weight 59870 kg
Max. rated lifting capacity 220t@4.5m kg
Max. rated lifting moment 1084 t·m
Max. load pushing capacity 140000 kg
Max. working radius & performance 44000kg@17.25m /
Counterweight 15/50/70 t
Outrigger transverse span 8400 mm
Chassis
Item Value Unit
Axle load 12000/12000/12000/12000/12000 kg
Max. speed 80 km/h
Max. gradeability 48 %
Wheelbase 2680+2200+1600+1600 /
Approach/departure angle 24/13 o
Engine model YCK11460-60 /
Displacement 10.98 L
Emission standard China VI /
Rated power 339/1900 kW/r/min
Max. torque 2200/11001500 N·m/rpm
Transmission Fast /
Min. turning radius 9.2 m
Drive configuration 10 × 6 × 10 /
Tire 385/95R25, Optional 445/95R25 /
Cab seating capacity(persons) 2 /
Cab color Gravel Gray /

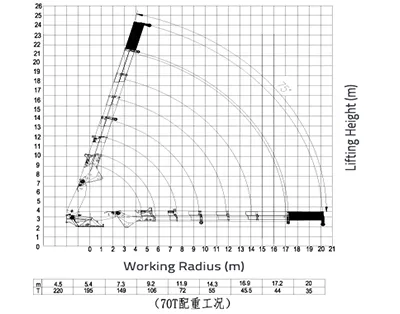

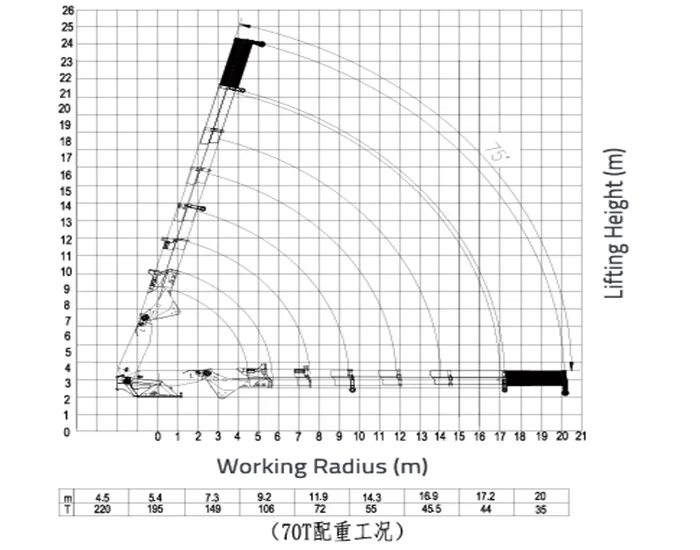

Lifting Height Curve

Knuckle-boom Truck-mounted Crane ZTK24000V

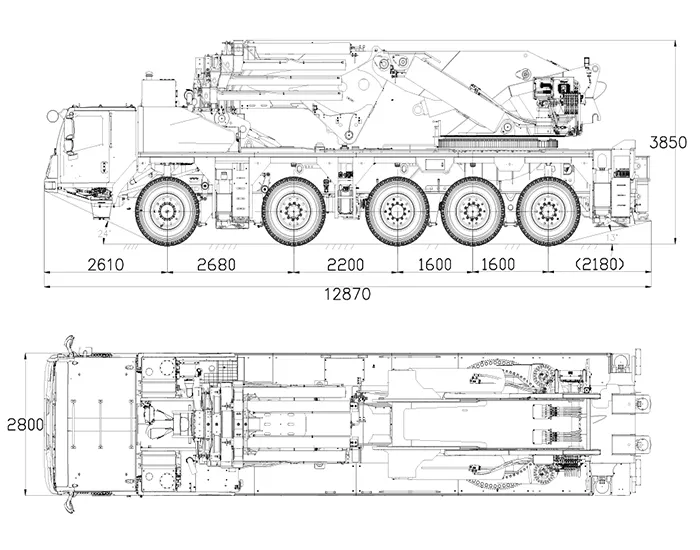

Overall Dimension

Knuckle-boom Truck-mounted Crane ZTK24000V
Related Models
View All Mobile Crane Machinery
