ZTE240HEV Mining Dump Trucks

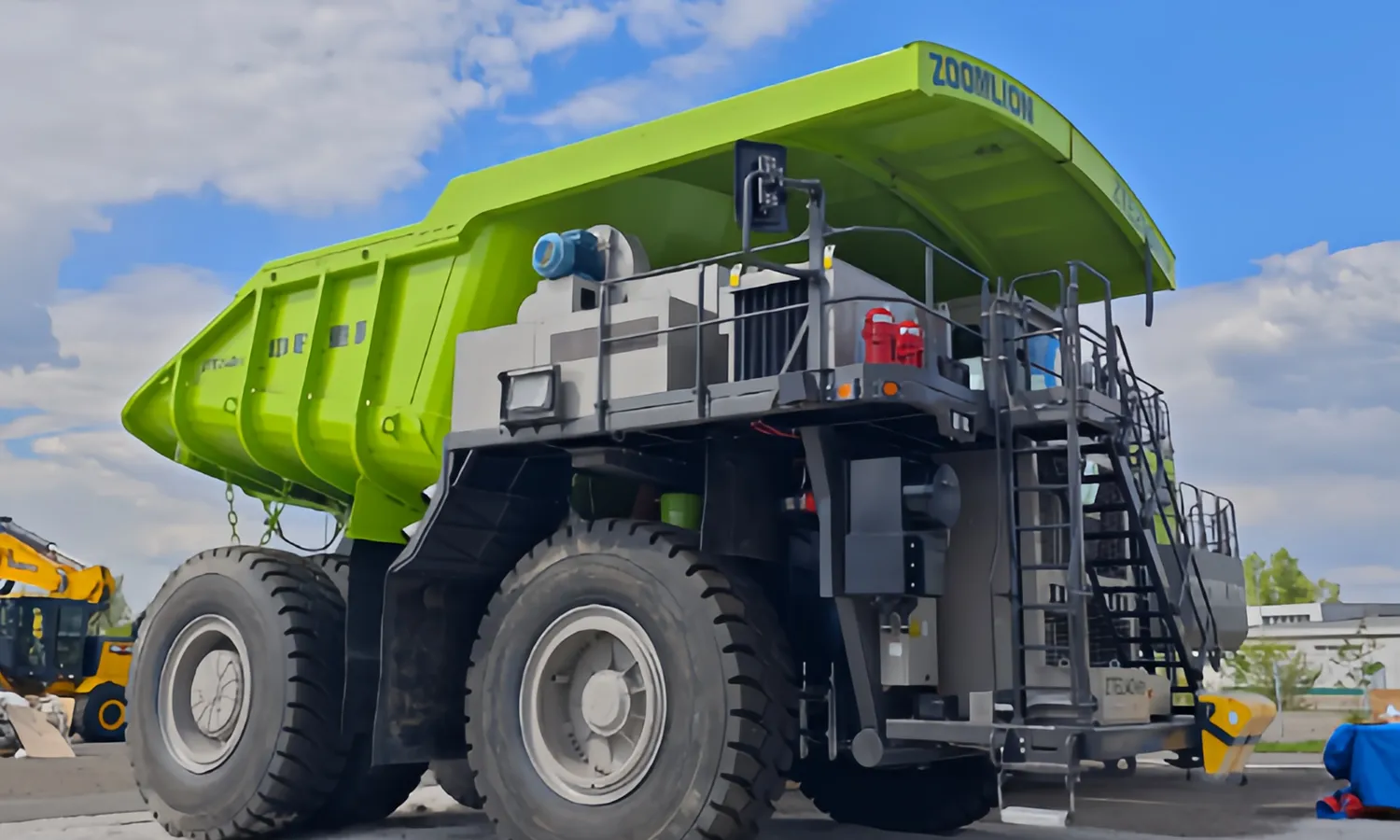

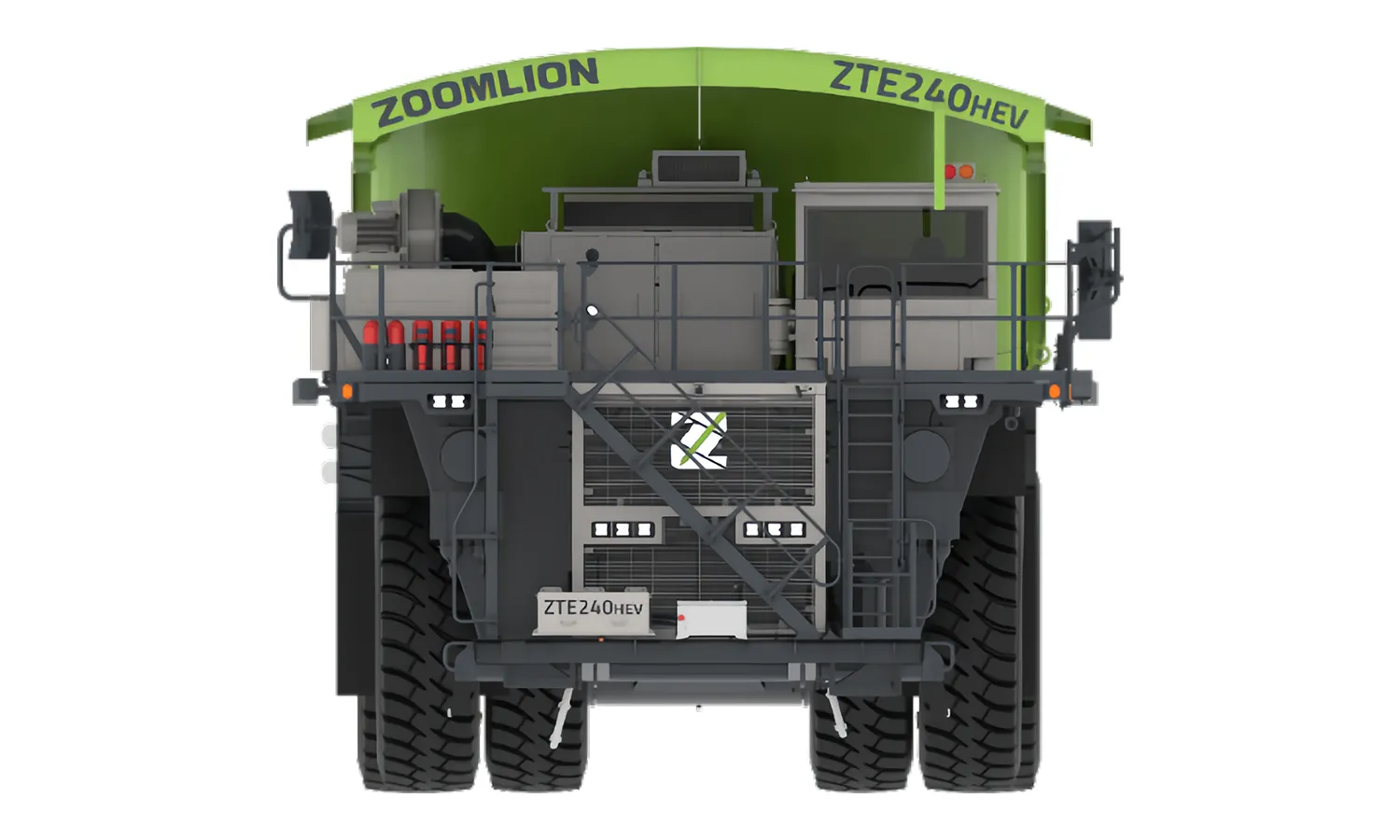

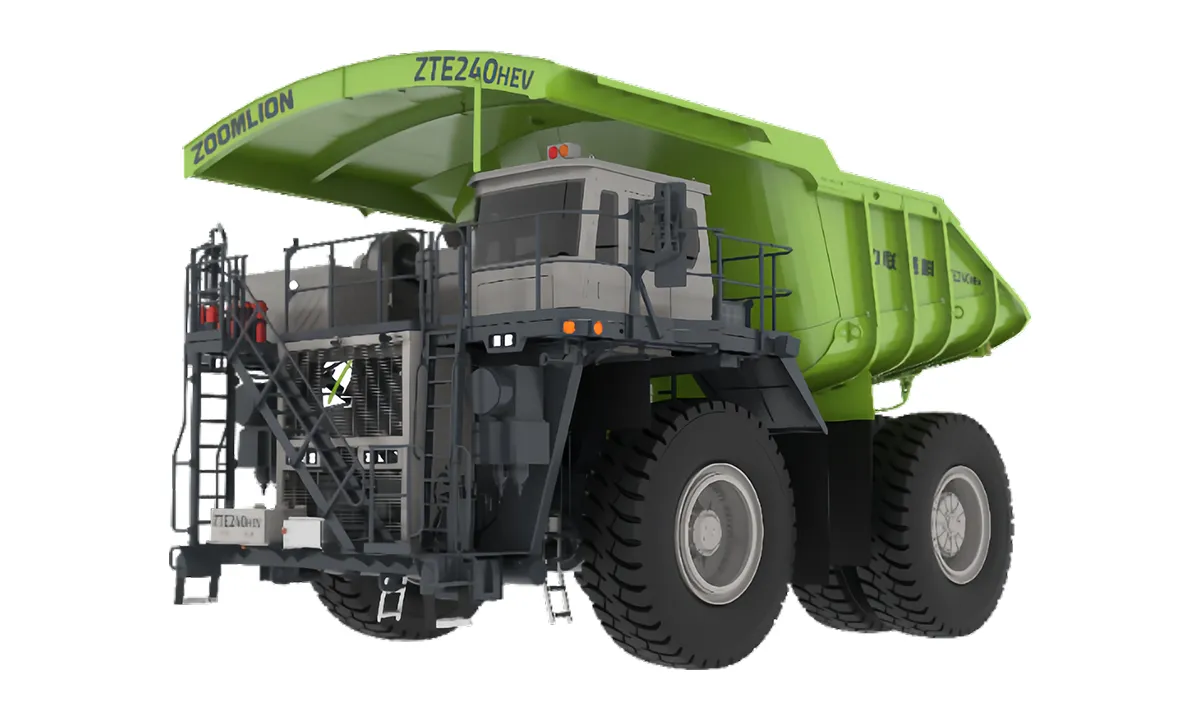

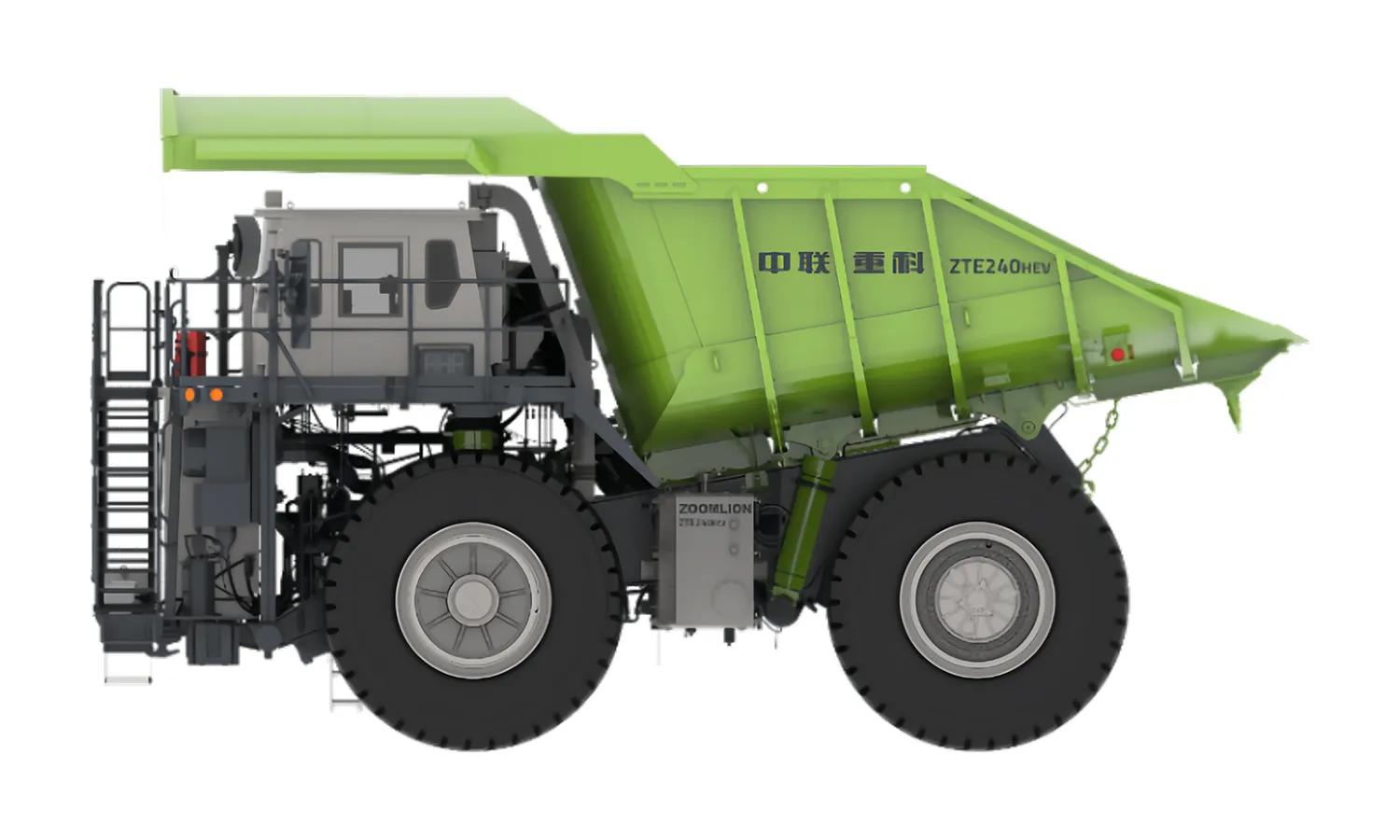

ZTE240HEV Mining Dump Truck

ZTE240HEV hybrid mining dump trucks manufactured by ZOOMLION, can transport ore and excavated material on open-pit mining and large earthmoving projects, with a rated payload of 136 tons and a standard 76 m³ dump body. Their hybrid drive adjusts power output to the load and travel conditions, which helps improve overall energy efficiency by 15%. They are designed with a frame and dump body that can withstand repeated impacts during heavy-load transport, while features such as centralized lubrication simplify maintenance throughout their service life.

  • Rated Payload: 136,000 kg
  • Curb Weight: 106,000 kg
  • Gross Vehicle Weight: 242,000 kg
  • Standard Dump Body Capacity (Heaped 2:1): 76 m³
  • Drive Type: 4 × 2 (Hybrid Electric Drive)
Request A Quote
Features
  • Strength for Repeated Heavy Loads

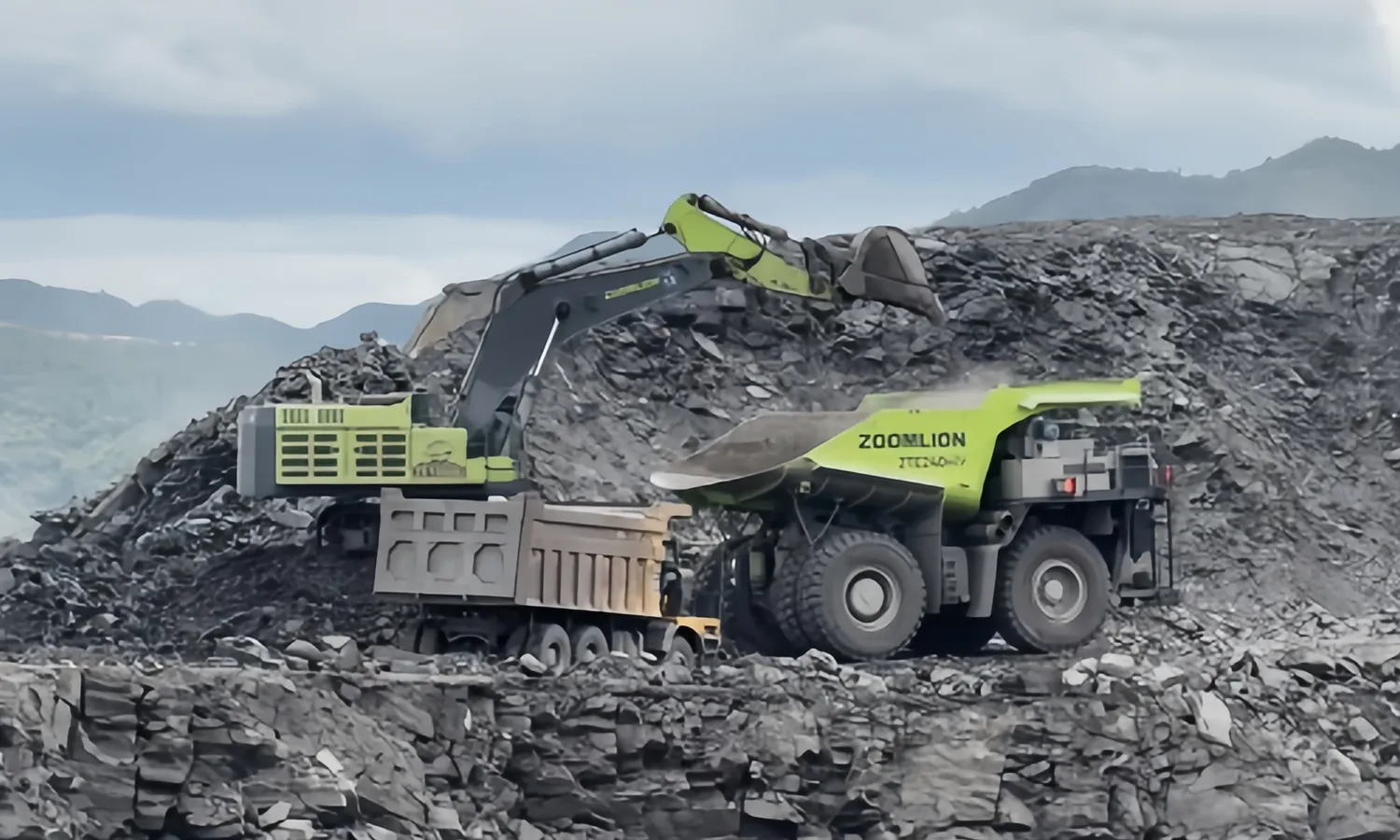

    The frame of these mining trucks have box-section longitudinal beams and reinforced ring beams to withstand repeated heavy loads over years of mine haulage. Cast-steel reinforcements provide extra strength in high-stress areas and help protect the frame against fatigue. Their large-capacity, wear-resistant dump body helps keep material from sticking to its surfaces, so the trucks can unload more completely between trips during continuous hauling in large open-pit mines.
  • Hybrid Drive and Energy Efficiency
    ZTE240HEV mining dump trucks feature a high-power diesel engine and a hybrid electric drive to adjust power output according to the load and driving conditions. Energy recovery helps reduce energy consumption, with the supplied specifications reporting a 15% improvement in overall energy efficiency. Their third-generation AC–DC–AC traction system and wheel-end drives transfer power efficiently during heavy-load hauling, including on uphill sections, and help reduce long-term operating costs.
  • Braking Safety and Reduced Wear
    During heavy-load haulage, high-power electric braking works together with the dual-circuit hydraulic brakes to control the trucks’ speed. Since electric braking reduces how much work the mechanical brakes have to do, it helps limit wear on their components and supports safer travel over long distances and down extended slopes.
  • Configurations for Different Mine Conditions
    ZOOMLION offers configurations for extremely cold climates and high-altitude mines. Electronic differential control, anti-slip control, and wheel-spin control help the trucks maintain traction, while the ROPS/FOPS cab provides protection against rollovers and falling objects. Routine maintenance is also simpler thanks to centralized lubrication, which supplies lubricant to multiple service points.
Technical Specifications
Dimensions Overall length mm 12500
Overall width mm 7600
Overall height mm 6600/11507
Wheelbase mm 5000
Track width Front track mm 4819
Rear track mm 3980
Weights Gross vehicle weight kg 242000
Rated payload kg 136000
Empty vehicle weight kg 106000
Weight distribution No load Front axle (48%) 54060 (51%)
Rear axle (52%) 51940 (49%)
Full load Front axle (33%) 91960 (38%)
Rear axle (67%) 150040 (62%)
Powertrain Engine model / YC12VTD1450-T300
Rated power kW/rpm 1045/1800
Max. torque N·m/rpm 6105/1300
Battery power kW 357.4
Total system power kW 1402.4
Motor rated power kW 480
Motor max. torque N·m/rpm 12000
Displacement L 39.2
Emission standard / GB 20891-2014 III
Drive configuration / 4 × 2
Tires / 33.00R51
Performance Max. speed km/h 56
Min. turning diameter m 25.6
Max. gradeability % 22
Min. ground clearance mm 620
Body hoist Loading height mm 5733
Lifting time s 16
Service refill capacities Fuel tank L 1200
Hydraulic tank L 1000
Cooling system L 279
Engine oil L 165
Gear oil tank (single) L 70 × 2
Body capacity Heaped (SAE 2:1) m³ 76(Heaped)

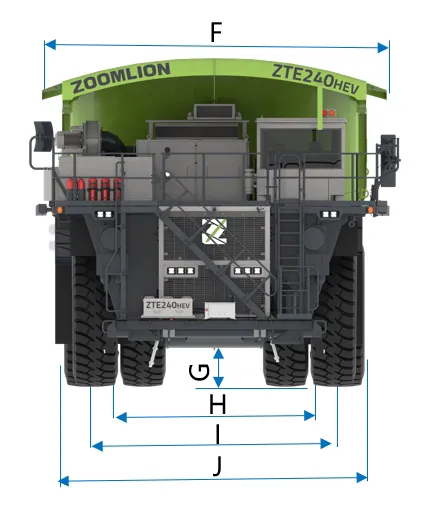

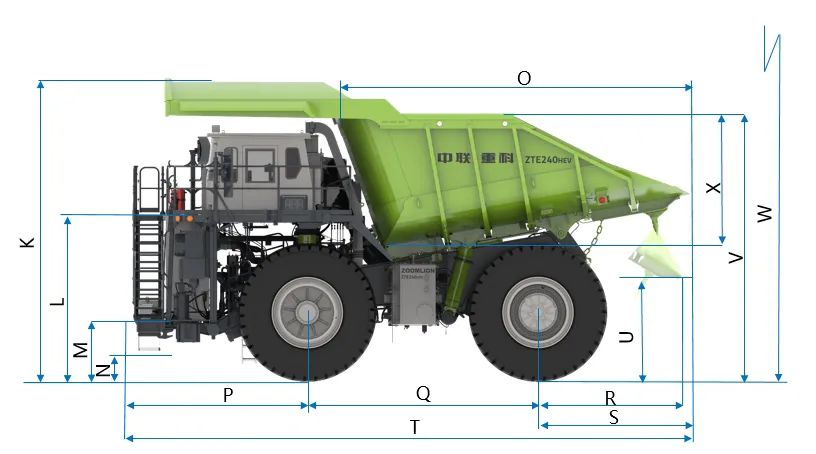

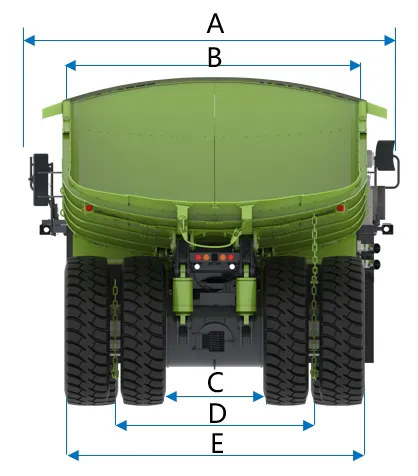

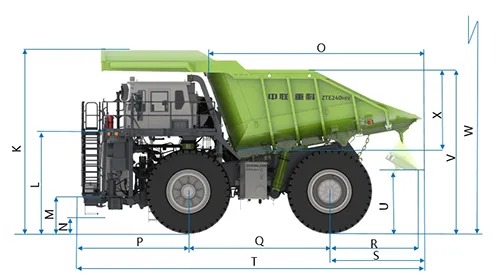

Overall Dimensions
A:7600mm B:5764mm
C:1945mm D:3980mm
E:6013mm F:6590mm
G:620mm H:3908mm
I:4819mm J:5730mm
K:6600mm L:3615mm
M:1154mm N:744mm
O:7760mm P:3680mm
Q:5000mm R:2700mm
S:3295mm T:12500mm
U:1392mm V:5733mm
W:11507mm X:2931mm
