ZMI1214G Mobile Crushers

ZMI1214G Mobile Crusher

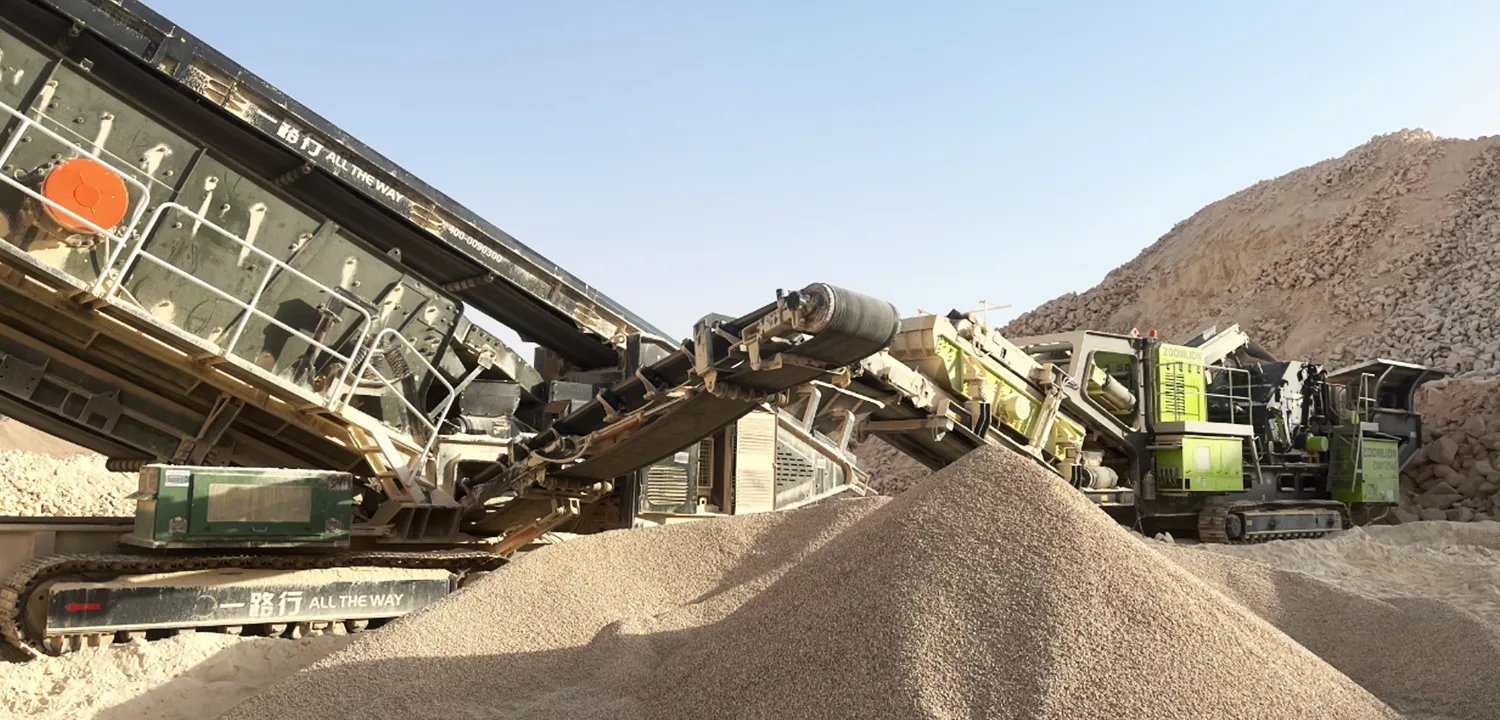

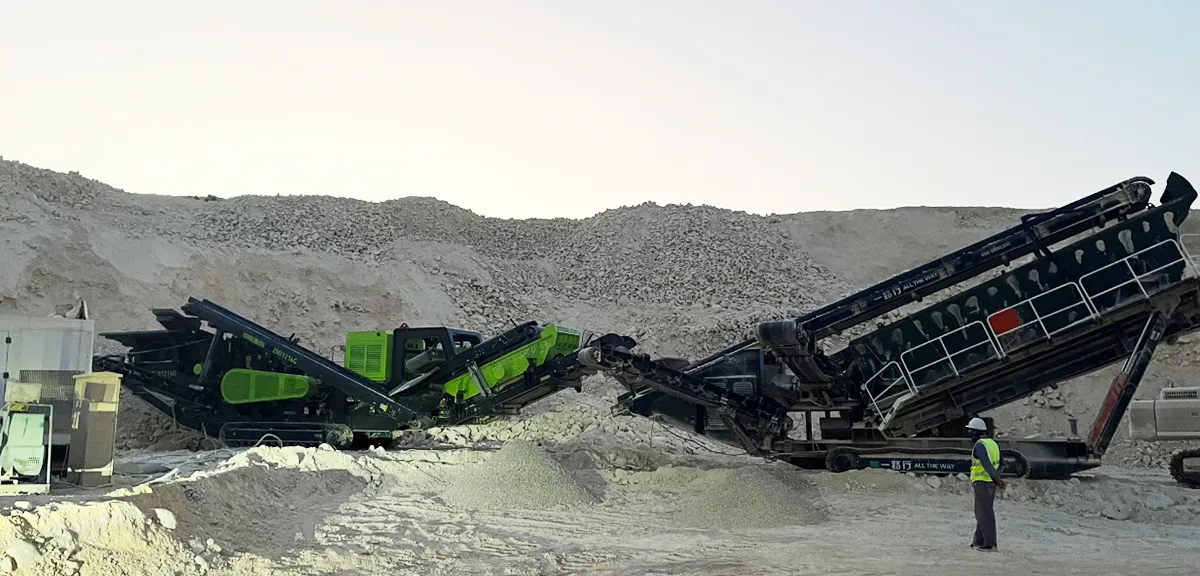

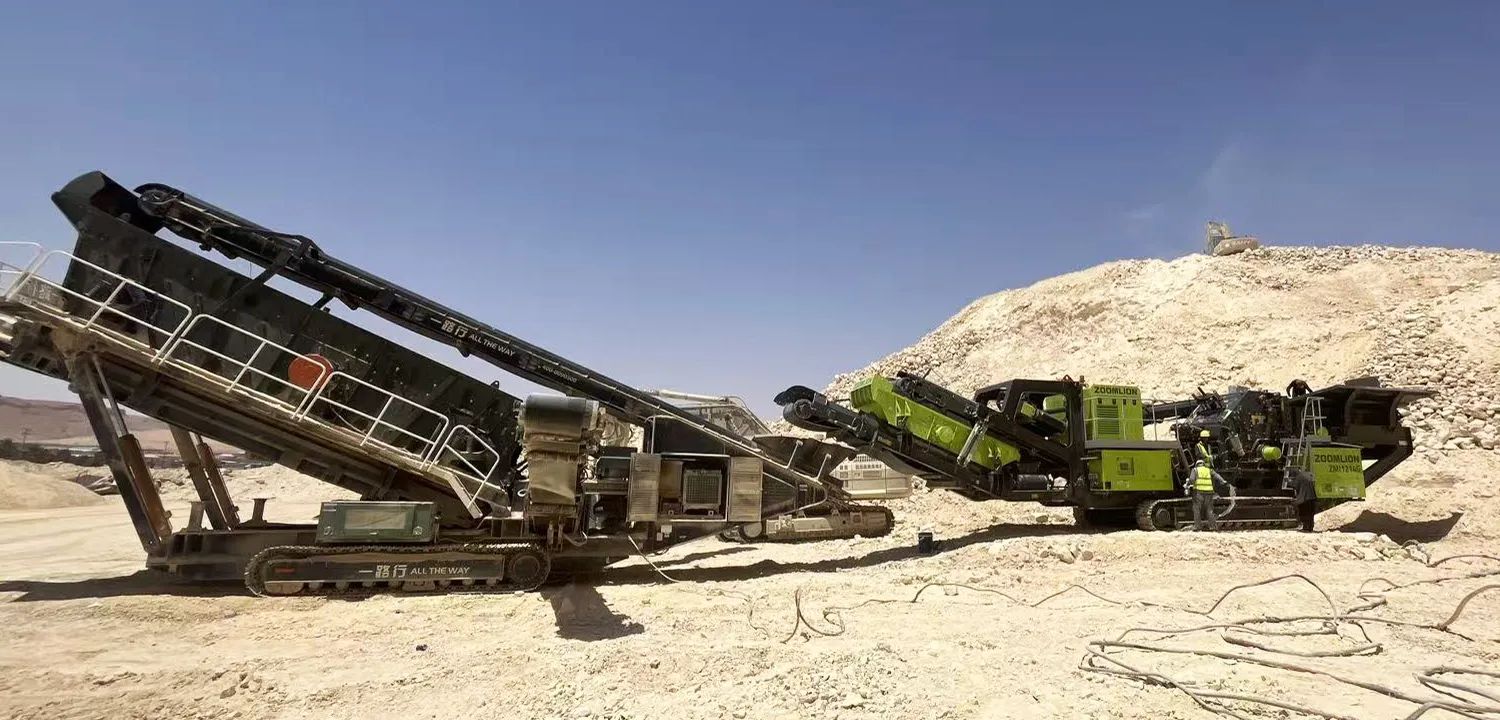

ZOOMLION mobile crushing and screening plants process rock, ore and aggregates directly at the mining jobsite. From primary crushing to screening and material sizing, these mobile mining machines handle multiple stages of aggregate production without the need to transport materials between separate processing locations.
  • Emissions Standard: Euro V
  • Maximum Feed Size: 600 mm
  • Drive Power: 314 kW
Request A Quote
Advantages
  • Efficient Crushing and Cleaner Aggregates
    A variable-frequency drive (VFD) automatically adjusts the vibrating feeder speed to match operating conditions, keeping the impact crusher running efficiently and improving product quality. An integrated vibrating pre-screen removes soil and fine material before crushing, reducing the fines content in the finished aggregates.
  • Heavy-Duty Symmetrical Blow Bars
    The mining crusher features heavy-duty symmetrical blow bars for a higher crushing ratio, better aggregate particle shape and longer wear life. This also helps reduce operating costs and replacement frequency.
  • Lower Emissions, Easier Maintenance
    The engine is specified to meet China Stage IV (National IV) emission requirements. Its modular design eliminates the need for urea injection, making routine servicing more convenient.
  • Energy-Efficient Electric Drive
    A permanent magnet motor powers the impact crusher for efficient operation and lower energy consumption. A conventional asynchronous motor is also available as an option.
  • Strong, Durable Chassis
    The boat-shaped chassis is manufactured from high-strength, low-alloy steel for greater structural rigidity and fatigue resistance. It supports a longer service life for the mobile crushing equipment under demanding mining and quarrying conditions.
Technical Specifications
General Capacity (t/h) 150–350
Operating weight (t) 53.2
Operating dimensions (L×W×H) (mm) 19563×6880×4915
Transport dimensions (L×W×H) (mm) 19563×3842×3900
Installed power (kW) 314
Crusher Model ZCI1214
Rotor dimensions (mm) Ø1200 × 1400
Max. feed size (mm) 600
Crusher power (kW) 250
Engine Rated engine power (kW) 103
Displacement (L) 3.621
Feed System Feed height (mm) 3900
Hopper capacity (m³) 5
Final Screen Screen deck dimensions (L×W) (mm) 3300×1600
Main Conveyor Belt width (mm) 1000
Discharge height (mm) 3700
Main Discharge Conveyor Belt width (mm) 1000
Discharge height (mm) 3200
Transfer Conveyor Belt width (mm) 650
Return Conveyor Belt width (mm) 650
Fines Conveyor
(Optional) 		Belt width (mm) 500
Discharge height (mm) 2960
Crawler Chassis Travel speed (km/h) 0.6 (climbing)/1.2

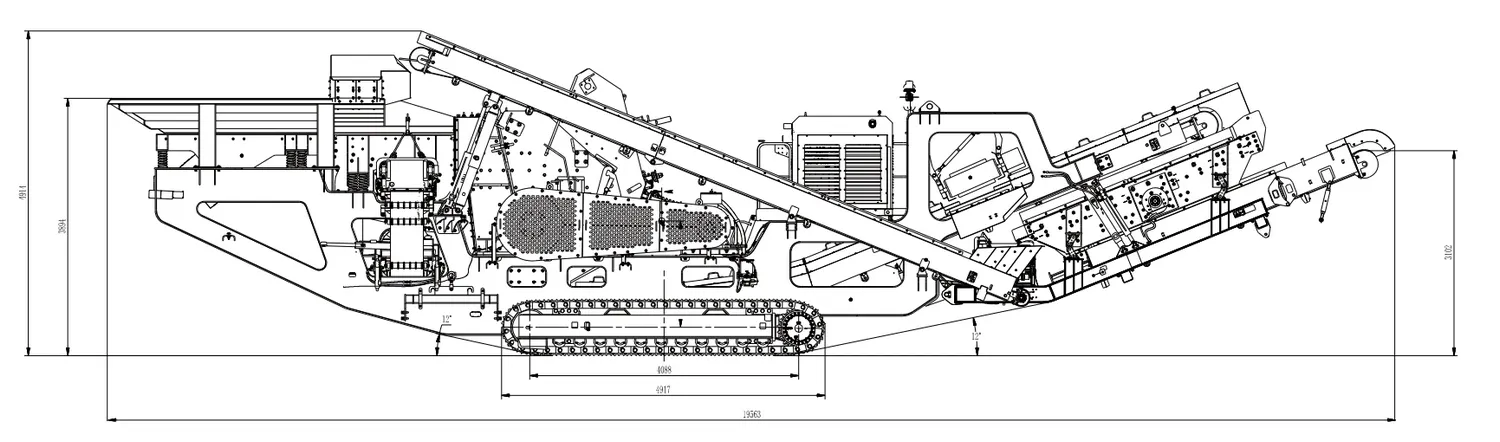

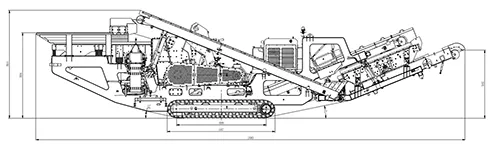

Overall Dimensions (mm)
Transport dimensions (L×W×H) 19563×3842×3900
Operating dimensions (L×W×H) 19563×6880×4915
Feed height 3900
Discharge height 3100
Fines discharge height 2960
Overall track length 4920
Track shoe width 500
Track gauge 2476
