ZMS1550G Mobile Crushers

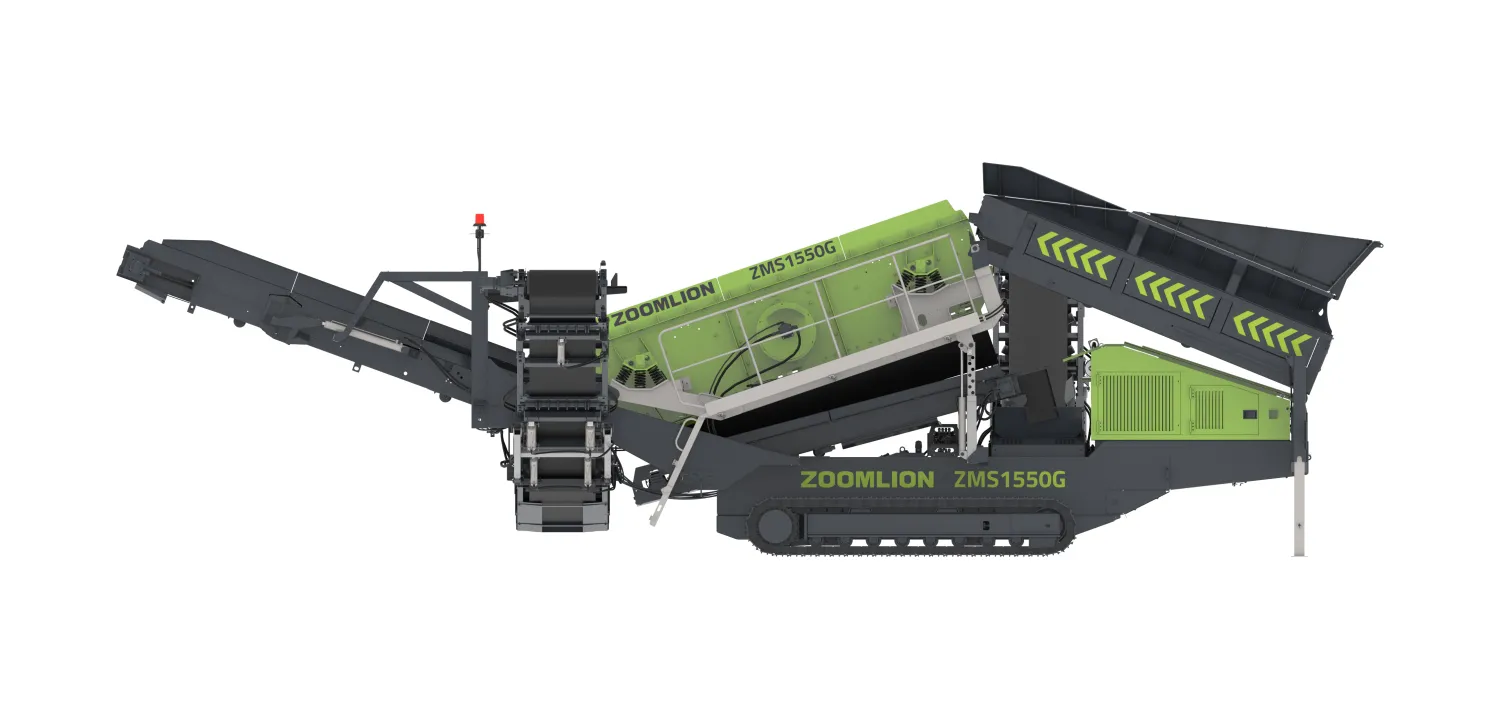

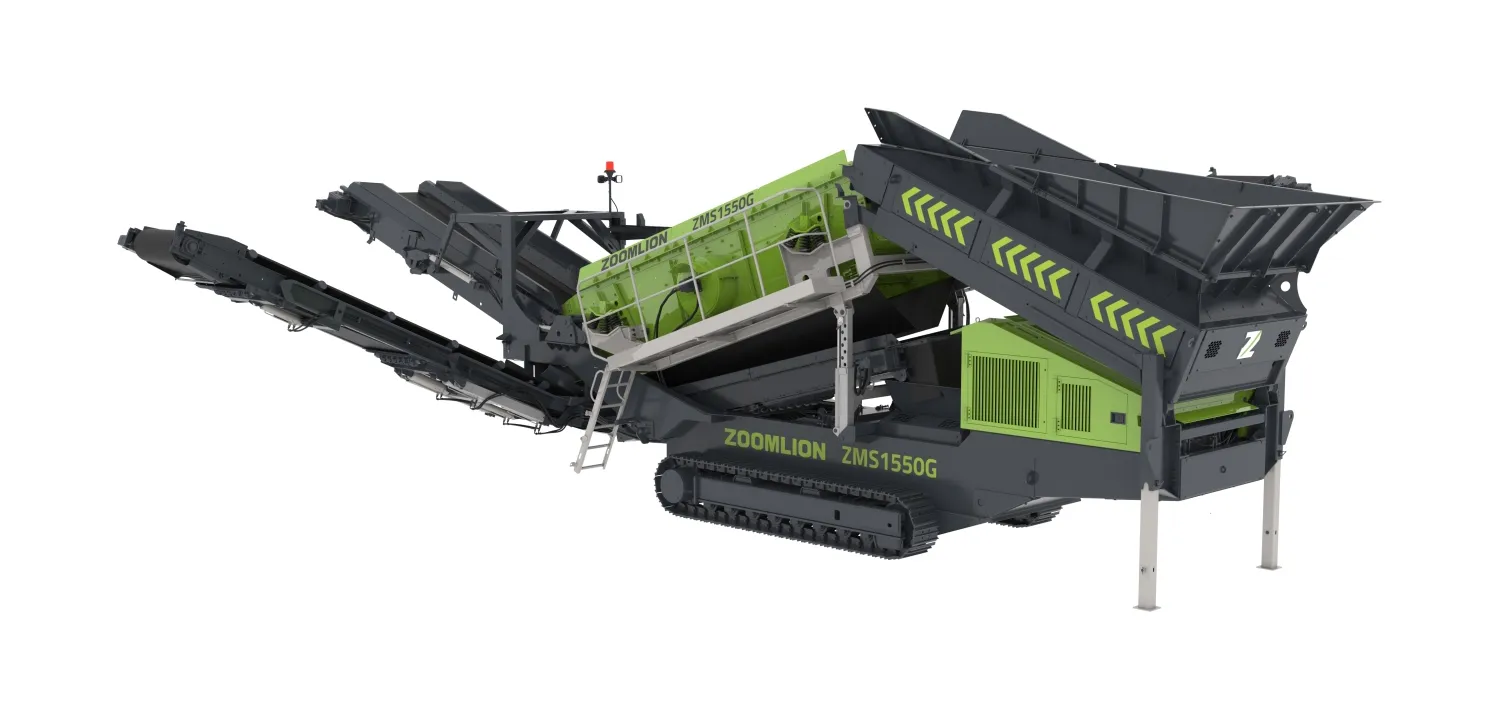

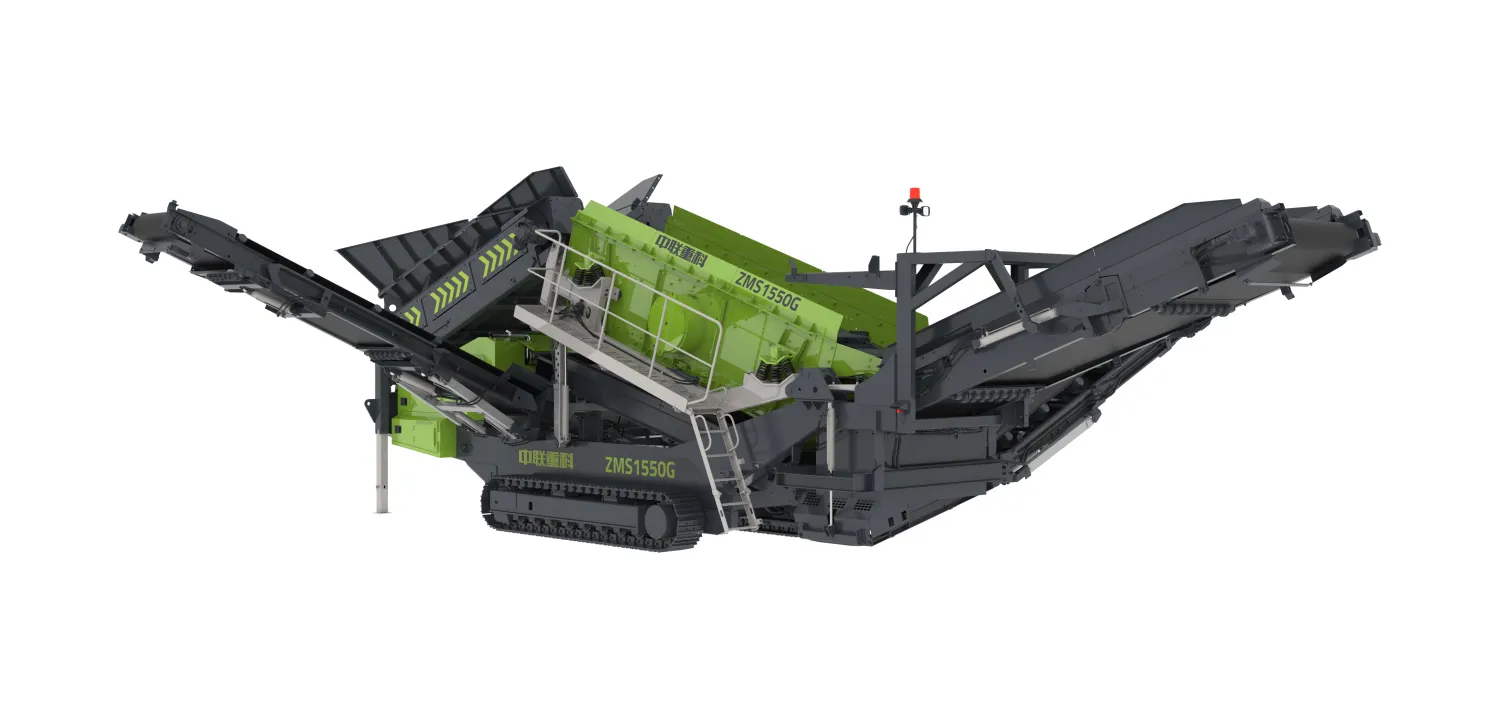

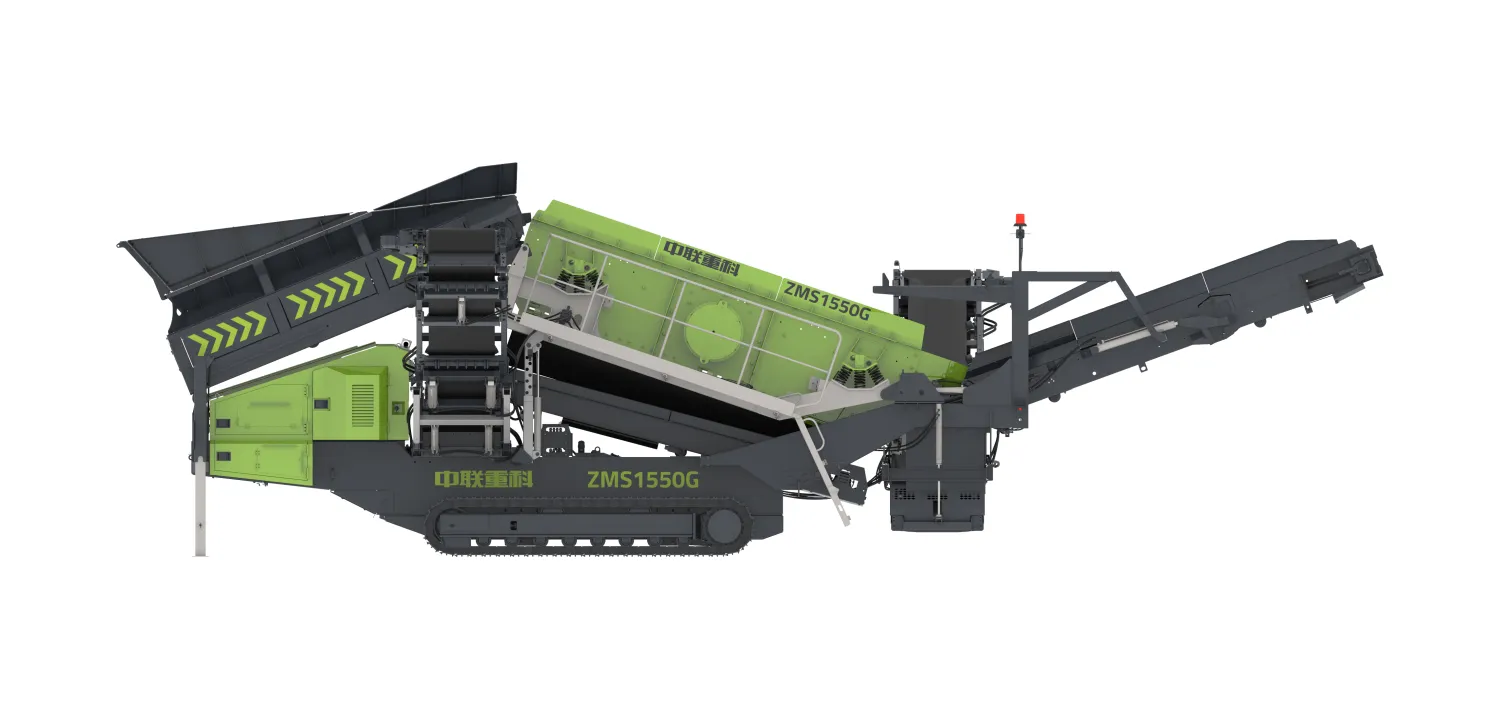

ZMS1550G Mobile Crusher

ZMS1550G by ZOOMLION is a heavy-duty, tracked mobile screening machinery with a processing capacity of 200–600 t/h and a maximum feed size of 600 mm. Equipped with a double-deck heavy-duty screen box and an 8 m³ feed hopper, the mining crusher is suitable for pre-screening and grading materials such as those from mines, quarries, sand and gravel aggregates, and construction demolition waste.

The unit has a fully hydraulic drive and a tracked undercarriage so it can move to different worksites on its own without the need for an external power source or a tow vehicle. It is ideal for screening operations that require frequent relocation or where on-site power supply is limited.

  • Capacity: 200–600 t/h
  • Maximum Feed Size: 600 mm
Request A Quote
Applications
  • Quarries and open-pit mines
    Raw material pre-screening, de-silting, and grading of materials with different particle sizes
  • Sand and Aggregate Production
    Used as mobile screening equipment or as a pre-screening unit in production lines
  • Construction Demolition Waste Processing
    Screening of demolition materials such as concrete and masonry
  • Tunnel and Underground Engineering
    Grading of excavated materials such as tunnel spoil
  • Coal and Topsoil Screening
    Screening and grading of materials of different particle sizes
Advantages
  • The double-layer heavy-duty screen box is bolted together using high-strength steel plates, and the screen surface inclination can be hydraulically and continuously adjusted within a range of 12° to 19°.
  • By hydraulically lifting the rear of the screen box, bar screens, needle screens, or mesh screens can be replaced to accommodate different raw materials and screening specifications, effectively handling both preliminary screening for mud removal and finished product grading.
  • Equipped with a fully hydraulic drive system and a reinforced, extended-wheelbase crawler chassis, the unit can move independently into mine-pit work areas such as quarries and construction waste processing sites.
  • The feed hopper and discharge conveyor can be hydraulically folded and transported with the entire machine, eliminating the need for separate disassembly and reducing setup and teardown work during site transfers.
Technical Specifications
General Capacity (t/h) 200–600
Operating weight (t) 35
Transport dimensions (L×W×H) (mm) 15185 × 3290 × 3900
Installed power (kW) 129
Screening Unit Max. feed size (mm) 600
Top deck dimensions (W×L) (mm) 1550 × 4880
Bottom deck dimensions (W×L) (mm) 1550 × 4450
Number of decks 2
Engine Rated engine power (kW) 129
Displacement (L) 4.8
Feed System Feed height (mm) 4140
Hopper capacity (m³) 8
Main Discharge Conveyor Discharge height (mm) 3840
Belt width (mm) 1200
Top Deck Discharge Conveyor Discharge height (mm) 3510
Belt width (mm) 800
Middle Deck Discharge Conveyor Discharge height (mm) 4010
Belt width (mm) 800

Note: The feed hopper and discharge conveyor can be folded for transport with the machine, without requiring separate disassembly.
Actual screening capacity depends on the composition of the feed material, screening size, material moisture content and final product requirements.

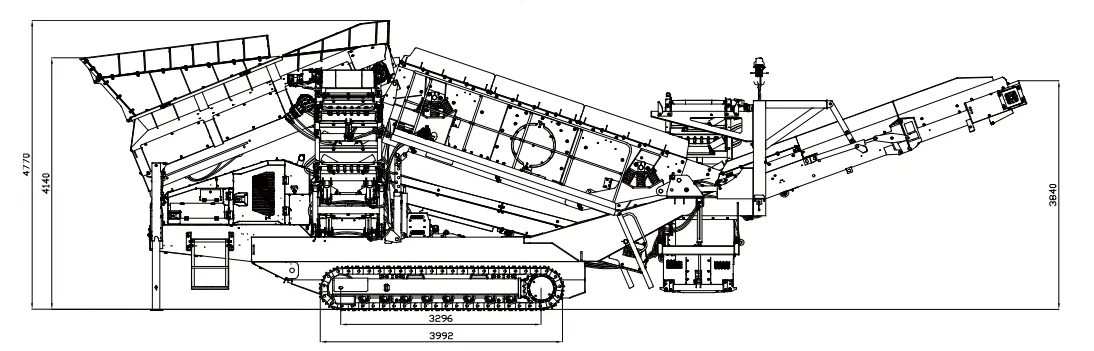

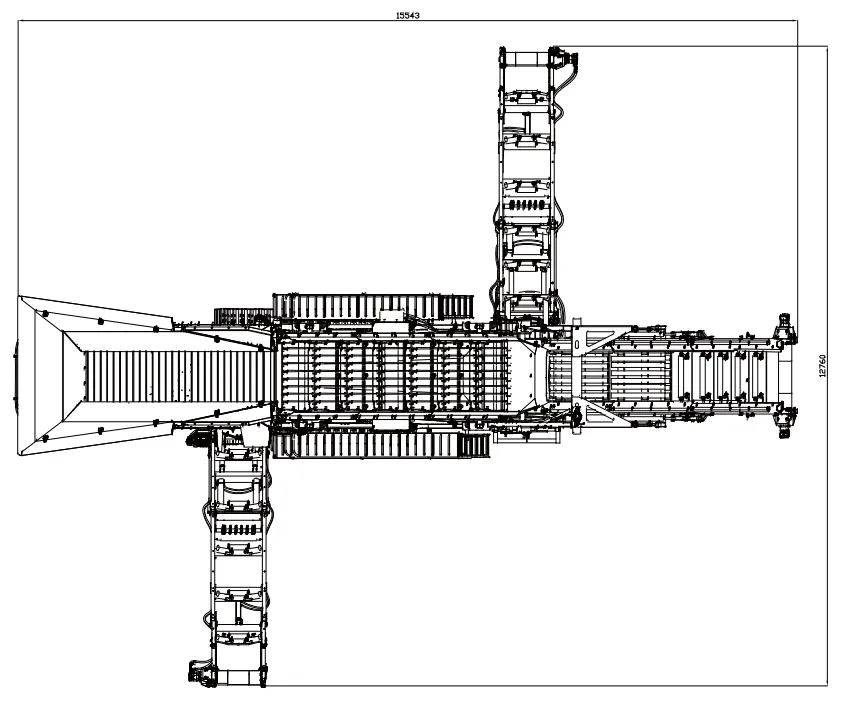

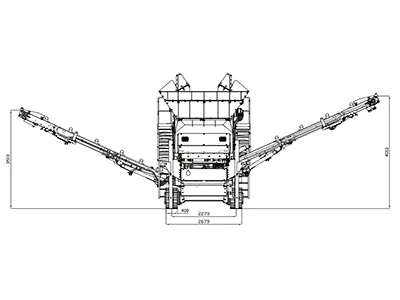

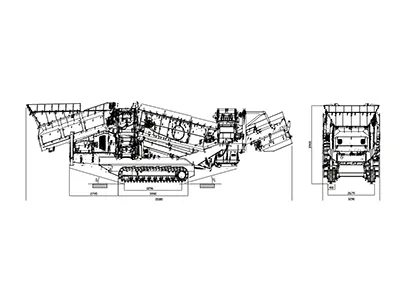

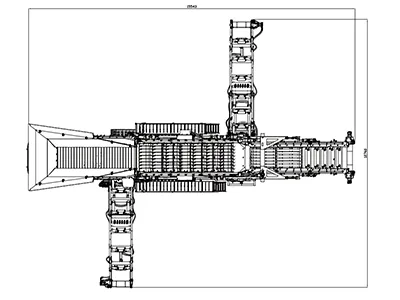

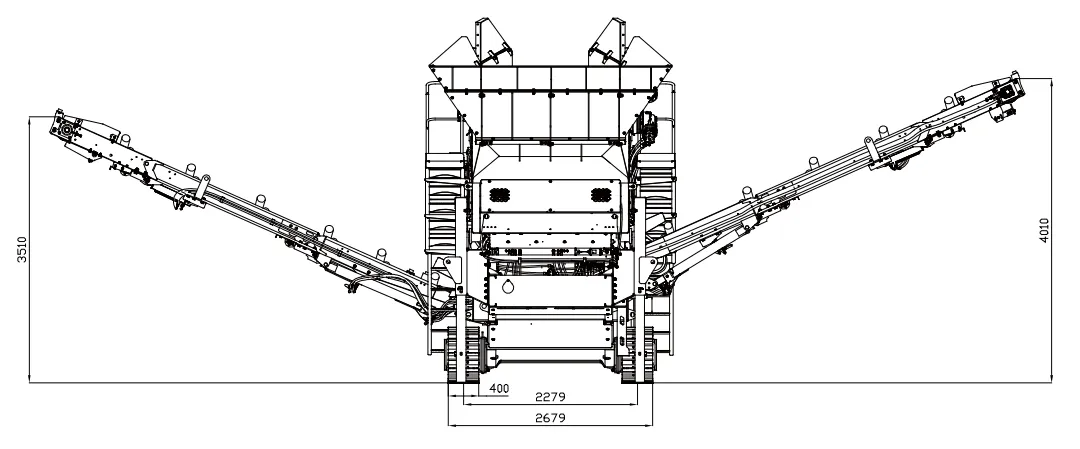

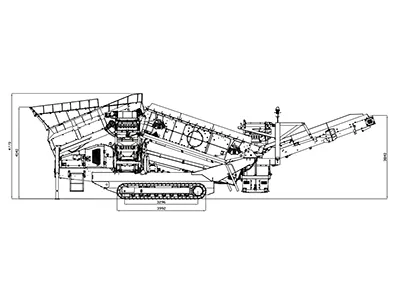

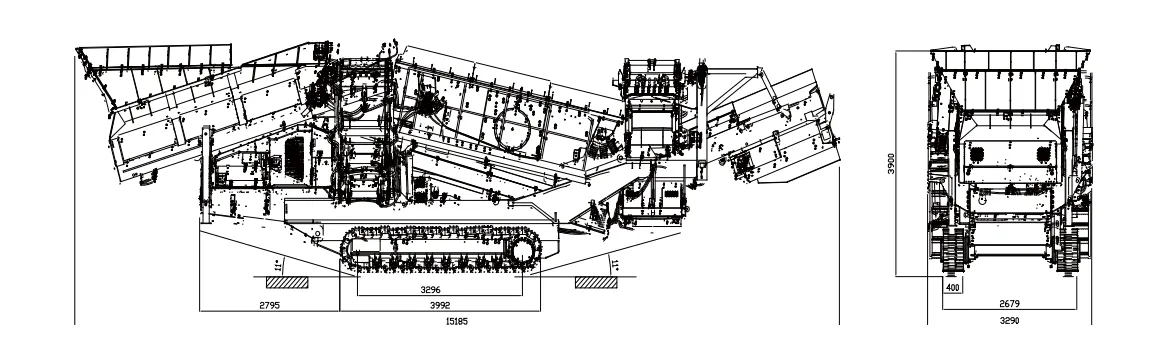

Dimensions
  • ZMS1550G Mobile Crushers
  • ZMS1550G Mobile Crushers
  • ZMS1550G Mobile Crushers
  • ZMS1550G Mobile Crushers
