ZMI1213G Mobile Crushers

ZMI1213G Mobile Crusher

ZOOMLION mobile crushing and screening plants process rock, ore and aggregates directly at the mining jobsite. From primary crushing to screening and material sizing, these mobile mining machines handle multiple stages of aggregate production without the need to transport materials between separate processing locations.
  • Emissions Standard: Euro V
  • Maximum Feed Size: 600 mm
  • Feed Opening: 900 × 1,320 mm
  • Drive Power: 305 kW
Request A Quote
Advantages
  • Energy-Efficient Crushing
    A variable-frequency drive (VFD) automatically adjusts the vibrating feeder speed to match operating conditions. It kees the impact crusher working at optimal efficiency for consistent material processing and better aggregate quality.
  • Heavy-Duty C-Type Blow Bars
    The impact crusher features heavy-duty C-type blow bars that achieve a high crushing ratio and improved aggregate particle shape. Their extended service life also reduces replacement frequency and operating costs of the mining application.

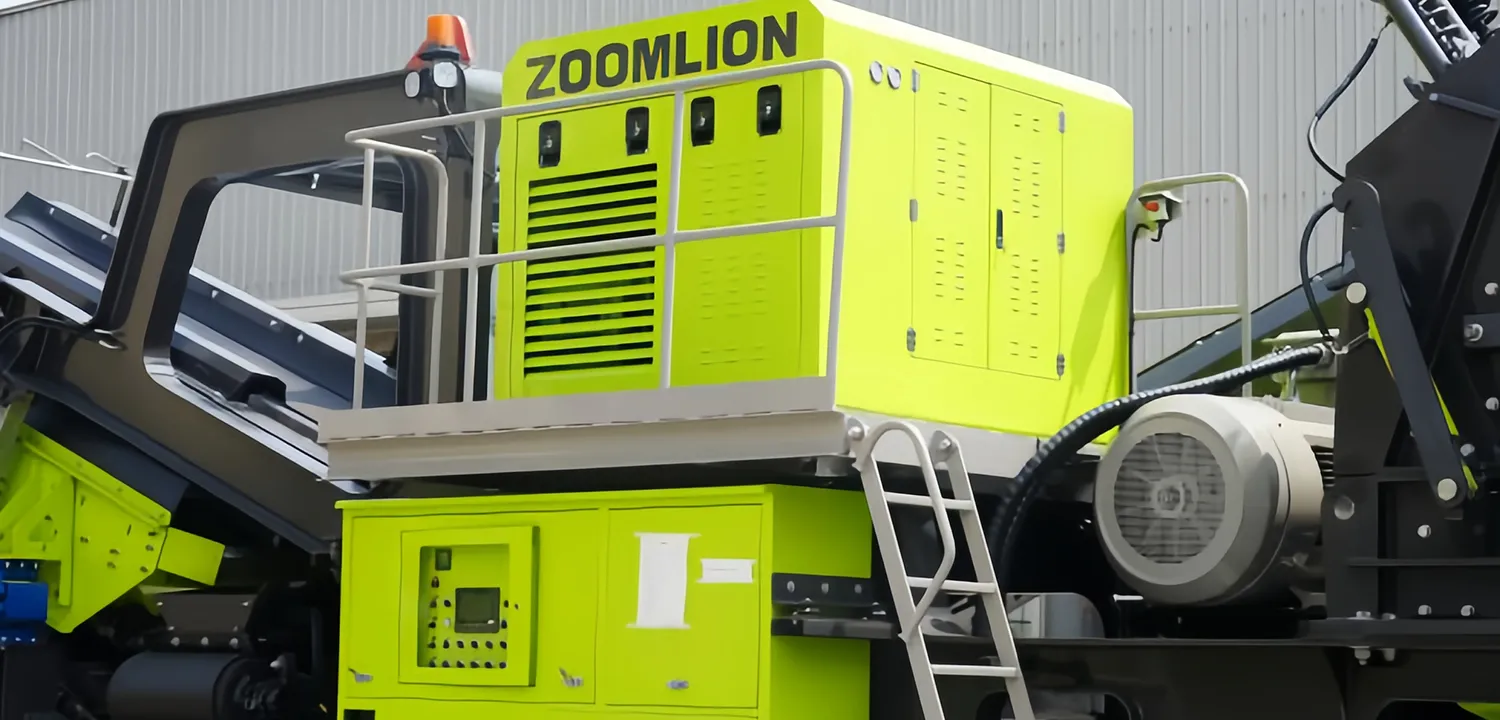

  • Lower Emissions, Easier Maintenance
    The engine meets China Stage IV (National IV) emission requirements and features a modular design that eliminates the need for urea injection, simplifying routine maintenance.
  • Reliable Crawler Mobility
    A ZOOMLION-manufactured crawler chassis and a travel drive unit from an established international supplier provide stable movement and dependable performance across mining and quarrying jobsites.
Technical Specifications
General Capacity (t/h) 150–350
Operating weight (t) 51
Operating dimensions (L×W×H) (mm) 18150×4170×4922
Transport dimensions (L×W×H) (mm) 18150×3700×3950
Installed power (kW) 302
Crusher Model ZCI1213
Rotor dimensions (mm) Ø1200 × 1300
Max. feed size (mm) 600
Crusher power (kW) 250
Engine Rated engine power (kW) 103
Displacement (L) 3.621
Feed System Feed height (mm) 3900
Hopper capacity (m³) 6.2
Final Screen Screen deck dimensions (L×W) (mm) 3300×1600
Main Conveyor Belt width (mm) 1000
Discharge height (mm) 3700
Main Discharge Conveyor Belt width (mm) 1000
Discharge height (mm) 3200
Transfer Conveyor Belt width (mm) 650
Return Conveyor Belt width (mm) 550
Fines Conveyor
(Optional) 		Belt width (mm) 500
Discharge height (mm) 2300
Crawler Chassis Travel speed (km/h) 0.6 (climbing)/1.2

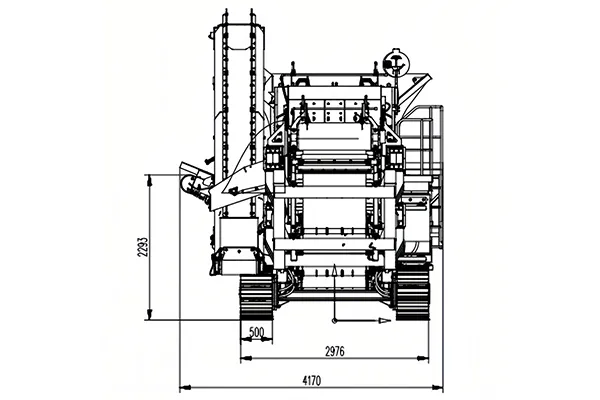

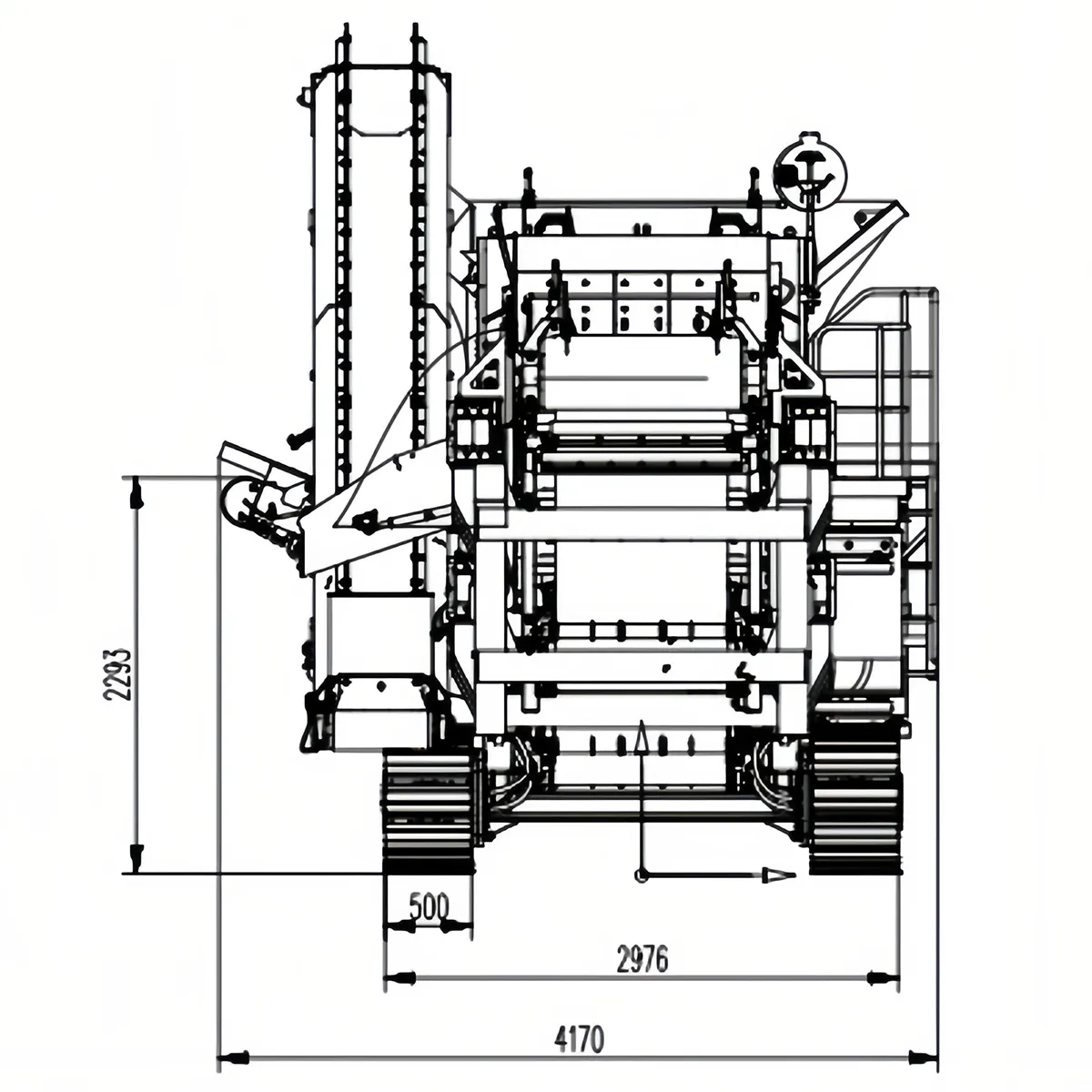

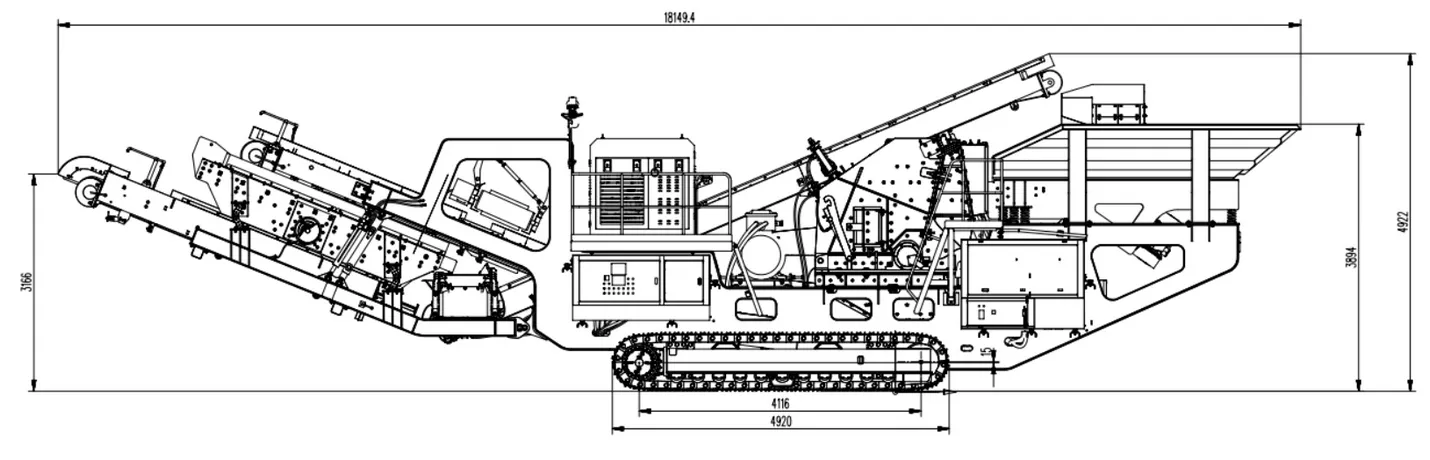

Overall Dimensions (mm)
Transport dimensions (L×W×H) 18150×3700×3950
Operating dimensions (L×W×H) 18150×4170×4922
Feed height 3900
Discharge height 3200
Fines discharge height 2300
Overall track length 4920
Track shoe width 500
Track gauge 2476
