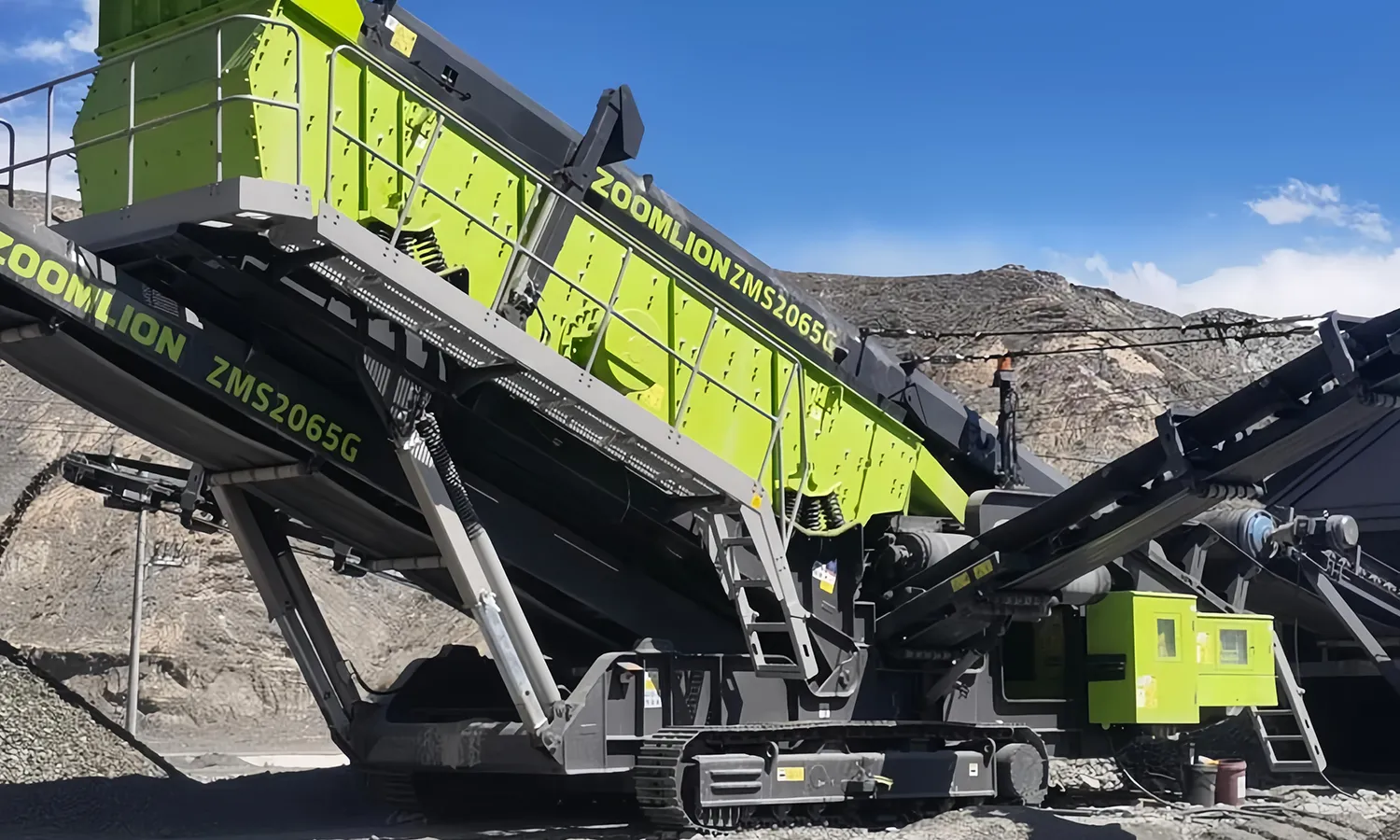

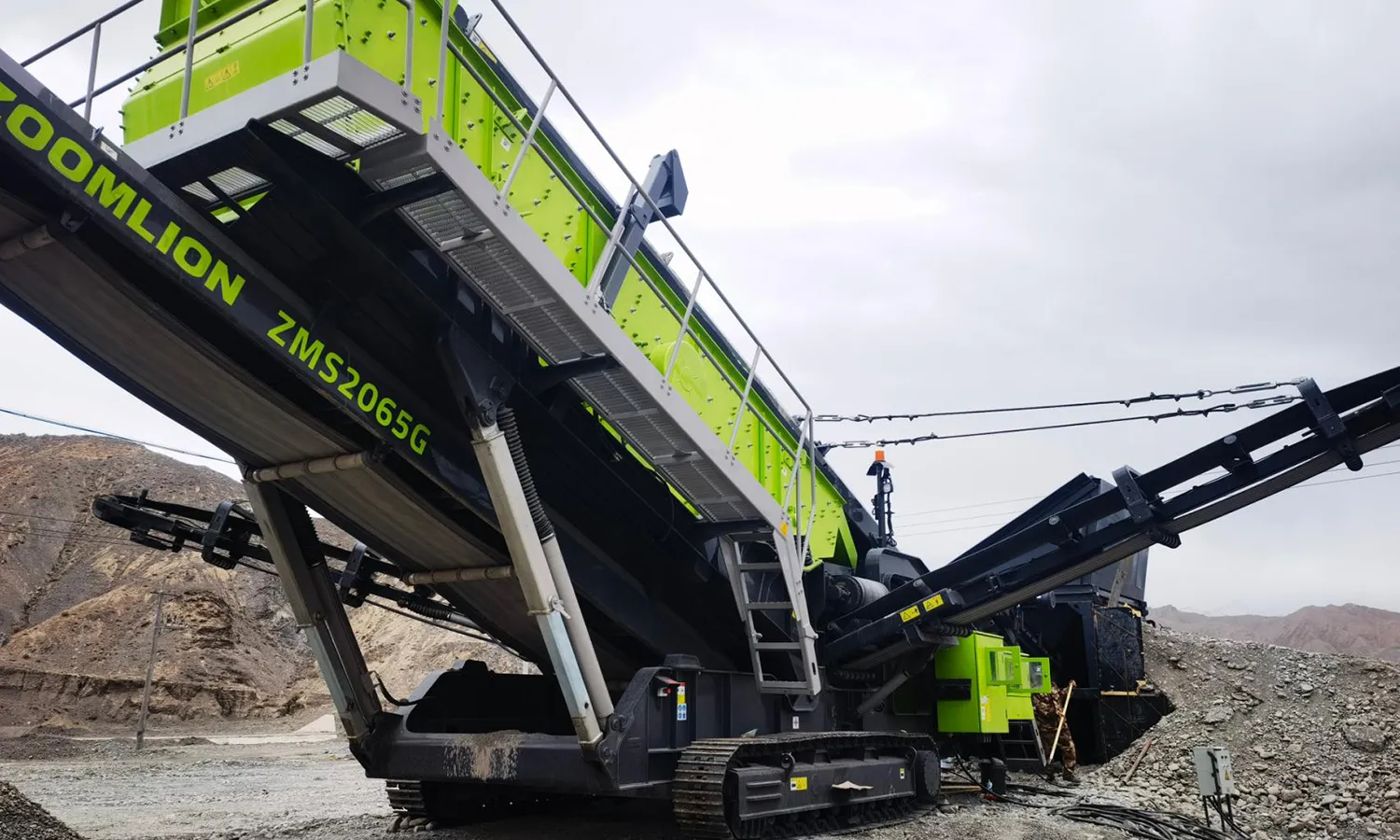

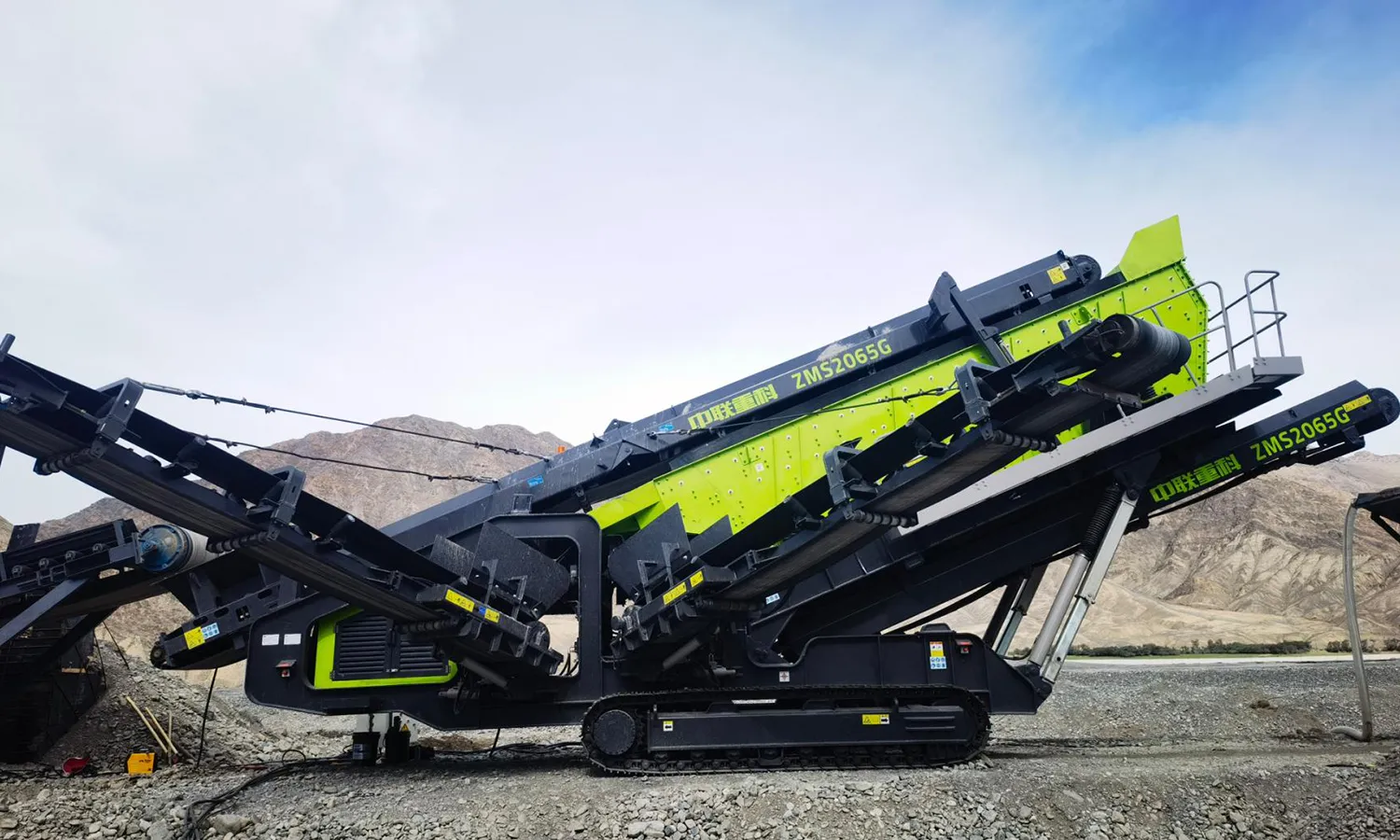

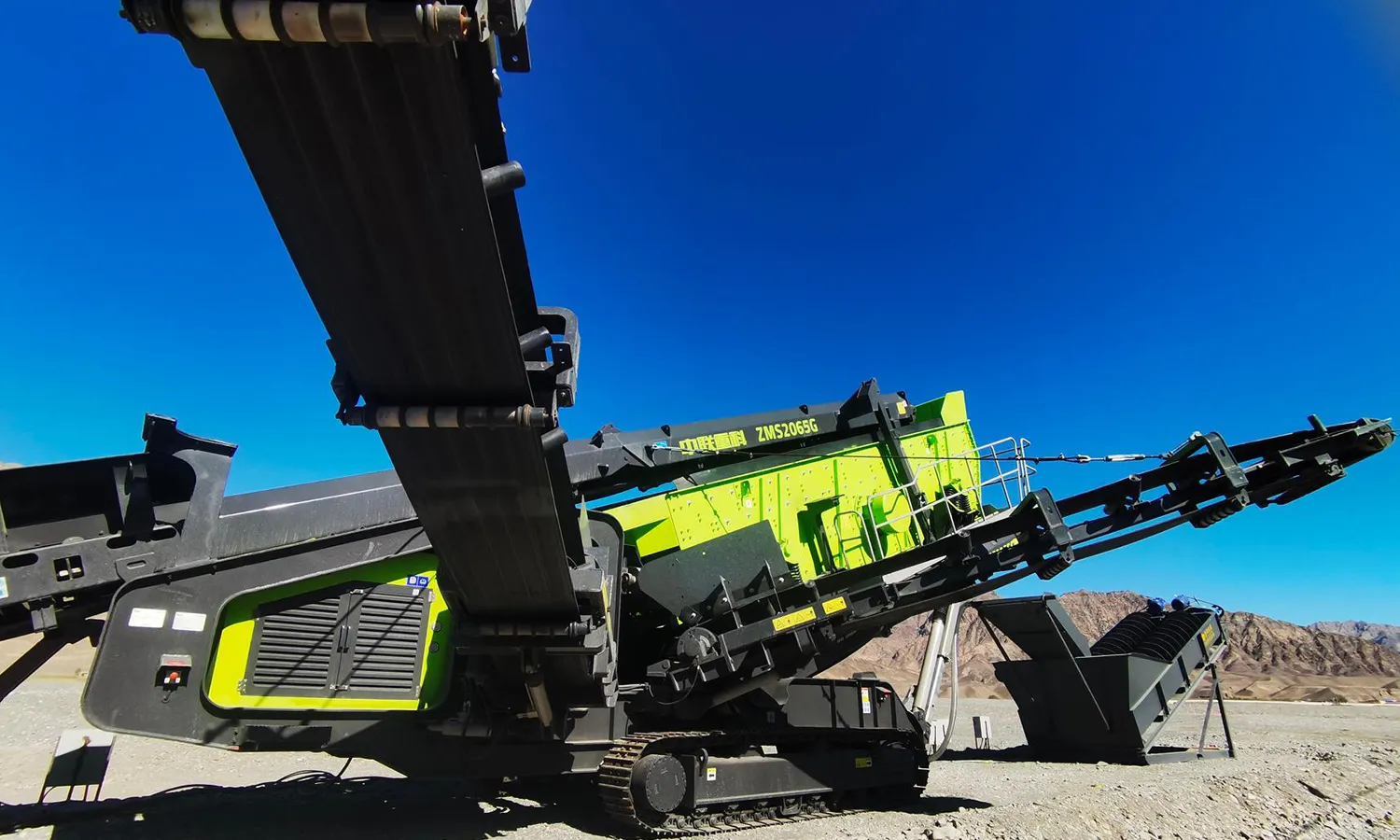

ZMS2065G Mobile Crusher

ZOOMLION ZMS2065G mobile screening plant handles multi-stage material screening and aggregate grading in a single pass. Equipped with a 2,000 × 6,500 mm triple-deck screen, it can separate materials into different particle sizes, with a processing capacity of 150–350 t/h. This mobile crushing equipment is suitable for sand and gravel production, quarrying, mining material processing and construction waste recycling.

Mounted on a crawler undercarriage, the mining mobile crusher can be relocated between work areas as screening requirements change.Its three finished product discharge conveyors fold for transport with the heavy machine thereby minimising the amount of disassembly required when moving the unit to site. It's a flexible solution for mobile crushing and screening operations from fine aggregate classification through to screening of the excavated materials.

  • Capacity: 150–350 t/h
  • Maximum Feed Size: 100 mm
Request A Quote
Applications
  • Sand and Gravel Aggregate Production
    Intermediate and fine screening of sand, gravel, limestone and crushed stone to produce aggregates of different particle sizes.
  • Construction and Demolition Waste Recycling
    Multi-stage screening and material classification during the recovery and processing of construction and demolition waste.
  • Mining Material Screening
    Particle size separation and grading of coal, topsoil and other materials from mining operations.
  • Tunnel and Construction Projects
    Screening and grading of tunnel spoil, excavated soil and rock from tunneling and construction activities.
Advantages
  • Triple-Deck Screening for Multiple Product Sizes
    The 2000 x 6500mm triple deck vibrating screen takes in feed up to 100mm with a throughput of 150-350t/h. It has three screening decks which will produce a number of different size fractions in a single pass and is therefore ideal for aggregate production and multi grade screening.
  • Customizable Screen Mesh
    Standard woven wire screens can be customized with different mesh openings to meet specific aggregate grading requirements. The first and second finished-product discharge conveyors are positioned at steep angles that allows different material grades to be conveyed and stockpiled separately.
  • Large Screen Deck with Easy Maintenance Access
    The heavy-duty screen structure uses high-strength steel plates joined with ring-groove rivets. Hydraulic cylinders can level the screen box and raise the upper feeder and create more space for screen mesh inspection, replacement and routine maintenance.
  • Crawler Mobility and Convenient Transport
    A reinforced crawler undercarriage with an extended wheelbase provides the necessary capability to move across mines, quarries and construction sites. All three of the finished product conveyors fold for transport without any separate disassembly and the hydraulic folding feed conveyor in particular reduces the amount of setup work required when relocating.
  • Reduced Impact on the Feed Conveyor
    A 1,000 mm wide feeding conveyor is fitted with a damping frame to take the impact of the material on loading and thus reduce the impact on the belt.
  • Remote Operation and Equipment Monitoring
    An integrated control panel and wireless remote allow operators to start and stop the mobile screening plant and control crawler movement remotely. An IoT module also supports equipment location tracking, operating condition monitoring and operational analysis.
Technical Specifications
General Capacity (t/h) 150–350
Operating weight (t) 35
Transport dimensions (L×W×H) (mm) 14322×3723×4116
Operating dimensions (L×W×H) (mm) 14158×12098 × 6015
Gradeability (°) 9
Installed power (kW) 62.5
Screening Unit Max. feed size (mm) 100
Screen dimensions (W×L) (mm) 2000×6500
Number of decks 3
Engine Rated engine power (kW) 103
Displacement (L) 3.6
Hopper Hopper capacity (m³) /
Hopper belt width (mm) 1000
Feed Conveyor Feed height (mm) 2100
Belt width (mm) 1000
Main Discharge Conveyor Discharge height (mm) 4000
Belt width (mm) 1000
Top Deck Discharge Conveyor Discharge height (mm) 3420
Belt width (mm) 650
Middle Deck Discharge Conveyor Discharge height (mm) 3290
Belt width (mm) 650
Bottom Deck Discharge Conveyor Discharge height (mm) 3680
Belt width (mm) 650

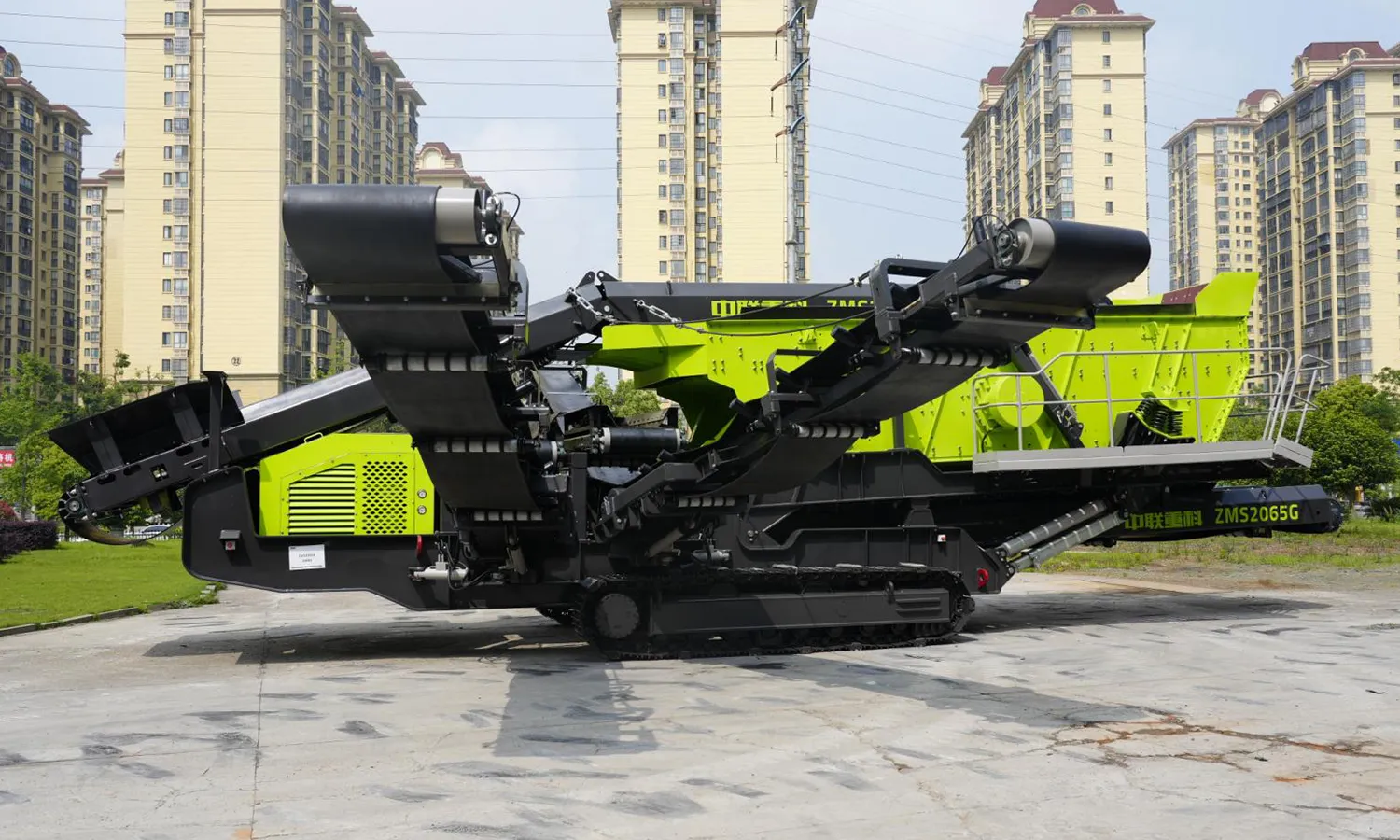

All three finished-product discharge conveyors fold for transport with the crusher, without requiring separate disassembly.
Actual screening capacity depends on feed material composition, screening size, moisture content and final product requirements.
G Series models operate on electric power supplied either through an external power grid connection or an external diesel generator set.

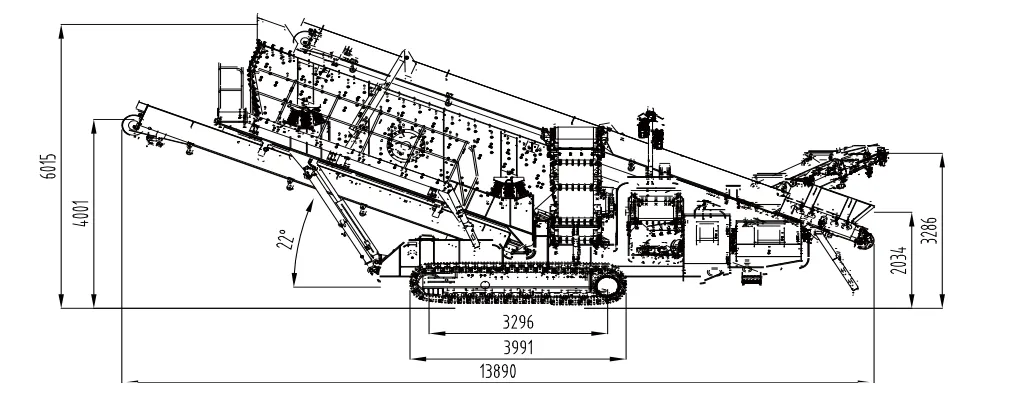

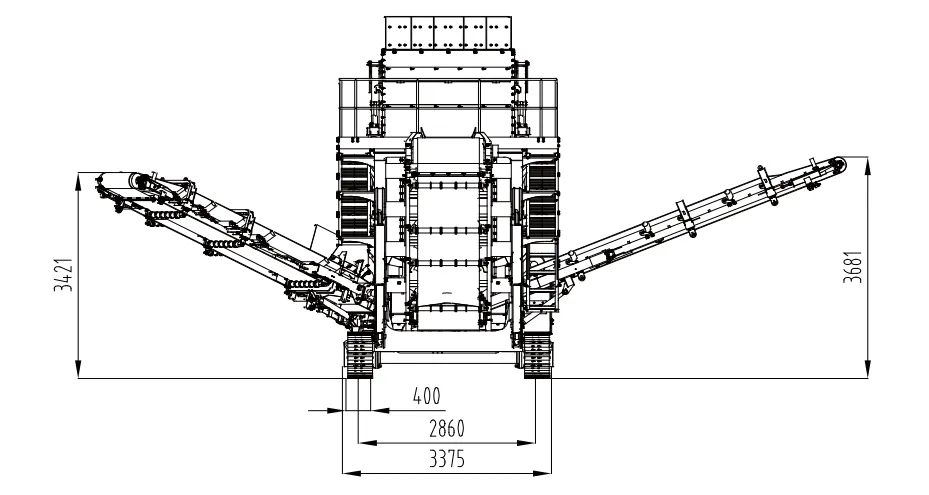

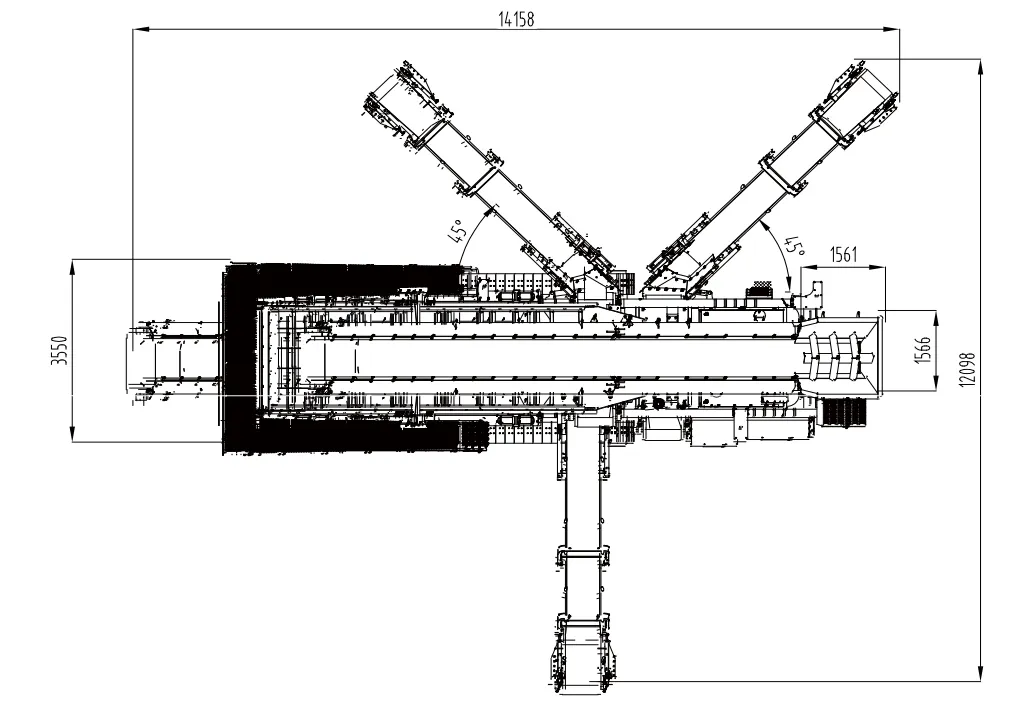

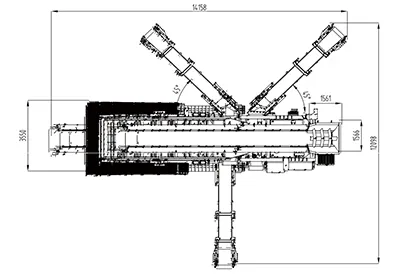

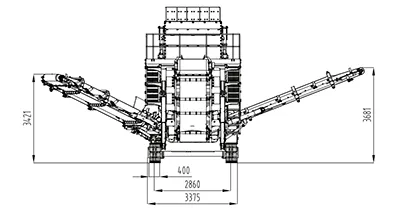

Dimensions
  • ZMS2065G Mobile Crushers
  • ZMS2065G Mobile Crushers
  • ZMS2065G Mobile Crushers

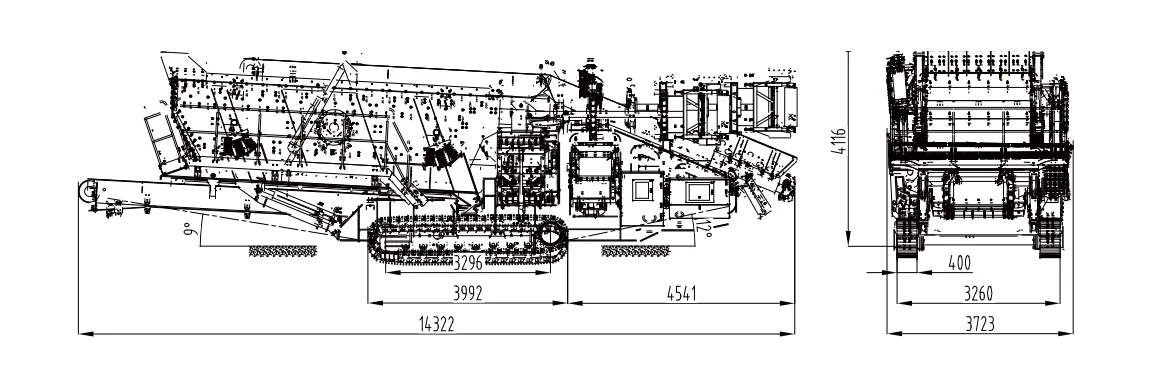

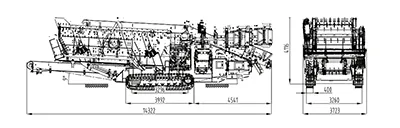

Shipping Dimensions
  • ZMS2065G Mobile Crushers
Related Mining Machinery
View All Mining Machinery
Why Choose ZOOMLION?
Watch Company Video
Smart Factories
Intelligent Manufacturing, Consistent Quality

ZOOMLION Smart Industrial City integrates automated production lines, industrial robots, and digital manufacturing systems.

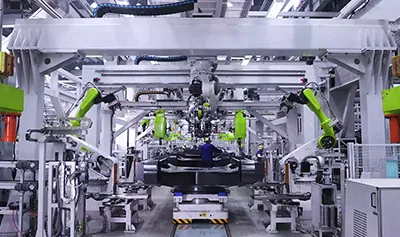

Automated excavator production line at ZOOMLION Smart City
