ZOOMLION
ZMJ116A Mobile Crushers

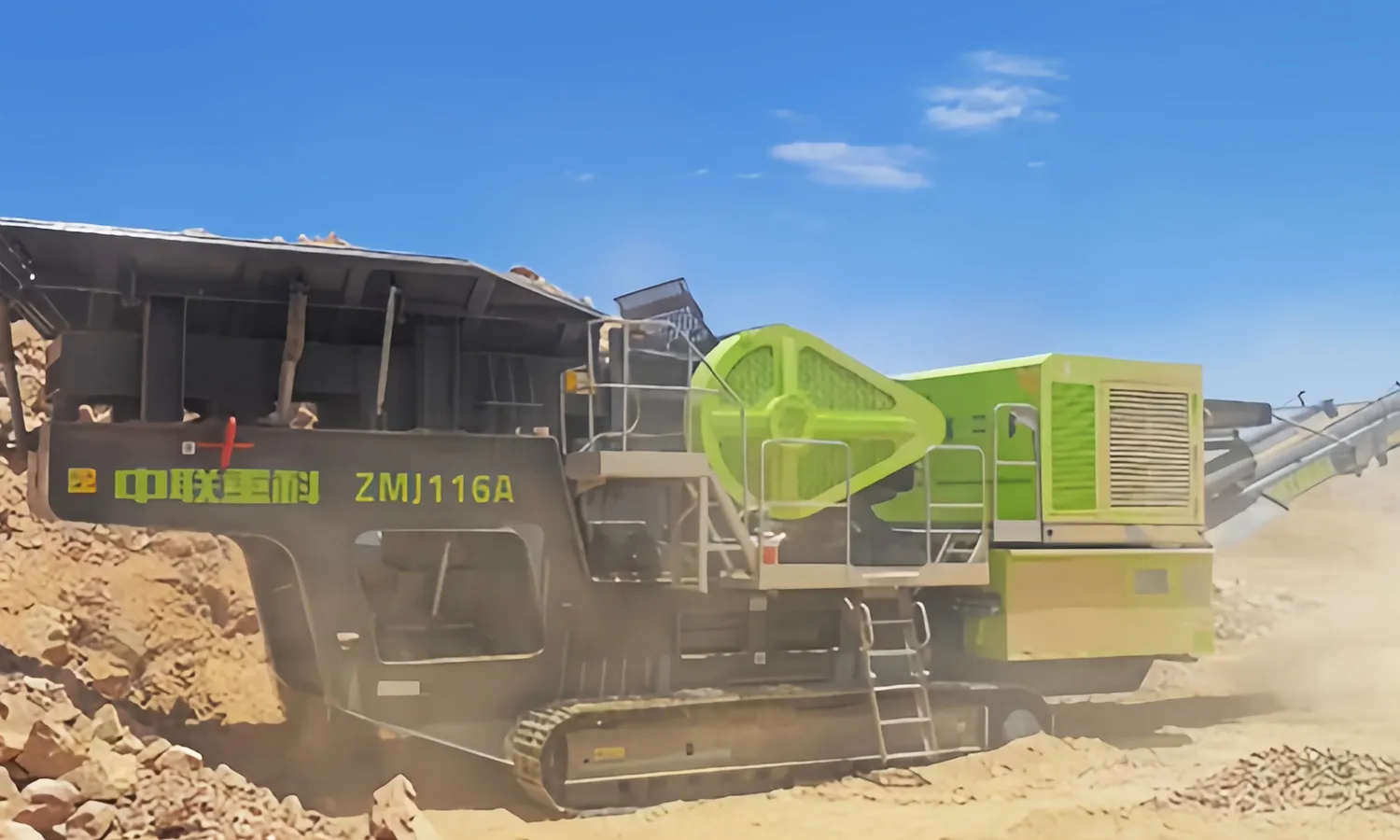

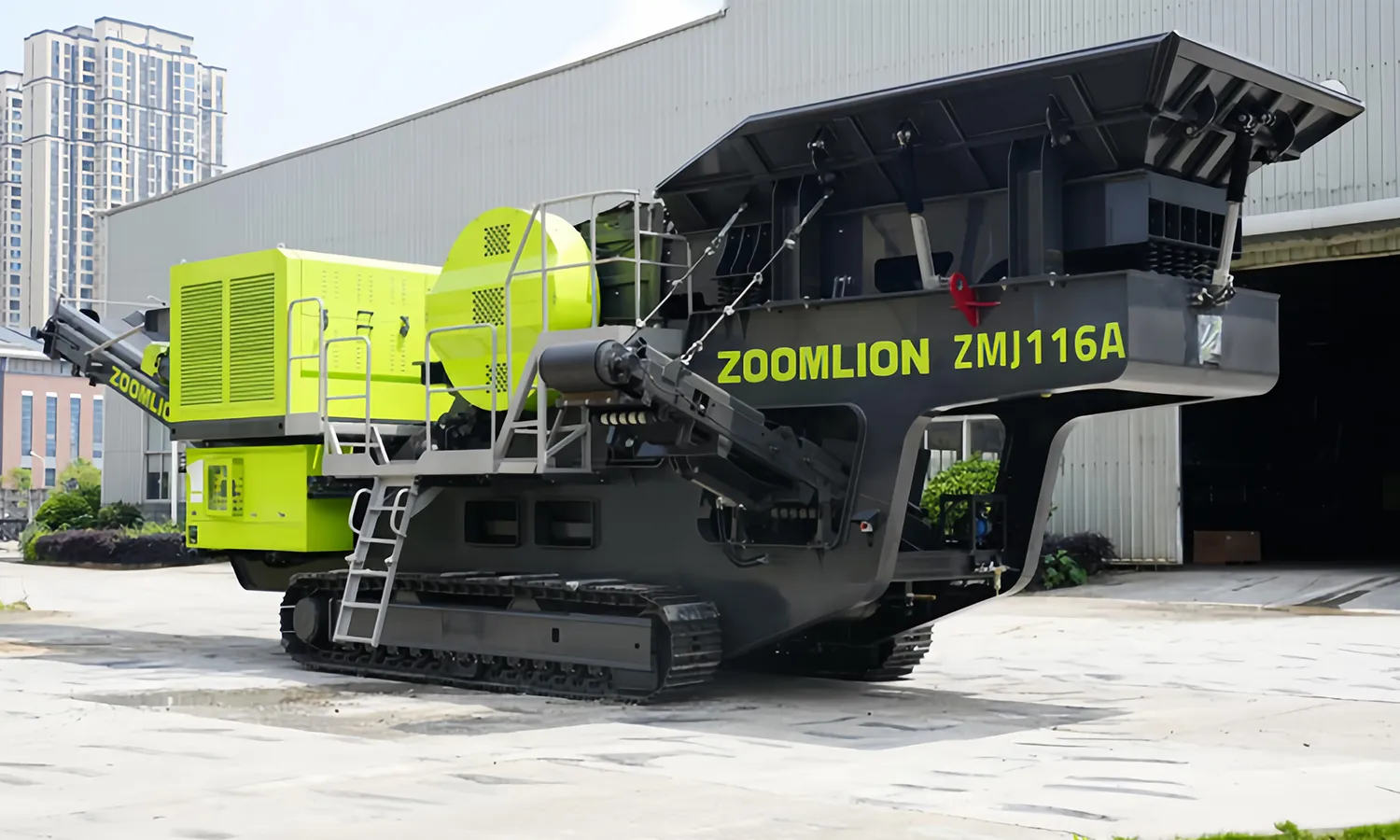

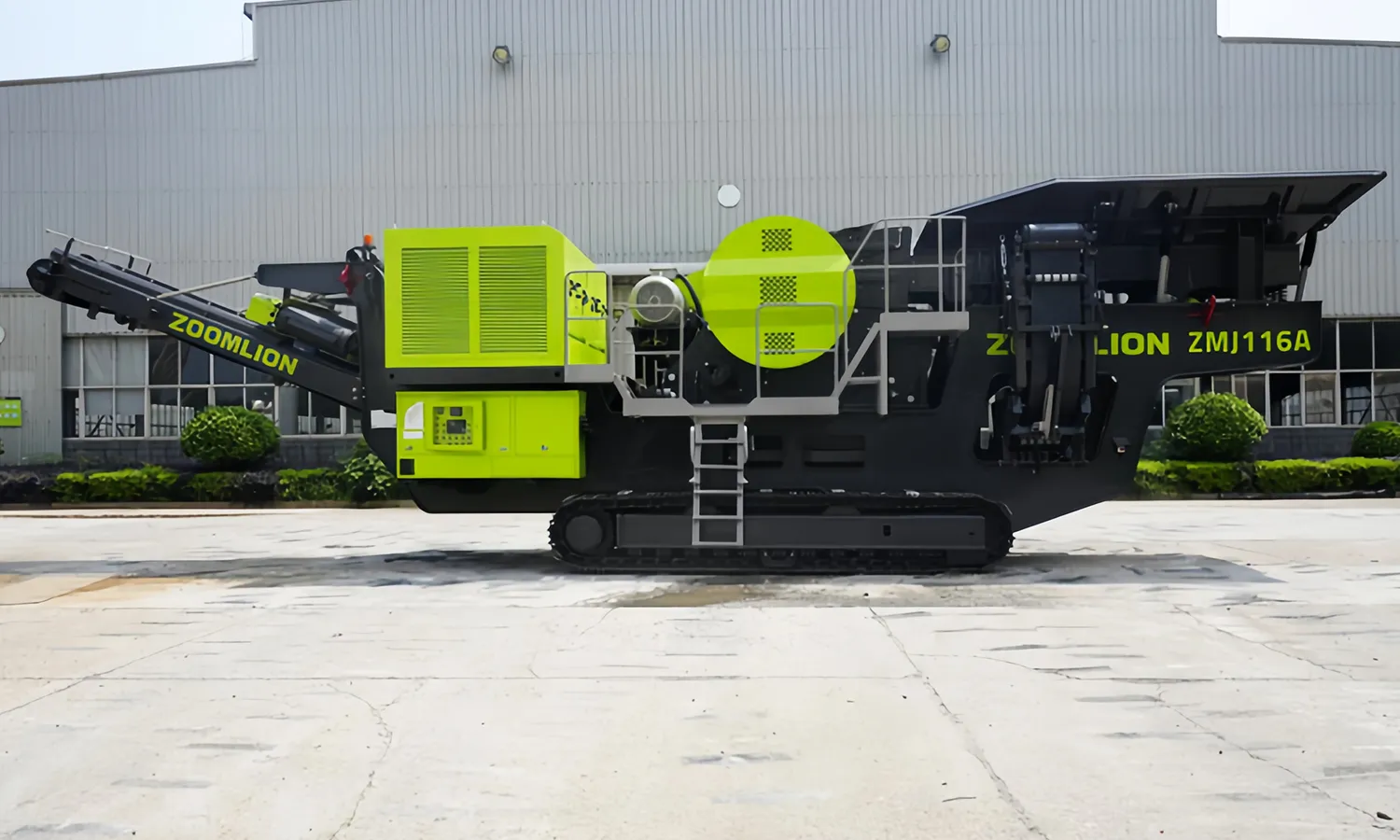

ZMJ116A Mobile Crusher

ZOOMLION ZMJ116A mobile jaw crusher is for crushing natural rock and construction waste with a processing capacity of 165 to 400t/h. It's a crawler mounted crushing plant which incorporates feeding, jaw crushing and material conveying into a single mobile unit and is therefore ideal for quarrying, aggregate production and construction waste recycling.

It has a tracked undercarriage and foldable conveyors which makes it far easier to move between mine sites. The operator can choose either an external diesel generator set or grid power for the mining heavy machinery, that provides a great deal of flexibility in different working environments.

  • Processing Capacity: 165–400 t/h
  • Maximum Feed Size: 600 mm
Request A Quote
Applications
  • Natural Rock and Mineral Processing
    Suitable for crushing a wide range of natural rock materials, including slate, limestone, dolomite, sandstone, hard sandstone, river pebbles, granite, basalt, diabase, gneiss, quartzite and porphyry.
  • Construction Waste and Recycled Material Processing
    Processes reinforced and plain concrete, construction and demolition waste, bricks, and ceramics. It crushes these materials and recovers them for recycling.
Advantages
  • High-Capacity Rock and Concrete Crushing
    A 132 kW jaw crusher with a 760 × 1,150 mm feed opening handles materials up to 600 mm, with a processing capacity of 165–400 t/h. Suitable for crushing limestone, granite, basalt, river pebbles, concrete and construction debris.
  • Steady Feeding for Continuous Crushing

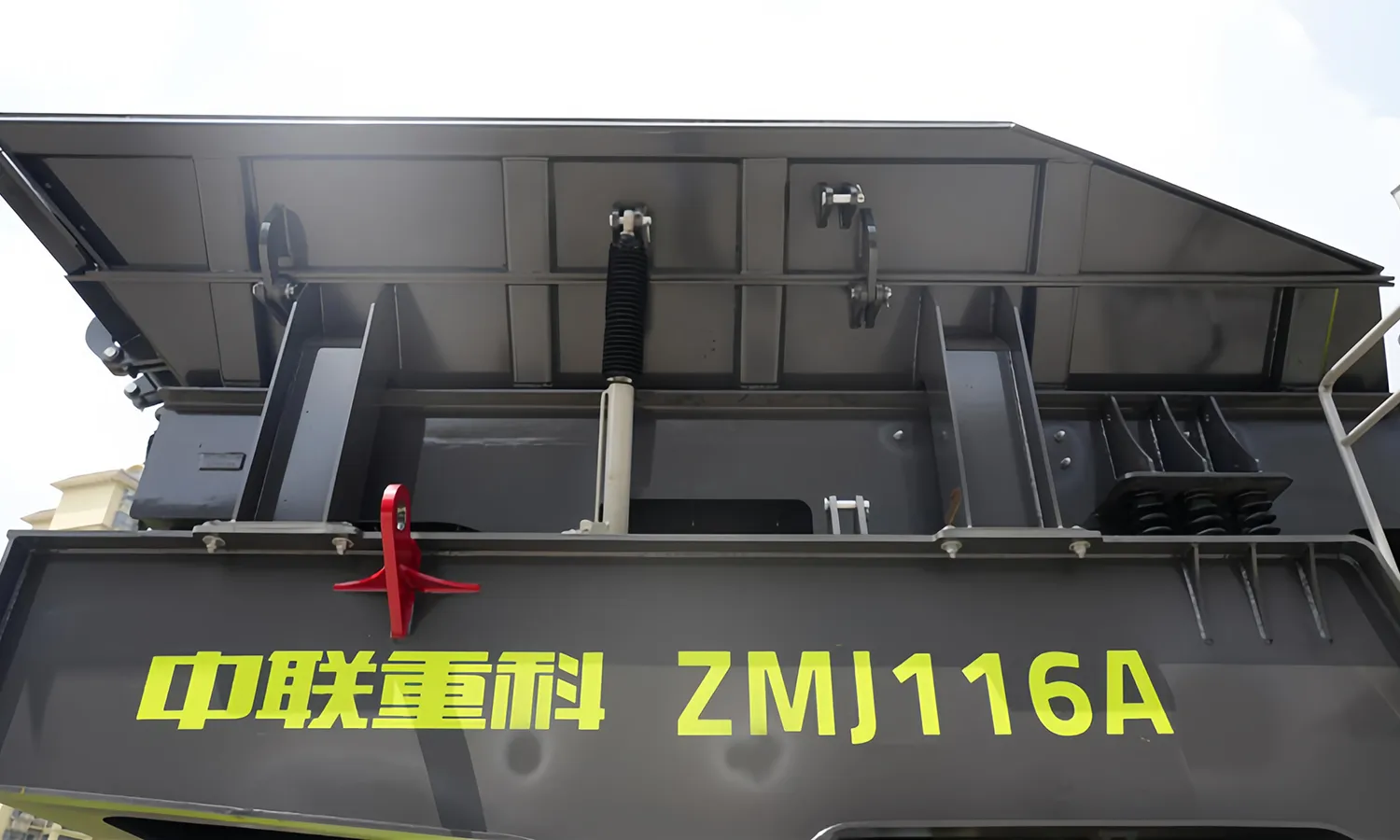

    A 5 m³ feed hopper maintains a consistent material supply to the crushing chamber. The optimized jaw crusher chamber supports smooth material flow and reduces the risk of blockages interrupting production.
  • Crawler Mobility and Faster Relocation
    The hydraulically driven crawler chassis offers high- and low-speed travel modes for movement between work areas. Foldable conveyors and a folding feed hopper reduce disassembly work during transport and make site transfers easier.
  • Centralized Controls and Real-Time Monitoring
    Wireless remote control, one-touch start/stop, fault diagnostics and operating status monitoring simplify daily operation. A touchscreen provides access to the mining crushing equipment controls and operating parameters, while the electrical system includes cooling, overvoltage, undervoltage and lightning protection.
Technical Specifications
General Capacity (t/h) 165–400
Operating weight (t) 54
Transport dimensions (L×W×H) (mm) 15152×3291×3898
Operating dimensions (L×W×H) (mm) 15144×3291×4184
Installed power (kW) 165
Engine Rated engine power (kW) 270
Displacement (L) 10.34
Feed System Hopper capacity (m³) 5
Feed height (mm) 4184
Max. feed size (mm) 600
Crusher Crusher model ZCJ116
Feed opening (W×L) (mm) 760×1150
Crusher power (kW) 132
Main Discharge Conveyor Discharge height (mm) 3500
Belt width (mm) 1000

The folding feed hopper and optional side discharge conveyor can be folded for transport with the machine, without requiring separate disassembly.
Actual feeding capacity depends on feed material composition, feed size, pre-screening conditions and final product requirements.
The A Series uses an onboard diesel generator set as its primary power source, with the option to connect to an external power grid.

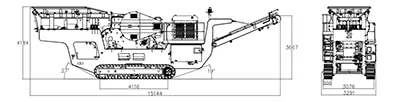

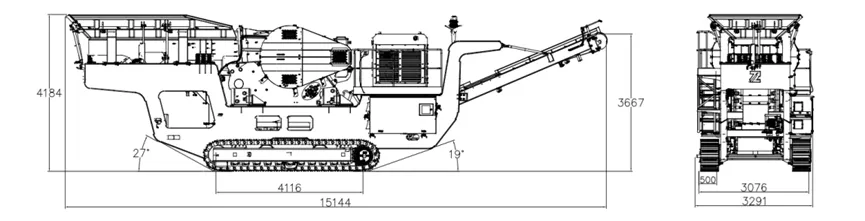

Dimensions
ZMJ116A Mobile Crushers
