ZT115A Mining Dump Truck

The ZOOMLION ZT115A (AT) is a heavy-duty off-highway dump truck built for material haulage in mining operations. It is powered by a Yuchai YC6K580-GT30 diesel engine that meets China Stage III emission standards (GB 20891-2014), paired with a Shuangte FC6A250 transmission.

For added structural strength, the haul truck is built with a reinforced, double-layer riveted frame, with four-layer reinforcement in selected areas for added structural strength. Full hydraulic steering offers vehicle manoeuvrability, and a U-shaped mining dump body handles bulk material transport and unloading. It uses a 6×4 drive configuration and offers a rated payload of 75 tonnes.

  • Drive Configuration: 6×4
  • Curb Weight: 35,000 kg
  • Rated Payload: 75,000 kg
Request A Quote
Technical Specifications
Model ZT115A (AT)
Drive configuration 6 × 4
Curb weight (kg) 35000
Rated payload (kg) 75000
Total axle load (t) 115
Overall dimensions (mm) 10200 × 4000 × 4080
Wheelbase (mm) 3950+1750
Min. turning radius (m) 12
Max. gradeability (%) 33
Min. ground clearance (mm) 385
Max. speed (km/h) 41
Emission standard GB20891-2014 Ⅲ
Axle load 35t+40t+40t
Tires 16.00R25
Hydraulic retarder Standard
Internal body dimensions (m) 7.02 × 3.68 × 1.75
Body capacity (m³) Struck 38
Heaped (SAE 2:1) 45

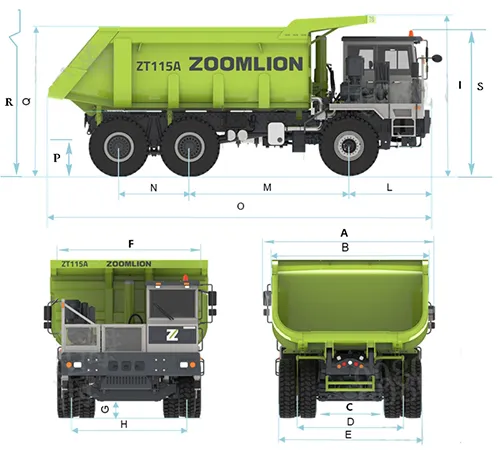

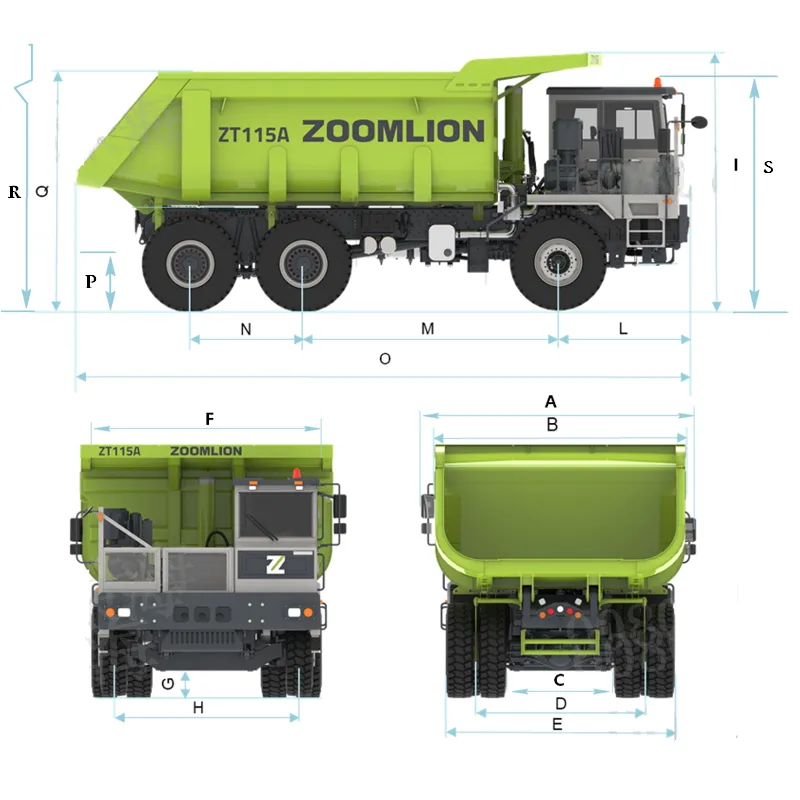

Overall Dimensions
ZT115A Mining Dump Trucks
A:4470 mm B:4000 mm C:1710 mm
D:2670 mm E:3640 mm F:3680 mm
G:385 mm H:2955 mm I:4080 mm
L:2170 mm M:3950 mm N:1750 mm
O:10200 mm P:770 mm Q:3740 mm
R:8270 mm S:3625 mm
