ZT125A Mining Dump Trucks

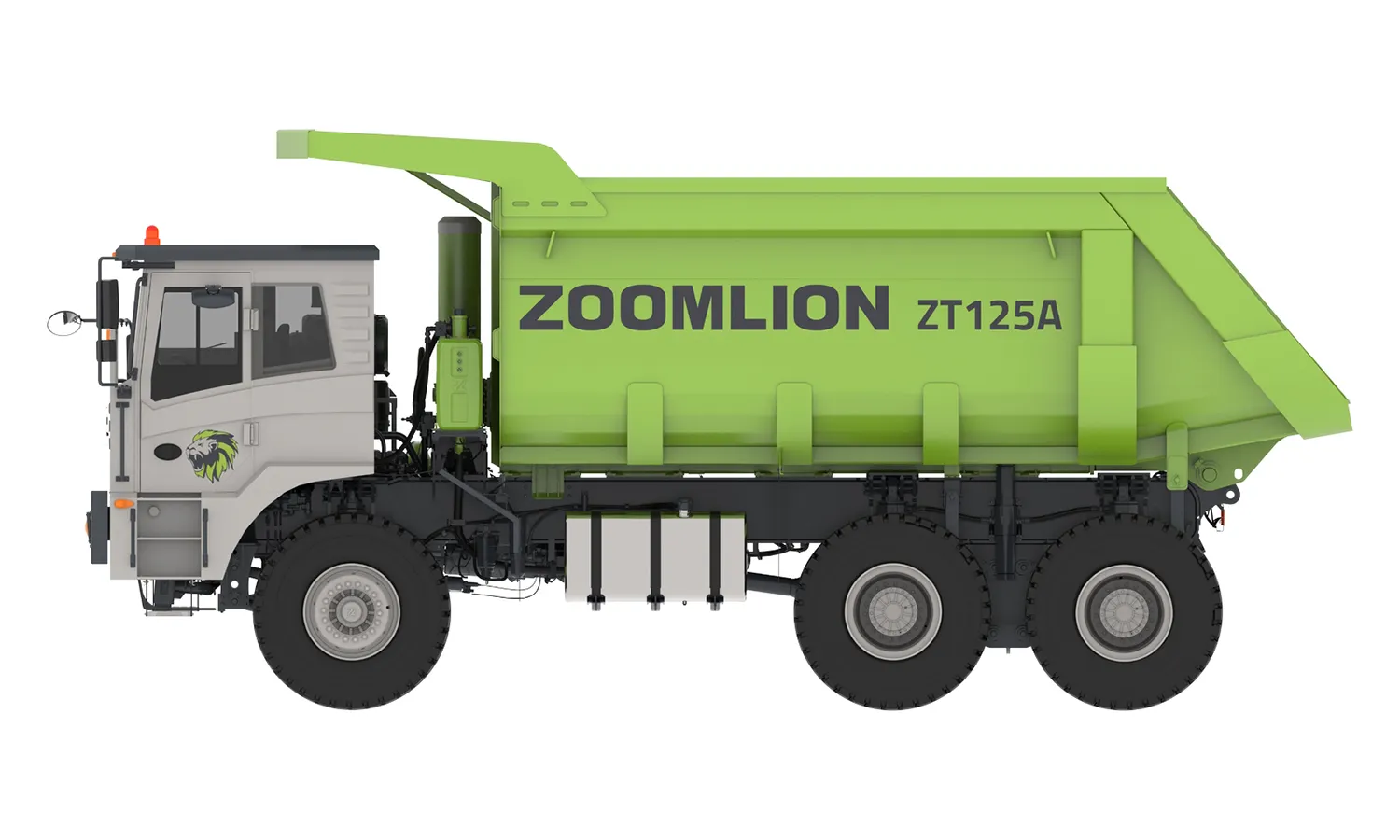

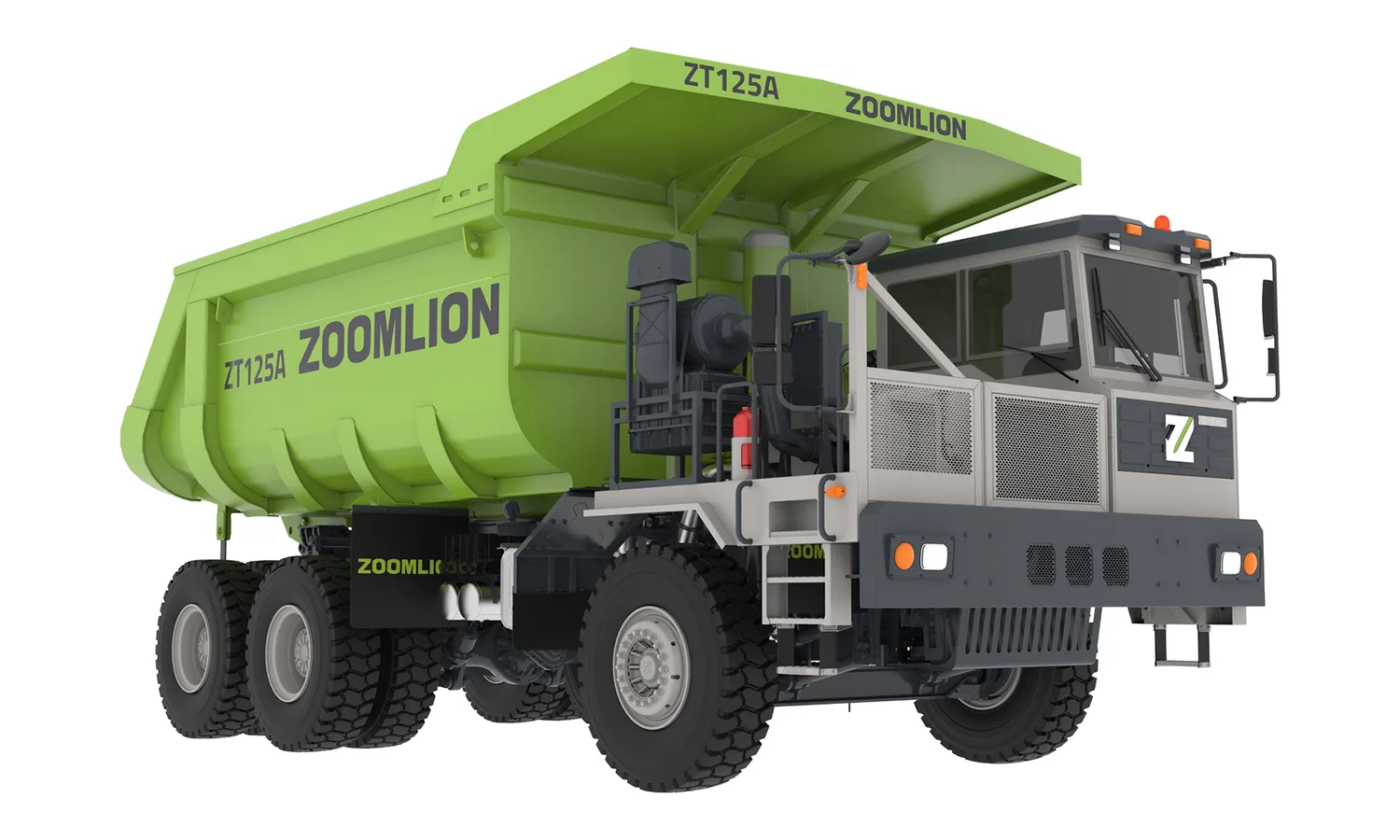

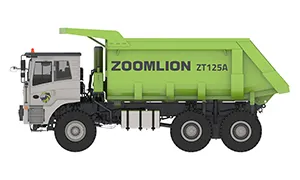

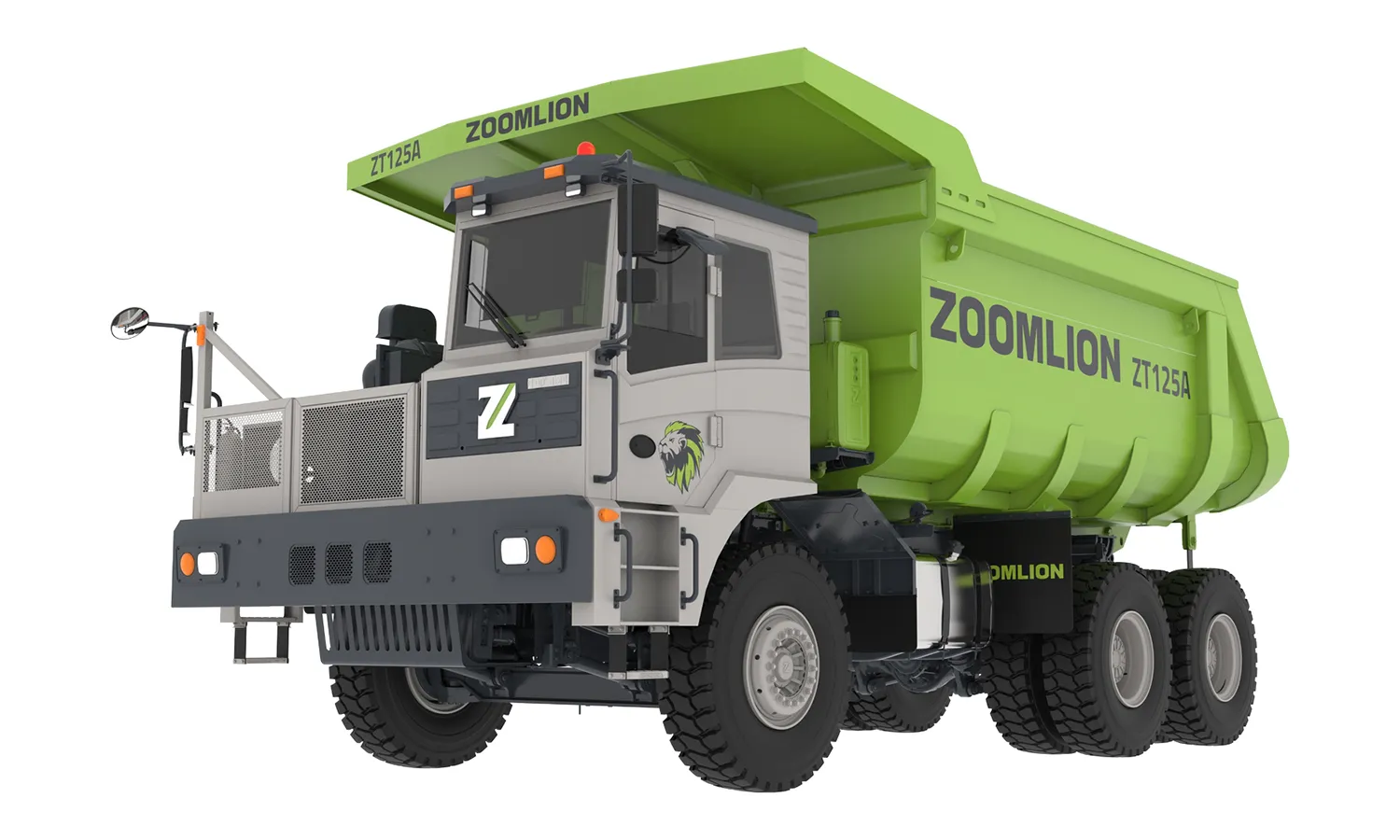

ZT125A Mining Dump Truck

The ZOOMLION ZT125A is an 80-ton wide-body mining dump truck built for heavy-duty material haulage in medium to large open-pit mines and major earthmoving projects. The off-highway truck can easily handle overburden, rock and other bulk materials across demanding mining environments. It is suitable for coal mines, iron ore mines, non-ferrous metal mines and quarrying operations in extreme temperatures from -40°C to 50°C and at altitudes below 4,000 m.

  • Drive Configuration: 6×4
  • Curb Weight: 34,500 kg
  • Rated Payload: 80,000 kg
Request A Quote
Advantages
  • A high-strength welded box-section frame offers greater torsional resistance when travelling over rough mine roads, with all critical welds undergoing 100% nondestructive testing.
  • The K13 engine works with optimized manual or automatic transmission settings and rear axle gear ratios to handle sustained low-speed, high-torque operation under heavy loads.
  • The dump body takes approximately 25 seconds to lift under full load for efficient unloading performance, along with the system oil temperature that is kept below 78°C.
Technical Specifications
Model ZT125A(AT)
Drive configuration 6 × 4
Curb weight (kg) 34500
Rated payload (kg) 80000
Total axle load (t) 125
Overall dimensions (mm) 10150 × 4420 × 4270
Wheelbase (mm) 4100+1750
Min. turning radius (m) 12.5
Max. gradeability (%) 32
Min. ground clearance (mm) 385
Max. speed (km/h) 40
Emission standard GB20891-2014 Ⅲ
Axle load 35t+45t+45t
Tires 16.00R25 (full steel wire meridian tubeless)
Hydraulic retarder Standard
Internal body dimensions (m) 7.02 × 3.68 × 1.75
Body capacity (m³) Struck 38
Heaped (SAE 2:1) 45

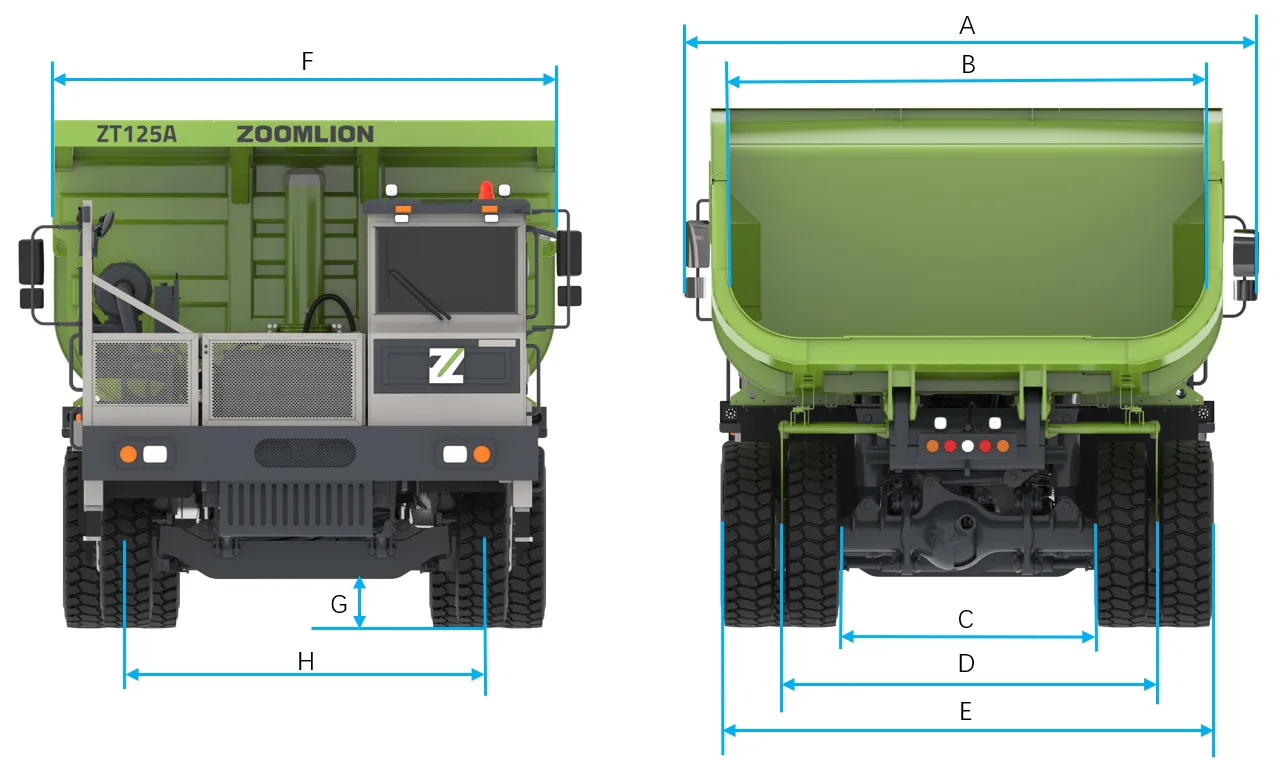

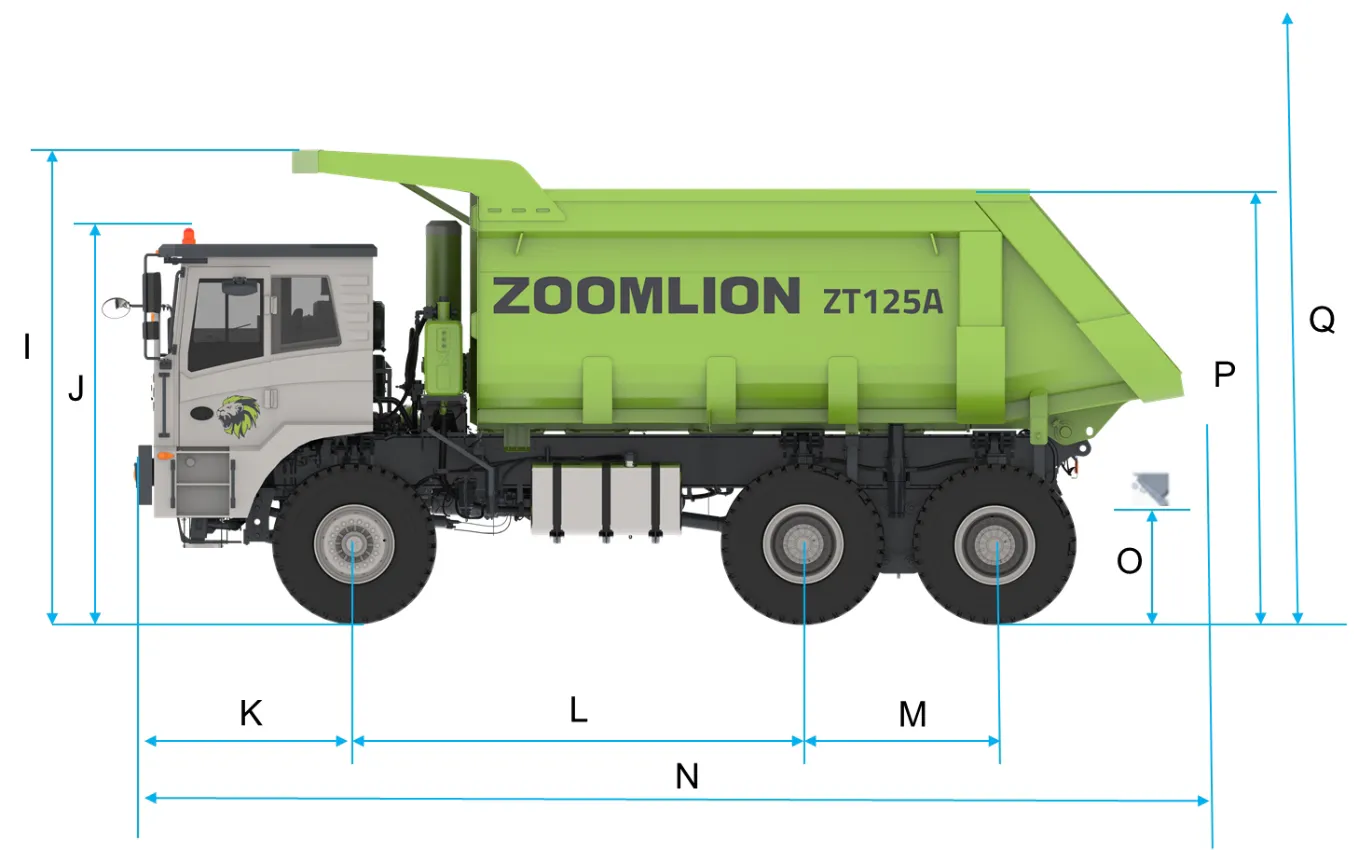

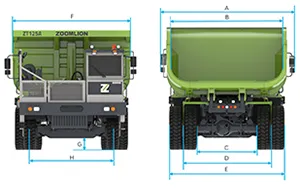

Overall Dimensions
ZT125A Mining Dump Trucks
ZT125A Mining Dump Trucks
A:4420 mm B:3686 mm C:2050 mm
D:3015 mm E:3980 mm F:3993 mm
G:385 mm H:2940 mm I:4270 mm
J:3690 mm K:1945 mm L:4100 mm
M:1750 mm N:10150 mm O:980 mm
P:3780 mm Q:8490 mm
