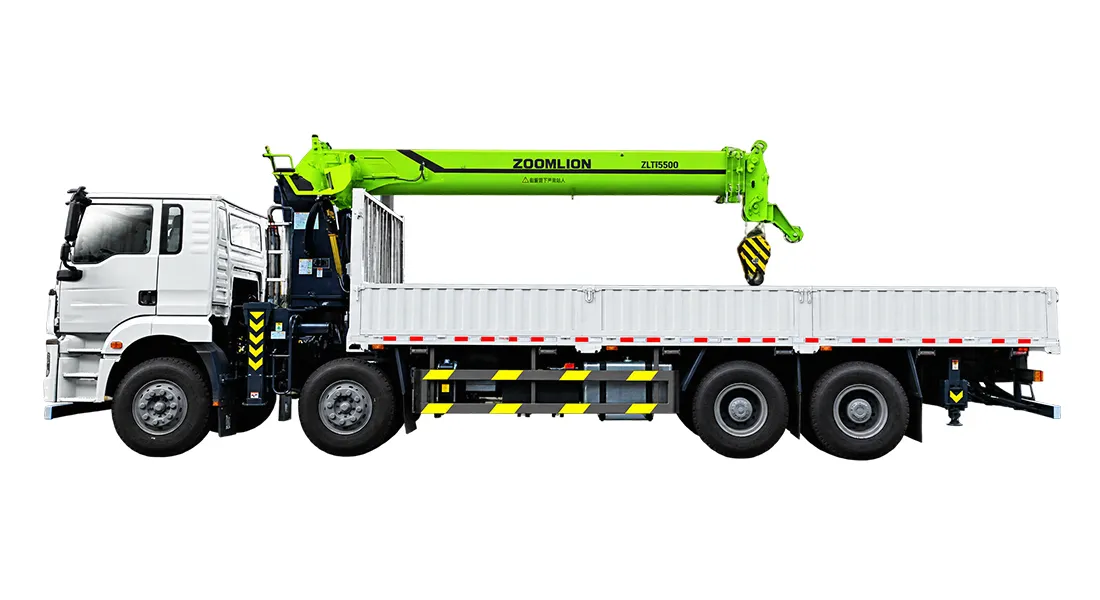

Straight-boom Truck-mounted Cranes ZLT5500H5

Stiff Boom Cranes ZLT5500H5

Stiff boom cranes are truck-mounted loader cranes that lift, move, and load or unload cargo using a rigid, straight telescopic boom. The boom sections slide in and out to adjust the reach while remaining aligned, rather than fold at articulated joints as they do on knuckle boom cranes. ZOOMLION stiff boom cranes handle loads such as construction materials and equipment, both during loading and unloading and when placing them at the worksite. Since they are mounted on cargo trucks, the same vehicle can transport the cargo and unload it at the site.

  • Max. lifting moment: 550 kN·m
  • Max. lifting height: 26.5 m
Request A Quote
Download Brochure
Features
  • ZOOMLION uses high-strength steel for the main boom of these stiff boom cranes, with a U-shaped cross-section for strength under lifting loads.
  • For work at greater heights or farther from the truck, the five-section telescopic boom offers a maximum lifting height of 26.5 m and a maximum working radius of 24.4 m.
  • Remote control is optional, so crane movements can be controlled without remaining at the fixed control station.
  • These straight cranes can also have an auxiliary winch with high line pull to handle heavy loads and speed up work with lighter loads.
  • When the main boom does not provide enough reach, an optional jib extends the working range and increases the lifting height.
Technical Specifications
Item Parameters Unit Remarks
Max. lifting moment 550 kN·m
Max. lifting height 26.5 m
Max. working radius 24.4 m
Rated lifting capacity 22000/2.5 kg/m
9300/6.0
4600/10.0
2450/15.0
1840/19.0
1260/24.0
Boom length 6.88-25 m
Boom extension time 64 S System Flow
Luffing angle 0-75 °
Min. boom raising time 35 S System Flow
Main lifting wire rope Ø15/135 mm/m
Main lifting speed (single rope) 45 m/min System Flow
Auxiliary lifting wire rope Ø14/55 mm/m
Auxiliary lifting speed (single rope) 45 m/min System Flow
Slewing angle 360°Continuous °
Slewing speed 1.15 r/min System Flow
Outrigger extension time 35 S System Flow
Rated flow rate of hydraulic system 100 L/min
Rated pressure of hydraulic system 31.5 MPa
Capacity of hydraulic oil tank 300 L
Outrigger lateral span 2288-8400 mm
Dimensions (L × W × H) 8308 × 2543 × 2757 mm
Crane's deadweight 7100 kg Crane Unit Only
Lifting Height Curve
Knuckle-boom Truck-mounted Crane ZTK24000V
Overall Dimensions
Knuckle-boom Truck-mounted Crane ZTK24000V
