ZT72J Telescopic Boom Lifts

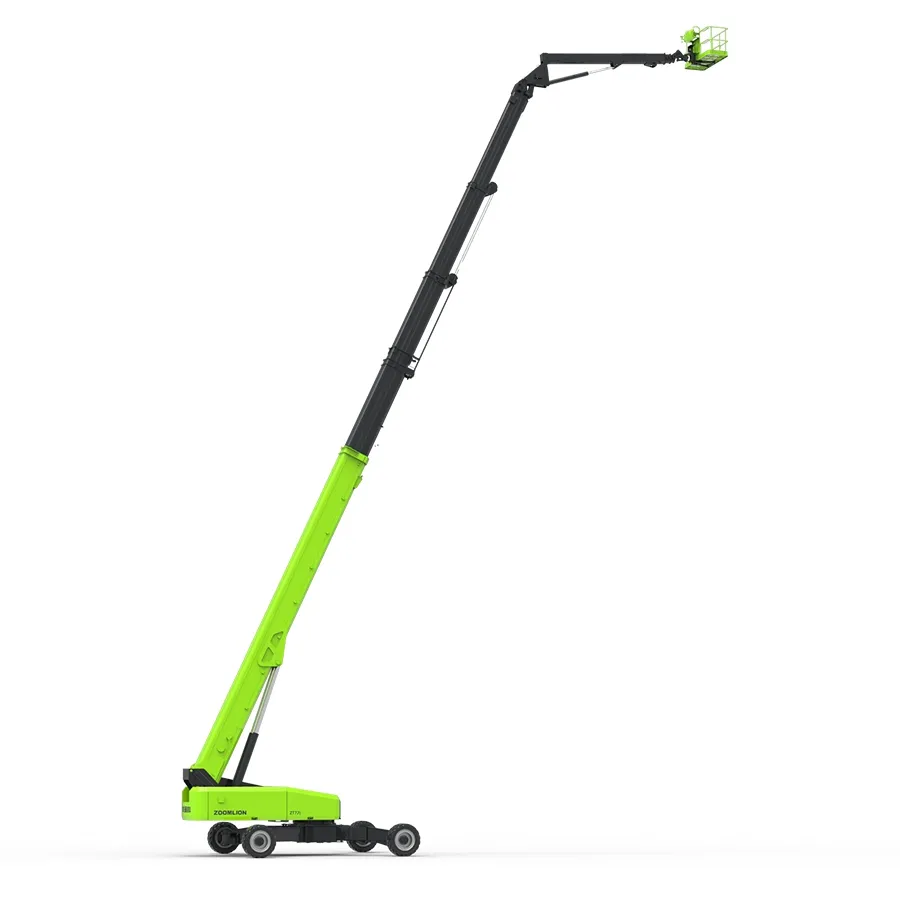

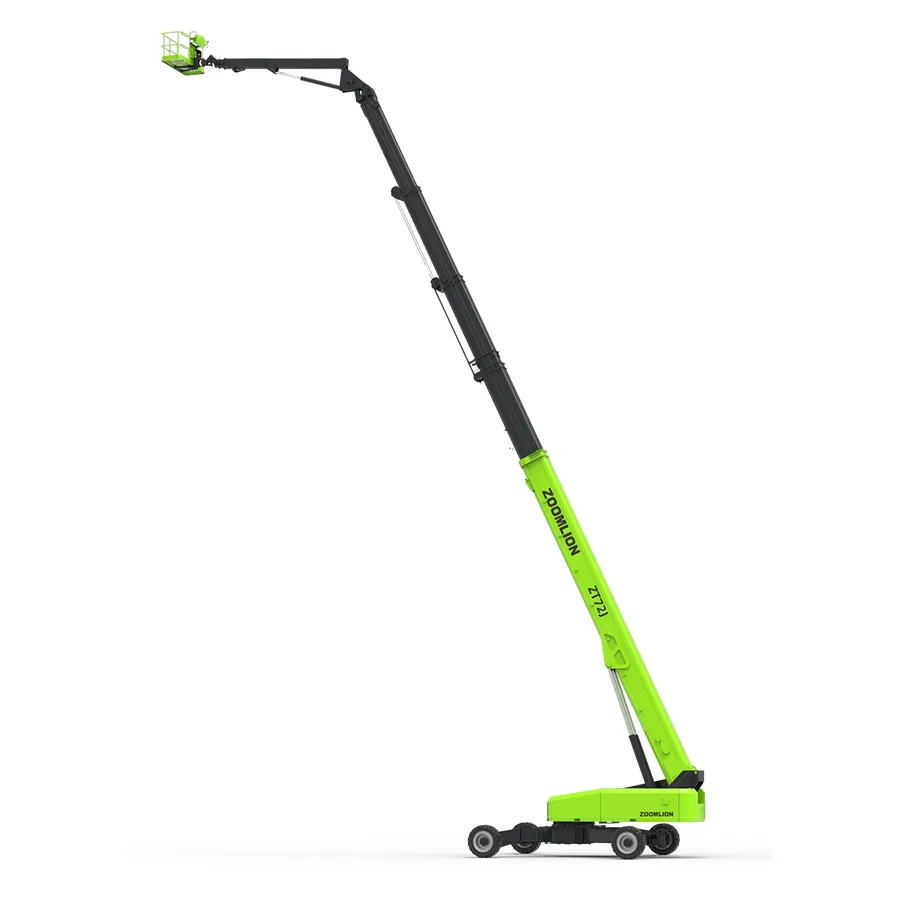

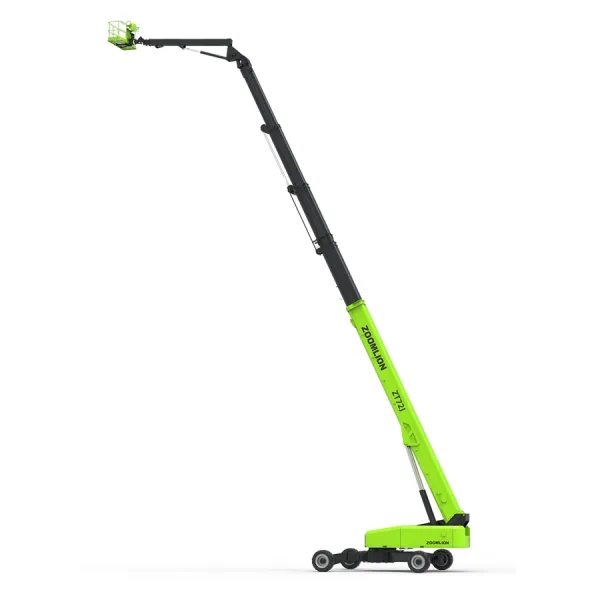

ZT72J Telescopic Boom Lift

ZOOMLION telescopic boom lifts ZT72J are designed to assist workers reach installation and maintenance points that are located high above the ground, including areas where the lift must stand some distance from the structure. Their straight boom reaches a maximum working height of 72.3 m and extends the platform up to 32 m horizontally. For work that requires a more precise platform position, the 13.1 m telescopic jib provides additional movement at the end of the boom.

  • Max. working height: 72.3 m
  • Max. horizontal outreach: 32 m
Request A Quote
Download Brochure
Features
  • ZOOMLION ZT72J telescopic boom lifts can take workers up to a working height of 72.3 m and reach 32 m out from the lift, so they can work on a structure even when there is no place to set up right beside it.
  • X-shaped outriggers provide a stable base for operation and help the lift work across a wider range of positions.
  • At the end of the boom, the 13.1 m telescopic jib gives the platform more reach for different tasks at height.
Technical Specifications
Metric Imperial
Size
Work height 72.3m 237ft 2in
Platform height 70.3m 230ft 8in
Horizontal outreach 32.6m 106ft 11in
A - Stowed length 16.5m 54ft 2in
B - Stowed width 2.5m 8ft 2in
C - Stowed height 3.16m 10ft 4in
D - Platform length 2.44m 8ft
E - Platform width 0.91m 3ft
F - Wheelbase 6.2/5.4m 20ft 3in/17ft 9in
Tread 2.5/5.6m 8ft 2in/18ft 4in
G - Ground clearance 0.40m 1ft 4in
Performance
Platform capacity (unrestricted/restricted) 230/300/454kg 510/660/1000lb
Drive speed (stowed) 4.5km/h 2.8mph
Gradeability 40% (22°)
Turning radius (inside) 7.42/2.69m 24ft 4in/8ft 10in
Turning radius (outside) 9.8/7.39m 32ft 2in/24ft 3in
Turntable swing 360° continuous
Platform rotation ±90 °
Tail swing 2.1m 6ft 11in
Jib (range of articulation) 125°(-55°~70°)
Max. wind speed 12.5m/s 28mph
Power
Engine Cummins F3.8 (Stage V) Cummins QSF3.8 (Stage Ⅲ)
Fuel tank capacity 200L 52.8 us gal
Control voltage 12VDC
Hydraulic tank capacity 480L 127 us gal
Drive mode 4WD
Steering mode 4WS/front wheel/crab
Tire
Type Foam-filed tire
Weight
Gross 38300kg 84437lb
Overall Dimensions
