ZT165HEV Mining Dump Truck

ZT165HEV Mining Dump Truck

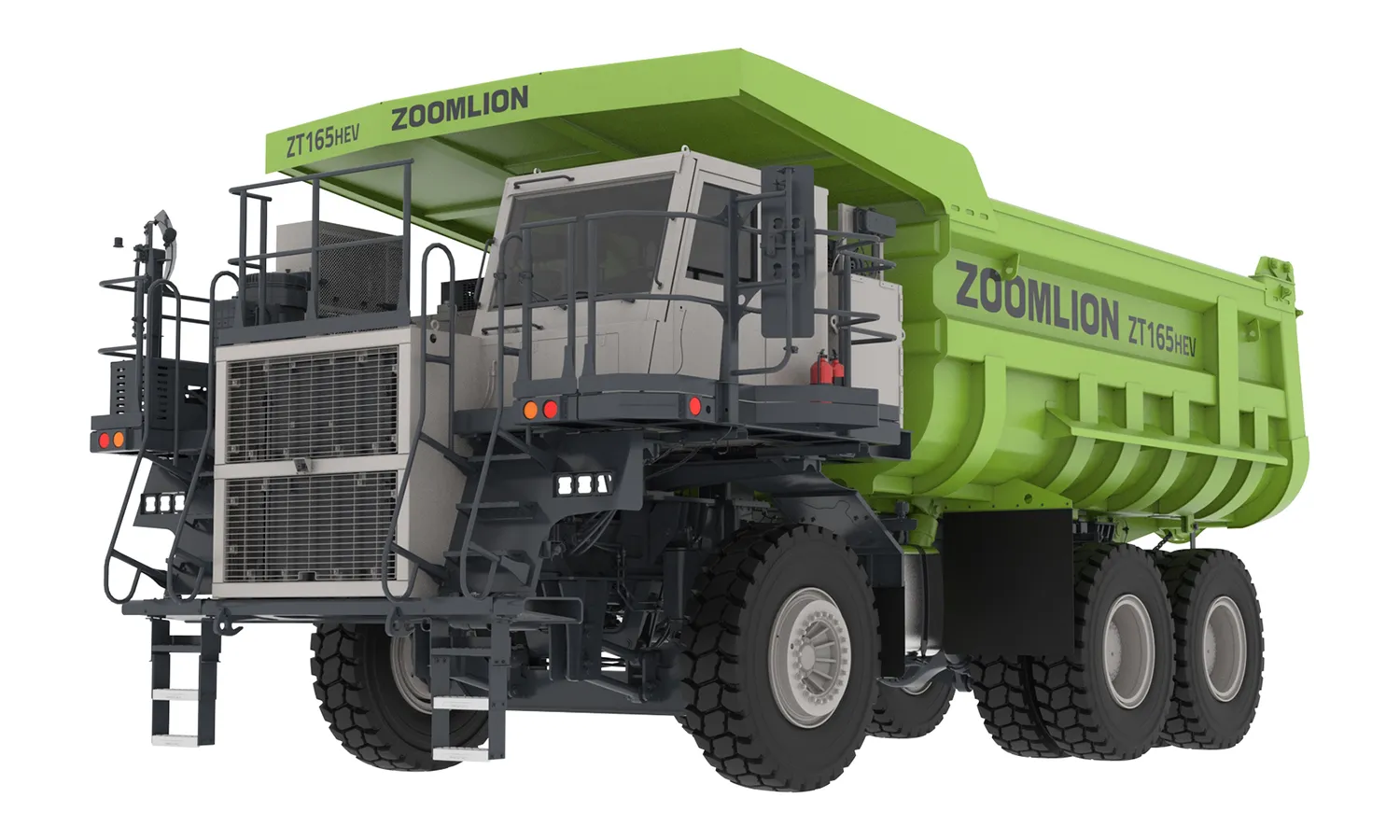

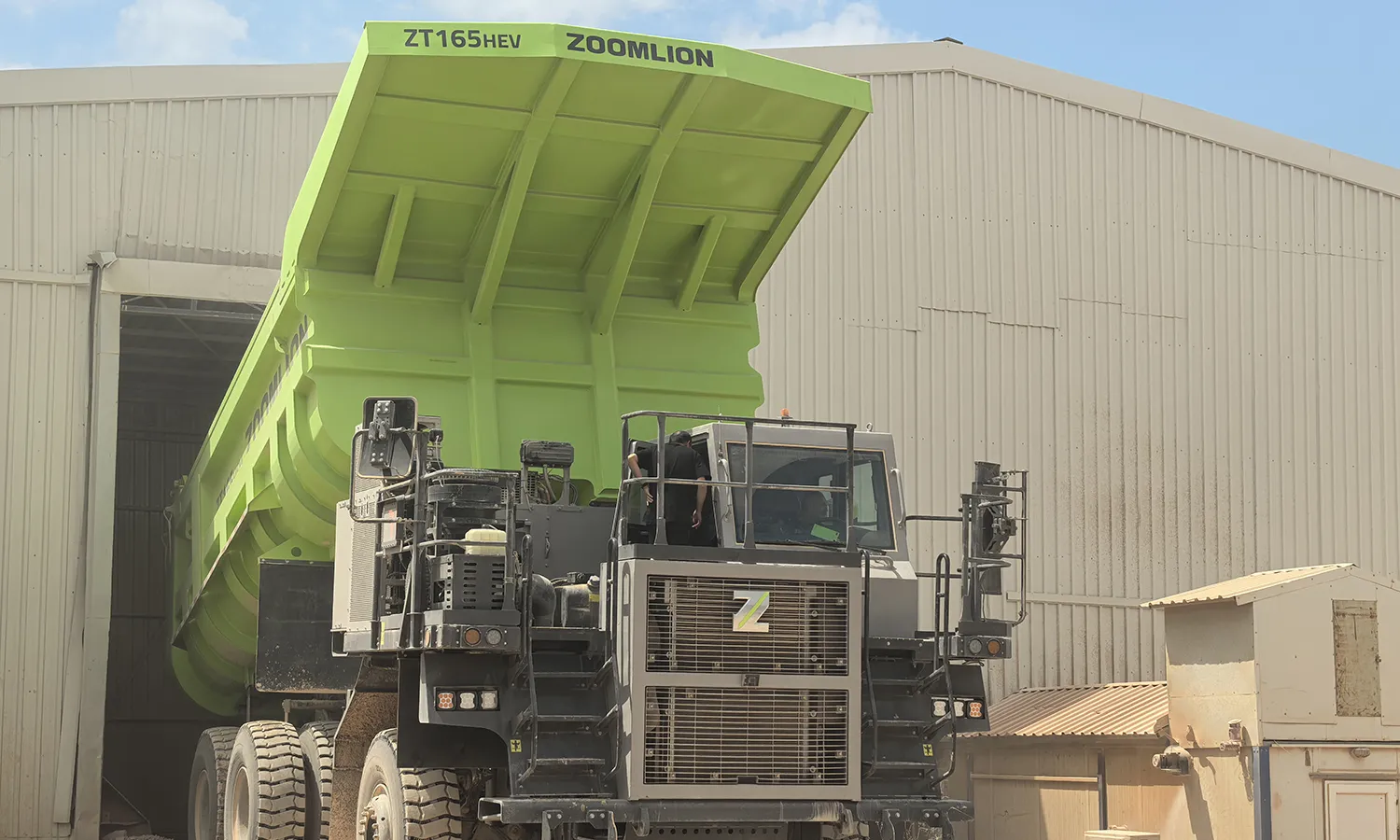

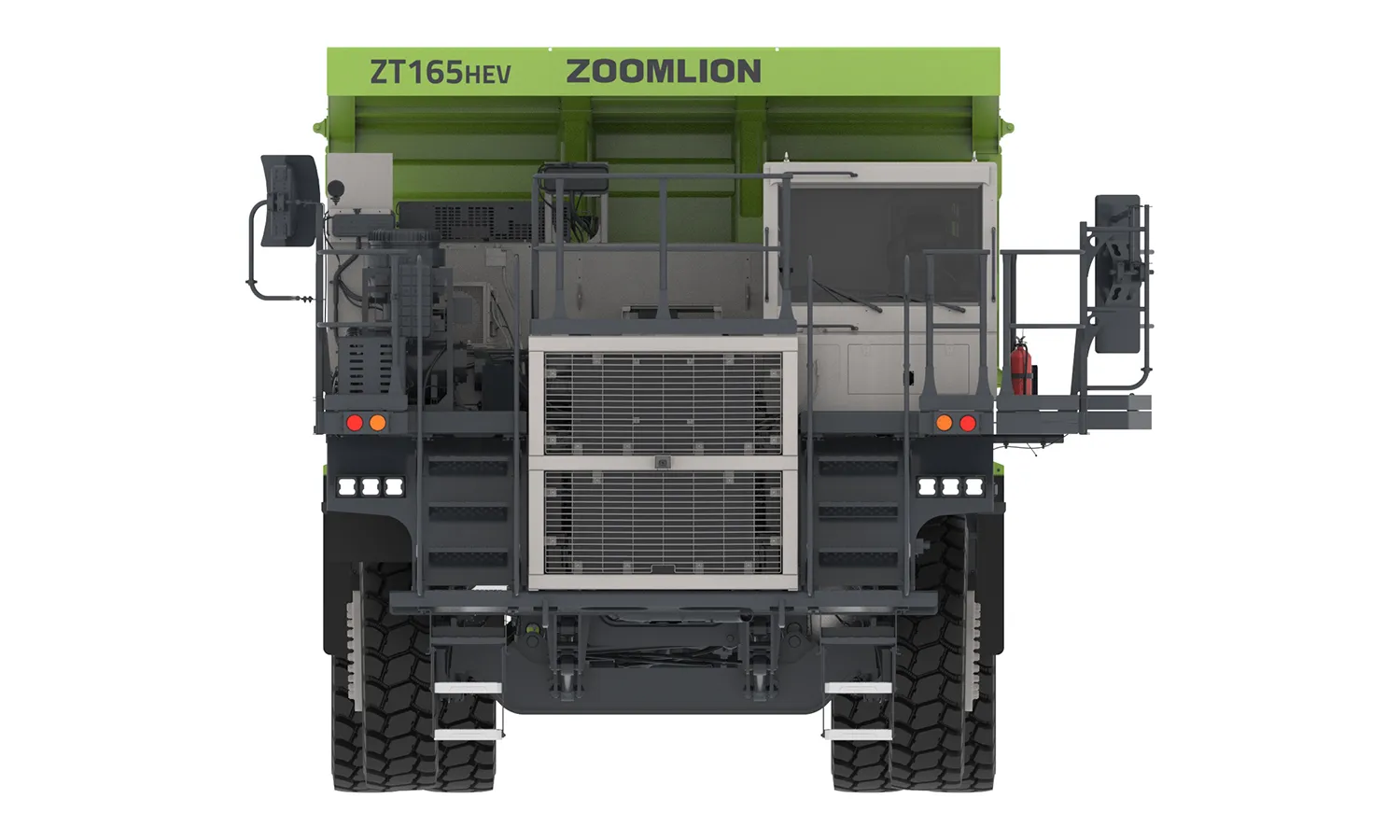

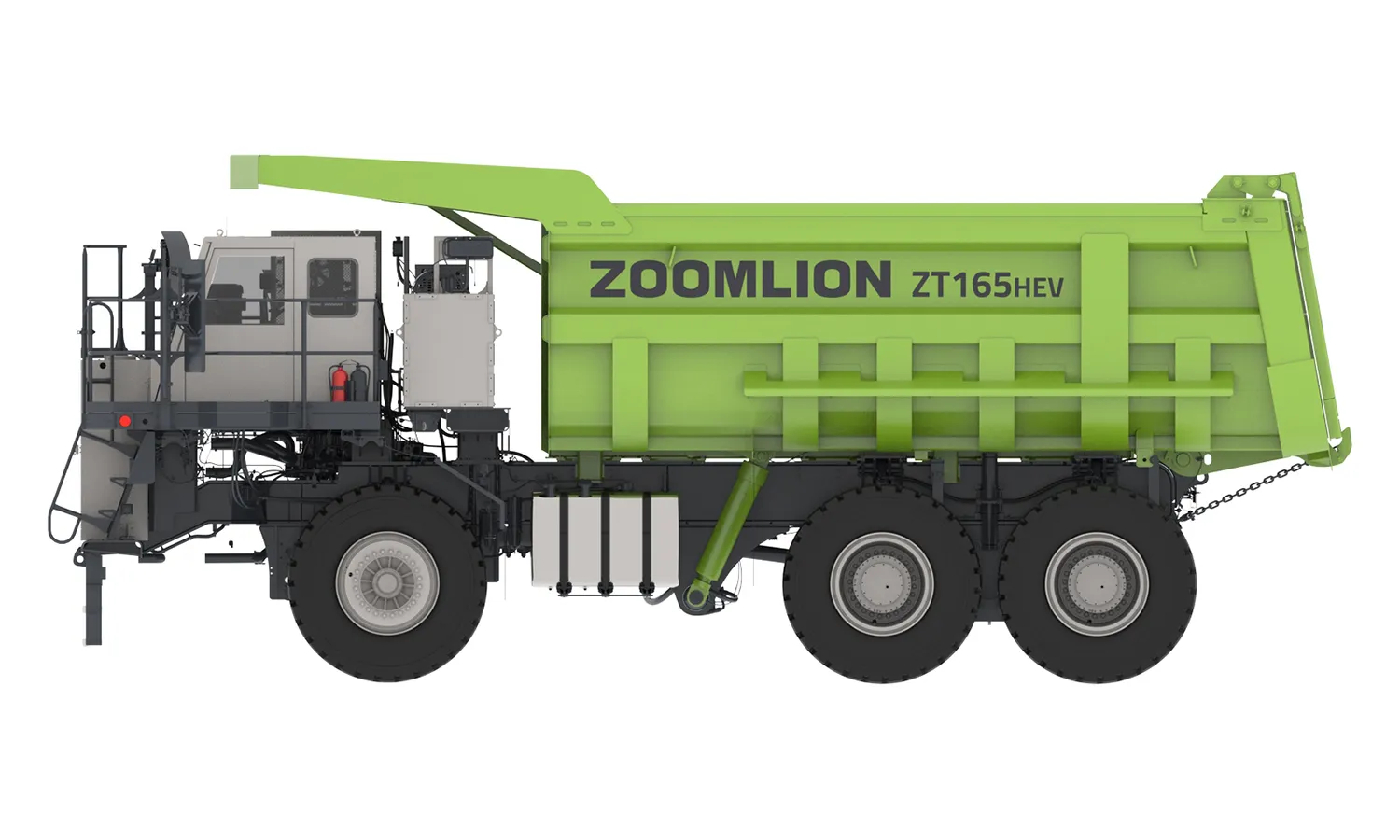

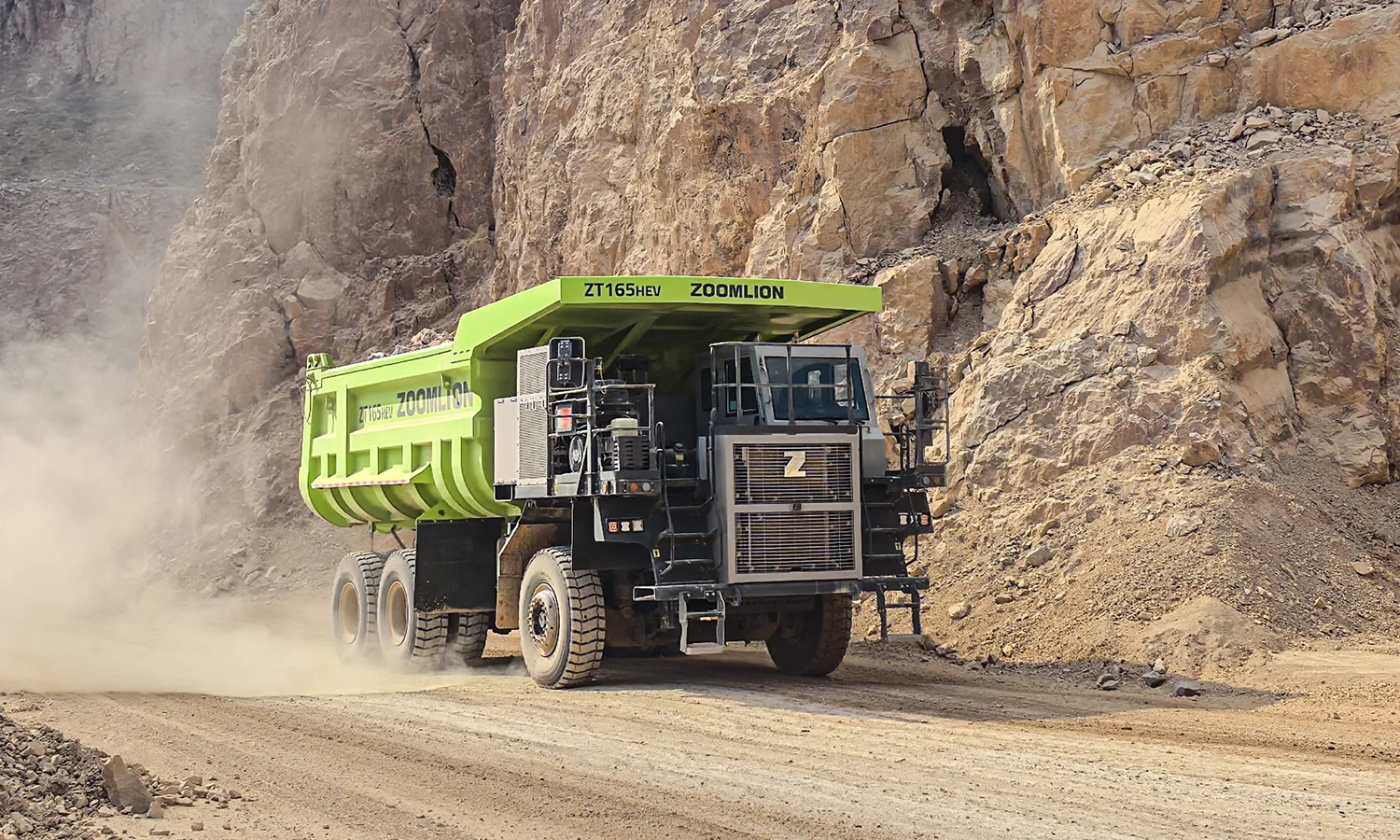

The ZT165HEV hybrid mining dump trucks from ZOOMLION are capable of carrying a rated payload of 100 tons and use a Yuchai YCK16775-S500 diesel engine with two electric motors, IM and TM. Both motors and the engine can drive the truck simultaneously to provide power for heavy-load haulage. They are equipped with electric auxiliary systems to help reduce fuel consumption, while hydro-pneumatic suspension on the front and rear axles cushions the mining truck as it travels over uneven mine roads. Their cab also includes FOPS/ROPS (falling-object and rollover protective structures) to protect the driver.

  • Drive Configuration: 6×4
  • Curb Weight: 58,300 kg
  • Rated Payload: 100,000 kg
  • Rated Engine Power: 570 kW
Request A Quote
Technical Specifications
Drive configuration 6 × 4
Curb weight (kg) 58300
Rated payload (kg) 100,000
Total axle load (t) 161
Overall dimensions (mm) 11960 × 5480(4500) × 4866
Wheelbase (mm) 4600+2000
Min. turning radius (m) 13
Max. gradeability (%) 36
Min. ground clearance (mm) 485
Max. speed (km/h) 42
Emission standard GB20891-2014V
Axle load 41t+60t+60t
Tires 505/95R29
Internal body dimensions (m) 7.25 × 4.1 × 2.12
Body capacity (m³) Struck 55
Heaped (SAE 2:1) 67

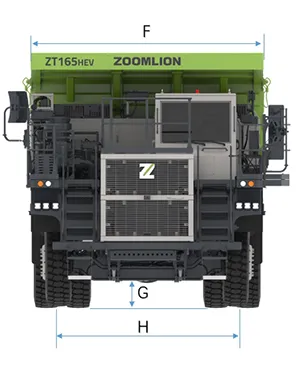

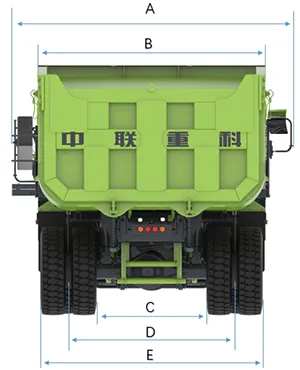

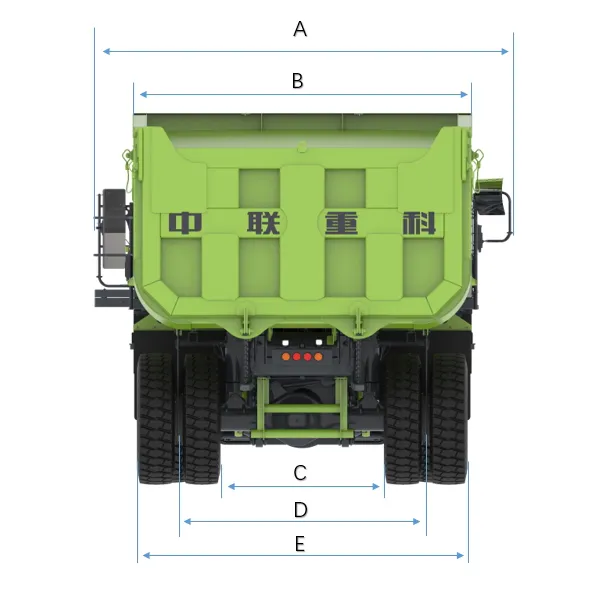

Overall Dimensions (mm)
Overall width A 5480 (4500)
Body inner width B 4100
Rear wheel inner width C 2153
Rear track D 3236
Rear wheel outer width E 4311
Body width F 4500
Min. ground clearance G 485
Front track H 3435
Overall height I 4866
Frame top height J 1984
Step height K 330
Front overhang L 2930
Front-to-middle axle spacing M 4600
Middle-to-rear axle spacing N 2000
Overall length O 11960
Discharge height P 890
Loading height Q 4390
Max. body lifting working height R 10300
