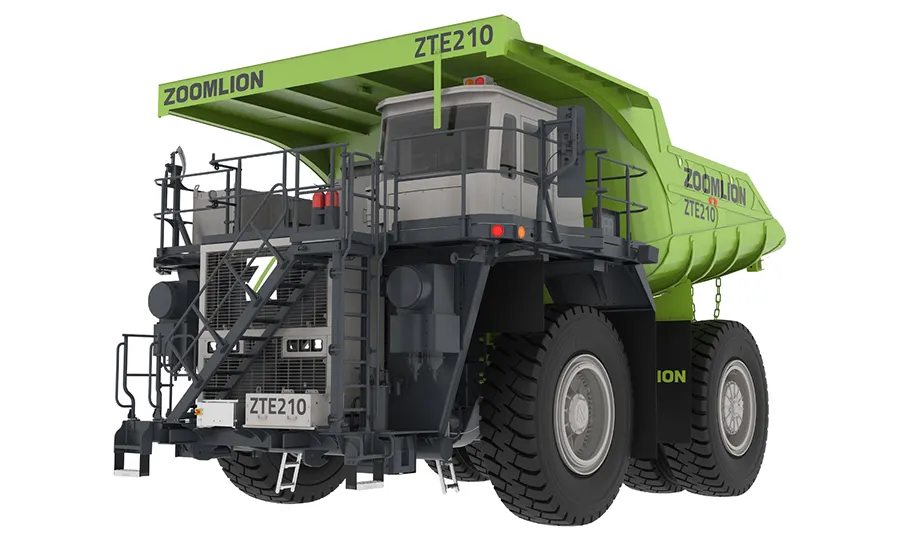

ZTE210 Mining Dump Trucks

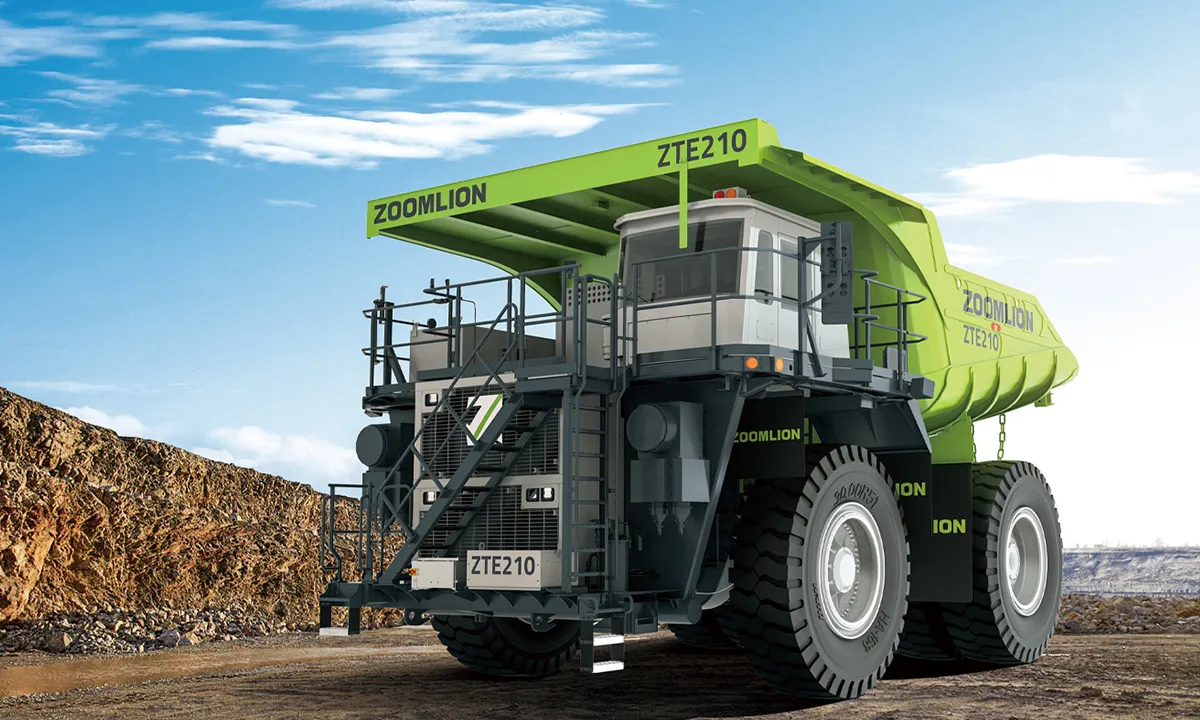

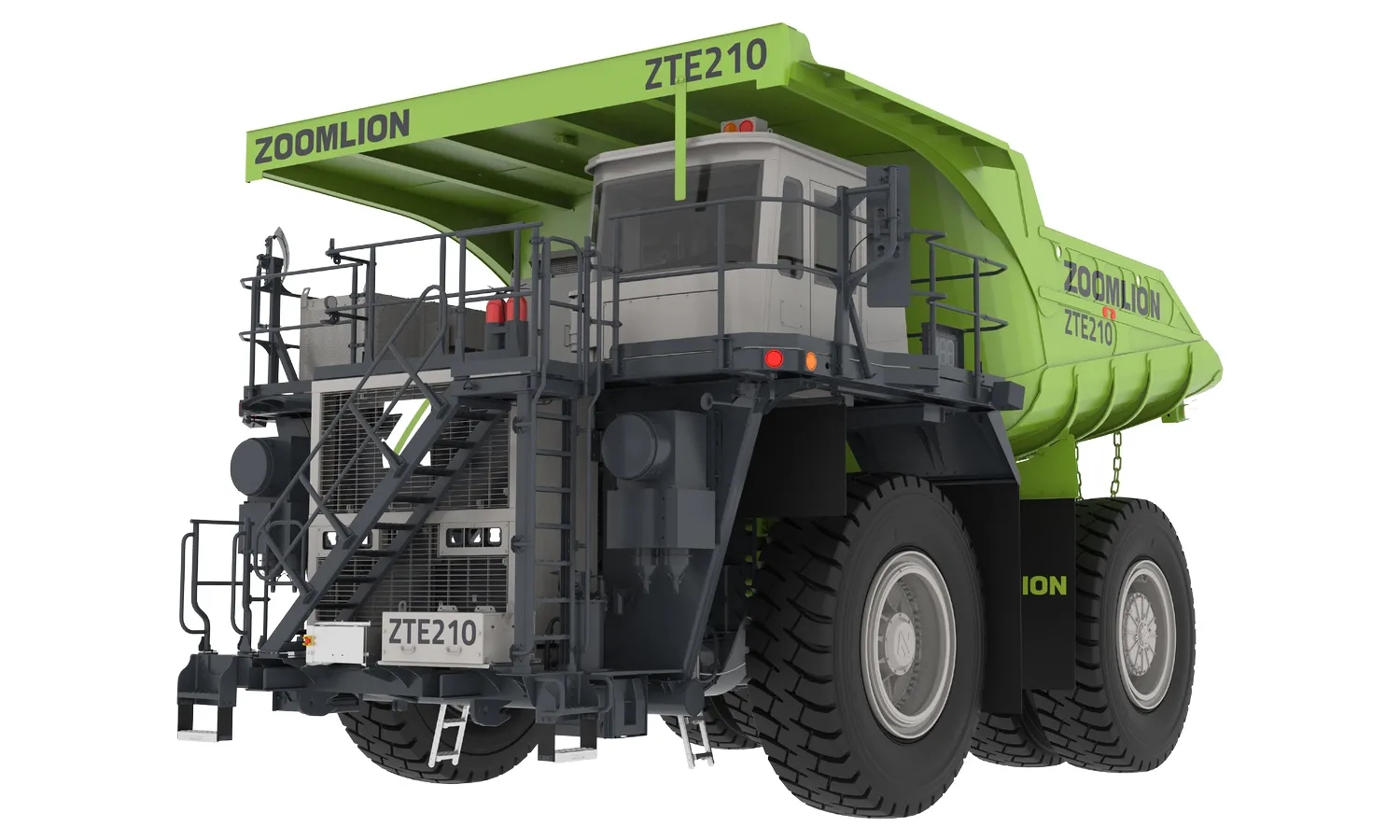

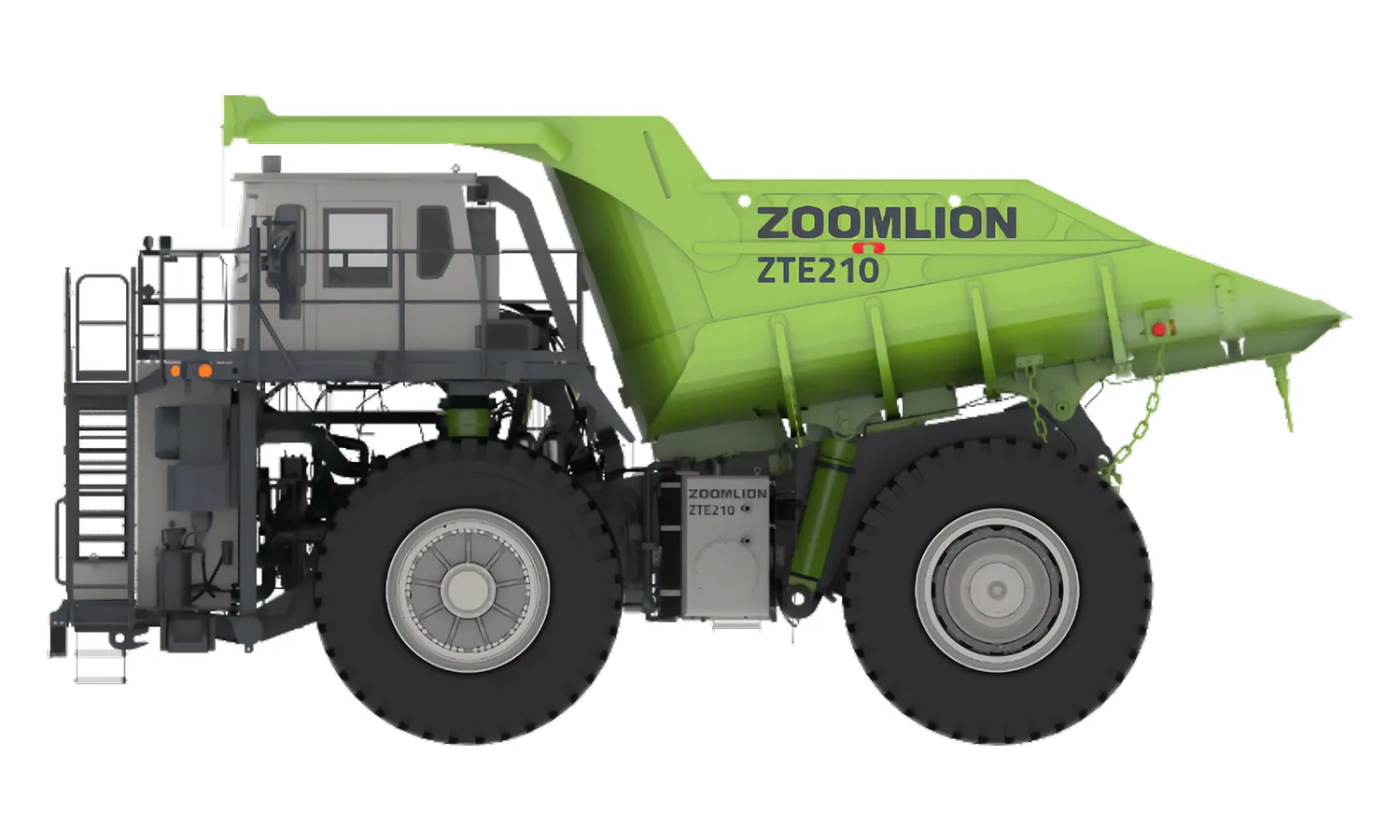

ZTE210 Mining Dump Truck

Typical Applications
  • Mine stripping and ore transport in large open-pit mines with annual output of 10 million tons or more.
  • Bulk earth and rock haulage for water infrastructure, port construction, and site grading projects.
  • Drive Configuration: 4×2
  • Rated Engine Power: 1,045 kW
  • Body capacity, heaped 2:1: 70 m³
  • Rated Payload: 120,000 kg
  • Curb Weight: 90,000 kg
Request A Quote
Advantages
  • More Cargo, Fewer Trips
    Thanks to their 120-ton payload capacity and 70 m³ dump body, these mining trucks can move more loads in fewer trips, which helps complete haulage work sooner and reduce the driver hours and labor costs needed for the job.
  • Efficient Power Delivery
    They have a 1045 kW engine that works with a third-generation electric drive system and wheel-end drives to deliver power more efficiently to the wheels. Greater drive efficiency helps keep operating costs down over years of mine haulage.
  • Protection for Mining Operations
    The cab features ROPS/FOPS protection against rollovers and falling objects. During operation, an anti-slip and wheel-spin control can help maintain traction, and an automatic fire suppression system responds if a fire occurs.
Recommended Excavator

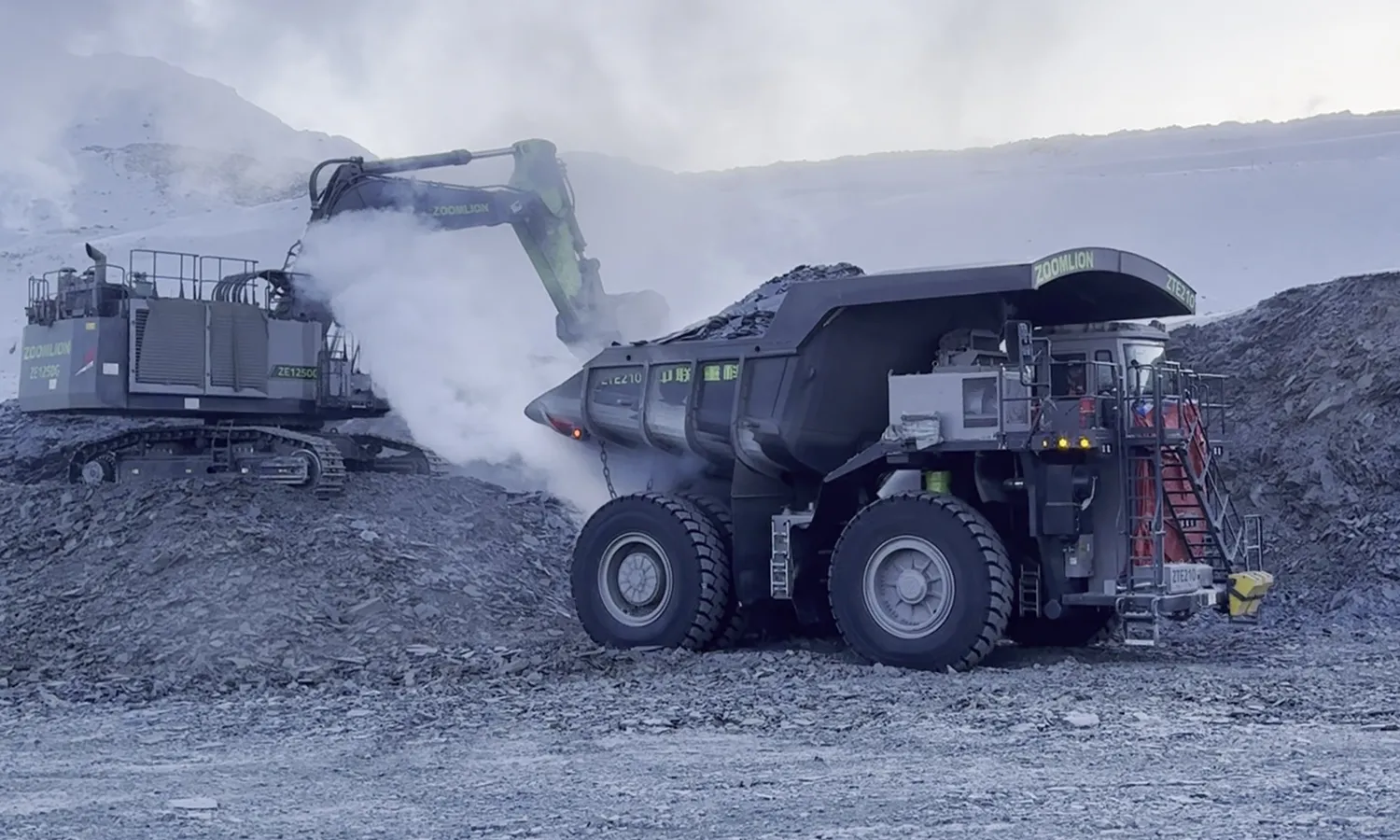

ZOOMLION ZTE210 mining dump trucks can work alongside ZE2000G large mining hydraulic excavators for coordinated loading and haulage, with a better match between the excavator and truck capacities.

Technical Specifications
Dimensions Overall length mm 12065
Overall width mm 7100
Overall height mm 6500/11183
Wheelbase mm 5000
Track width Front track mm 4691
Rear track mm 3958
Weights Gross vehicle weight kg 210000
Rated payload kg 120000
Empty vehicle weight kg 90000
Weight distribution No load Front axle (50%) 45000 (50%)
Rear axle (50%) 45000(50%)
Full load Front axle (33%) 69300 (33%)
Rear axle (67%) 140700 (67%)
Powertrain Engine model / YC12VTD1450-T300
Rated power kW/rpm 1045/1800
Max. torque N·m/rpm 6105/1300
Displacement L 39.2
Emission standard / GB 20891-2014 III
Drive configuration / 4 × 2
Tires / 30.00R51
Performance Max. speed km/h 51
Min. turning diameter m 25
Max. gradeability % 24
Min. ground clearance mm 570
Body hoist Loading height mm 5300
Lifting time s 16
Service refill capacities Fuel tank L 1200
Hydraulic tank L 1000
Cooling system L 279
Engine oil L 165
Gear oil tank (single) L 65 × 2
Body capacity Heaped (SAE 2:1) m³ 70

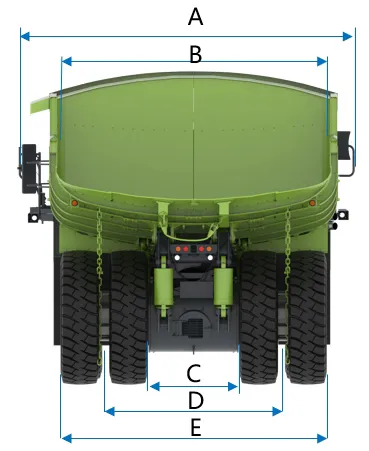

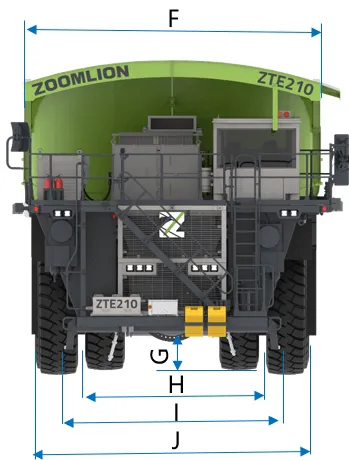

Overall Dimensions (mm)
A:7100mm B:5832mm
C:2130mm D:3958mm
E:5810mm F:6230mm
G:570mm H:3861mm
I:4691mm J:5520mm
K:6500mm L:3565mm
M:1275mm N:677mm
O:7730mm P:3770mm
Q:5000mm R:2805mm
S:3295mm T:12065mm
U:1473mm V:5300mm
W:11183mm X:2386mm
