ZT125G Mining Dump Trucks

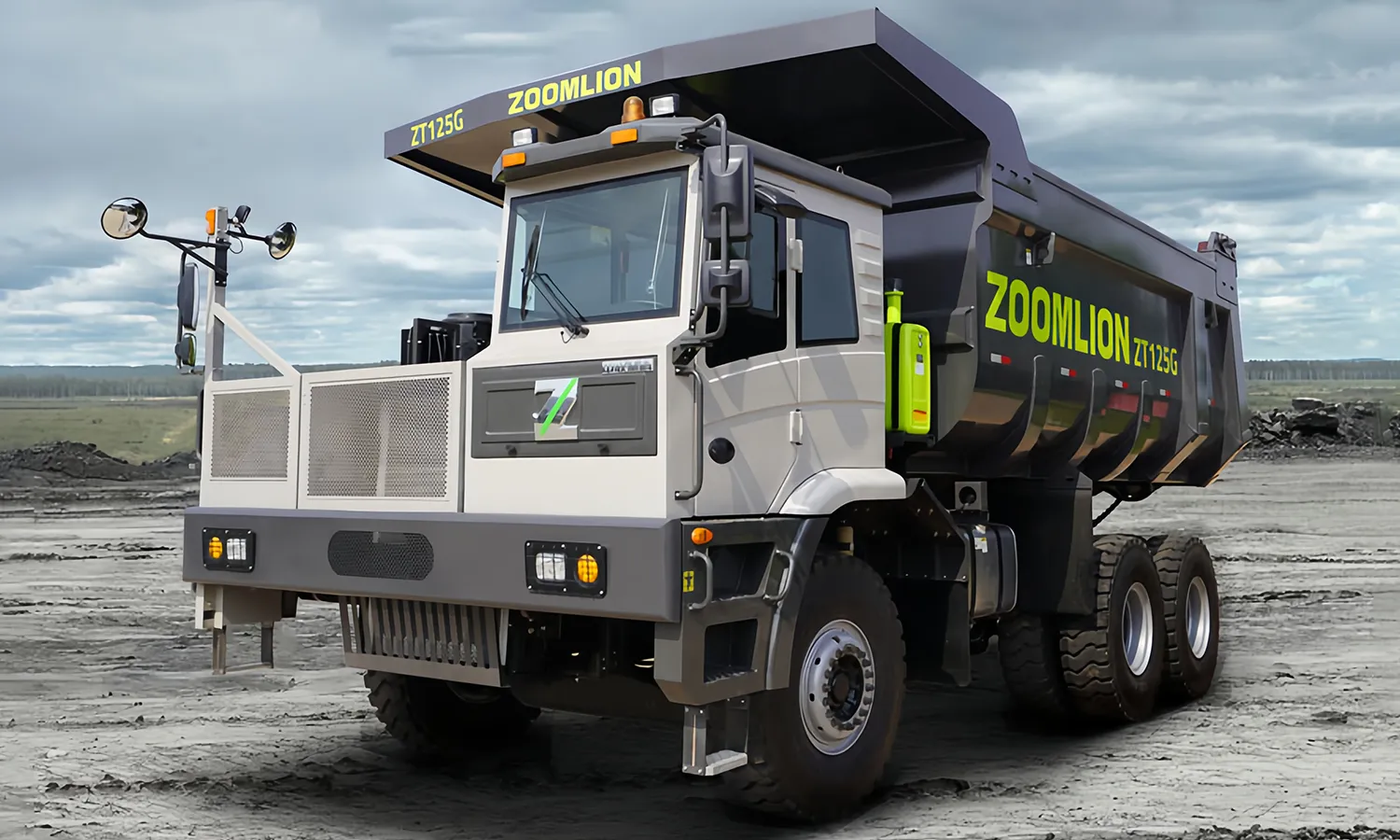

ZT125G Mining Dump Truck

ZOOMLION ZT125G is an 80-ton wide-body mining dump truck built for transport of heavy-duty material in medium to large open-pit mines and major earthmoving projects. With its high payload capacity, this off-highway truck handles overburden, soil, rock and other bulk materials in coal mines, non-ferrous metal mines, quarries and large infrastructure projects. The heavy-duty mining equipment operates in temperatures ranging from -40°C to 50°C and at altitudes below 4,000 m for a reliable material haulage across challenging mine sites.

  • Curb Weight: 35,500 kg
  • Rated Payload: 80,000 kg
Request A Quote
Technical Specifications
Model ZT125G (MT)
Drive configuration 6 × 4
Curb weight (kg) 35500
Rated payload (kg) 80000
Total axle load (t) 125
Overall dimensions (mm) 9800 × 4420 × 4410
Wheelbase (mm) 4100+1750
Min. turning radius (m) 12.5
Max. gradeability (%) 39
Min. ground clearance (mm) 385
Max. speed (km/h) 40
Emission standard GB20891-2014 Ⅳ
Axle load 35t+45t+45t
Tires 16.00R25
Hydraulic retarder Standard
Internal body dimensions (m) 6.42 × 3.85 × 1.93
Body capacity (m³) Struck 45
Heaped (SAE 2:1) 53

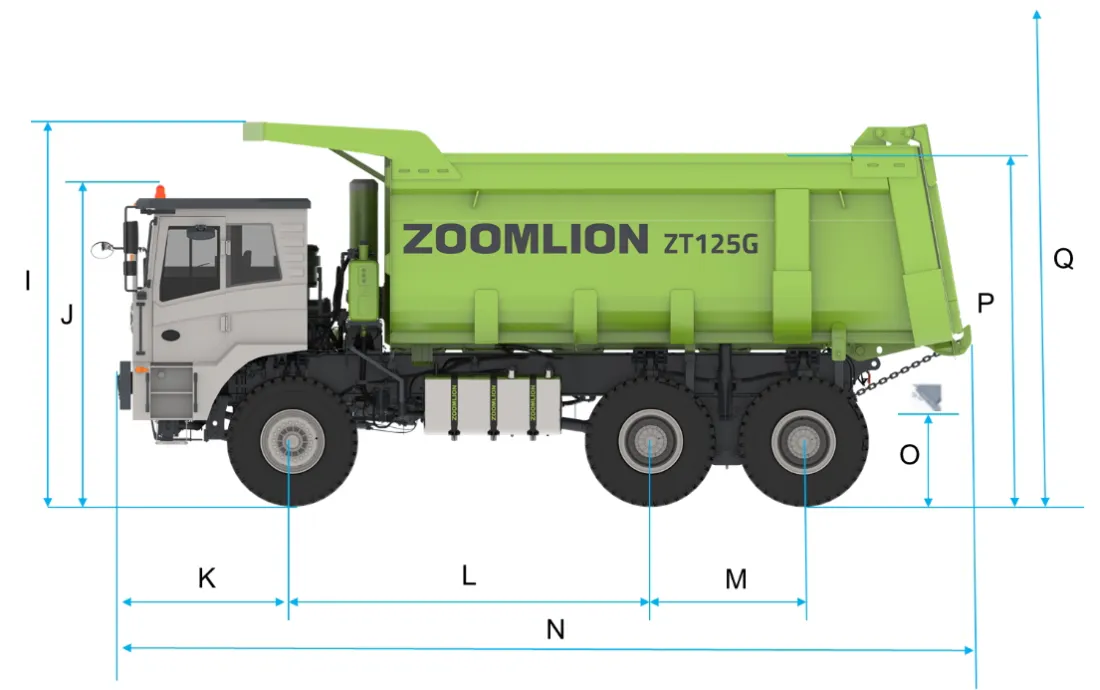

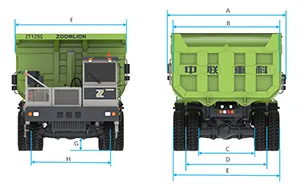

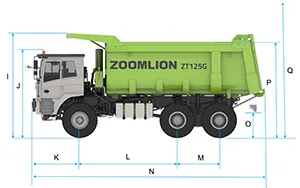

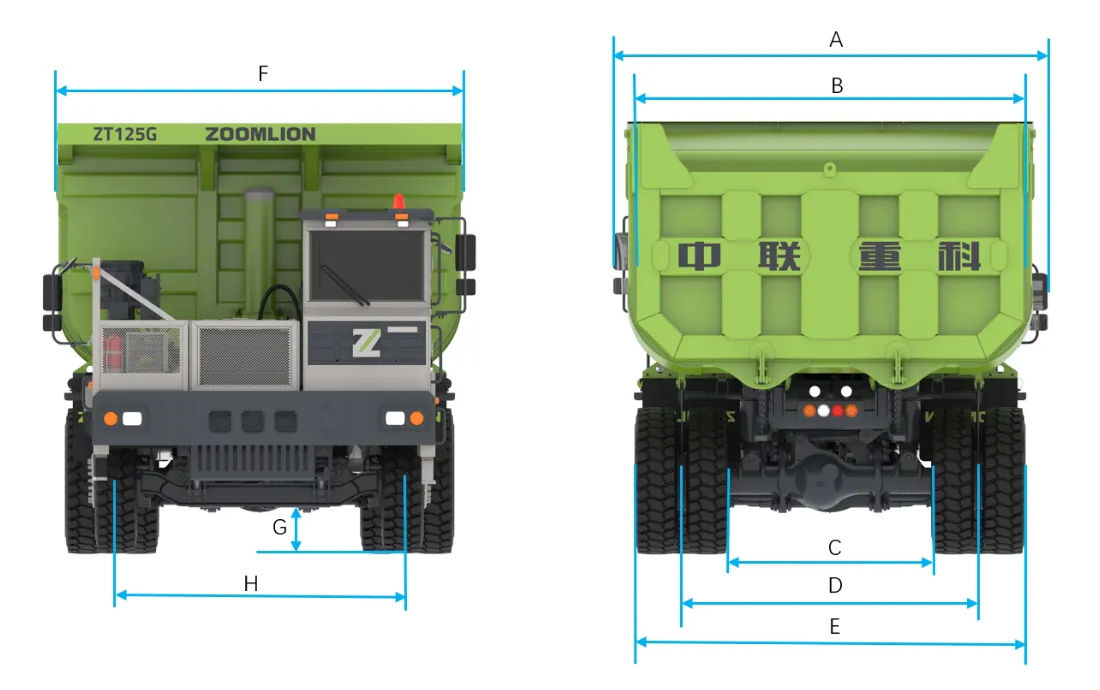

Overall Dimensions
ZT125G Mining Dump Trucks
ZT125G Mining Dump Trucks
A:4420mm B:3850mm C:2050mm
D:3015mm E:3980mm F:4160mm
G:385mm H:2940mm I:4410mm
J:3560mm K:2010mm L:4100mm
M:1750mm N:9800mm O:942mm
P:4000mm Q:8620mm
