ZT135G Mining Dump Trucks

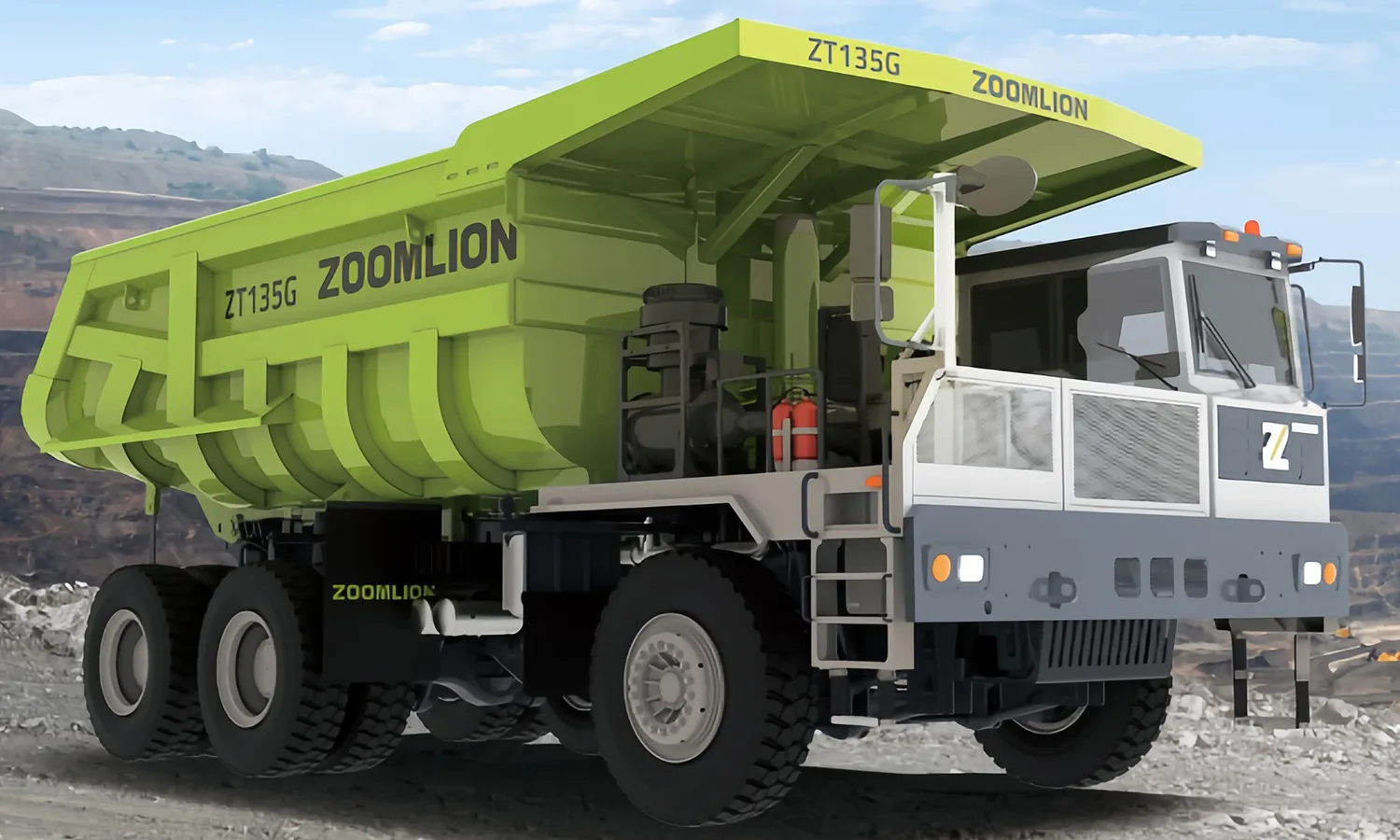

ZT135G Mining Dump Truck

The ZOOMLION ZT135G takes on demanding mining operations with a 92-ton payload capacity and a powertrain built for heavy-duty hauling. From rough haul roads to constantly changing ground conditions, this off-highway mining truck is ready for the challenges of large open-pit mines. Developed using real-world mine road load data, its performance is tailored to the conditions these heavy-duty mining trucks face every day.

  • Drive Configuration: 6×4
  • Curb Weight: 46,000 kg
  • Rated Payload: 92,000 kg
Request A Quote

A high-horsepower engine, high-torque transmission and high-ratio drive axles deliver the pulling power needed for heavy loads, with fuel consumption also taken into account. And a demanding haul shouldn't mean a punishing ride. The full hydropneumatic suspension and five-link thrust rod system help absorb bumps and reduce jolting over uneven terrain to give operators a smoother and more comfortable drive. The hauler is equipped for temperatures from -40°C to 50°C and altitudes below 4,000 m. It's a heavy-duty haulage machine built to keep moving through the varied conditions of large-scale surface mining.

Technical Specifications
Model ZT135G
Drive configuration 6 × 4
Curb weight (kg) 46000
Rated payload (kg) 92000
Total axle load (t) 141
Overall dimensions (mm) 10940 × 4630 (including mirrors 5140) × 4670
Wheelbase (mm) 4600+2000
Min. turning radius (m) 13
Max. gradeability (%) 38
Min. ground clearance (mm) 400
Max. speed (km/h) 40
Emission standard GB20891-2014 Ⅳ
Axle load 41t+50t+50t
Tires 480/95R29
Hydraulic retarder Optional
Internal body dimensions (m) 7.24 × 4.1 × 1.95
Body capacity (m³) Struck 55
Heaped (SAE 2:1) 67

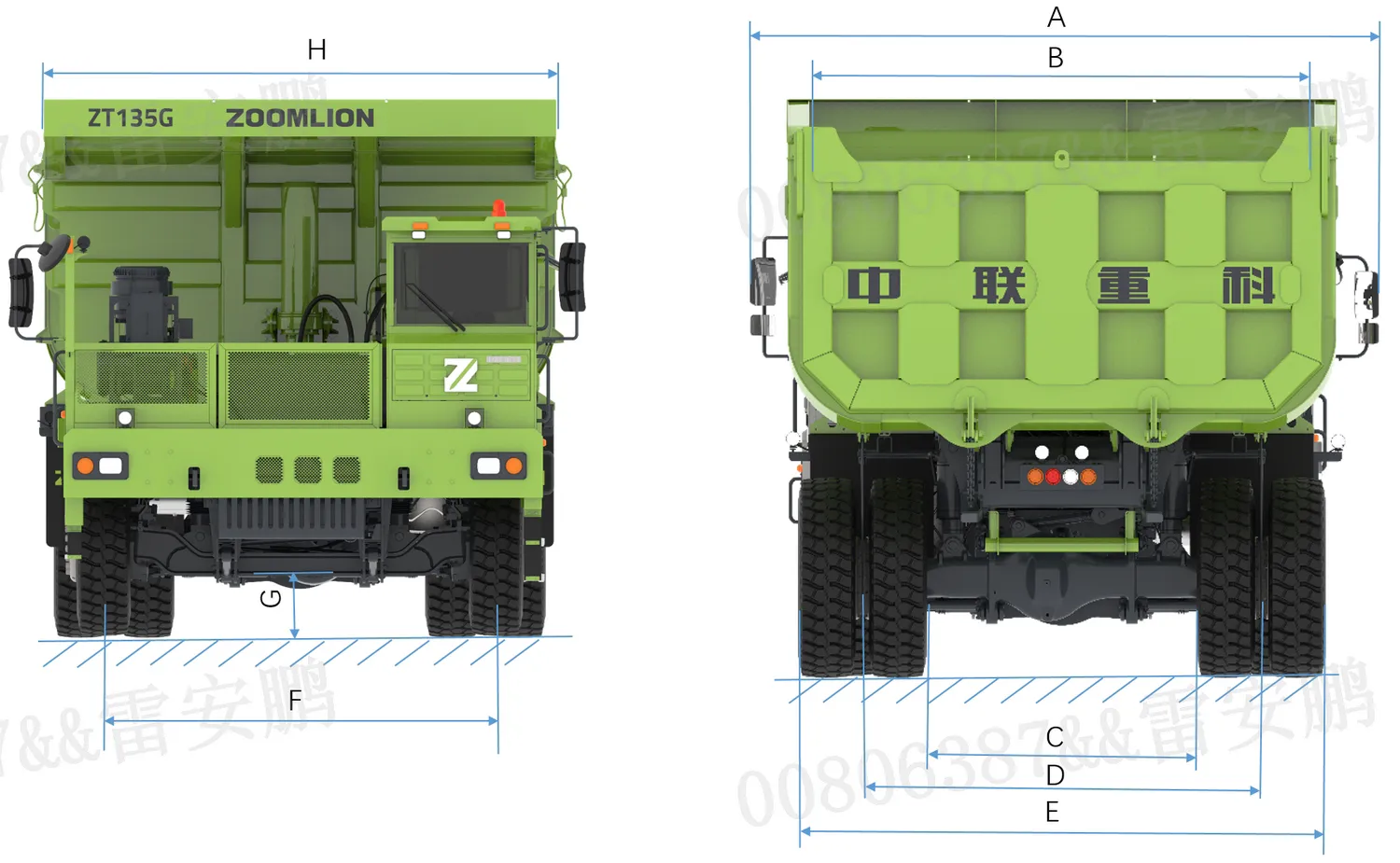

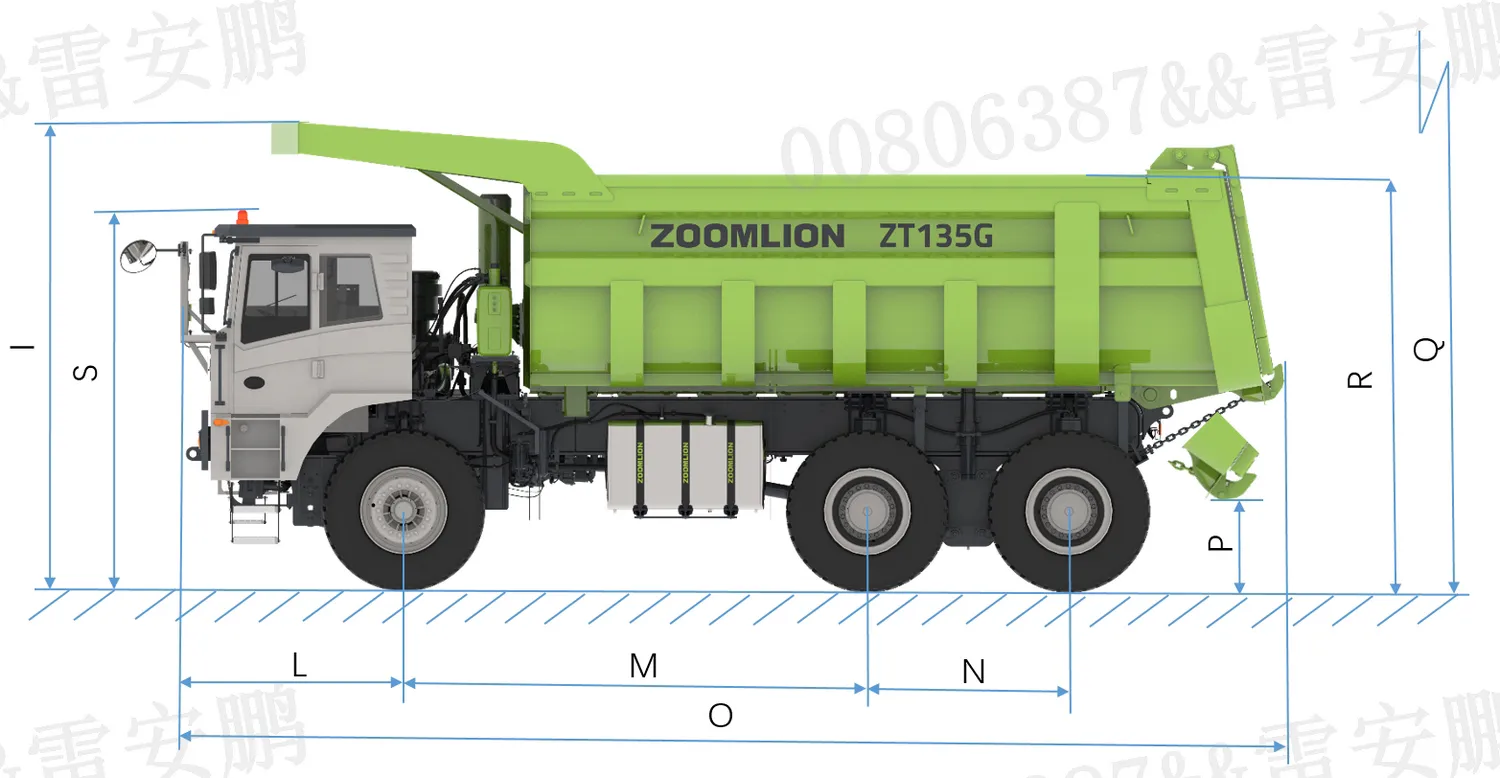

Overall Dimensions

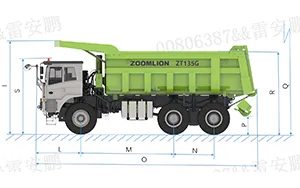

ZT135G Mining Dump Trucks
ZT135G Mining Dump Trucks
A: 5140mm B: 4100mm C: 2178mm
D: 3244mm E: 4270mm F: 3420mm
G: 400mm H: 4605mm I: 4670mm (unladen)
L: 2241mm M: 4600mm N: 2000mm
O: 10940mm P: 1071mm Q: 10024mm
R: 4150mm S: 3800mm
