ZT135HEV Mining Dump Trucks

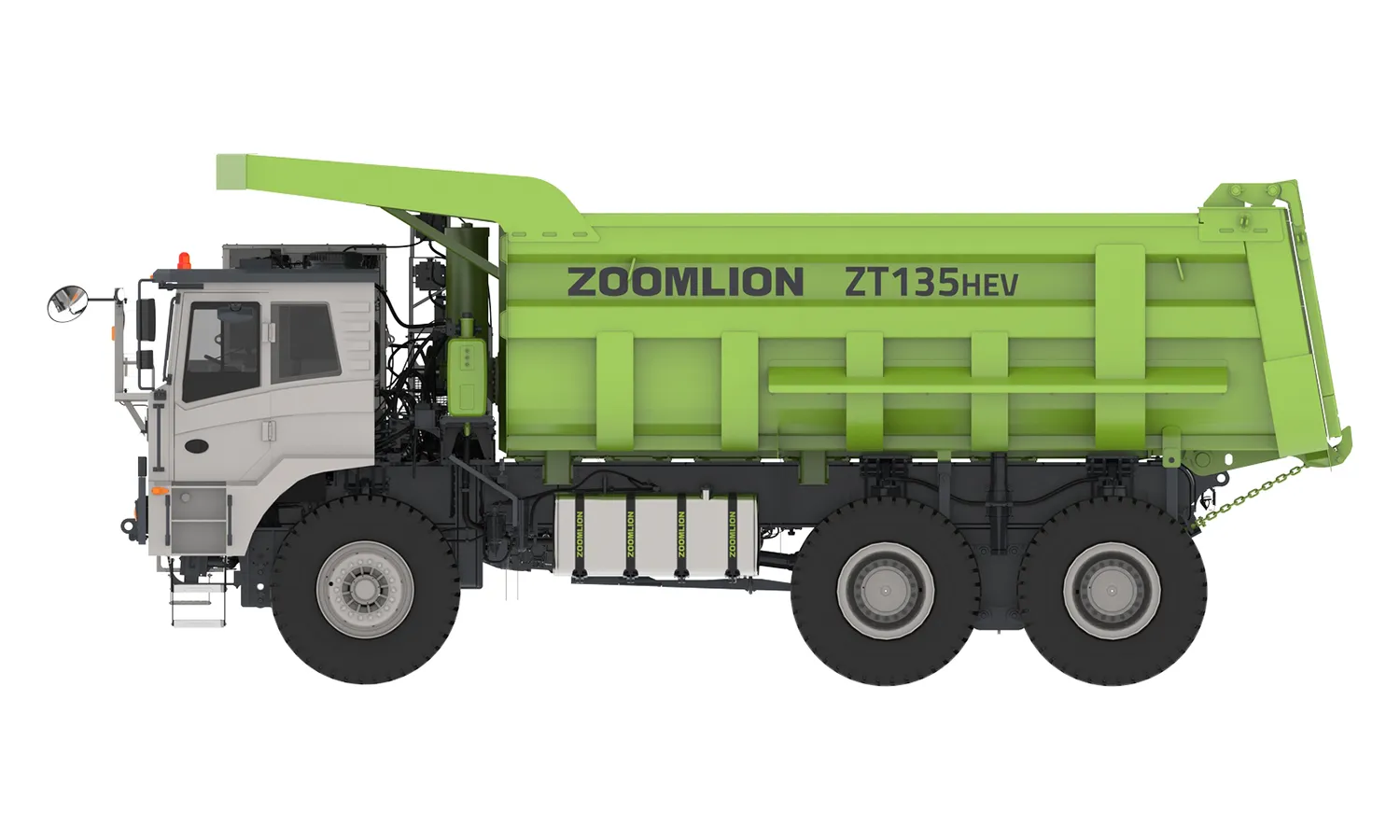

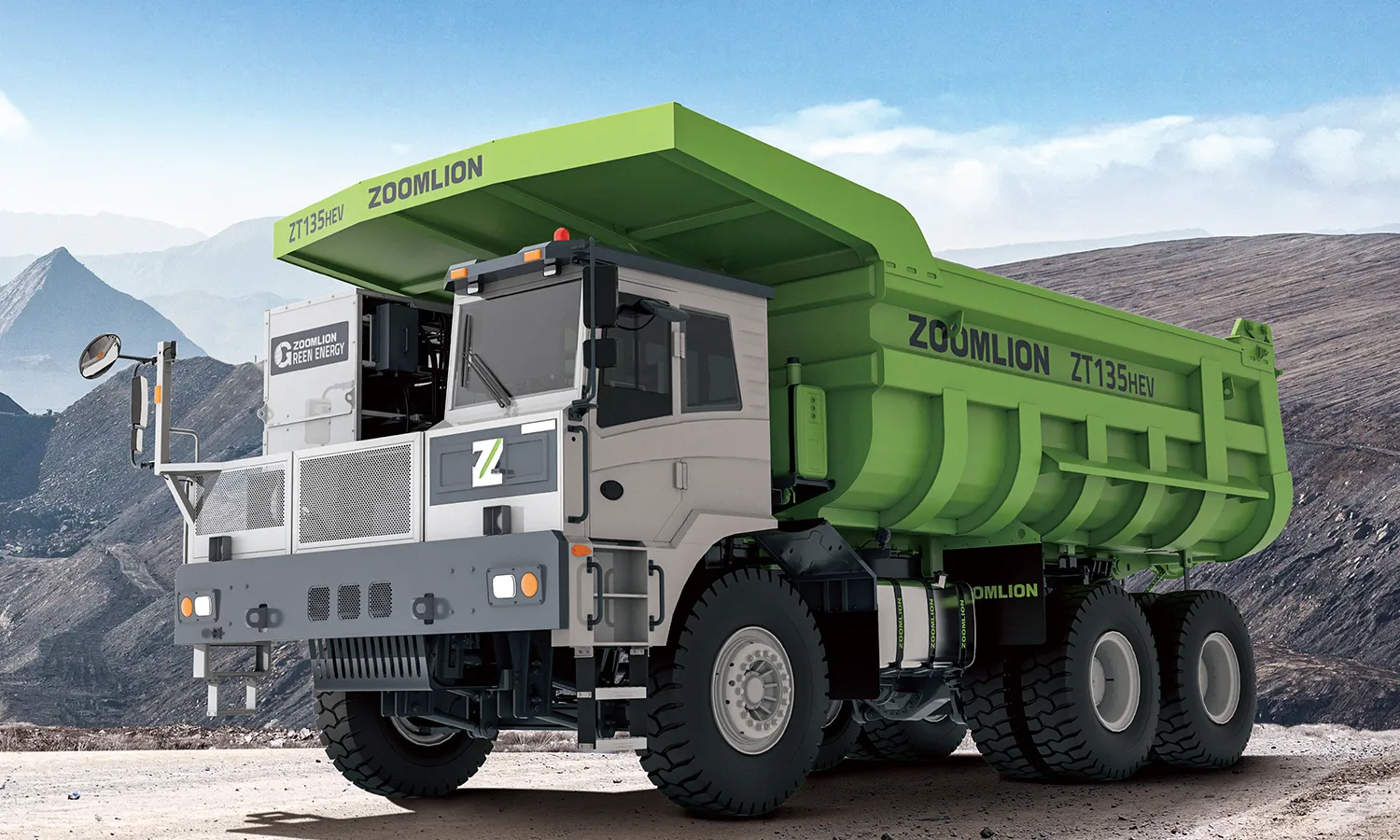

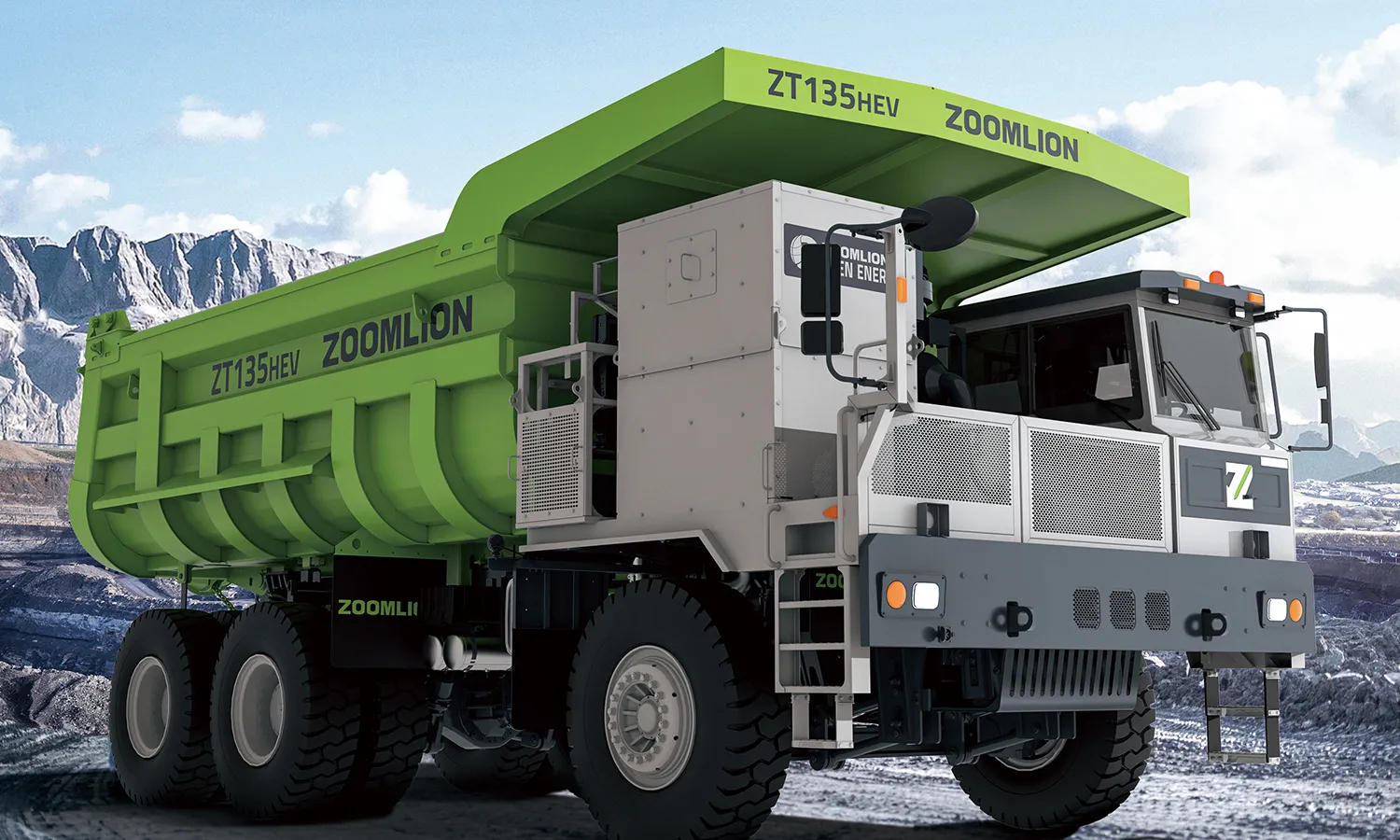

ZT135HEV Mining Dump Truck

ZOOMLION hybrid mining dump trucks (ZT135HEV) haul heavy loads along mine roads using a Weichai WP15HG770E304A diesel engine and two electric motors, identified as IM and TM. All three can supply power at the same time when additional driving force is needed, and their diesel engine meets China Stage IV emissions requirements for non-road machinery under GB 20891-2014.

These off-highway haul trucks have a box-section frame with composite fillet-welded joints to support heavy loads, along with hydropneumatic suspension on both the front and rear axles to absorb shocks as they travel over uneven ground. They also have full hydraulic steering and all-steel radial tires for travel on mine roads, while their U-shaped dump body helps keep material toward the center for more even loading.

  • Drive Configuration: 6×4
Request A Quote
Technical Specifications
Model ZT135HEV
Drive configuration 6 × 4
Curb weight (kg) 48800
Rated payload (kg) 92000
Total axle load (t) 141
Overall dimensions (mm) 10970 × 4500 × 4419
Wheelbase (mm) 4600+2000
Min. turning radius (m) 13
Max. gradeability (%) 36
Min. ground clearance (mm) 460
Max. speed (km/h) 40
Emission standard GB20891-2014 Ⅳ
Axle load 41+50+50
Tires 480/95R29
Internal body dimensions (m) 7.25 × 4.1 × 2
Body capacity (m³) Struck 55
Heaped (SAE 2:1) 66

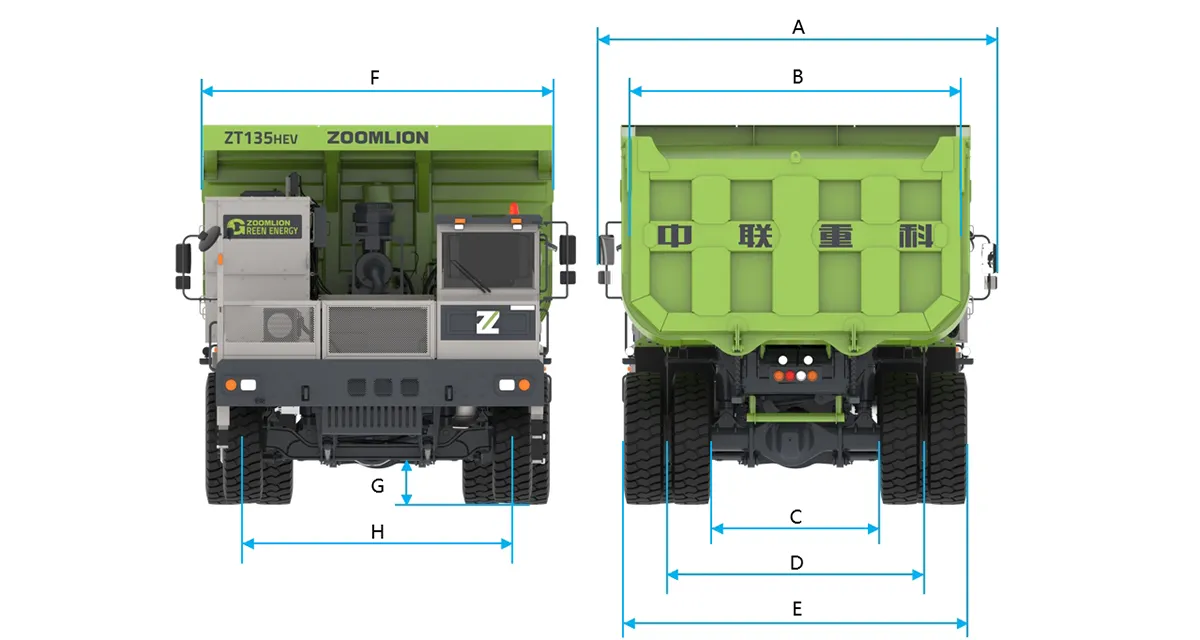

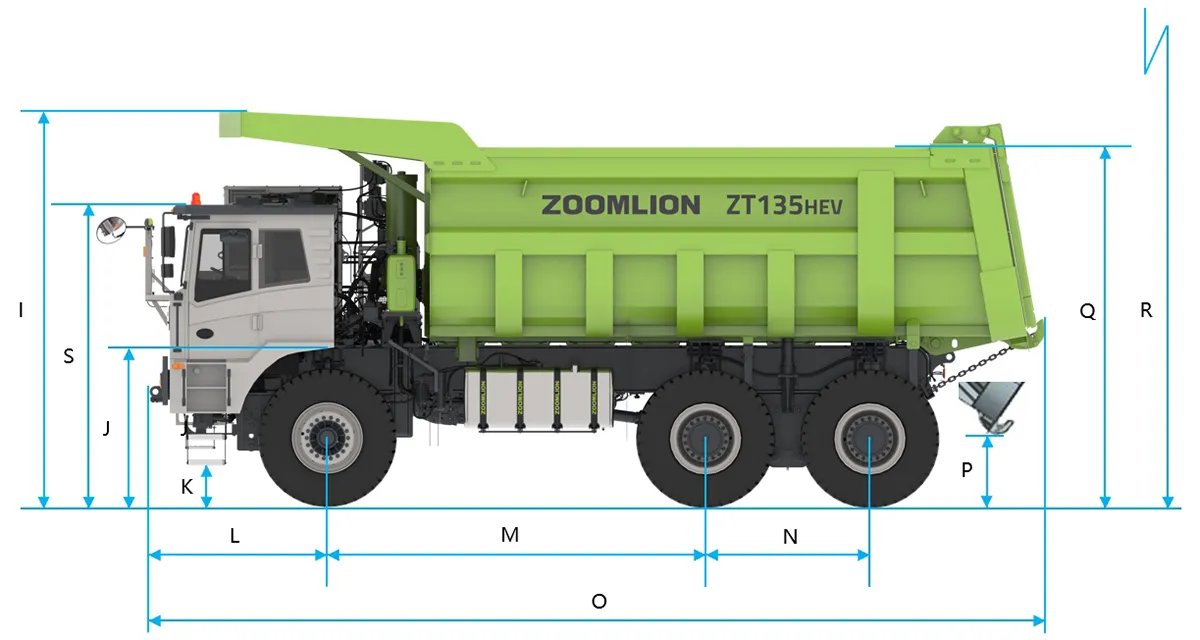

Overall Dimensions (mm)
ZT135HEV Mining Dump Trucks
ZT135HEV Mining Dump Trucks
Overall width A 4500 Front overhang L 2090
Body inner width B 4100 Front-to-middle axle spacing M 4600
Rear wheel inner width C 2144 Middle-to-rear axle spacing N 2000
Rear track D 3281 Overall length O 10970
Rear wheel outer width E 4370 Discharge height P 1080
Body width F 4434 Loading height Q 4120
Min. ground clearance G 460 Max. body lifting height R 9761
Front track H 3437 Cab roof height, unladen S 3740
Overall height I 4419 Max. body tipping angle / 45°
