ZT160HEV Mining Dump Trucks

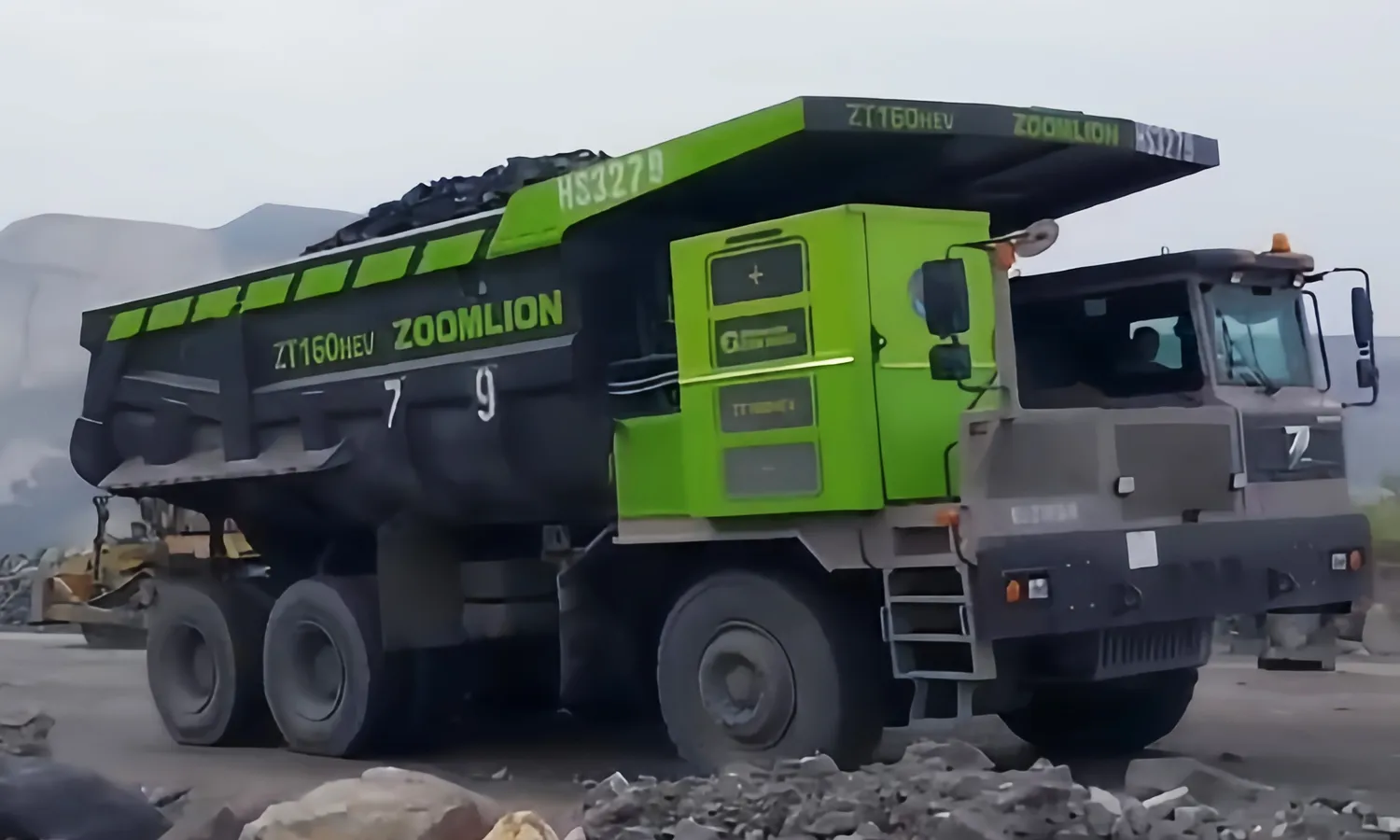

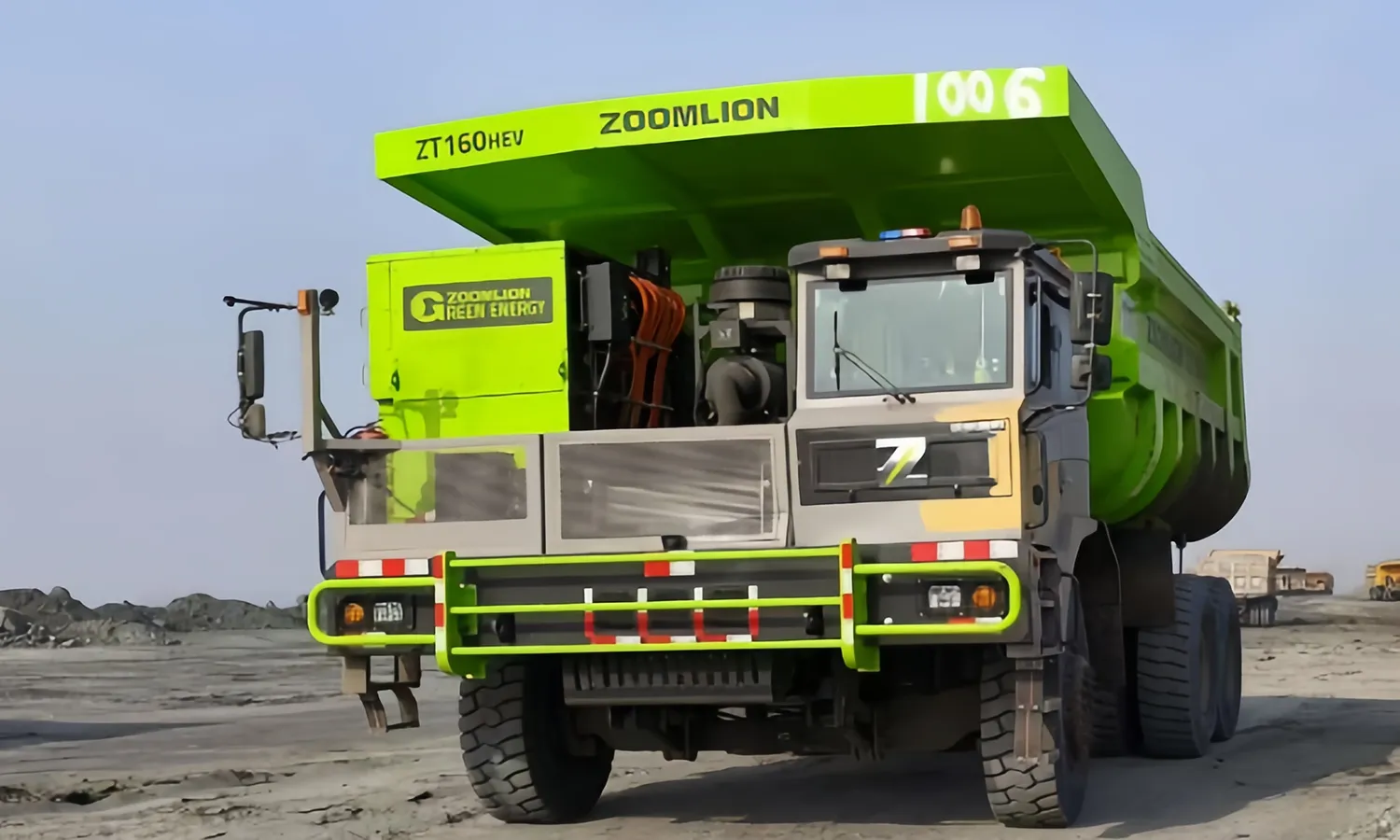

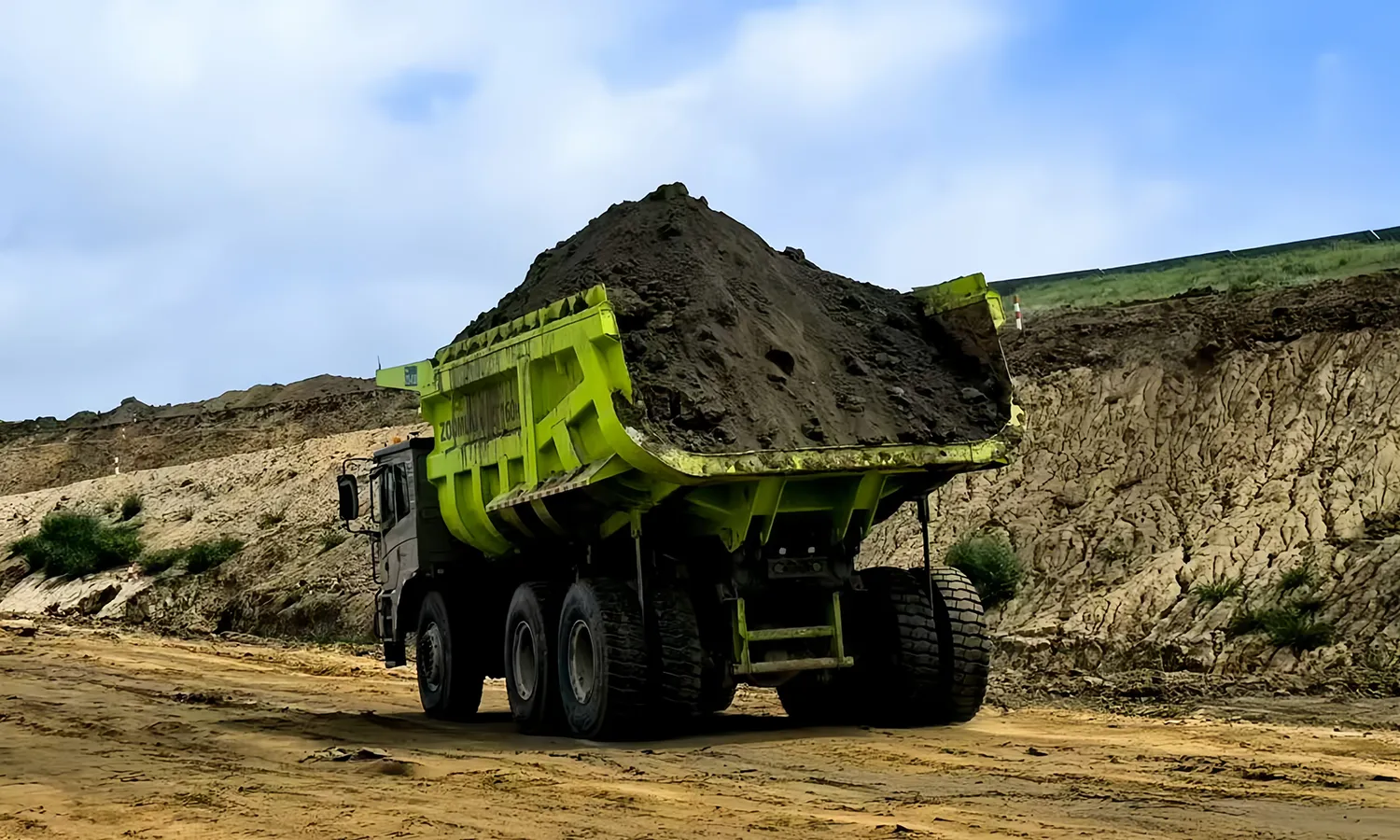

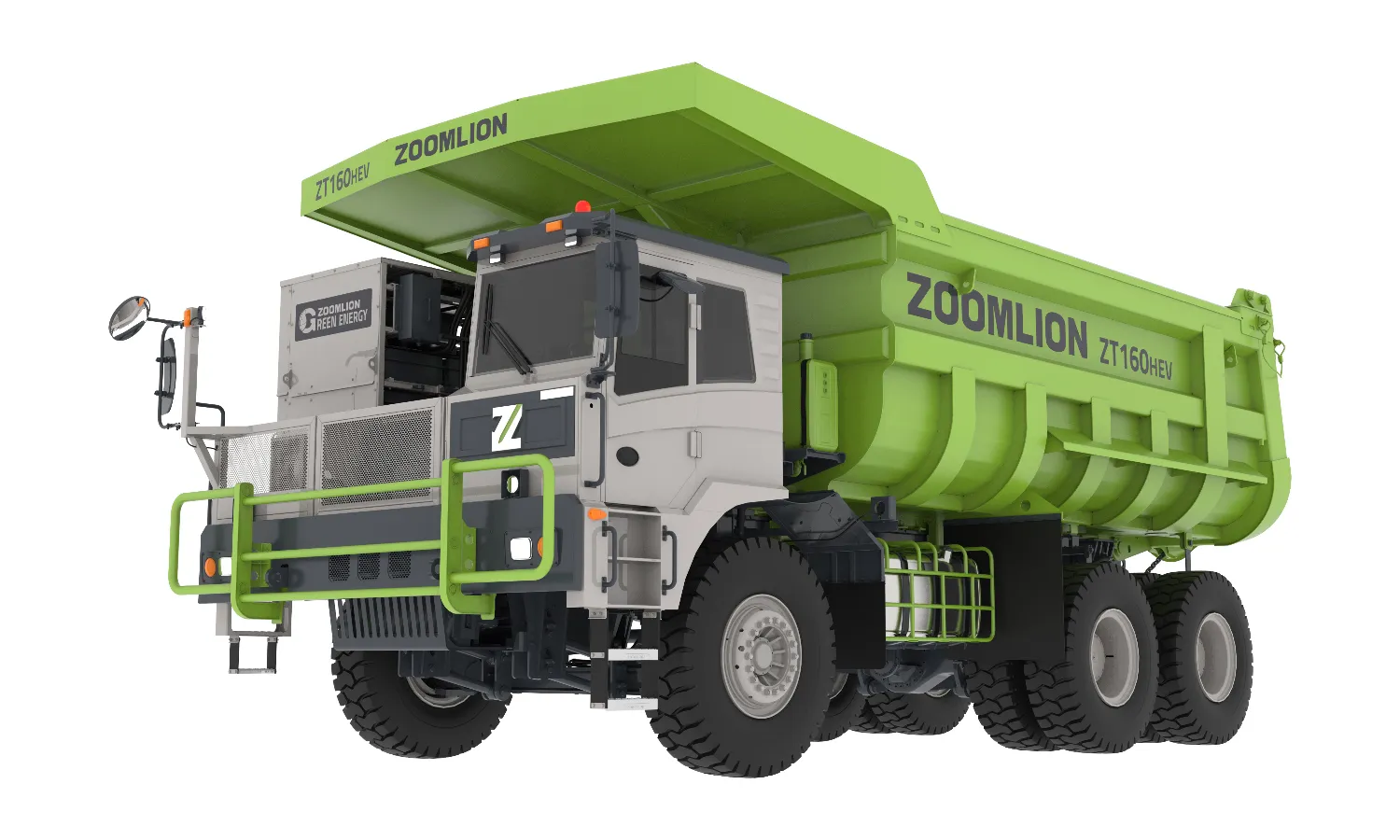

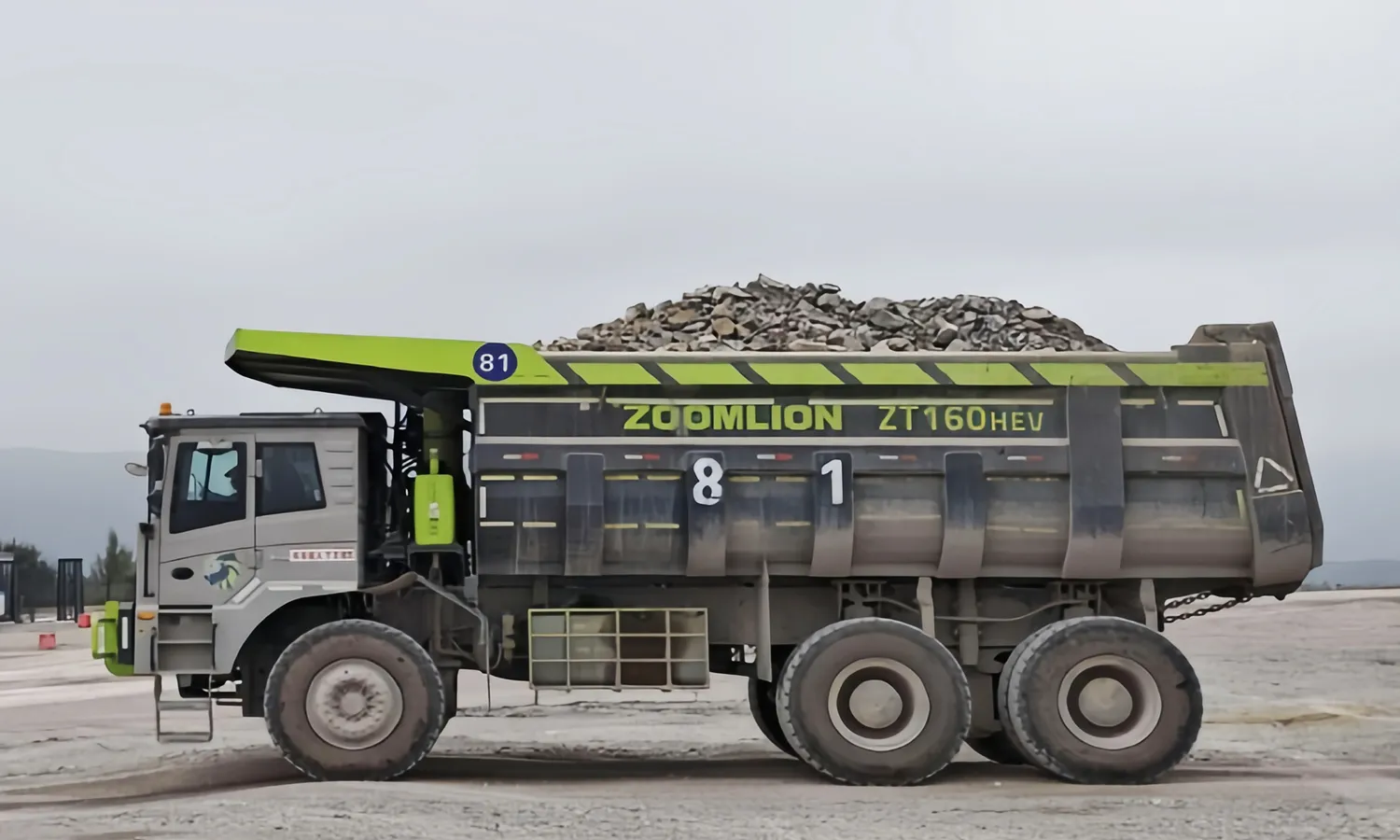

ZT160HEV Mining Dump Truck

The ZT160HEV hybrid mining dump trucks from ZOOMLION carry a rated payload of 100 tons for large open-pit mines, major foundation projects, and bulk material transport. Their series-parallel hybrid powertrain pairs a high-displacement diesel engine with two electric motors for a total output of over 1,000 hp, while the ZM-i Super Hybrid Energy Management System switches drive modes and manages energy use according to operating conditions. For loaded climbs and long-distance haulage, these wide-body haul trucks have a high-strength load-bearing structure and a braking system that coordinates multiple braking modes. Their factory-installed drive-by-wire chassis also provides a foundation for autonomous operation in mines.

  • Drive Configuration: 6×4
  • Curb Weight: 51,500 kg
  • Rated Payload: 100,000 kg
Request A Quote
Applications
  • Large Open-Pit Mines
    Overburden removal and ore haulage in coal, metal and non-metallic mineral mines
  • Major Infrastructure Projects
    Bulk earthmoving and material transport for water conservancy projects, highway construction and large-scale site preparation
  • Industrial Material Transport
    Coal and ash handling at power plants, as well as bulk cargo transport at ports, including operations with environmental requirements
  • Challenging Mining Environments
    Heavy-load haulage in high-altitude mines, dusty desert regions and along long, steep haul roads.
  • Smart and Autonomous Mines
    Unmanned haulage operations in intelligent mining projects, with support for more than 18 hours of continuous autonomous transport
Technical Specifications
Model ZT160HEV
Drive configuration 6 × 4
Curb weight (kg) 51500
Rated payload (kg) 100,000
Total axle load (t) 161
Overall dimensions (mm) 10970 × 4500 × 4830
Wheelbase (mm) 4600+2000
Min. turning radius (m) 13
Max. gradeability (%) 36
Min. ground clearance (mm) 485
Max. speed (km/h) 42
Emission standard GB20891-2014 Ⅳ
Axle load 41t+60t+60t
Tires 505/95R29 (all-steel radial tire)
Internal body dimensions (m) 7.25 × 4.1 × 2.15
Body capacity (m³) Struck 61
Heaped (SAE 2:1) 73

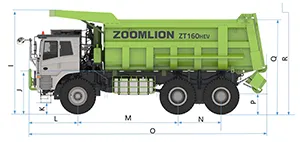

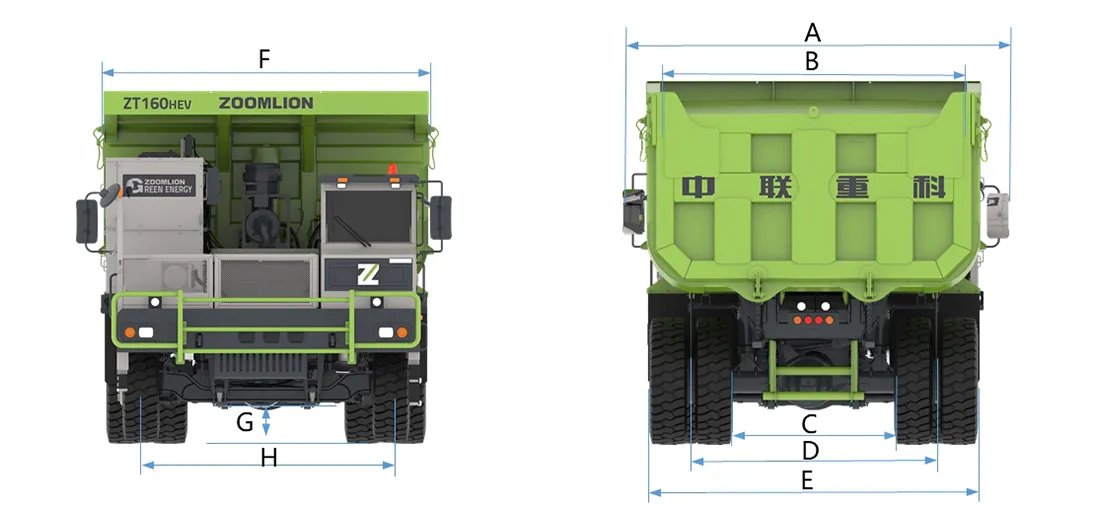

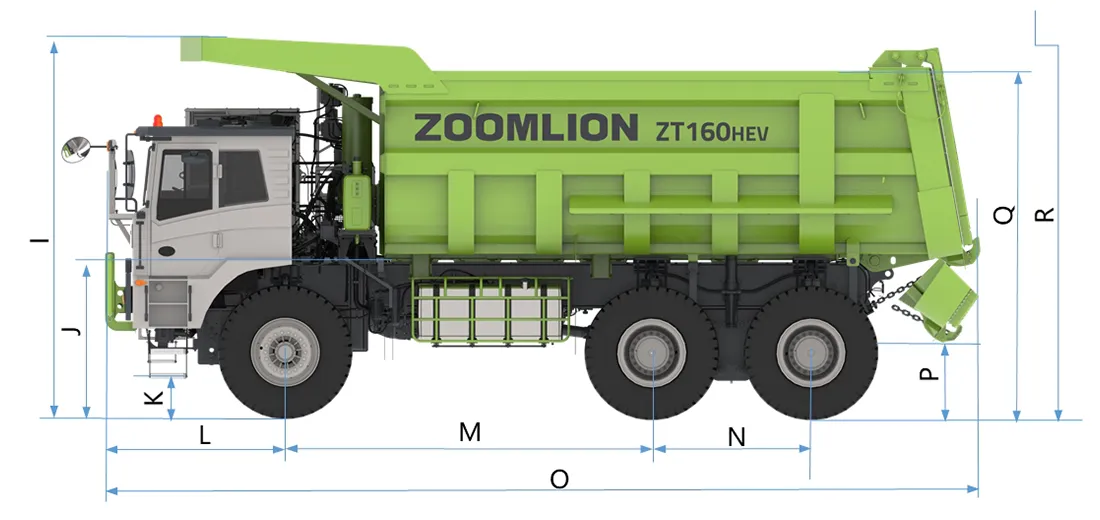

Overall Dimensions (mm)
ZT160HEV Mining Dump Trucks
ZT160HEV Mining Dump Trucks
Overall width A 5112 Frame top height J 1986
Body inner width B 4100 Step height K 550
Rear wheel inner width C 2153 Front overhang L 2217
Rear track D 3236 Front-to-middle axle spacing M 4600
Rear wheel outer width E 4311 Middle-to-rear axle spacing N 2000
Body width F 4500 Overall length O 10970
Min. ground clearance G 485 Discharge height P 1041
Front track H 3437 Loading height Q 4392
Overall height I 4830 Max. body lifting height R 9865
